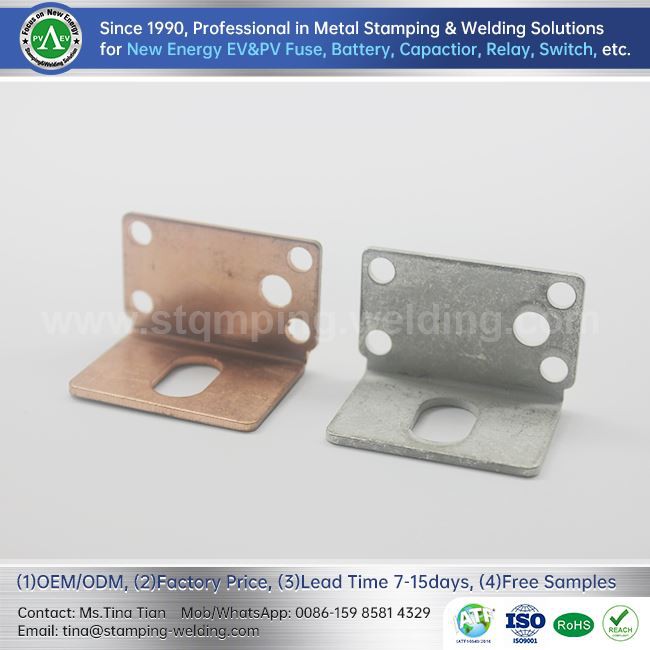

New Energy Vehicle Fuse L-shaped Contact Knife

The New Energy Vehicle Fuse L-shaped Contact Knife is a specialized electrical component designed for reliable and secure electrical connections within the fuse box of electric and hybrid vehicles, ensuring safe and efficient power distribution.





WORKING PRINCIPLE

——

The New Energy Vehicle Fuse L-shaped Contact Knife operates based on a simple yet crucial principle in automotive electrical systems. When an electrical circuit in a new energy vehicle experiences an overload or short circuit, the fuse is designed to protect the circuit by breaking and interrupting the flow of electrical current. The L-shaped contact knife is a critical component within the fuse holder. When excessive current flows through the fuse, the associated heat causes the fuse element to melt or break. Simultaneously, the L-shaped contact knife is forced open due to the expanding force from the fuse element. This action physically separates the electrical contacts, interrupting the circuit and preventing further electrical damage or fires. It effectively acts as a safety switch that responds to overcurrent conditions, ensuring the protection of the vehicle's electrical systems and components, as well as the safety of passengers and the vehicle itself.



FUNCTIONS

——

Function	Description
Overcurrent Protection	Monitors the electrical circuit and responds to overcurrent conditions by breaking the circuit to prevent damage to components and systems.
Short Circuit Protection	Detects short circuits and rapidly interrupts the circuit, preventing dangerous electrical currents that can lead to fires or component damage.
Electrical System Safety	Safeguards the entire electrical system in new energy vehicles by ensuring that excessive current does not cause harm to critical components.
Fire Prevention	Acts as a crucial safety feature, reducing the risk of electrical fires by disconnecting power when abnormal electrical conditions are detected.
Component and System Protection	Protects various vehicle components, including the battery, motor, and electronics, from potential damage due to electrical faults.
Passenger Safety	Enhances passenger safety by minimizing the risk of electrical system failures or fires, especially in new energy vehicles powered by high-voltage batteries.
Reliable Circuit Interruption	Ensures reliable and rapid interruption of the electrical circuit when overcurrent or short circuit events occur.
Maintenance and Troubleshooting Aid	Helps with diagnosing electrical issues, as a tripped fuse indicates a problem in the circuit that requires attention.
System Reset Capability	Allows for circuit restoration once the underlying issue is resolved, preventing long-term disruptions to vehicle operation.





APPLICATIONS

——

1. Battery Protection:

• Battery Pack: NEV batteries, whether lithium-ion or other types are vulnerable to overcurrent conditions that can lead to thermal runaway or fire. The L-shaped contact knife protects the battery by interrupting the circuit during a fault, preventing catastrophic failures.

2. Power Distribution:

• Fuse Box: The L-shaped contact knife is commonly found in the vehicle's fuse box or distribution panel, where it protects various electrical circuits. It ensures that if a circuit experiences excessive current due to a fault, it is disconnected swiftly to prevent further damage.

3. Electric Drive System:

• Electric Motor: In electric and hybrid vehicles, the electric motor is a critical component. The L-shaped contact knife helps protect the motor and its associated control systems from overcurrent conditions.

4. Charging System:

• Charging Port: During the charging process, the L-shaped contact knife guards against potential electrical issues that could arise, protecting both the vehicle and the charging infrastructure.

5. Electronics and Control Systems:

• Onboard Control Units: Various electronic control units (ECUs) manage the vehicle's systems. The L-shaped contact knife safeguards these sensitive components from electrical faults.

6. Safety Systems:

• Airbags and Safety Systems: In the event of a fault, the L-shaped contact knife ensures the continued operation of critical safety systems such as airbags, lights, and communication systems.

7. Environmental Protection:

• Preventing Fires: Electric and hybrid vehicles have high-voltage systems that pose a fire risk if not properly protected. The L-shaped contact knife is a vital safety component in minimizing this risk.

8. Emergency Shut-Off:

• Emergency Response: In the event of an accident or emergency, the L-shaped contact knife allows for rapid electrical system shut-off, facilitating the work of first responders.

9. Diagnostic and Troubleshooting:

• Maintenance and Repairs: The L-shaped contact knife can aid technicians in diagnosing electrical problems. When it trips, it indicates a fault that requires attention, helping with troubleshooting.

10. Regulatory Compliance:

• Safety Standards: Compliance with safety standards and regulations is paramount for NEVs. The L-shaped contact knife ensures vehicles meet these requirements by providing an essential safety mechanism.





PACKAGING AND TRANSPORTATION

——

The packaging and transportation of the New Energy Vehicle (NEV) Fuse L-shaped Contact Knife are crucial to ensuring the integrity and functionality of this essential automotive component. These contact knives are meticulously packaged to prevent damage during transit. They are typically placed in custom-designed boxes, trays, or containers with cushioning materials such as foam or bubble wrap to absorb shocks and vibrations. Clear labeling and identification are essential for efficient inventory management and easy retrieval. Depending on the quantity and size of the contact knives, they may be packed into larger cartons or crates for bulk shipping. To protect against environmental factors like moisture and dust, they may be sealed in moisture-resistant packaging. Transporting these components requires strict adherence to handling guidelines to prevent any deformation or damage, and selecting reliable shipping partners experienced in the transportation of delicate automotive components ensures that NEV Fuse L-shaped Contact Knives arrive at their destination in optimal condition, ready for integration into vehicle electrical systems.







FAQ

——

Q1: DO YOU TEST ALL YOUR GOODS BEFORE DELIVERY?
A1: Yes, we have 100% test before delivery.



Q2: DO YOU ACCEPT OEM?

A2: Yes. All sizes can be customized. The logo can be made as per your request.



Q3: WHAT IS YOUR TERMS OF PAYMENT?
A3: Usually, we accept T/T, irrevocable L/C at sight, for regular orders, we prefer 30% in advance,70% against the copy of B/L.



Q4: CAN YOU PROVIDE SAMPLES?
A4: Yes, but the sample fee and freight will be paid by your company.



Q5:WHAT’S YOUR DELIVERY TIME?
A5: About 5-7 days for samples,15-20 days for mass production.



Q6: HOW TO ARRANGE DELIVERY?
A6:If you have a forwarder in China, we can send you the goods by your forwarder.
If you have no forwarder in China, we arrange the delivery directly from the factory by international express, by air, and by sea, it’s up to you.



Q7:HOW TO OBTAIN A QUOTE?

A7:Product prices fluctuate with fluctuations in raw materials and exchange rates. You can contact us with your requirements and we will provide you with the latest quotation as soon as possible.
