Charging cabinet industry knowledge analysis

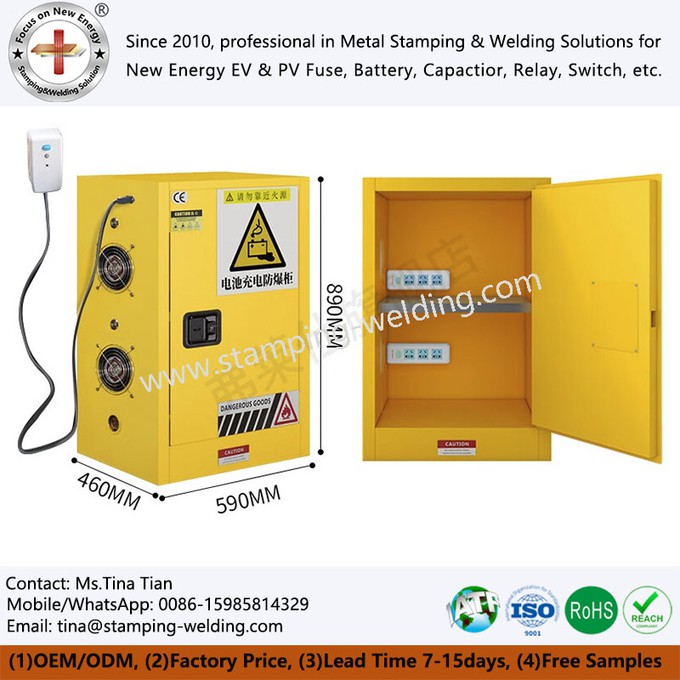

Modular Battery Charging Cabinet is a centralized charging equipment designed for a variety of lithium batteries. It adopts an independent compartment structure to achieve simultaneous charging of multiple batteries. It is widely used in public places such as shopping malls, communities, schools, takeaway distribution outlets, logistics outlets, and urban villages. The core of this type of equipment focuses on safety protection and convenient management. It is equipped with double fire protection structures, automatic fire extinguishing devices and intelligent monitoring systems. It supports scan code access, dynamic charging control and remote management functions. Stationary battery charging cabinets are one of the most commonly used types in public places. Up to now, mainstream products have integrated circuit protection and safety designs such as overload protection, leakage protection, real-time monitoring, abnormality warning, temperature alarm, and water immersion detection. Some models comply with international safety standards such as OSHA 29 CER 1910.106, NFPA CODE30, and national standard GB/T 42236.1-2022 to ensure the safety of personnel and equipment during use.

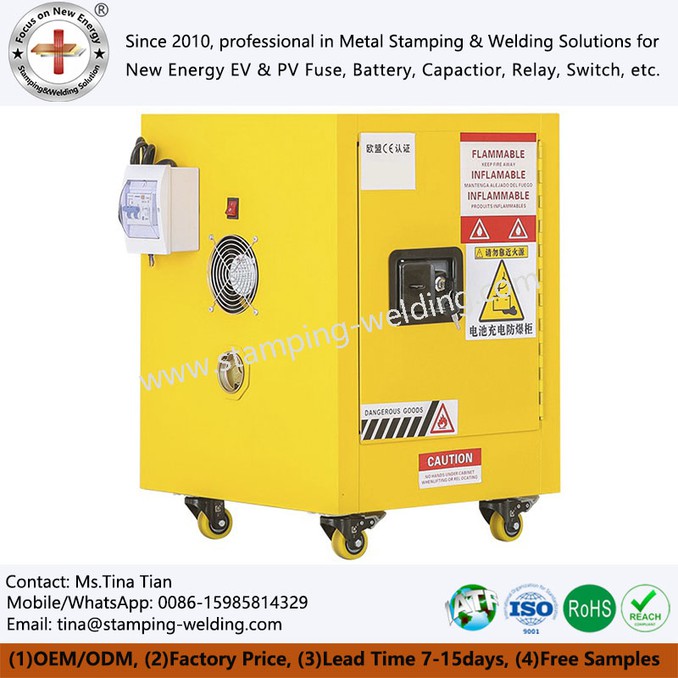

At the product design level, charging and swapping cabinets are divided into type A (only charging sockets are provided, users need to bring their own chargers) and type B (built-in charging device) according to the charging mode. According to the working environment conditions, they are divided into type I (-40℃ ~ +50℃) and type II (-5℃ ~ +70℃). In terms of physical structure, the size of the charging compartment is required to be no more than 450mm wide, no more than 400mm high, and no more than 500mm deep. The same cabinet can be mixed and matched with different-sized compartments, and the large-sized compartments should be located at the bottom. Each charging bin must have a power monitoring function (with a monitoring error within ±2%) and a voltage and current monitoring function. When the input/output current or voltage exceeds the rated value, monitoring information will be automatically sent. The Portable Battery Charging Cabinet is suitable for temporary or mobile charging needs due to its flexible deployment characteristics.



























































In practical applications, charging cabinets are mainly used in scenarios such as takeout distribution outlets, logistics outlets, urban villages, and temporary parking lots for electric vehicles. They are also deployed in public places such as shopping malls and transportation stations. Operational features include providing 24-hour service, requiring no manual attendance, supporting multiple scene delivery, and having fault monitoring functions. The industry is promoting the unified adoption of the national standard GB/T 42236.1-2022 to solve problems such as different technical indicators, inconsistent test methods, and uncoordinated fault and fire monitoring. On August 25, 2025, a charging cabinet fire occurred in Jieyang, Guangdong due to spontaneous combustion of lithium batteries during charging. No casualties were caused, but it highlighted the importance of safety design.















































































The intelligent management system is one of the core competitiveness of modern charging cabinets. It has built-in high-precision sensors and intelligent control systems that can monitor key parameters such as battery current, voltage, and temperature in real time. When abnormal conditions such as battery overheating and excessive current are detected, the user will be reminded through sound, light or a mobile APP, and the charging parameters will be automatically adjusted or the power will be cut off to eliminate safety hazards, and abnormal information will be recorded and uploaded to the cloud. In addition, the system also supports a variety of payment methods and is equipped with functions such as self-stop, power-off memory, OTA upgrade, and password opening to improve the convenience of use. Some high-end products also integrate inverter battery cabinet-related functions to achieve efficient conversion and utilization of electric energy.





Our products Standard Battery Charging Cabinet strictly implement dual fire protection structures, automatic fire extinguishing systems and intelligent monitoring and early warning. They support remote management and multiple payment methods. Different power levels and warehouse combinations can be flexibly selected according to customer deployment scenarios (fixed sites or temporary mobile needs). Welcome to contact us for customized charging safety solutions.
