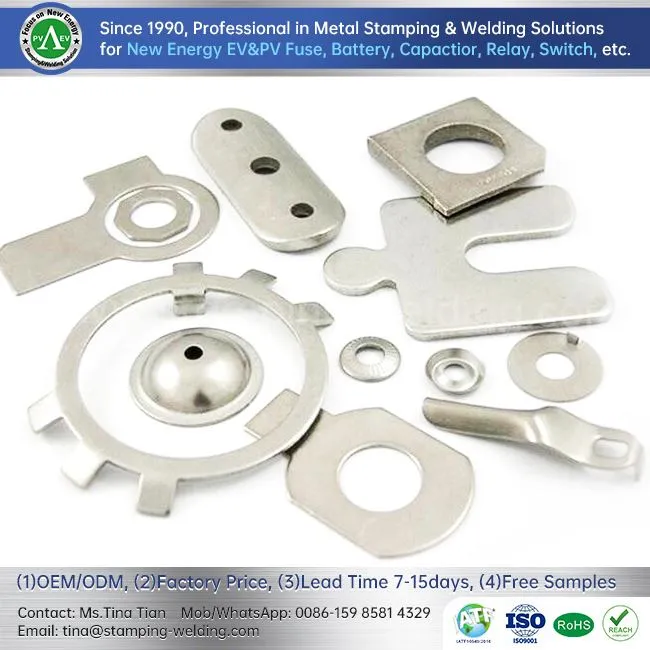

Galvanized Sheet Stamping Parts For Electric Vehicles

Galvanized Sheet Stamping Parts For Electric Vehicles

Galvanized sheet stamping parts for electric vehicles refer to metal components made from galvanized steel sheets using the stamping process. Galvanized steel is a type of steel that has been coated with a layer of zinc to protect it from corrosion. Stamping, on the other hand, is a metal-forming process that involves cutting, bending, and shaping metal sheets to create various components with precise dimensions and shapes.

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

PRODUCT INTRODUCTION

Galvanized sheet stamping parts for electric vehicles refer to metal components made from galvanized steel sheets using the stamping process, specifically designed and manufactured for use in electric vehicles (EVs). Galvanized steel is a type of steel that has been coated with a layer of zinc to protect it from corrosion. The stamping process involves cutting, bending, and shaping the galvanized steel sheets into various precise forms and dimensions to create specific parts required in the assembly of electric vehicles.

Galvanized sheet stamping parts

PRODUCT MATERIALS

Galvanized sheet stamping parts for electric vehicles can be made from a variety of materials, but the most common material used is galvanized steel. Galvanized steel is a type of carbon steel that has been coated with a layer of zinc through a process called galvanization. This coating provides excellent corrosion resistance, making it a preferred choice for automotive applications, including electric vehicles (EVs). The zinc coating acts as a protective barrier, preventing the underlying steel from rusting or corroding when exposed to moisture, salt, or other environmental factors.

Apart from galvanized steel, other materials can also be used for specific applications in electric vehicles. Some of the materials used in the product include:

Aluminum: Using aluminum as a raw material is prevalent in various industries due to its unique combination of properties, making it a versatile and sought-after material. Aluminum is a lightweight, non-ferrous metal with excellent strength-to-weight ratio, corrosion resistance, and conductivity.
High-Strength Steel: High-strength steels are designed to offer enhanced strength and rigidity without sacrificing formability. They are often used in critical areas of the vehicle, such as safety components and structural reinforcements.
Copper Alloys: Copper alloys are used in some electrical and electronic components due to their excellent electrical conductivity. They can be used in stamping parts for EVs in applications like connectors and terminals. Copper is a soft, ductile, and ductile metal with excellent conductivity and thermal conductivity.
Advanced High-Strength Steel (AHSS): Using high-strength steel as a raw material is a strategic choice in various industries, particularly in applications where superior strength, toughness, and weight reduction are critical. High-strength steel is a type of steel that has been specially alloyed to exhibit increased mechanical properties compared to conventional steel. It offers an excellent strength-to-weight ratio, making it an attractive option for numerous engineering and manufacturing applications.

Material avaible for fuse cap

PRODUCT FUNCTIONS

The stamping parts play a crucial role in the manufacturing and assembly of electric vehicles (EVs). These components, made from galvanized steel or other suitable materials, serve various purposes and contribute to the overall performance, safety, and aesthetics of the EV. Here are some key roles of galvanized sheet stamping parts in electric vehicles:

Structural Integrity: The stamping parts are used to create critical structural components of the vehicle, such as body panels, chassis components, and frame members. These parts provide the necessary strength, rigidity, and support to maintain the vehicle's structural integrity.
Battery Enclosures: Electric vehicles use galvanized sheet stamping parts to manufacture battery enclosures. These enclosures protect the battery pack from external elements and ensure its secure placement within the vehicle.
Safety Components: The products are used to create safety components such as reinforcement beams, crumple zones, and impact-absorbing structures. These parts enhance occupant safety by absorbing and dissipating energy during collisions.
Heat Management: Stamping parts made from galvanized steel can also be used in thermal management systems. For instance, they can be used in heat shields, radiator supports, and other components to help manage and direct heat away from sensitive areas.
Mounting Brackets and Support Structures: The products are used to create mounting brackets and support structures for various vehicle components. These parts ensure proper positioning and secure attachment of critical systems, such as the electric motor, battery, and electronic control units.
Electrical and Electronic Components: Some galvanized sheet stamping parts are used in the manufacturing of electrical and electronic components. These can include connectors, terminals, and sensor housings that require corrosion resistance and robust electrical conductivity.
Interior and Exterior Trim: The stamping parts are utilized for creating interior and exterior trim pieces, contributing to the overall aesthetics and design of the electric vehicle.
Lightweight Solutions: In addition to galvanized steel, other materials like aluminum are used in stamping parts to reduce overall vehicle weight, enhancing energy efficiency and extending the driving range of the EV.

galvanized sheet stamping

PRODUCT APPLICATIONS

The stamping parts find wide-ranging applications in electric vehicles (EVs) due to their unique properties and advantages. These components, made from galvanized steel or other materials, play a crucial role in the manufacturing and functioning of electric vehicles. Here are some of the key applications of this product:

Vehicle Body and Structure: The stamping parts are used to create various body and structural components of electric vehicles. This includes body panels like doors, hoods, fenders, roof panels, and trunk lids, as well as structural members like frame rails, pillars, and cross-members. These parts contribute to the vehicle's overall rigidity, safety, and aesthetics.
Battery Enclosures: Battery enclosures are essential components that protect the battery pack, which is a critical part of an electric vehicle. The parts are used to manufacture these enclosures, providing a protective housing for the battery and ensuring its integrity and safety.
Chassis Components: Stamping parts made from galvanized steel are used in the production of various chassis components, including brackets, supports, and reinforcements. These components enhance the vehicle's structural integrity and contribute to its stability and handling.
Safety Systems: The stamping parts play a role in the creation of safety systems in EVs. They are used to fabricate components like crash-absorption structures, energy-absorbing crumple zones, and reinforcement beams. These safety features help protect passengers and occupants during collisions.
Heat Shields and Thermal Management: Some of the products are used as heat shields or components in the thermal management systems of electric vehicles. They help manage and direct heat away from sensitive areas and contribute to the efficient cooling of the vehicle's powertrain components.
Mounting Brackets and Support Structures: The stamping parts are employed to create mounting brackets and support structures for various EV components. These parts secure and position critical systems such as the electric motor, battery pack, and electronic control units.
Interior and Exterior Trim: Stamping parts made from galvanized steel are utilized to create interior and exterior trim pieces in electric vehicles. These components add finishing touches to the vehicle's design and enhance the overall aesthetics.
Electrical and Electronic Components: The stamping parts are used in the manufacturing of electrical and electronic components like connectors, terminals, sensor housings, and other critical parts of the EV's electrical systems.
Busbars and Conductive Components: The product can also be used as busbars and conductive components for distributing electrical power efficiently within the vehicle's electrical system.

application2

PRODUCT EQUIPMENT

Stamping Presses: Stamping presses are the primary machines used to cut and shape galvanized sheet metal into the desired forms. They come in various sizes and tonnages to handle different thicknesses and complexities of parts.
Dies and Tooling: Dies and tooling are critical components that determine the final shape and dimensions of the stamped parts. Proper tool design ensures accurate and consistent production.
Welding Machines: Some stamping parts may require additional welding or assembly processes. Welding machines, such as resistance spot welders or MIG welders, are used for this purpose.
Quality Control Equipment: Quality control is essential to ensure that the stamped parts meet the required specifications and standards. Measurement tools like calipers, micrometers, and vision systems are used for inspection.
Surface Treatment Equipment: Depending on the design requirements, some parts may undergo surface treatments like painting, powder coating, or plating. Proper equipment for surface preparation and finishing is necessary.
Material Handling Equipment: Material handling equipment, such as cranes, forklifts, and conveyors, is used to move raw materials, stamped parts, and finished products throughout the workshop.
Safety Equipment: Safety is a priority in any workshop. Safety equipment like protective gear, guards for machines, and safety interlocks should be in place to protect workers from potential hazards.
Maintenance Tools: Regular maintenance of the equipment is crucial to ensure smooth and reliable production. Basic maintenance tools and equipment should be readily available in the workshop.
Workstations and Benches: Workstations equipped with necessary tools and benches are essential for assembling and inspecting parts.
Workshop Tools: Various hand tools, power tools, and equipment like saws, drills, and grinders are used for cutting, drilling, and finishing processes.

workshop

QUALITY ASSURANCE

Quality assurance is a vital aspect of any manufacturing process, including the production of stamping parts for electric vehicles. Ensuring consistent and reliable quality is crucial to meet customer requirements, complying with industry standards, and enhancing the overall performance and safety of electric vehicles.

Design Validation: Quality assurance starts with thorough design validation. Ensure that the designs of the stamped parts are carefully reviewed, and any potential issues are identified and addressed before production begins.
Material Inspection: Conduct a rigorous inspection of the galvanized sheet materials before they enter the production process. This includes verifying the quality of the galvanized coating, checking for any defects, and ensuring material compliance with industry standards.
Process Control: Implement strict process control measures throughout the stamping process. Regularly monitor critical process parameters to maintain consistency and accuracy in part production.
Tool Maintenance: Regularly maintain and inspect the stamping dies and tooling to ensure their proper functioning. Properly maintained tools contribute to the quality and precision of the stamped parts.
In-Process Inspection: Perform frequent in-process inspections to check the quality of the stamped parts at various stages of production. This helps identify any deviations from specifications early in the process, allowing for corrective action.
Quality Testing and Inspection: Conduct comprehensive testing and inspection of the finished galvanized sheet stamping parts. Use various quality control tools, such as dimensional inspections, hardness testing, surface finish evaluation, and material analysis, to ensure parts meet required standards.
