Deep analysis of structural components design for Power Battery Cell

The Power Battery Cell plays a crucial role in the battery system, mainly responsible for key functions such as energy transfer, electrolyte carrying, safety protection, cell fixing and support, and neat appearance. Its design rationality directly determines the safety, airtightness, and energy efficiency of Lithium Batteries. From the perspective of market development trends, relevant data shows that the market size of China's lithium battery structural components will reach 52.6 billion yuan in 2024, a year-on-year increase of 86.2%. Among them, square battery structural components have long dominated the market, accounting for 90.7%, while cylindrical battery structural components only account for 9.3%. The formation of this market pattern is mainly due to the rapid development of the new energy vehicle market, which has driven the expansion of production capacity and the increase in single order volume of power battery enterprises. The square battery structure is more suitable for large-scale production needs and has significant industrialization advantages. ​

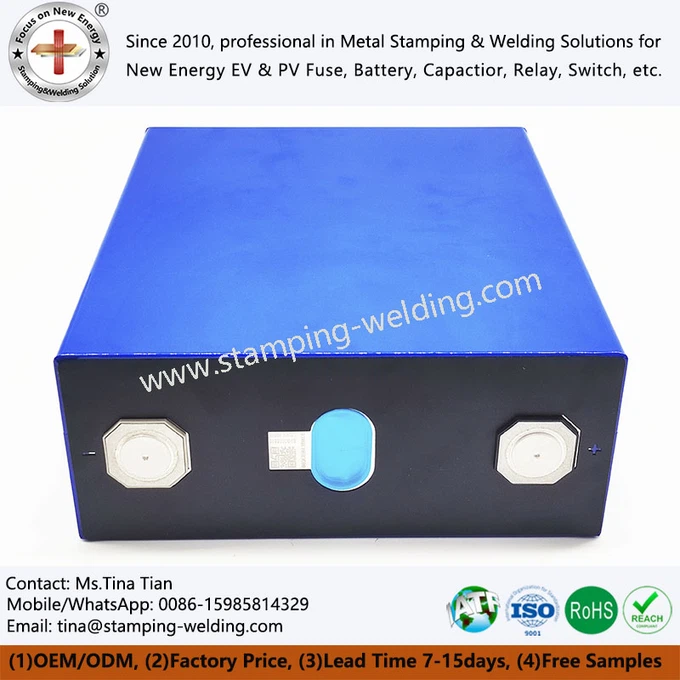

The lithium ion batteries core consists of two main parts: the shell and the cover plate. The manufacturing process of the shell is relatively simple, and it is mostly processed by continuous stretching technology. The material is mainly steel or aluminum shell, which has high structural strength and excellent mechanical load bearing capacity. Compared to the shell, the manufacturing process of the cover plate is more complex, integrating multiple key functions including fixed sealing, current conduction, pressure relief protection, fuse protection, and electrical corrosion suppression. For example, the top cover and aluminum shell are tightly connected through laser welding, which can fix bare cells and ensure sealing performance; The welding conductivity between the top cover pole, adapter piece, and battery cell ear is the key to ensuring smooth transmission of battery cell charging and discharging current; When there is an abnormality inside the battery causing an increase in air pressure, the explosion-proof valve on the top cover will open in time to release pressure, effectively reducing the risk of explosion. As an important protective barrier for Lifepo4 Power Cells, the market prospects of square shell battery cell structural components are becoming increasingly broad with the continuous expansion of the new energy vehicle and energy storage markets.

Shell: Basic protection and load-bearing core: As the basic component of the square shell battery cell structure, the shell plays a core role in battery cell fixation, safety protection, sealing guarantee, and heat dissipation regulation. As a full lifecycle isolation barrier between the active substances inside the battery cell and the external environment, the shell can form a stable fixation for the internal electrochemical system, ensuring that Lithium SuperPack Batteries maintain structural stability in various application environments. On the protection level, the shell can withstand a certain strength of mechanical impact, avoiding external forces from damaging the internal structure of the battery cell; The sealing performance directly ensures that the electrolyte does not leak and maintains the normal working state of the battery. Finished aluminum alloy lithium battery products. At the same time, the shell also serves as a heat dissipation function, which can timely dissipate the heat generated during the operation of the battery, thereby improving the safety and service life of the battery. The production of the shell requires multiple processes, such as raw material cutting, precision continuous deep drawing, cutting, cleaning, drying, and testing to provide guaranteed protection for the Battery Pack Kit. Precision continuous stretching is the core and difficult process, which requires a strict guarantee of the uniformity of the shell wall thickness to avoid fracture problems during the processing. Compared with the conventional one-time stamping process, precision continuous stretching requires higher precision of the mold and performance of the stretching equipment. High-quality molds and advanced equipment are the core barriers to ensuring the dimensional accuracy and performance stability of the shell.

Cover plate: Function integration and safety assurance key: The cover plate is the most functionally integrated component in Lithium-ion Batteries for Solar Products, responsible for multiple critical functions such as connection, isolation, sealing, and explosion prevention. The steel cap at the top of the cover plate has high structural strength, which can effectively resist external deformation and protect the explosion-proof aluminum sheet. It is also the connection carrier during the assembly process of the Lithium Ion Battery for the Solar Energy System. The sealing ring on the outermost edge of the cover plate can achieve isolation and insulation between the metal parts inside the composite cap and the battery steel shell, preventing short circuit faults inside the battery and ensuring sealing performance after the battery is sealed. Explosion-proof components are the core safety components of the cover plate, mainly used for power-off and pressure relief when the battery is overloaded, to avoid the risk of explosion caused by high internal pressure. They consist of isolation rings, explosion-proof aluminum sheets, and connecting aluminum sheets.

Design of New Explosion-Proof Valve: Space Optimization and Safety Upgrade: In the innovative design practice of Lithium Solar Batteries, structural components, various new structural solutions have effectively improved battery performance and safety. In the design of the new explosion-proof valve, the explosion-proof valve is placed on the opposite side of the positive and negative poles and facing the ground. This layout optimization eliminates the need to reserve explosion-proof space on the upper part of the battery cell, greatly improving the utilization of internal space in the battery cell shell. Relevant research data shows that this design can increase the volumetric energy density by about [X]%. At the same time, in practical application scenarios, if the product experiences thermal runaway due to high temperature, the explosion of the explosion-proof valve will not cause harm to drivers, passengers, or equipment operators, effectively eliminating personal safety hazards.

Integrated Design: Efficiency Enhancement and Cost Optimization: Integrated design is an important direction for optimizing the structure of the Battery for the Lithium Ion Energy Storage System. Some design schemes adopt an integrated layout of liquid-cooled plates, busbars, and sampling harnesses, which has multiple significant advantages. Liquid-cooled plates can quickly reduce the working temperature of battery cells, ensuring that they always operate within the appropriate temperature range, thereby improving their performance and service life. Actual test data shows that square shell battery cells using integrated liquid-cooled plates can reduce temperature by [X] °C compared to traditional designs under continuous high load working conditions. In addition, integrated designs significantly reduce the number of components, simplify installation processes, effectively improve production efficiency, reduce overall manufacturing costs, and enhance product market competitiveness.

This article focuses on the structural components of Power Battery Cell, explaining their core position and market pattern in battery systems, elaborating on the functions and processes of core components such as shells and covers, introducing multiple innovative design cases, and summarizing key design points. Intended to systematically present the design logic of structural components, highlighting their critical role in the safety and performance of lithium batteries, and providing a reference for industry-related practices.
