Detailed explanation of Press-Welded Connectors and polymer diffusion welding industry knowledge

Copper foil soft connection is a high-current flexible conductive connection made by superimposing and welding multiple layers of high-purity copper foil. It is often formed using pressure welding technology such as polymer diffusion welding. Flexible Copper Bus Bars are widely used in high-current flexible connection scenarios in new energy vehicles, power equipment, metallurgy, chemical industry and other fields due to their excellent conductivity and flexibility. This product has the characteristics of high conductivity, low resistance, good flexibility, and strong shock resistance. The surface is often tin-plated or silver-plated to enhance corrosion resistance. It has a wide operating temperature range and can adapt to a variety of complex working conditions.

























































The raw material of copper foil soft connection is generally T2 or above grade copper tape, the copper content is usually above 99.95%, the thickness of a single copper foil ranges from 0.03mm to 1mm, and the product structure can be made into U-shaped and other special-shaped styles according to actual application requirements. Its main manufacturing process is polymer diffusion welding (also known as molecular diffusion welding), which uses high-current and high-temperature heating to fuse and pressure-weld the contact surfaces of multiple layers of copper foil. Another common process is brazing, which requires the use of silver-based solder for connection. The process selection of the Copper Foil Multi-Layer Welding Busbar is closely related to the product size.















































































Achieving ideal diffusion welding connection results requires precise control of multiple processes. First, the cleaned copper materials are aligned to ensure that the contact surfaces are in close contact; then step-wise heating is used to generate Joule heat through low voltage and high current, so that the copper atoms obtain enough energy to cross the interface to form a metallurgical bond; finally, a controlled cooling method is used to avoid molecular structure disorder and residual stress concentration caused by rapid cooling. For connections between materials of different thicknesses, transition structures can be used to optimize heat conduction and stress distribution. In the manufacturing process of Copper Laminated Flexible Connectors, every process directly affects the electrical conductivity and mechanical reliability of the final product. In mass production, Copper Laminated Flexible Connectors need to pass strict resistance tests, pull tests and temperature rise tests to verify whether they meet the design specifications. The production of Flexible Laminated Soft Connector also requires a strict quality control system to ensure product consistency.

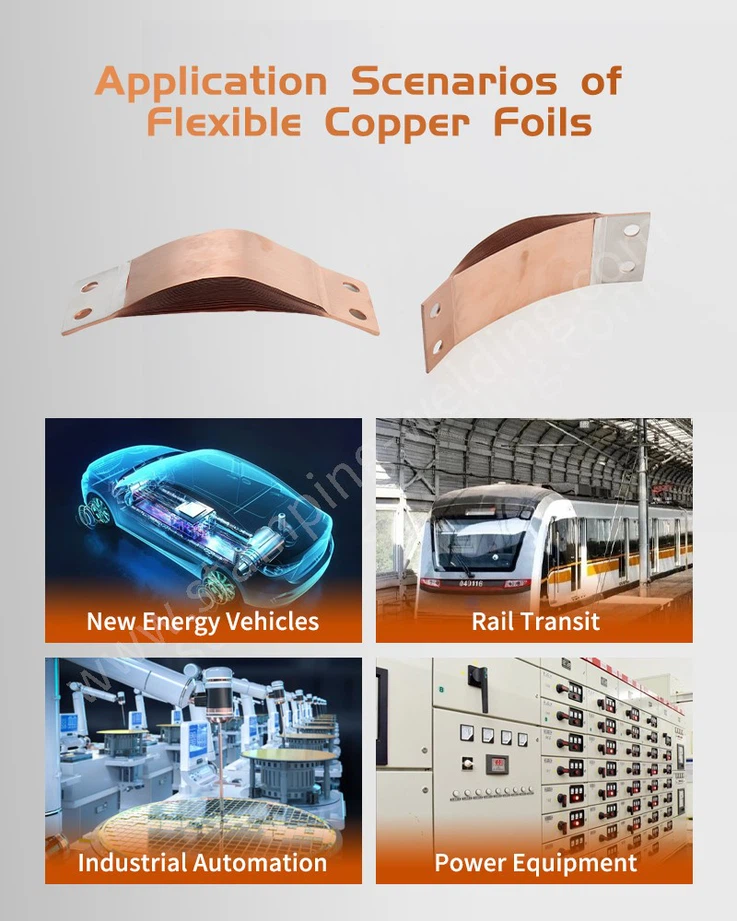

Through continuous iteration, copper foil soft connection technology has expanded from the traditional power field to strategic emerging industries such as new energy, energy storage, and rail transportation. As a key electrical connection component, the design and manufacturing level of Flexible Bus Bar directly affects the safety and efficiency of the entire system. A high-quality Flexible Bus Bar requires not only extremely low contact resistance, but also excellent fatigue resistance and long-term thermal stability. Copper Foil Multi-Layer Welding Busbar achieves the best balance of current carrying capacity and flexibility through optimized lamination structure and advanced welding process. In the field of energy storage systems and power batteries, Flexible Insulated Copper Busbar Soft Connections further improve the safety level and environmental adaptability of the product through overall or partial insulation coating. Flexible Copper Shunts have demonstrated unique technical advantages in special applications such as precision measurement and short-circuit protection.















































































We focus on R&D and production of high-quality Press-Welded Connectors products. Our copper foil soft connection products adopt a stable polymer diffusion welding process and have excellent conductive properties and flexibility. They are widely used in new energy vehicles, energy storage equipment and various high-current electrical connection scenarios. Welcome to consult and discuss.
