Full analysis of the filter capacitor industry knowledge

Filter capacitors are vital basic components in electronic circuits and are widely used in various power supply and signal processing systems. Its core function is to screen the signals in the circuit and ensure that the circuit output signal is purer and more stable by effectively removing or attenuating unnecessary high-frequency interference or low-frequency clutter. In practical applications, filter capacitors can exhibit excellent high-frequency and low-frequency characteristics; that is, they present low impedance to high-frequency signals to allow them to pass smoothly, while they present high impedance to low-frequency signals to prevent them from passing through. At the same time, it also has the ability to respond quickly to transient signals and can be used as an energy storage unit to release electrical energy when the circuit needs it to meet the needs of dynamic loads.

























































The reason why Capacitor Aluminum square cases are widely used is mainly due to their unique advantages in the frequency domain and energy processing. First of all, in terms of high-frequency characteristics, high-quality capacitors exhibit extremely low equivalent series resistance (ESR) and impedance in the high-frequency band, allowing high-frequency noise to pass through the ground loop smoothly, thus suppressing electromagnetic interference (EMI). Secondly, for low-frequency signals, capacitors exhibit high impedance characteristics, which can effectively block DC components or low-frequency ripples from entering the subsequent circuit. In addition, modern Storage Capacitor Aluminium Can have excellent fast response capabilities and can respond to load changes within microseconds and maintain bus voltage stability. At the same time, its energy storage function can release charges when the power cycle fluctuates, smoothing the voltage. This feature is particularly important in the DC-Link link.















































































In circuit applications, filter capacitors can be divided into many types according to functional scenarios. DC coupling capacitors are mainly used to block DC components and couple AC signals to ensure that the DC operating points between various levels of amplification circuits do not interfere with each other, while ensuring the complete transmission of useful AC signals. The Film Capacitor Aluminum Can structure is favored in such applications because of its excellent frequency response and stable electrical performance. AC coupling capacitors focus on isolating low-frequency interference so that high-frequency signals can be effectively transmitted. They are often used in RF front-ends and high-speed signal links. In addition, in power electronic conversion devices, Aluminum Can for Metalized Film DC Filter Capacitors have become the core components of the DC bus filtering link due to their good self-healing characteristics and high voltage withstand capabilities, effectively suppressing the pollution of the power grid by the switching frequency and its harmonic components.













































































With the rapid development of power electronics technology, filter capacitors are evolving towards high performance, miniaturization and intelligence. The application of new materials enables capacitors to significantly reduce ESR while maintaining high capacity, improving filtering efficiency in high-frequency and high-current environments. Modular and integrated designs have become mainstream. For example, composite components that integrate capacitors, inductors, and heat sinks can help reduce system volume and increase power density. In the field of new energy, in response to the demand for photovoltaic inverters and electric vehicle charging piles, the demand for Water Cooled Capacitors Aluminium Can with high voltage resistance and high ripple current has surged. In the future, with the popularization of wide-bandgap semiconductor (such as SiC, GaN) devices, filter capacitors will further optimize high-frequency characteristics and thermal stability to adapt to higher switching frequencies and more stringent environmental challenges.

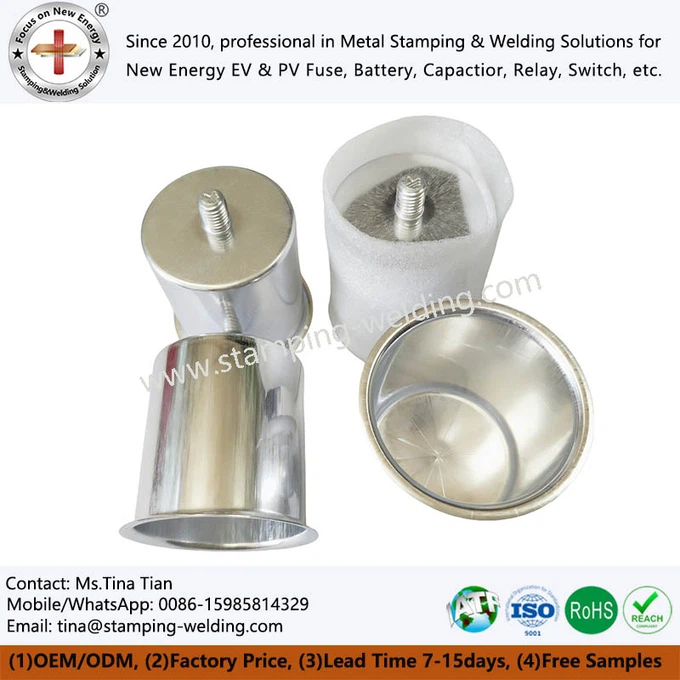

We focus on the R&D and manufacturing of high-quality Filter Capacitor Aluminium Can and packaging components, and are committed to providing excellent structural solutions for the power electronics industry. Partners from all walks of life are welcome to consult and make selections. We will provide you with reliable packaging support with exquisite craftsmanship.
