Detailed explanation of the knowledge of energy storage cabinets

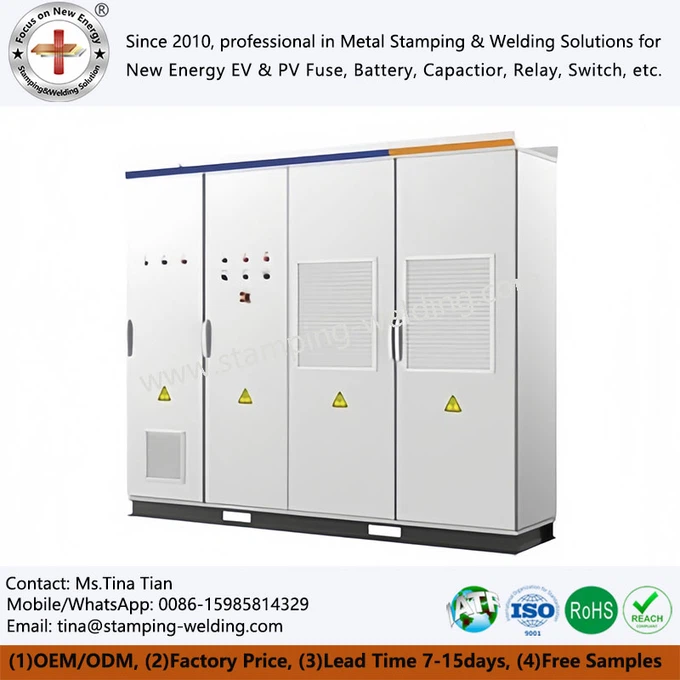

An energy storage cabinet is a complete set of electrical devices that can achieve high-density storage and controllable release of electrochemical energy. As a key node in modern power grids and distributed energy systems, its essence is a battery energy storage cabinet that integrates core components such as battery packs, power conversion systems, energy management systems, and thermal control units into standardized metal cabinets. It receives excess electric energy from photovoltaic arrays, wind turbines or public grids, converts it into chemical potential energy and stores it in the cells. During peak power consumption, grid failure, or insufficient renewable energy output, it converts DC power into AC power that meets grid-connected or off-grid standards through the inverter link and then outputs it to the load side or feeds into the distribution network. As a typical form of energy storage system cabinet, energy storage cabinets not only have the basic functions of smoothing out intermittent fluctuations of new energy and maintaining grid frequency and voltage stability but can also achieve peak and valley electricity price arbitrage and demand management through intelligent charging and discharging strategies. They have become the core equipment for industrial and commercial users, the power generation side and the grid side to achieve refined energy dispatch.



























































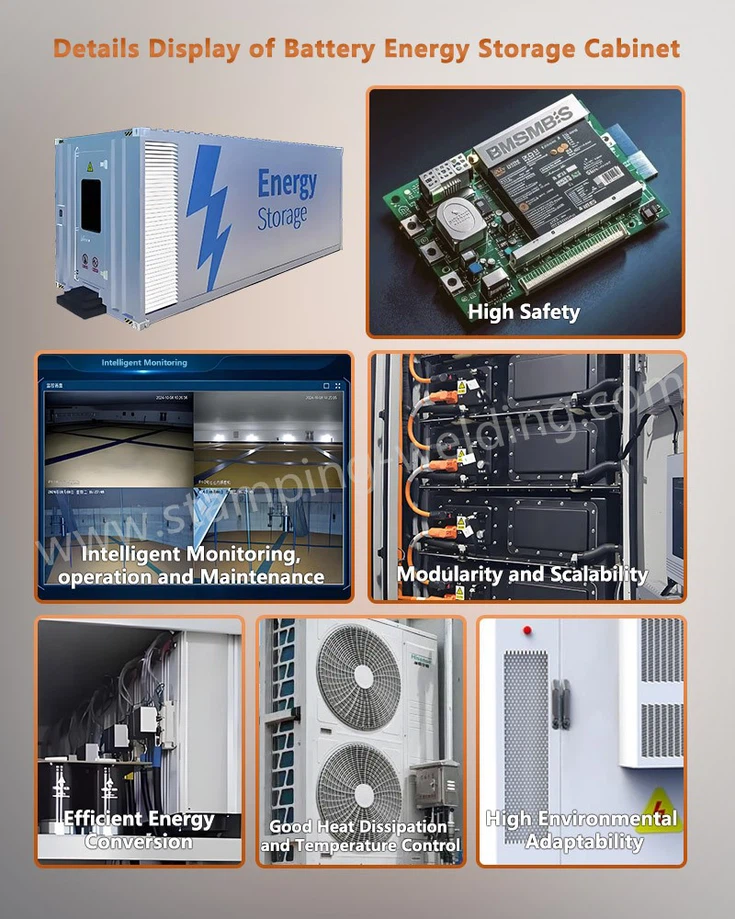

A complete energy storage system cabinet is usually composed of five functional modules that work together in a precise manner. As an energy carrier, battery modules adopt a modular design concept. Several battery cells are combined in series and parallel to form standardized battery units and battery packs. They are finally packaged in a metal casing with mechanical protection and electromagnetic shielding functions. Its chemical system covers a variety of technical routes such as lithium iron phosphate, ternary lithium and sodium ions. The battery management system (BMS) is like the nerve center of the system. It monitors the voltage, current, temperature and insulation status of each string of cells in real time through high-precision sampling chips, and performs balancing control, state-of-charge estimation and fault diagnosis. When abnormal conditions such as overcharge, over-discharge, over-temperature or short circuit are detected, the main circuit is cut off and an alarm is triggered within milliseconds, fundamentally eliminating thermal runaway chain reactions.



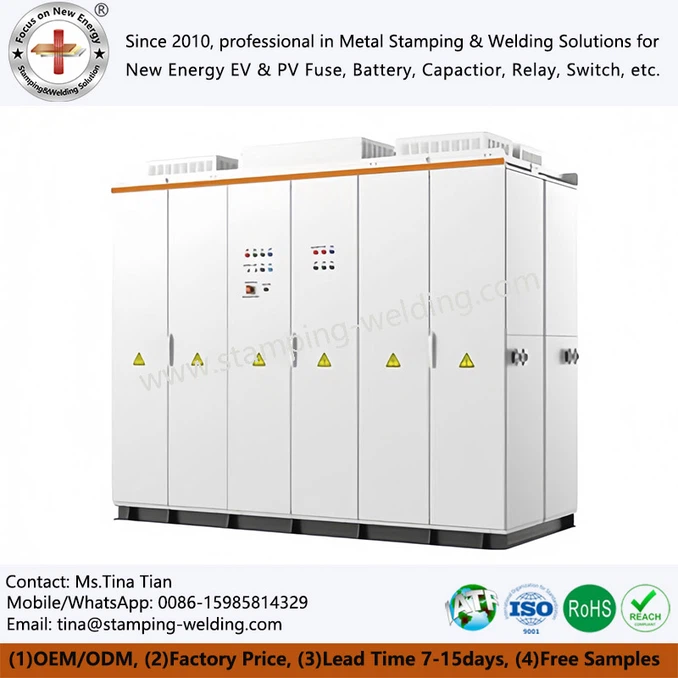

The power conversion system (PCS) is responsible for bidirectional AC and DC conversion, while the energy management system (EMS) optimizes charging and discharging plans based on electricity price signals, load forecasts and grid dispatch instructions. When the above units are highly integrated into a single cabinet, a compact, plug-and-play Integrated Energy Storage Cabinet is formed. This energy storage integrated cabinet greatly reduces the on-site construction period and floor space and is especially suitable for urban industrial and commercial scenarios with limited space.















































































According to different manufacturers and different usage scenarios, combined with industry data, the common classifications are as follows. The discrete energy storage cabinet is composed of a battery pack, an inverter, a charge and discharge controller and a communication controller. Each component is placed independently in the cabinet and connected through cables to form a system. The advantages of this structure are that each part is independent, the failure rate is low, and it is easy to maintain and expand. However, the disadvantage is that it occupies a large area and the cost is high. The combined energy storage cabinet installs the battery pack, inverter, charge and discharge controller, and communication controller into independent cabinets. The cabinets can be combined at will to form energy storage systems with different capacities and voltage levels. The advantage is that it is highly flexible and can be customized according to user needs, but the disadvantage is that the connections between cabinets are complicated and the installation is difficult.



The base-type energy storage cabinet installs the battery pack and power electronic equipment on the base. It is usually a sealed cabinet structure and can be placed directly in the outdoor environment. It has the advantages of a small footprint and convenient installation. However, the energy storage capacity is relatively small and is not suitable for large-scale applications. The integrated energy storage cabinet integrates the battery pack, inverter, charge and discharge controller, and communication controller into one cabinet. It has the advantages of compact structure, easy movement, and easy installation. It is suitable for mobile energy systems or small power grid systems. However, the system has poor scalability and troubleshooting is difficult. Among the above types, the energy storage integrated cabinet represents a highly integrated design direction and is suitable for industrial and commercial scenarios that have high requirements for space utilization and deployment speed.





























































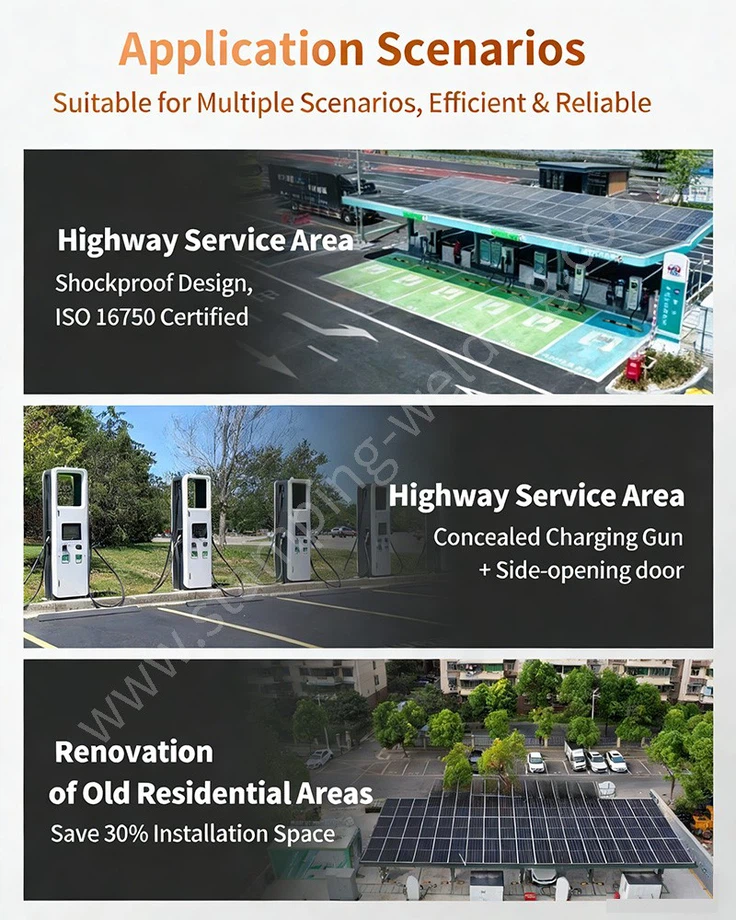

Energy storage cabinets are widely used in energy management. In terms of peak-valley arbitrage, the grid can be charged during the low load period and discharged during the peak load period, thereby reducing the enterprise's electricity cost. In terms of emergency power backup, when the power grid fails or there is a power outage, energy storage cabinets can provide enterprises with emergency backup power to ensure normal production. In terms of peak shaving and frequency modulation, energy storage cabinets can participate in demand response services such as peak shaving and frequency modulation according to grid dispatching instructions to improve the stability and reliability of the power grid.



In terms of renewable energy consumption, energy storage cabinets can store excess electricity generated by renewable energy and improve the utilization efficiency of renewable energy. With the transformation of the global energy structure and the rapid development of renewable energy, energy storage technology has become the key to regulating energy supply and demand and improving energy utilization efficiency. As the core component of energy storage technology, the structure and function of energy storage cabinets provide important support for the transformation of the energy structure. Among them, the outdoor cabinet energy storage system has been increasingly widely used in scenarios such as distributed photovoltaic distribution and storage and peak-shaving and valley-filling in industrial parks due to its good environmental adaptability and independent deployment capabilities.















































































We can provide customized battery backup cabinet solutions according to customer needs to ensure that the system operates stably in different environments. If you need to know more product details or obtain technical solutions, please feel free to contact us and we will provide you with professional support and services.
