Electrical copper busbar knowledge and detailed design explanation

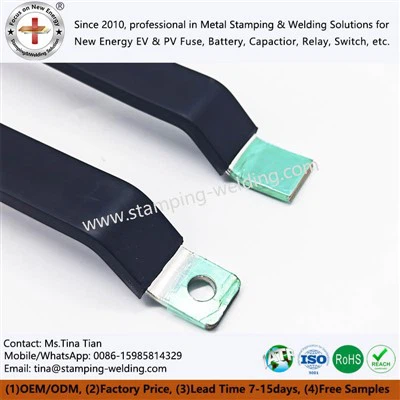

Busbar connector is a long conductor made of high-purity copper material, with a cross-section mostly rectangular or rounded rectangular.
Currently, rounded copper bars are commonly used in the industry to effectively avoid discharge at the tip and ensure electrical safety. In the circuit system, the core function of the Electrical bus bar is to transmit current and connect various electrical equipment. As a key carrier for energy collection and distribution, it is widely used in complete power distribution equipment and various electrical devices, and is an indispensable basic component in the field of power transmission.

The surface treatment of Electrical copper busbars directly affects their corrosion resistance, heat dissipation effect, and stability of use. Currently, there are three mainstream treatment methods, each with its own advantages and disadvantages, which need to be selected according to actual working conditions. Copper bars without surface treatment have excellent heat dissipation ability, but poor corrosion resistance and are prone to oxidation during long-term use. They are suitable for simple, dry, and non corrosive power distribution scenarios; Tin plated copper bars have outstanding corrosion resistance, high surface glossiness, and can effectively prevent oxidation. The disadvantage is that it will affect the heat dissipation capacity to a certain extent, making it the most widely used treatment method in industrial power distribution.

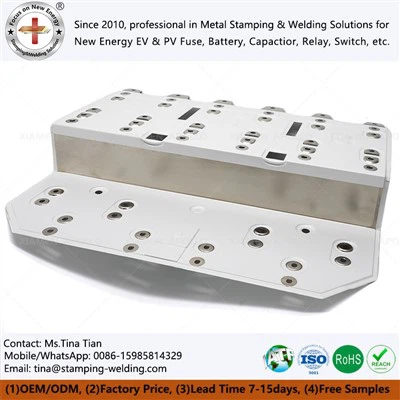

Silver plated Inverter bus bars have excellent heat dissipation and corrosion resistance, with the best performance. However, they are expensive and are often used in special scenarios that require high electrical performance. It should be noted that the measurement standard for the heat dissipation capacity of copper bars refers to the temperature rise index in GB7251.1, which is the difference between the surface temperature of the copper bar and the ambient temperature when it reaches a stable state after being powered on.

The classification of low-voltage cabinets can be divided into two dimensions: function and Busbar electrical design. According to function, they can be divided into incoming cabinets, capacitor cabinets, and feeder cabinets. The copper bar load and layout requirements of different functional cabinets are different; According to the design of copper bars, they can be divided into frame circuit breaker cabinets, capacitor cabinets, dual power (frequency conversion and soft start) cabinets, and plastic shell feeder cabinets, and copper bar specifications and directions need to be designed specifically.

The design of Copper solid bus bar should focus on three core points: first, phase sequence planning, which must comply with electrical specifications to ensure orderly current transmission; The second is the selection of copper bar specifications and air insulation distance (live distance), which needs to match the load current while meeting safety insulation requirements to avoid short circuit hazards; The third is the standardization of drilling, which requires precise control of hole position and diameter to avoid stress concentration and ensure connection reliability.

In the design and installation of High voltage busbars and complete power distribution equipment, the "five prevention" requirements are the core criteria for ensuring the safe operation of electrical systems, and must be strictly implemented throughout the entire process of copper busbar layout and equipment connection.

One is to prevent the live grounding switch from accidentally coming into contact with the live High current contact, which may cause a short circuit; The second is to prevent power transmission when the grounding switch is in the grounding position, and to prevent safety accidents caused by power supply in the grounded state; The third is to prevent the accidental opening and closing of circuit breakers, to avoid operational errors that may cause the circuit to be mistakenly connected or disconnected, affecting the safety of equipment and personnel; The fourth is to prevent accidental entry into live compartments, by reasonably planning the layout of copper bars and cabinet structures, and avoiding personnel contact with live copper bars; The fifth is to prevent the opening and closing of isolation switches with load, to avoid arcing caused by load operation, and to prevent damage to equipment and copper bar connection parts.

The selection, surface treatment, and design specifications of Copper ground bus bars are directly related to the safety, stability, and operational efficiency of electrical systems. Only by accurately matching the working conditions can hidden dangers be avoided.
