Full size analysis of LiFePO4 battery cell structural components: key design points for shell, cover plate, and module connectors
Apr 14, 2026

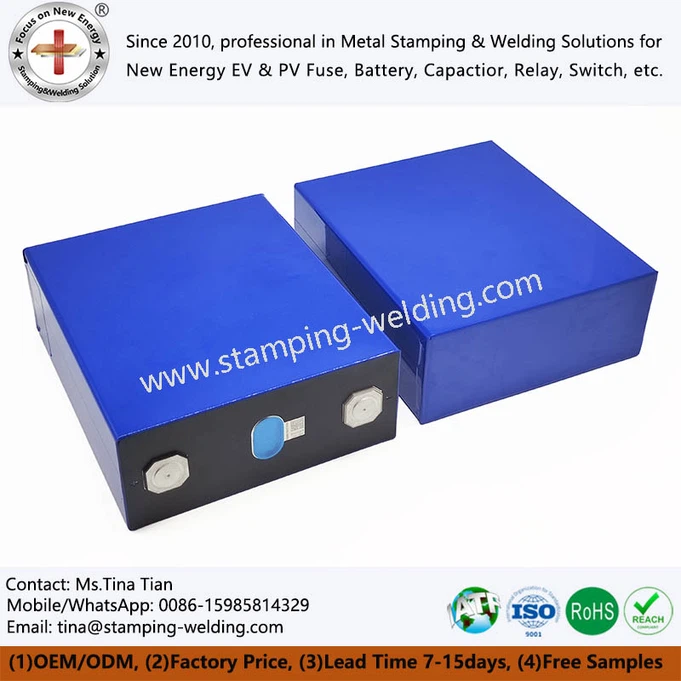

Overview of LiFePO4 battery cell structural components
The overall structure of the Power battery cell consists of two core modules, the outer shell and the cover plate, with clear division of labor and significant differences in process. The manufacturing process of the shell is relatively simple, and the mainstream adopts continuous stretching technology to form. The materials are mainly steel shell and aluminum shell, with outstanding structural strength and strong mechanical bearing capacity, which can provide solid protection for internal battery units. The manufacturing process complexity of the cover plate is much higher than that of the shell.
It is an integrated functional component that integrates multiple functions such as fixed sealing, conductivity, abnormal pressure relief, fuse protection, and reducing electrical corrosion. It is the core to ensure the safe operation of Rechargeable lithium ion battery cells. In daily work, the top cover and aluminum shell are sealed by laser welding to fix the bare cell and isolate the external environment; The electrodes, adapters, and battery lugs are welded together to ensure stable transmission of charging and discharging currents; When there is an abnormality or high air pressure inside the battery, the explosion-proof valve on the cover plate will automatically open to release pressure, reducing the risk of explosion from the source and ensuring the safety of the battery in all aspects.
Shell: Structure and Process Points
The shell is the basic protective component of the LiFePO4 battery cell structure, playing a key role in fixing, protecting, sealing, and dissipating heat. It is a full lifecycle barrier that isolates the internal electrochemical system of the battery from the external environment. On the one hand, the outer shell can firmly fix the internal battery unit components, ensuring that the battery maintains structural stability under various conditions such as transportation, use, and vibration, while resisting external mechanical impacts and avoiding damage to the internal battery due to external compression and collision.
On the other hand, the casing has excellent sealing performance, which can completely eliminate the problem of electrolyte leakage, maintain the stability of the internal electrochemical environment of the battery, and help dissipate heat, quickly dissipate the heat generated during battery operation, alleviate temperature rise problems, extend the service life of Battery energy storage, and improve operational safety. The production process system of the shell is complete, and the core processes include raw material cutting, precision continuous stretching, incision processing, cleaning, drying, and comprehensive inspection. Among them, precision continuous stretching technology is the core difficulty of the entire production process, which requires strict assurance of uniform wall thickness of the shell to avoid problems such as fracture and deformation during the stretching process.

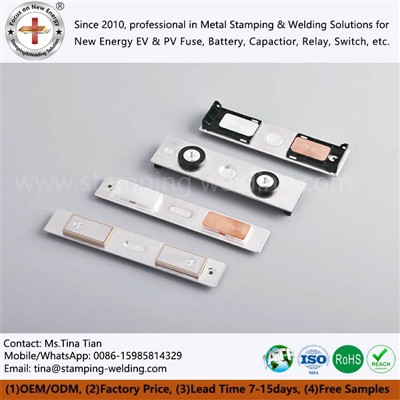

Cover plate: detailed explanation of multifunctional integrated components
The cover plate is the most integrated core component in the Lifepo4 power cell, integrating multiple functions such as connection, isolation, sealing, explosion-proof, and conductivity. The internal components are subdivided and closely coordinated to ensure the normal operation of the lithium battery. The steel cap at the top of the cover plate has high mechanical strength and strong resistance to external deformation, which not only protects the internal explosion-proof aluminum plate from damage, but also serves as a key component for battery pack connection.
The sealing ring around the cover plate has insulation and isolation functions, separating the internal metal components from the outer shell to prevent internal short circuits of the battery. At the same time, it cooperates with the sealing process to achieve secondary sealing, further improving the airtightness of the battery. The explosion-proof components of the Lithium-ion batteries for solar cover plate consist of isolation rings, explosion-proof aluminum plates, and connecting aluminum plates, which are key structures for battery overload protection, pressure relief, and explosion prevention. The explosion-proof aluminum plate is located in the middle of the cover plate and is the core component for controlling circuit breaking and critical pressure relief.
Design points for module connectors and structural components
The battery module connector is a key conductive component in the Lithium superpack batteries module, mainly used to achieve electrical connection between battery cells and modules. It is mainly composed of multiple layers of composite materials stacked together, with dedicated connection layers to ensure welding performance with the poles. The multi-layer structure synchronously ensures stable overall conductivity efficiency.
A part of the connecting board substrate is formed by stacking multiple layers of foil to form a flexible buffer zone, which can effectively compensate for the displacement caused by cell expansion during the charging and discharging process of the Solar energy storage systems lithium batteries pack, reduce the stress impact on the low strength interface, and improve the overall structural stability of the module.
The shape of the connector is usually rectangular, trapezoidal, table shaped and other conventional specifications. Nickel plated copper foil is pasted on the connection surface to improve welding reliability. Before and after welding, the surface of the Battery pack kit should be polished and cleaned to avoid high-temperature oxidation and discoloration, while not damaging the original surface coating to ensure connection performance.
