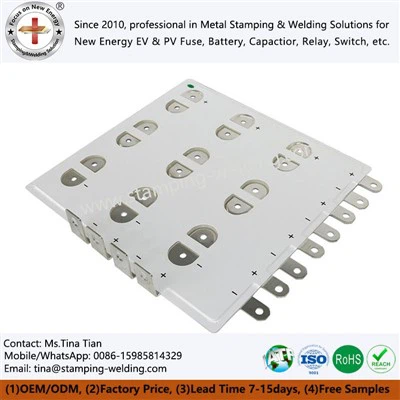

Technical advantages and application analysis of Laminated Copper BusBar
Feb 04, 2026
Overview of Core Definition and Core Advantages
Laminated Copper BusBar is an electrical connection bar with a multi-level composite structure, which can be regarded as the "highway" in the distribution system. Compared to traditional wiring methods that are complex, bulky, time-consuming, and labor-intensive, stacked busbars can construct power distribution systems with high technological content and clear structure. They possess core characteristics such as repeatable electrical performance, low inductance impedance, strong anti-interference ability, and high reliability, making them an ideal choice for electrical connections of high-power modules. At the same time, its advantages of easy assembly and space saving further expand its application boundaries, and can effectively adapt to scenarios such as power conversion modules for wind power, photovoltaic, electric traction equipment, and large-scale network equipment. Overall, the core advantages of Laminated Flexible BusBar are concentrated in balancing low cost and high safety and reliability; Compact design significantly saves installation space; Optimizing circuit performance with low inductance and low impedance characteristics; Convenient installation reduces the probability of incorrect installation; Compared to traditional cables, it has stronger current carrying capacity and slower temperature rise.
Performance comparison between laminated copper BusBar and traditional connection methods
In power electronic systems, it is often difficult to change the switching devices and DC side parasitic capacitance of the main circuit. Therefore, reducing the distributed inductance of the main circuit Laminated Inverter Busbars has become the fundamental measure to suppress switch voltage spikes. At present, there are four main ways of electrical connection between switching devices and DC side supporting capacitors, each with its own adaptation scenarios and performance differences. Firstly, copper plates or strips are arranged in parallel, which is simple to manufacture and easy to implement. Although it can suppress voltage spikes to a certain extent, it has a large mutual inductance and is only suitable for high-power and low performance requirements. Secondly, cable stranded wires are convenient to use and cost-effective, but they have high self inductance and mutual inductance, poor performance, and insufficient current carrying capacity, making them only suitable for low-power and low performance scenarios. Thirdly, coaxial cables have low mutual inductance and are easy to use, but they have the disadvantages of high cost and low current carrying capacity, making them suitable for low-power applications with general performance requirements. Fourthly, BusBar for Power Electronics, The core structure is to electrically isolate two or more layers of copper busbars through insulation materials, and then integrate the conductive layer and insulation layer through special processes. This structure gives it a flat cross-section, which can increase the area of the conductive layer under the same current cross-section, greatly improving the heat dissipation surface and current carrying capacity; At the same time, the spacing between conductive layers is reduced, and the magnetic fields generated by adjacent conductive layers with opposite current directions can cancel each other out, thereby significantly reducing the distributed inductance of the circuit and optimizing the voltage spike suppression effect from the root.
Precautions for structural design and application
It should be noted that although Laminated Bus Bars for Industrial applications have many outstanding advantages, there are still two core issues that need to be addressed in practical design applications compared to ordinary copper bars. One is the production cost, the manufacturing cost of laminated busbars is slightly higher than that of traditional busbars; The second is the flexibility of structural changes. Laminated Bus Bar for Electric Vehicle Power Distribution Special molds are required for processing. If the copper bar structure needs to be changed in the future, the molds must be modified synchronously or even reopened. Therefore, in practical applications, it is recommended to carry out the processing and production of laminated busbars after completing the copper bar design scheme demonstration, determining the prototype stage, and final structure, in order to reduce the cost and cycle loss caused by design changes.
Summary and Prospect of Application Prospects
In summary, the High Laminated BusBar for Voltage Explosion-proof Inverter has irreplaceable application value in the power electronics industry, especially in medium to high power conversion scenarios, due to its core technological advantages such as low inductance, high reliability, convenient installation, excellent heat dissipation, and current carrying performance. Despite considerations of cost and flexibility in structural changes, DC Link Capacitor Laminated Bus Bars can fully leverage their technological advantages through scientific pre design planning, providing strong support for the efficient and stable operation of power electronic systems. In the future, their applications in new energy fields such as wind power and photovoltaics, as well as industrial fields such as electric traction, will be further popularized and deepened.
