Why Laminated Inverter Busbar Cuts Inverter Cost

According to the China Photovoltaic Industry Association, inverter costs account for 18% of PV system costs in 2025. Reducing inverter costs is key for renewable energy development. A laminated inverter busbar integrates multiple conductors to optimize cost. This article explores its core cost-saving reasons, key details, performance guarantees, application fields, and Xiamen APOLLO's solutions.





1. Higher Material Utilization Rate​

A laminated copper busbar uses 99.97% high-purity copper with precision stamping. It reduces copper waste by 15-20% compared to traditional discrete busbars. Less waste directly cuts raw material costs for inverter production.​



2. Faster Installation to Save Labor Cost​

A laminated bus bar for industrial has pre-drilled holes and integrated insulation. It shortens inverter assembly time by 30%. For a 100MW PV inverter project, it reduces on-site labor hours by 200+, lowering labor costs significantly.​



3. Lower Energy Loss to Cut Operating Cost​

Its low inductance design (≤5nH) reduces energy loss during current transmission. For a 50kW inverter, it saves 80-120kWh annually. Over 25 years of inverter service life, this adds up to substantial operating cost savings.





1. Reduces connector usage: It integrates 3-5 conductors into one, cutting connector quantity by 60%. Fewer connectors lower component purchase costs and reduce fault risks (which avoid maintenance costs).​



2. Simplifies heat dissipation design: A laminated bus bar for high current circuit board IGBT has good thermal conductivity. It shares the inverter's cooling system, eliminating the need for independent busbar cooling parts-saving 10-15% of cooling design costs.​



3. Lowers inventory cost: It has standardized dimensions and can be mass-produced. Inverter manufacturers reduce inventory types by 40%, minimizing capital occupation from excess inventory.





1. Reliable Insulation to Avoid Failure Costs​

The insulation layer of a laminated inverter busbar uses epoxy resin (thickness 0.2-0.5mm) that meets IEC 60664 standards. It avoids short-circuit failures caused by poor insulation, preventing expensive inverter repairs or replacements.​



2. Stable Current-Carrying Capacity​

It has a current density of 2.5A/mm², 30% higher than traditional busbars. It maintains stable performance under rated load, avoiding inverter power loss (which would lead to revenue loss for PV plants).​



3. Long Service Life to Reduce Replacement Cost​

Its anti-corrosion coating (nickel-plated or tin-plated) ensures a service life of 25+ years-matching the inverter's lifespan. No mid-life busbar replacement saves long-term maintenance and replacement costs.





Laminated busbars for PV inverter excel in ground-mounted PV plants. They cut inverter cost by 8-10% compared to traditional busbars. In industrial frequency converters, a laminated bus bar for high current circuit board IGBT reduces component count by 30%, lowering overall converter costs. In energy storage inverters, their integrated design simplifies wiring, saving 12-15% of inverter assembly costs. These fields all benefit from their cost-saving features.

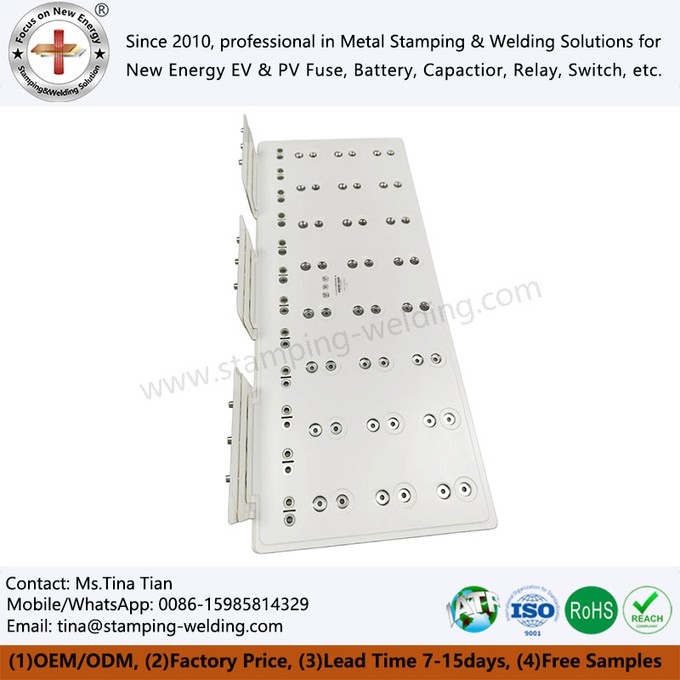

Xiamen APOLLO's laminated inverter busbar uses high-purity copper (99.98%) and imported epoxy insulation. It reduces inverter cost by 10-12% for customers. It meets GB/IS09001-2015, IATF16949, and UL standards, with certifications like GB and CE. Our product range covers laminated busbars for PV inverter, laminated copper busbar, and laminated bus bar for industrial to fit different inverter types.​



We offer custom services: adjust copper thickness (1-5mm), insulation material, and dimensions (50-1200mm) based on inverter power (10kW-5MW). We have global sea, land, and air logistics-deliver to Asian clients in 3-5 days, European clients in 7-15 days, and American clients in 15-20 days. Our after-sales team provides 24-hour technical support, including installation guidance and performance testing, ensuring customers get cost-saving and reliable products.
