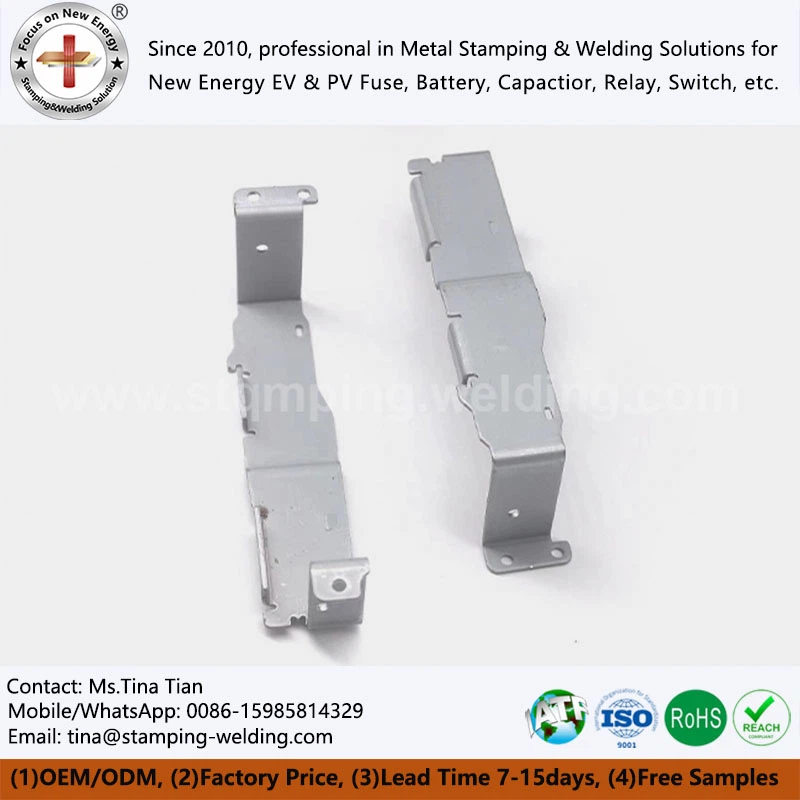

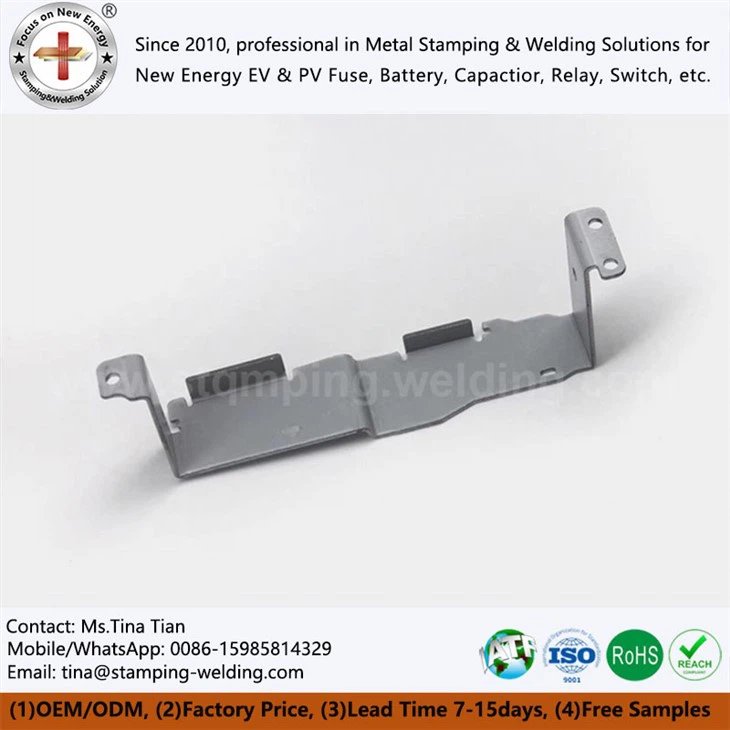

Carbon Stamping Sheet Material Parts
Carbon Stamping Sheet Material Parts are developed for fuel vehicle oil filter components requiring controlled geometry and consistent assembly fit. Xiamen Apollo provides in-house stamping, tooling, laser cutting and CNC resources, supporting rapid sampling and repeat production. Free samples are available in 1–2 days, new-tool samples in 20–30 days, and batch orders typically in 15–20 days after confirmation and payment.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
What are carbon stamping sheet material parts?
Carbon Stamping Sheet Material Parts are used in fuel vehicle oil filter assemblies to support filter media, maintain internal component positioning and preserve the designed assembly relationship during operation. The parts are manufactured from SPHC hot-rolled carbon steel using sheet metal stamping, precision punching, blanking, forming, sizing, deburring and cleaning. Geometry can include formed support sections, positioning features, openings and assembly interfaces defined by the filter component drawing.
Material Advantages of Carbon Steel Sheet Metal Stamping Parts
SPHC Hot-Rolled Carbon Steel
Provides a stable steel sheet base for Carbon Steel Sheet Metal Stamping Parts, supporting punching, blanking, forming and sizing operations. Its material characteristics are suitable for oil filter components requiring defined structural geometry and controlled deformation.
Consistent Forming Characteristics
SPHC supports repeated stamping and forming operations when material thickness and die parameters are properly controlled. This helps maintain the dimensional consistency of filter support structures, positioning features and formed sections during batch production.
Manufacturing process of Carbon Steel Metal Stamping
SPHC Sheet Preparation & Cutting
SPHC hot-rolled steel sheet is inspected for material grade, thickness and surface condition before production. The sheet is then prepared according to the stamping layout to ensure stable feeding and material utilization.
Precision Punching & Blanking
Punching and blanking form the required openings, outer profile and positioning features of the oil filter component. Die clearance, punch condition and feeding accuracy are controlled to reduce burrs and dimensional variation for Carbon Steel Metal Stamping.
Deep Forming & Sizing
The stamped blank undergoes forming to create the required filter support structure and three-dimensional geometry. Sizing is then used to stabilize critical dimensions and ensure proper fit with the filter assembly for Carbon Stamping Sheet Material Parts.
Deburring, Cleaning & Final Inspection
After forming, burrs and residual contaminants are removed through deburring and cleaning. Final inspection verifies the component profile, openings, formed sections and key dimensions against the customer drawing before delivery for Carbon Steel Stamped Parts.
Application Integration of Carbon Steel Sheet Metal Stamping
Filter Media Support
The stamped component provides a defined support structure for filter media or related internal elements, helping maintain their designed position inside the oil filter assembly.
Positioning & Assembly Interface
Punching, forming and sizing create the required mounting and positioning features for integration with adjacent filter components. Critical interfaces are controlled against customer drawings.
Fuel Vehicle Engine Oil Filtration
SPHC stamped components can be incorporated into oil filter assemblies for conventional fuel vehicles where formed steel structures are required for internal support, positioning or retention.
Frequently Asked Questions about Carbon Steel Stamped Parts
Q: What material is used for these Carbon Stamping Sheet Material Parts?
A: The component is manufactured from SPHC hot-rolled carbon steel, selected for its suitability for punching, blanking, forming and sizing. Material grade and thickness are confirmed according to the customer's drawing and the required structural geometry of the oil filter component.
Q: How are oil filter support structures formed during stamping?
A: The SPHC steel blank is processed through precision punching, blanking and deep forming to create the required support structure. Forming parameters and die geometry are controlled according to the component design to maintain the required three-dimensional profile.
Q: Why is sizing required after deep forming?
A: Sizing is used to stabilize critical formed dimensions after the main forming operation. It helps control the final geometry of filter support sections and positioning features so the stamped component can fit correctly with adjacent parts in the oil filter assembly.
Q: How are positioning features produced on the stamped component?
A: Positioning features are created through a combination of punching, blanking, forming and sizing. Hole locations, openings, formed sections and assembly interfaces are defined by the customer drawing and checked during final inspection.
Q: How does the stamped part support filter media?
A: The formed steel structure provides a defined support interface for the filter media or related internal elements. Its geometry helps maintain the designed position of these components within the oil filter assembly during installation and operation.
Contact Us
Send your 2D/3D CAD drawings (STEP, DWG) or filter assembly specs to our engineering team for a rapid DFM review and factory-direct quote within 24 hours.
Carbon Stamping Sheet Material Parts are manufactured from SPHC hot-rolled carbon steel sheet, with material grade and thickness specified by the customer drawing. Main processes include precision sheet metal stamping, punching and blanking, deep forming, sizing, deburring and cleaning. Key parameters such as component dimensions, formed geometry, openings, positioning features and edge condition are controlled according to drawing requirements, with final dimensional and visual inspection before delivery.
