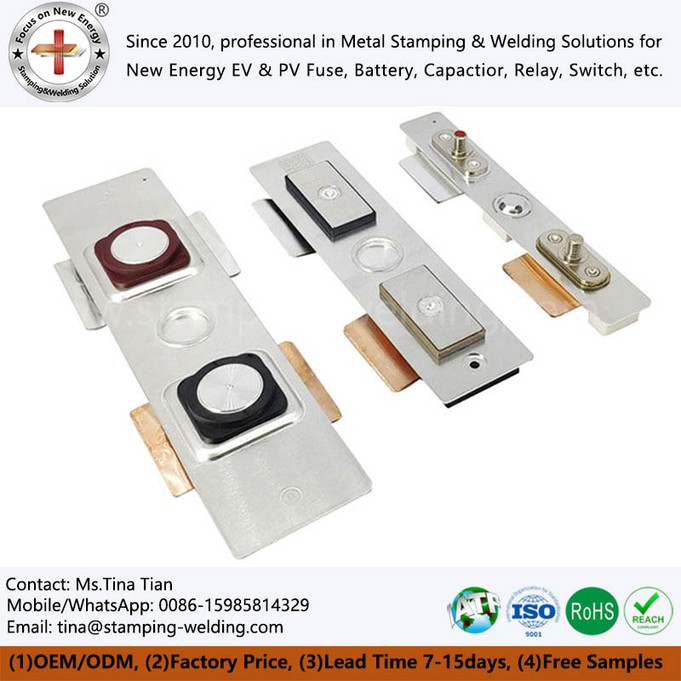

Aluminum Cover Plate For Power Battery Shell
Our Aluminum Cover Plate For Power Battery Shells are designed for applications involving power batteries, energy storage batteries, and prismatic lithium-ion cells. Featuring an aluminum alloy base, they integrate terminals, busbars, insulation components, sealing structures, and safety pressure-relief mechanisms tailored to the specific cell architecture. Through processes such as precision stamping, injection molding, riveting, welding, cleaning, and inspection, we transform individual metal parts into complete cover plate assemblies ready for direct integration into the cell assembly line. These products can be custom-developed (OEM) based on specific requirements regarding cell dimensions, polarity layout, connection methods, and casing structures, offering battery manufacturers comprehensive engineering support—from design review and mold development to mass production.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Prismatic battery cover plates are typically mounted atop aluminum battery casings and welded to form a sealed cell structure. Their core functions include:
Casing Sealing: Establishing a stable interface with the aluminum casing to serve as the foundation for the final sealing weld.
Current Conduction: Transferring electrical energy generated by the cell to external circuits via positive and negative terminals and internal connectors.
Electrical Insulation: Isolating live components from the aluminum cover plate using structures such as injection-molded insulators and gaskets.
Pressure Management: Providing a designated path for gas release under abnormal operating conditions via a safety pressure-relief mechanism.
Assembly Positioning: Enhancing consistency in automated assembly through features such as terminal holes, alignment structures, and connection zones.
System Interface Integration: Integrating interfaces for voltage sensing, interconnects, and external busbars based on the battery module design.
applicable scope
Production Line Compatibility
Delivery formats (trays, coil stock, or automated loading interfaces) can be customized to match the customer's production line loading methods, helping to minimize downtime during line changeovers.
Joint Development for New Platforms
Customers can integrate our DFM (Design for Manufacturability) review during the cell design phase, preventing sealing yield issues at the source.
Commercial Vehicle & Energy Storage Cells
Options for reinforced explosion-proof structures and enlarged terminal specifications to meet requirements for long cycle life and high-rate energy storage.
Material Advantages: Aluminum alloy main body combined with functional materials
Cover Plate Body
Based on materials commonly used in battery structures-such as the 3003 aluminum alloy series-the material temper is selected according to requirements for forming, strength, welding, and specific customer designs.
Conductive Components
Materials such as aluminum, copper, or copper alloys are selected for the positive and negative terminal connection structures based on the current path, ensuring a stable conductive connection between internal components and external terminals.
Insulation Components
Electrical isolation between the terminals and the cover plate is achieved through the use of engineering plastics, insulating gaskets, or injection-molded structures.
Sealing Structure
Appropriate sealing elements and interface designs are employed based on the customer's cell design to minimize the impact of electrolyte, moisture, and the external environment on the internal structure.
Frequently Asked Questions
1. What material is used for the aluminum cover plate?
-
The main body of the cover plate typically utilizes aluminum alloy materials suitable for battery structural components, such as the 3003 series. Terminals and internal connectors may be made of aluminum or copper alloys depending on conductivity requirements; the final material combination is determined based on the customer's specific battery cell design.
2. Can the cover plate be customized for different prismatic battery cells?
-
Yes. We support OEM customization based on the customer's specifications-including cell dimensions, terminal locations, polarity layout, pressure relief structures, welding edges, and external connection methods-and can conduct engineering development based on 2D/3D drawings.
3. How is the aluminum battery cover connected to the battery shell?
-
It is typically joined to the prismatic aluminum battery casing via processes such as laser welding to form a sealed cell structure. Factors such as the cover plate's edge dimensions, flatness, and the quality of the welding interface directly impact the customer's subsequent welding processes.
4. What functions are integrated into the battery cover assembly?
-
Depending on the specific design, the assembly can integrate positive and negative terminals, internal connectors, insulation structures, seals, safety pressure relief mechanisms, and external connection interfaces, thereby fulfilling functions such as electrical conduction, insulation, sealing, and safety protection.
5. Can you provide engineering support before mass production?
-
Yes. We can conduct DFM (Design for Manufacturability) reviews based on customer drawings and provide manufacturing recommendations regarding materials, stamping structures, terminal layouts, welding interfaces, and assembly, helping customers mitigate structural and process-related risks prior to mass production.
contact us
If you are developing a new prismatic power battery or energy storage cell project, we focus on the engineering compatibility of the cover plate structure, material combinations, and stamping/welding processes with your production line. We invite you to submit drawings or 3D models so our engineering team can evaluate your aluminum cover plate project directly from the perspectives of manufacturability and mass-production consistency.
