Tin Coated Copper Busbar: The Perfect Combination Of Technology, Quality, And Service
Jul 16, 2025

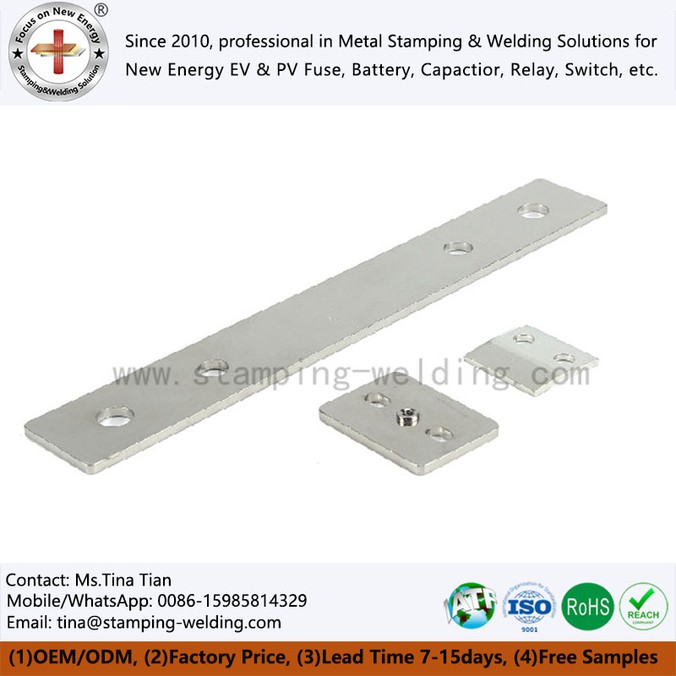

Discover our advanced range of Tin Coated Copper Busbars, meticulously engineered to deliver superior performance and reliability in a variety of electrical applications. Utilizing high-purity copper as the core material, our Galvanized busbar are designed to provide excellent electrical conductivity and mechanical strength. Each Tinned Copper BusBar is carefully tin-plated using state-of-the-art electroplating techniques, ensuring a uniform and durable coating that enhances corrosion resistance and longevity. Available in standard and customized configurations, our Tin-Plated Insulated Bus Bars are suitable for power distribution systems, electrical panels, renewable energy installations, and industrial machinery. Backed by our ISO9001-2015 quality certification, you can trust our products for their consistent performance and reliability. Experience the quality and efficiency of our Tin Coated Copper Bus Bars – contact us today to find the perfect solution for your project needs.
Products Description
Material Selection
High-Purity Copper: We start with high-purity copper, chosen for its excellent electrical conductivity and mechanical properties.
Precision Cutting: The copper is cut to precise dimensions using advanced machinery to ensure uniformity and accuracy.
01
Surface Preparation
Cleaning and Polishing: The Galvanized busbars are thoroughly cleaned and polished to remove any impurities or surface defects. This step is crucial for ensuring proper adhesion of the tin plating.
Etching: The surface is lightly etched to create a microscopically rough surface, which enhances the adhesion of the tin plating.
02
Tin Plating
Electroplating Process: The Tin-Plated Insulated Busbar,s are subjected to an electroplating process where a layer of tin is deposited onto the surface. This ensures a uniform and durable coating.
Quality Control: The thickness and uniformity of the tin plating are carefully monitored and controlled to meet industry standards.
03

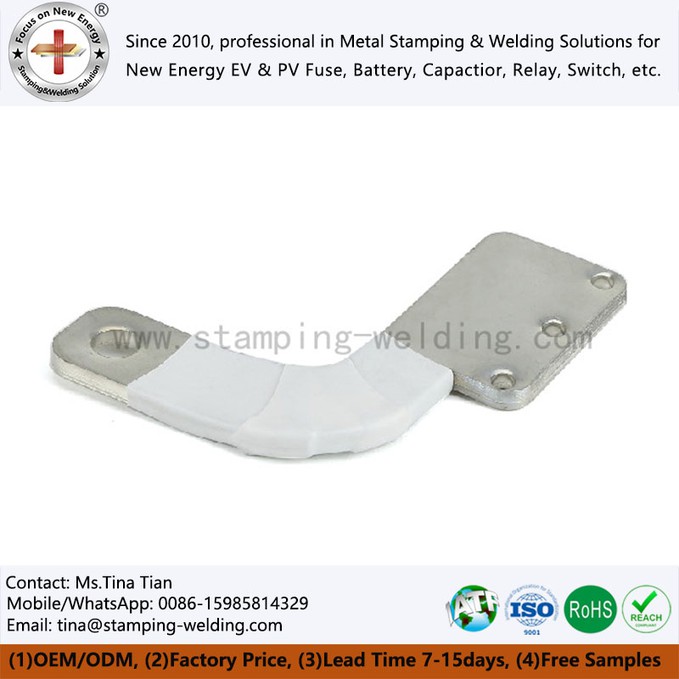

Insulation Application
Insulation Coating: For applications requiring insulation, a high-quality insulating material is applied to the tin-plated surface. This ensures safety and prevents electrical short circuits.
Curing Process: The insulation is cured to ensure it adheres properly to the Tin-Plated Insulated Bus Bar, providing long-term reliability.
04
Final Inspection and Testing
Dimensional Checks: Each Tin Plated Insulated Bus Bar is inspected for dimensional accuracy to ensure it meets the required specifications.
Electrical Testing: The Tinned Copper BusBars undergo electrical conductivity tests to ensure they meet the highest performance standards.
Durability Testing: The tin plating is tested for durability and corrosion resistance, ensuring long-term reliability.
05
Standard Configuration
1. High-Purity Copper Core: The core of each Tin-Plated Insulated Bus Bar is made from high-purity copper, ensuring excellent electrical conductivity.
2. Uniform Tin Plating: Each Tinned Copper BusBar is coated with a uniform layer of tin, providing enhanced durability and corrosion resistance.
3. Precision Dimensions: The Galvanized busbars are manufactured to precise dimensions, ensuring compatibility with a wide range of electrical systems.
4. Safety Features: Standard safety features, such as insulation and protective coatings, are included to ensure safe operation.
Type Summary
1. Standard Tin Plated Copper Busbar: A basic model designed for general electrical applications, featuring a standard thickness of tin plating.
2. Heavy-Duty Tin Plated Copper Busbar: Designed for high-current applications, this model features a thicker layer of tin plating for enhanced durability.
3. Customized Tin Plated Copper Flat Bus Bar: Tailored to specific customer requirements, this model can include custom dimensions and plating thickness.
4. Galvanized Busbar: This model features a galvanized coating, providing additional corrosion resistance for outdoor or harsh environments.
Products feature
Material Quality: Our Tin-Plated Insulated Bus Bars are made from high-purity copper, ensuring excellent electrical conductivity and mechanical strength.
Advanced Manufacturing Processes: We use state-of-the-art electroplating techniques to apply a uniform layer of tin, enhancing durability and corrosion resistance.
Customization and Flexibility: We offer customized solutions to meet specific customer requirements, including tailored dimensions and plating thickness.
Quality Assurance: Each Tinned Copper BusBar undergoes rigorous testing and inspection to ensure compliance with ISO9001-2015 standards, guaranteeing reliability and safety.
Relay Production
1. High-Purity Copper Bars: We source and process high-purity copper bars, ensuring the core material is of the highest quality.
2. Custom Metal Components: We manufacture custom metal components as required for specific applications.
3. Precision Assembly: All metal parts are assembled with precision to ensure the highest quality and functionality.
4. Quality Control: Each metal part undergoes strict quality control to ensure it meets our high standards.
Products application
| Power Distribution Systems | Used in substations and power plants for efficient power distribution. |
| Electrical Panels | Ideal for use in electrical control panels and switchgear. |
| Renewable Energy Systems | Suitable for solar and wind energy systems, ensuring reliable power transfer. |
| Industrial Machinery | Used in heavy machinery and equipment for high-current applications. |
