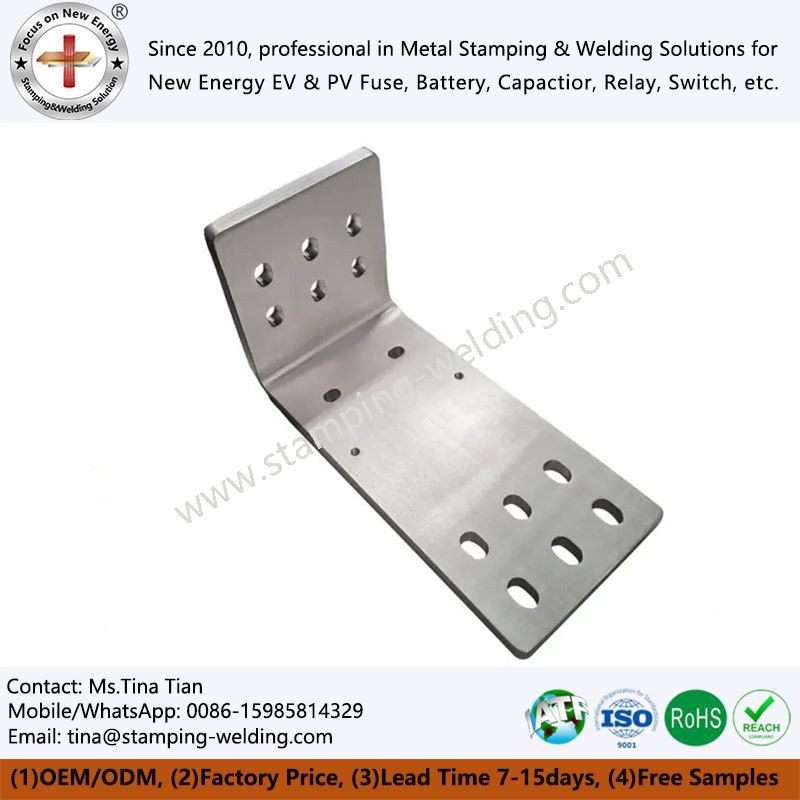

Electrical Aluminum Busbar Flexible Joint
Electrical aluminum busbar flexible joint is a flexible conductive connection component designed specifically for aluminum busbar systems. Its core function is to achieve flexible connection between different aluminum busbars and between aluminum busbars and electrical equipment (transformers, switchgear, circuit breakers, etc.), with multiple functions including conductive transmission, buffering compensation, and safety protection.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
The Electrical aluminum busbar flexible joint breaks the limitations of traditional rigid connections, with the core features of "flexible adaptation, efficient conductivity, and stable reliability", perfectly matching the advantages of lightweight and low-cost aluminum busbars. It is widely used in various power engineering, industrial production, and new energy projects, providing core guarantees for the continuity and safety of power transmission. This product has three core advantages: strong flexibility and adaptability, excellent conductivity, compact structure, and easy installation. It can flexibly adjust the installation angle according to the on-site working conditions, adapt to different spatial layouts, and greatly improve the construction efficiency of the project.
Application scenarios
Power system engineering
Electrical aluminum busbar flexible joint is mainly used for aluminum busbar connection in substations and power plants, solving the problem of connection displacement between transformers and switchgear, and switchgear and circuit breakers.
01
Industrial production engineering
6101 aluminum flat busbar is suitable for various factory power distribution systems, used for connecting aluminum busbars of high-power equipment such as large motors, cranes, and welding machines, solving the problem of loose joints caused by vibration during equipment operation.
02
Building electrical engineering
Used for connecting aluminum busbars between building electrical shafts, main distribution boxes, and floor distribution boxes, to solve stress problems caused by building structural settlement and temperature difference deformation in busbar connections.
03
New Energy Engineering
6061 aluminum busbar is suitable for connecting aluminum busbars in solar photovoltaic power plants and wind farms, solving the flexible connection problem between photovoltaic modules, inverters, and wind turbines, with excellent mechanical strength and corrosion resistance to adapt to harsh outdoor environments.
04
manufacturing process
Substrate cutting

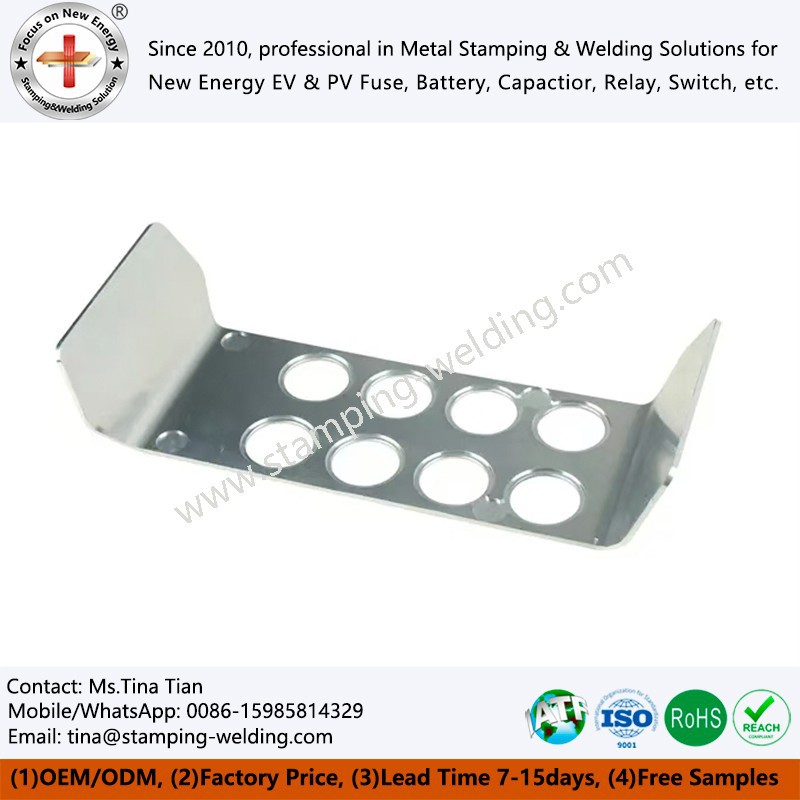

CNC cutting equipments are utilized to precisely trim aluminum substrates to the required specifications, with dimensional accuracy strictly controlled within an error margin of ±0.1mm. This advanced machining process ensures that each flexible joint perfectly matches the exact dimensions of the corresponding aluminum busbar electrical power connectors.
Precision stamping

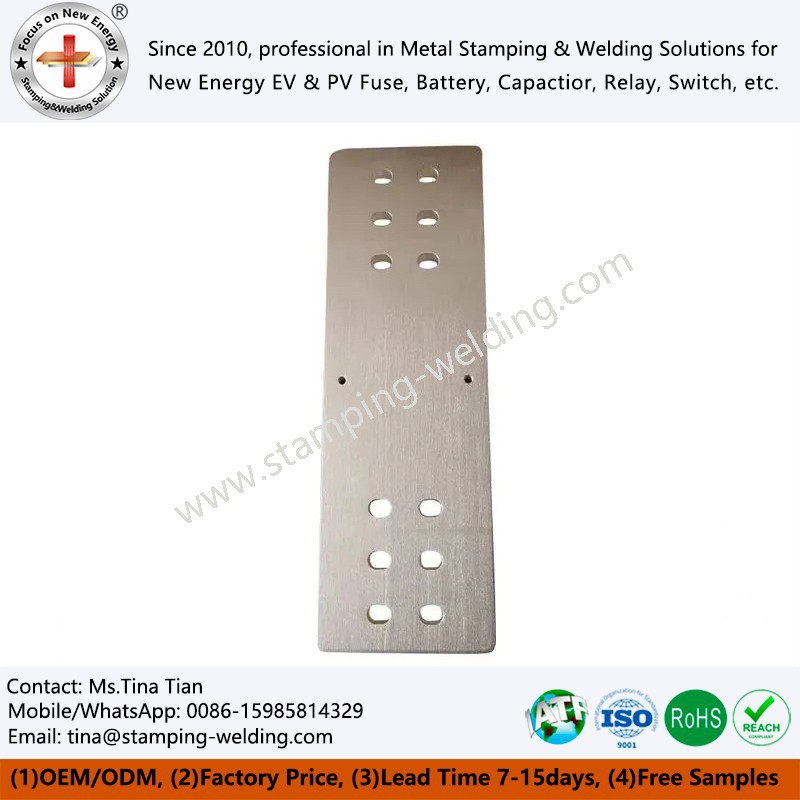

By using high-precision stamping molds, aluminum substrates are stamped and formed to create flexible structures and connection interfaces for joints. During the stamping process, pressure and speed are strictly controlled to avoid cracks and deformations in Flexible aluminum connections, ensuring the mechanical strength of the joints.
Flexible molding
Electrical aluminum busbar flexible joint uses specialized flexible structural processing technology to create flexible bodies for joints by stacking and pressing multiple layers of aluminum foil, ensuring that the joints can achieve flexible axial and radial displacement, while ensuring tight contact between multiple layers of aluminum foil, reducing contact resistance.
Surface treatment
According to customer requirements, silver plating, oxidation and other treatments are applied to the surface of the joint. The silver plating process adopts environmentally friendly electrochemical technology, with uniform silver layer thickness and strong adhesion, which can effectively improve conductivity and corrosion resistance.
Our Certifications
Between the surging current of photovoltaic modules and the surging energy of energy storage batteries, Xiamen Apollo Stamping Welding Technology Co., Ltd. has built a quality moat with global certification and exclusive patents. We have not only obtained ISO 9001:2015 international certification (currently applying for IATF16949 automotive industry international quality certification system), but also redefined the precision and reliability of new energy components with three core patented technologies.
