Flexible Aluminium Connections
In the power transmission and distribution chain of modern power systems, Flexible Aluminium Connections serve as the core conductive components, undertaking the key mission of connecting power sources and terminal electrical equipment, and are the "energy arteries" that ensure the stable and efficient operation of the power system. As a professional manufacturer specializing in the field of aluminum busbars, we rely on precise material control, advanced manufacturing processes, and customized design capabilities to provide reliable, economical, and adaptable 6101 Aluminum Bus Bar solutions for professional purchasers and engineering customers in global industrial manufacturing, new energy, rail transit, building power distribution, and other fields.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

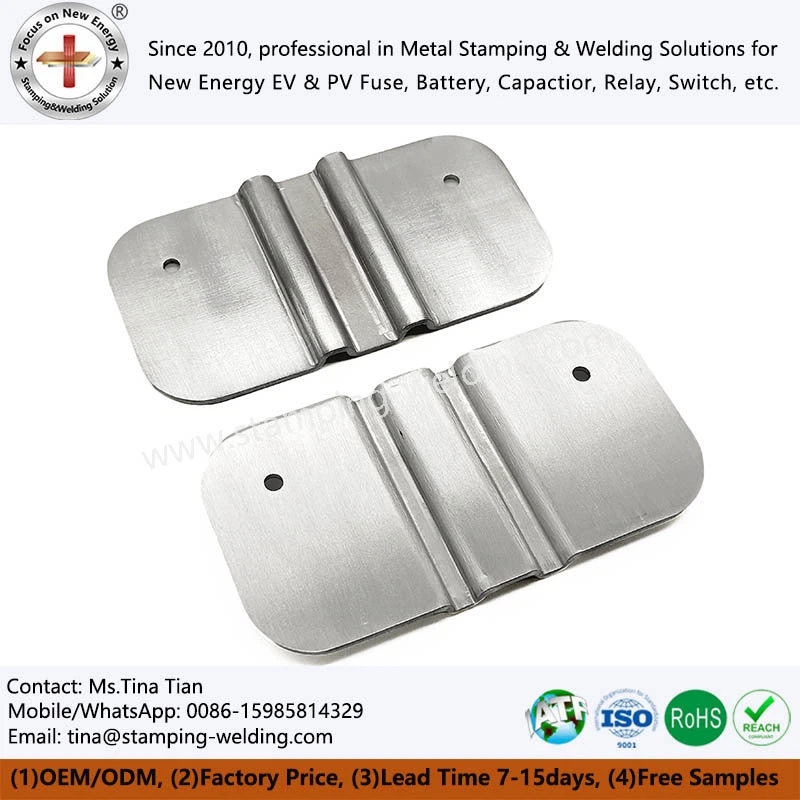

Flexible Aluminium Connections are conductive components used for power transmission and distribution, made of aluminum material. Common shapes include rectangular, circular, grooved, etc. It plays a key role in transmitting electrical energy from the power source to various electrical equipment in various power systems. Compared to copper busbars, aluminum busbars have unique advantages and applicable scenarios, which can meet the power needs of different fields.
Product Advantages
Cost advantage
The price of aluminum is relatively low compared to copper. In large-scale power transmission and distribution projects, the use of Flexible Aluminium Connections can significantly reduce material costs, especially for projects with strict cost control.
01
Lightweight
The density of aluminum is about one-third that of copper, and Aluminum Busbars of the same volume are lighter in weight than copper busbars. This feature makes aluminum busbars have significant advantages in situations where weight is required, such as power lines installed at high altitudes or power supply systems for mobile equipment, making them easy to install and maintain.
02
Good corrosion resistance
Aluminum forms a dense aluminum oxide protective film on its surface in air, which can effectively prevent further oxidation and corrosion of aluminum, making the Aluminum Busbar Electrical Power Connector have good corrosion resistance in general environments and extending its service life.
03
Good heat dissipation performance
Aluminum has a high thermal conductivity, which can quickly dissipate the heat generated when current passes through, reduce the temperature of the busbar itself, and improve the safety and stability of power transmission, especially suitable for high current density application scenarios.
04
specific parameters
Conductor specifications
There are various specifications for Tin Plated Aluminum Bus Bar. Taking rectangular aluminum busbars as an example, common combinations of cross-sectional dimensions include 25 × 3mm, 30 × 4mm, 40 × 4mm, 50 × 5mm, 63 × 6.3mm, 80 × 8mm, 100 × 10mm, etc. Aluminum busbars of different specifications correspond to different current carrying capacities and application scenarios, and can be selected according to actual power needs.
Electrical resistivity
At 20 ℃, the electrical resistivity of pure aluminum is about 2.83 × 10 ⁻⁸Ω· m. The electrical resistivity of aluminum alloys may vary slightly depending on the alloy composition, but is generally within a similar range. Electrical resistivity is an important indicator for measuring the conductivity of 6101 T61 Aluminum Bus Bar. The lower the electrical resistivity, the smaller the energy loss during current transmission at the same length and cross-section.
Current carrying capacity
The current carrying capacity is closely related to factors such as the specifications of the 6061 Aluminum Bus Bar, ambient temperature, and heat dissipation conditions. For example, at an ambient temperature of 40 ℃ and good heat dissipation conditions, the current carrying capacity of a 50 × 5mm rectangular aluminum busbar is approximately 660A, while the current carrying capacity of an 80 × 8mm rectangular aluminum busbar can reach around 1300A.
Why choose us
We always adhere to the original intention of quality, driven by technological innovation and guided by customer needs, continuously improving product performance and service quality, and committed to becoming a reliable partner in the field of new energy power connection. Choosing us means choosing customized product solutions and end-to-end peace of mind service guarantees that are tailored to the new energy scene, empowering efficient and long-term operation of new energy projects.
Our Partners
Our Flexible Aluminium Connections partners span multiple industries, including automotive, electrical, and electronics, covering various regions worldwide, among which are renowned manufacturing enterprises. With stable product quality, flexible customized services, and efficient delivery guarantees, our products have gained widespread market recognition, earned unanimous praise from global partners, and accumulated a good reputation in the industry.
