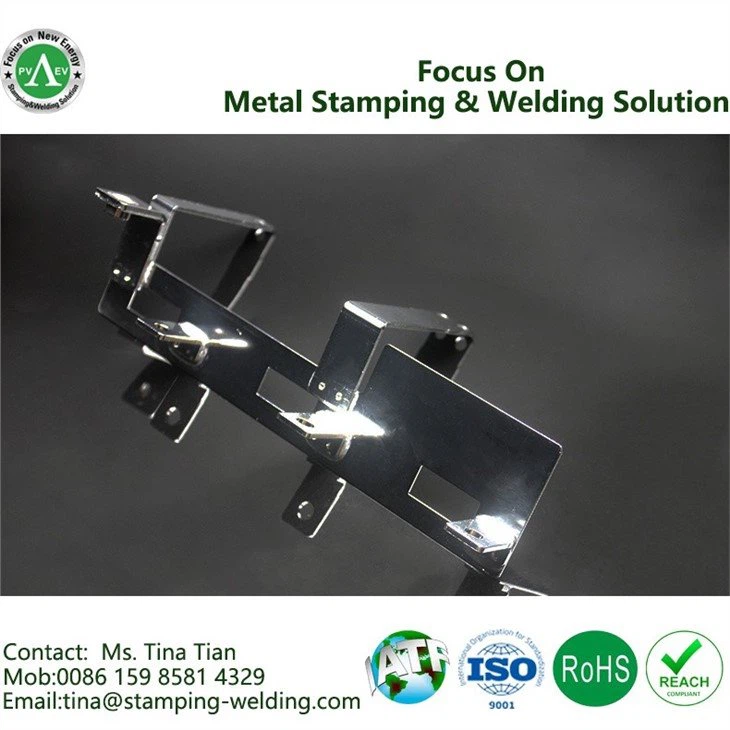

Electrical Bus Bar For EV
Product Name:Electrical Bus Bar for EV
Model Number:ASWT-B002
Product Size:According to customer requirements
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
PRODUCT PROFILE
Bus bar is an important part in the electrical system, because of the rapid development of new energy vehicles, automotive electrical bus bar has been widely used.High-voltage Power Distribution Unit (PDU) is responsible for Power Distribution and management in high-voltage system solutions of new energy vehicles.Through electrical bus bar and wire harness, the high-voltage components are electrically connected to provide charging and discharging control, high-voltage components power-on control, circuit overload and short-circuit protection, high-voltage sampling, low-voltage control and other functions for the vehicle to protect and monitor the operation of the high-voltage system.Structurally, PDU is mainly composed of copper bars, relays, fuses, pre-charged resistors, and current collectors.
PRODUCT PARAMETERS
Product Name | Electrical Bus Bar |
Model No | ASWT-B002 |
Dimensions | OEM/ODM as your drawing |
Material | 99.99% Red Copper T2Y2,%IACS≥97,HV:80~110s |
Processing | Tooling--Stamping--Tin brazing--Plating |
Surface Treatments | 1.tin plating; 2.Lead-free fog tin plating; 3.Ultrasonic cleaned and passivation. |
Riveting Nut | PEM nut USA brand |
Shipment Inspection | 1.Copper composition,%IACS,hardness; 2.Busbar appearance,size; 3.Tin plating coating thickness; 4.Nut torque/N.m,push out force/N; 5.Soldering pull force; 6.Salt spray test; 7.Busbar traceability label,etc. |
Applications | EV/HEV,PV,UPS,Communication,Industrial Power, Web Server,Rail Transit,etc. |
BUSBAR FEATURES
1/Lower production costs by reducing mounting and wiring time.
2/Increase reliability by improving thermal performance.
3/Improve electrical performance by lessening voltage drop, impedance and high frequency transmission.
4/Make new product design and manufacture easier.
OUR ADVANTAGES
Material for Bus Bar
Material | Trademark (US) | Purity(Cu) | Electric Conductivity | Tensile Strength(Mpa) | Hardness |
Copper | C11000 | ≥99.95% | 98.3%IACS | 245-345 | ≥85.2HV |
Coating for Bus Bar
Material | Melting point(℃) | Resistivity (uΩ/cm) | Cost |
Au | 1062.7 | 2.21 | High |
Ag | 960 | 1.58 | High |
Sn | 232 | 11.3 | Moderate |
Cu | 1083 | 1.63 | Moderate |
Ni | 1452 | 20 | Moderate |
Welding Technology
Testing Equipments
Test Items | Description | Test Equipments | Reference Standard |
Copper Thickness | Measuring the thickness of material:If T2 copper material width, thickness is not qualified,or scratch mark,crush mark, oxidation , rust spot on copper material surface ,this T2 belt shall not be produced. | Vernier caliper | / |
Copper Hardness | Measuring the hardness | Hardness tester | / |
Appearance | Visual solder plumpness, whether there are sand holes | Non | / |
Size | Measure the size according to the drawing requirements | 2.5D Optical Instrument | |
Coating Thickness | Measuring the coating thickness whether meet the requirements according to the drawings(usually 7-8um or as customers ) | Coating thickness tester | |
Salt Spray Test | The busbar have no rust and spots on its surface after 48 hours of 5% salt spray test. | Salt Spray Device |
FAQ
Q1 :Provide free sample？
A1:For sure, we are willing to supply samples for quality checking.
but it is normally to pay freight collect for sample.
Q2:Do you accept OEM?
A2: Yes. All size can be customized. Logo can be made as your request.
Q3:What’s your delivery time?
A3: About 7-10 days for samples,20-30 days for mass production.
Q4:I want to keep our design in secret,can we sign NDA?
A4:Sure,we can sign NDA.
Q5: What is your terms of payment?
A5: Usually,we accept T/T, irrevocable L/C at sight ,for regular order ,we prefer 30% in advance ,70% against the copy of B/L.
