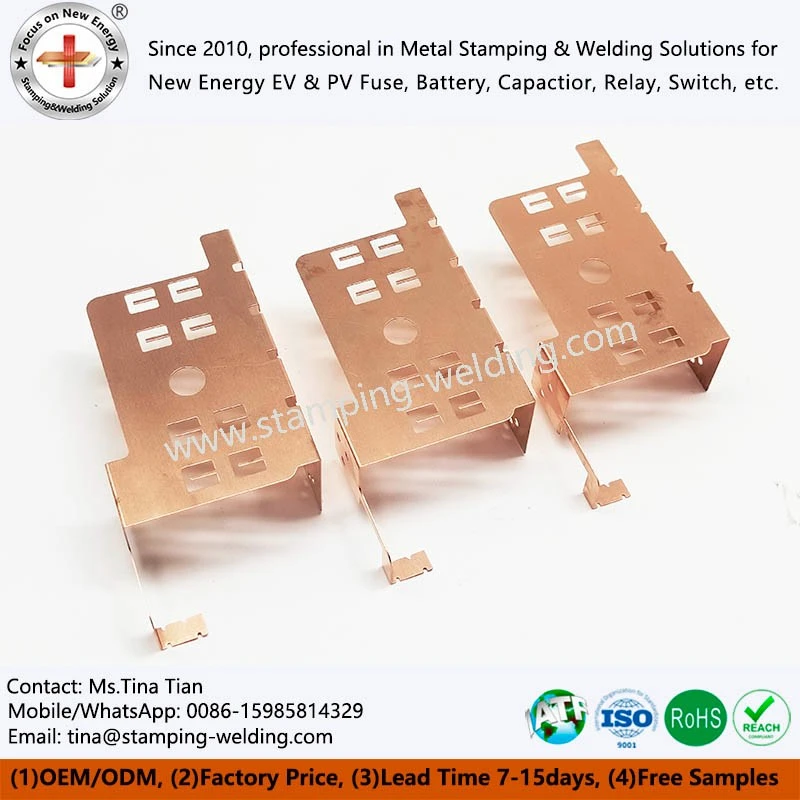

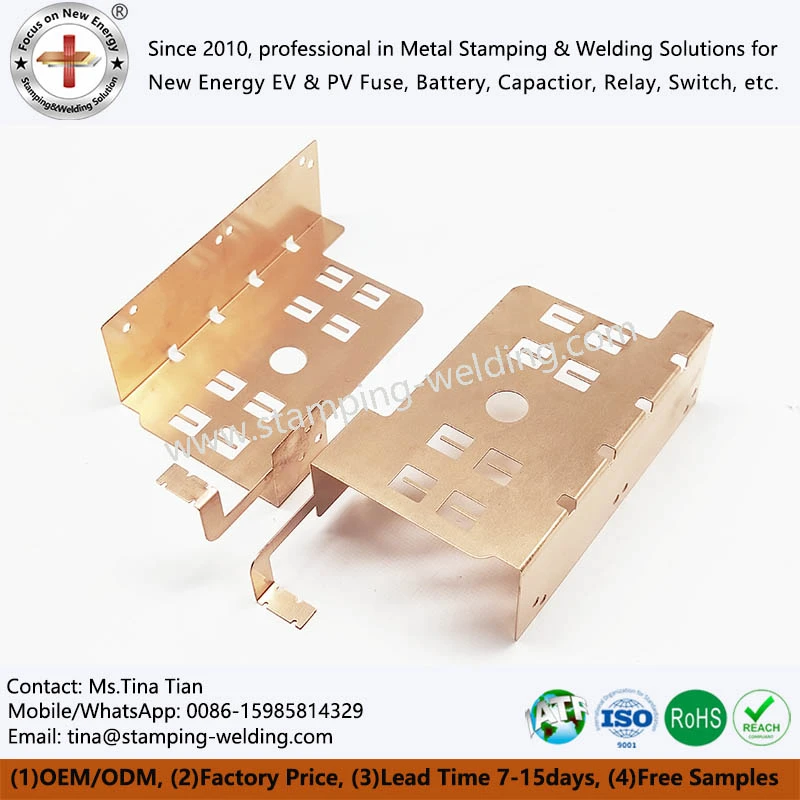

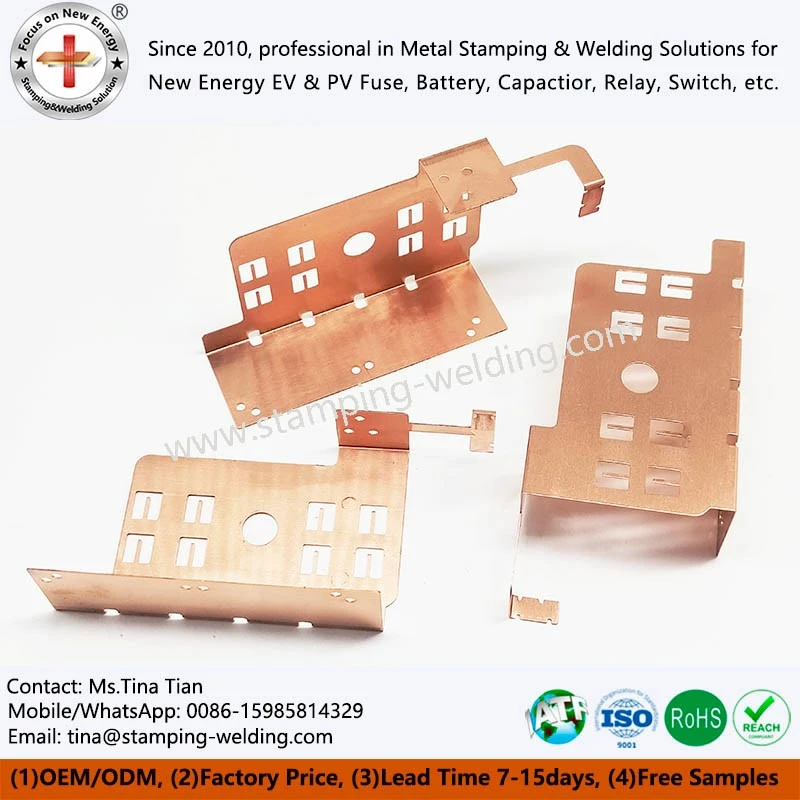

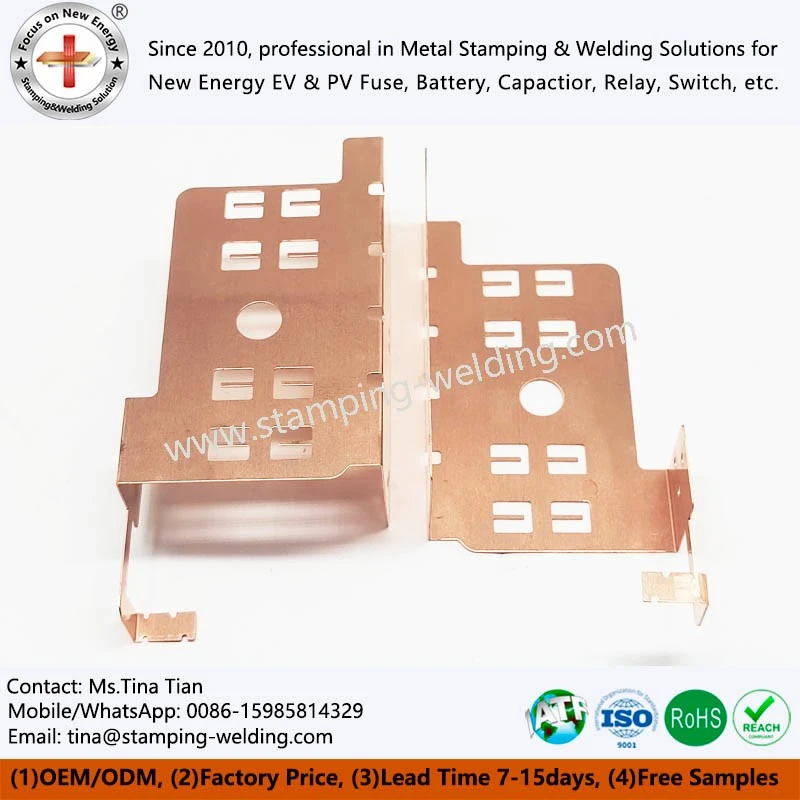

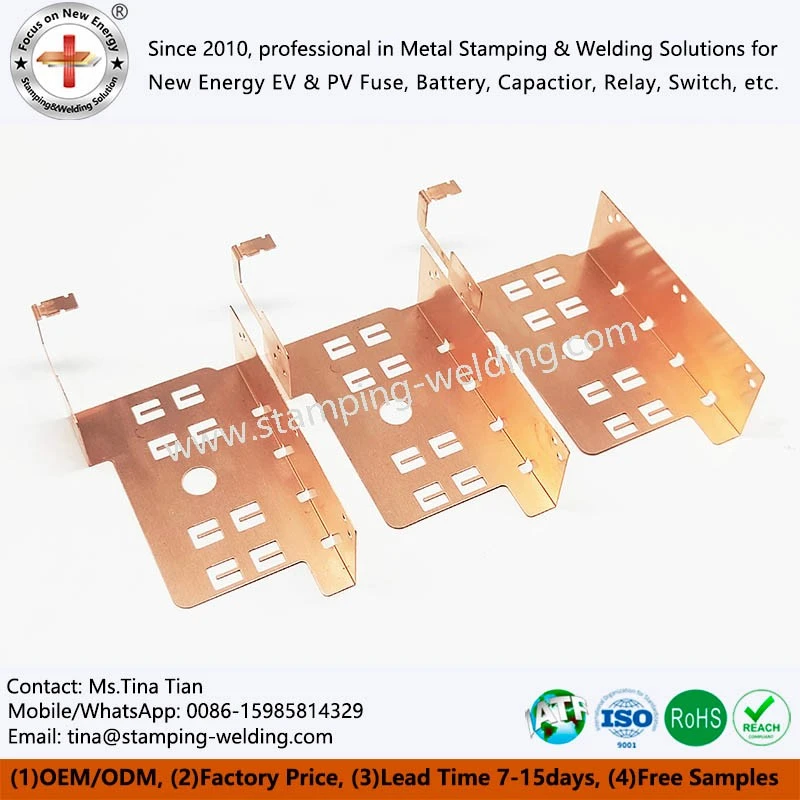

Film Capacitor Copper Busbar For Electric Vehicles
Film Capacitor Copper Busbar for Electric Vehicles is a precision conductive component for DC-Link film capacitors in EV and HEV high-voltage systems. It supports custom copper grades, laminated structures, PET insulation, and tin, nickel, or silver plating. Precision stamping, bending, drilling, finishing, insulation, and assembly ensure dimensional accuracy, with ±0.01 mm achievable on selected features. Xiamen Apollo provides custom EV capacitor busbars with integrated manufacturing capabilities.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
High-frequency switching transients in modern electric drive units create rapid voltage overshoot across motor control capacitors. This Film Capacitor Copper Busbar for Electric Vehicles optimizes current paths between DC-link film capacitor banks and SiC/IGBT power modules. Manufactured from high-purity C11000 electrolytic tough-pitch copper (100% IACS electrical conductivity), this assembly maintains continuous current handling from 200A to 1200A RMS while restricting temperature rise below 15 K.
Technical Specifications of Film Capacitor Copper Busbar for Electric Vehicles
| Parameter | Typical Engineering Configuration |
|---|---|
| Conductor Material | Copper; grade specified by customer |
| Busbar Structure | Single-layer or laminated configuration |
| Insulation | PET film or customer-specified insulation |
| Surface Treatment | Tin, nickel or silver plating available |
| Dimensional Tolerance | Drawing-controlled; ±0.01 mm achievable on selected features |

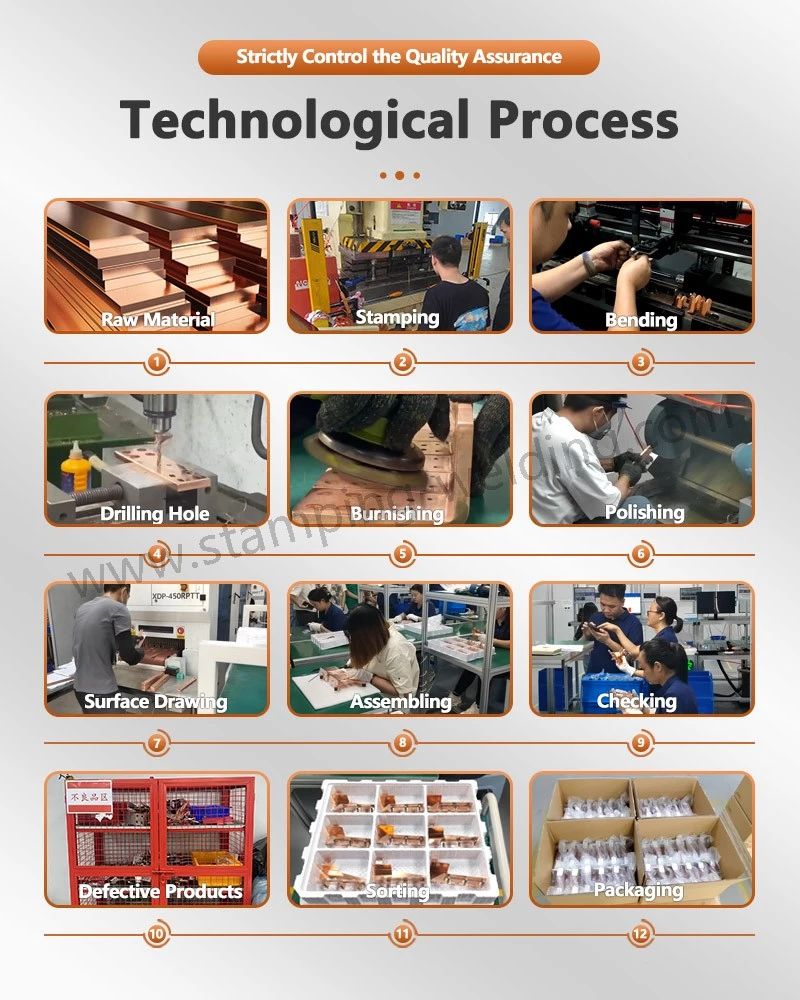

Manufacturing process of Film Capacitor Copper Busbar for Electric Vehicles
Copper Material Preparation & Precision Stamping
Selected high-conductivity copper is inspected before precision stamping to form the basic geometry of the EV film capacitor copper busbar, including terminal profiles, mounting features and conductive paths.
Bending, Drilling & Surface Finishing
Precision bending and drilling establish the required 3D configuration and mounting positions. Burnishing and polishing remove burrs, improve contact surfaces and prepare the copper busbar for subsequent assembly and electrical connection.

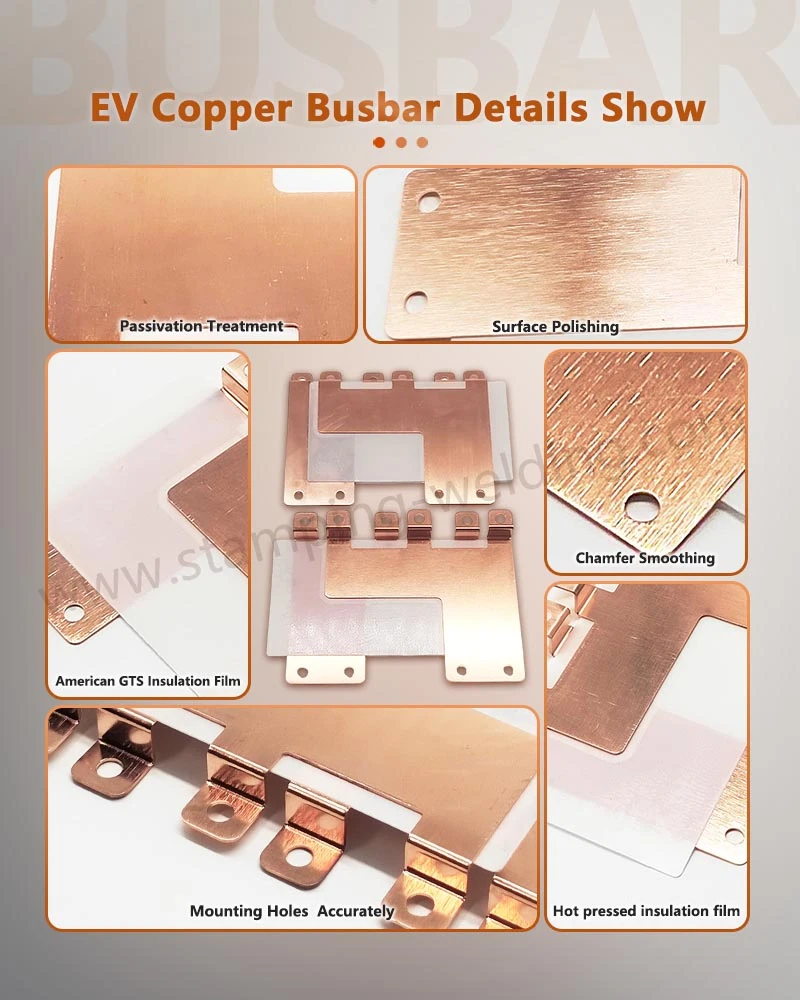

Surface Treatment & Assembly
The busbar undergoes specified surface treatment, such as tin plating or other customer-defined finishes, followed by insulation and component assembly. PET insulation can be integrated according to the DC-Link film capacitor interface and clearance requirements.
Inspection, Sorting & Protective Packaging
Finished EV capacitor busbars are checked for dimensional accuracy, surface condition, assembly consistency and other drawing-specific requirements. Qualified parts are sorted, individually protected and packaged to prevent deformation or surface damage during transportation.
Quality Assurance of Film Capacitor Copper Busbar for Electric Vehicles
Each batch of copper material is verified against specified material standards before production. Critical processes including stamping, bending, drilling and surface finishing are controlled through work instructions and in-process inspections to ensure dimensional consistency and stable electrical conductivity for film capacitor copper busbars.
Key characteristics such as hole position, bending angle, terminal flatness and overall dimensions are inspected according to engineering drawings. Surface quality, burr control and insulation integrity are also checked to ensure proper fitment with EV DC-Link film capacitors and motor control assemblies.
Before shipment, finished Film Capacitor Copper Busbar for Electric Vehicles undergo final inspection for assembly accuracy, surface treatment condition and overall product conformity. Qualified products are sorted, traceable and packaged with protective materials to prevent deformation, oxidation or damage during transportation and storage.
Frequently Asked Questions about Film Capacitor Copper Busbar for Electric Vehicles
Q: How is copper material controlled before manufacturing the Film Capacitor Copper Busbar for Electric Vehicles?
A: Each incoming copper batch is checked against the specified material grade and engineering requirements before stamping. Material verification helps maintain consistent conductivity and forming characteristics throughout production, supporting stable dimensions and electrical connection performance in the finished busbar.
Q: How is the surface quality of the copper busbar controlled?
A: After stamping, drilling and forming, the busbar can undergo burnishing and polishing to remove burrs and improve surface condition. Final inspection checks for scratches, deformation, burrs and other visible defects before the parts proceed to surface treatment or assembly.
Q: How is PET insulation checked on a film capacitor copper busbar?
A: PET insulation is inspected for correct positioning, coverage and physical integrity according to the approved design. Particular attention is given to insulation around conductive areas, terminals and mounting features to prevent interference with the EV DC-Link film capacitor assembly.
Q: How are finished copper busbars inspected before shipment?
A: Final inspection covers dimensional accuracy, bending geometry, hole position, terminal condition, surface quality, insulation condition and assembly consistency. Products that meet the approved specifications are sorted and released for packaging, while nonconforming parts are separated from qualified production.
Q: How are EV capacitor busbars protected during packaging and transportation?
A: Qualified busbars are individually sorted and packaged with protective materials selected according to their structure and surface condition. Packaging is designed to reduce contact damage, deformation and surface contamination during handling, storage and transportation before installation into the EV capacitor assembly.
Contact Us
Submit your 2D/3D CAD files (STEP, DWG, PDF) or electrical specifications directly to our engineering team. We provide a complete DFM analysis, parasitic inductance check, and factory-direct quotation within 24 hours.
