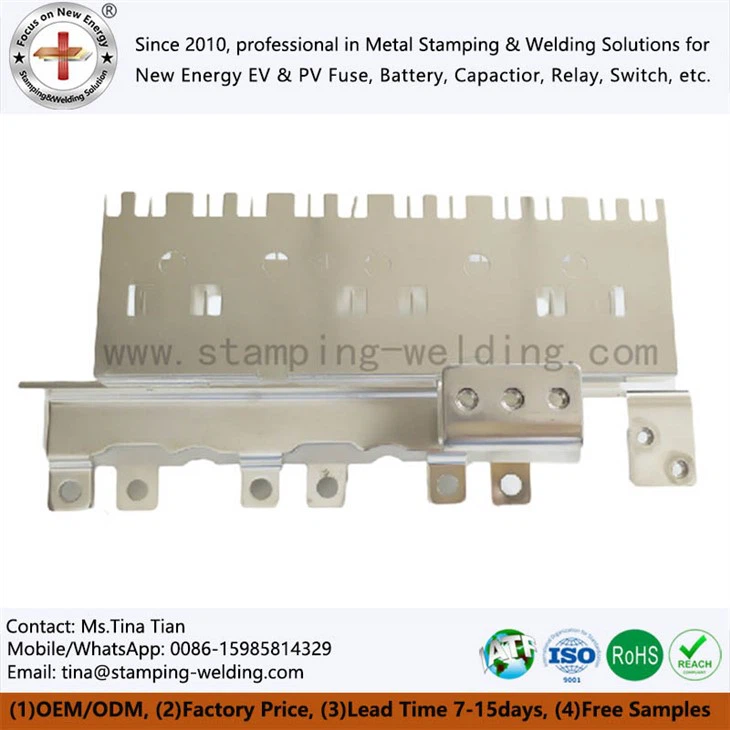

Insulated Busbar For Electric Vehicles
Product Name:Insulated Busbar for Electric Vehicles
Model Number:APOLLO-2024101005
Product Size:ODM/OEM
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
The Insulated Busbar for Electric Vehicles is a structured conductive component used in high-voltage DC power systems, primarily responsible for power collection, low-impedance connection, and system-level insulation.
This product uses high-purity copper as the conductive substrate. Through a layered structure and synergistic design with the insulating medium, it achieves a shorter and more controllable current path, thereby meeting the high-power and high-reliability system requirements of new energy vehicles.
In power battery systems and power electronic modules, this type of busbar is commonly used as a New Energy Vehicle Film Capacitor Busbar to connect the DC bus, capacitor modules, and power devices. It is an indispensable electrical connection component in the EV Motor Control Unit and DC link.
Structure & Operating Principle
1. Material Structure Logic
The conductor uses high-conductivity copper as the substrate. A tin-plated copper busbar for EVs solution can be selected based on system requirements to improve surface stability and weld consistency.
The copper busbar is formed into a multi-layer structure through precision punching or lamination, ensuring high spatial symmetry between the positive and negative electrodes and creating a controllable electric field distribution.
This structure is commonly found in Copper Busbar for DC link EV Film Capacitor and busbar for Power Capacitor applications.
2. Electrical Performance Implementation Mechanism
The multi-layered stacked structure creates distributed capacitance between the conductors, physically increasing the system's capacitance density.
The parallel current path design significantly reduces connection inductance, effectively suppressing voltage spikes and electromagnetic interference.
Therefore, this type of busbar is widely used in Film Capacitor Copper Busbar for Electric Vehicles and Copper Busbar for DC Link Power Electronics Capacitor systems.
Key Performance Explanation
Reducing System Parasitic Parameters
Significantly reducing connection inductance by shortening current loops and optimizing stack-up spacing.
The introduction of distributed capacitance improves the voltage stability of the DC link, suitable for Copper Busbar for Electric Vehicle Capacitors and Copper Busbar for DC Link Film Capacitor for Electric Cars.
Improving System Integration
Compact structure replaces traditional wiring harness connections, reducing manual wiring errors.
Facilitates modular design and increased space density, commonly seen in BusBar Car and BusBar Automotive designs.
Thermal Management and Reliability
Large cross-section copper conductors provide excellent heat dissipation paths, aiding in the cooling of capacitors and power devices.
Stable mechanical and electrical structures improve long-term operational reliability, suitable for Copper Busbar for Self-healing Film Capacitor for EV and HEV Applications.
Application Fields
| New Energy Vehicles and Hybrid Electric Vehicles |
Power Battery and Capacitor DC Bus Connection Automotive Battery Terminal Bus Bar Copper Busbar for Hybrid Electric Vehicles Film Capacitor |
| Power Electronics and DC Link Systems |
Film Capacitor Busbar for HEV Copper Busbar for DC Link Film Capacitor for Hybrid Car Copper Busbar for DC Link Film Capacitor of Hydrogen Fueled Car |
| Other High-Reliability Applications |
Industrial Frequency Converters and UPS Systems Rail Transportation, Power Electronic Devices High-Voltage DC Power Distribution Systems in Military Equipment |
