Laminated Inverter Busbars
As an important electrical connection component, Laminated Busbar plays a vital role in modern power, power distribution and industrial applications. With its excellent conductivity, compact structure design, high reliability and safety, it has become an indispensable component of many high-current and high-power equipment, and is widely used in substations, power systems, UPS power supplies, industrial automation and other fields.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Products feature
|
Product Name |
|
|
Dimensions |
OEM/ODM as your drawing |
|
Material |
99.99% Red Copper T2Y2,%IACS≥97,HV: 80-110s |
|
Certifications |
ISO9001, IATF16949, RoHS, Reach, etc. |
|
Applications |
EV/HEV, PV, UPS, Communication, Industrial Power. Web Server Rail Transit , etc. |
|
Shipping Methods |
By Air/Sea/Train, Express (DHL/UPS/TNT/FEDEX, etc) |
Products advantage
Competitive advantage
High Conductivity
Due to the use of high-quality copper or aluminum materials, the Laminated Copper BusBar has excellent electrical conductivity and can effectively reduce the loss in power transmission.
01
Compact Design
The laminated structure allows the busbar to complete the transmission of large currents in a small space, which is convenient for installation in electrical equipment with limited space.
02
Good Thermal Stability
When carrying large currents, Laminated Busbar Connectors
can effectively dissipate heat, avoid overheating, and ensure the safe operation of electrical equipment.
03
Excellent Corrosion Resistance
After surface treatment, the Laminated BusBar for Mersen can resist environmental influences such as oxidation and corrosion, and extend its service life.
04
High Structural Strength
The busbar lamination process gives it high mechanical strength and stability, and can withstand large vibrations and shocks.
05

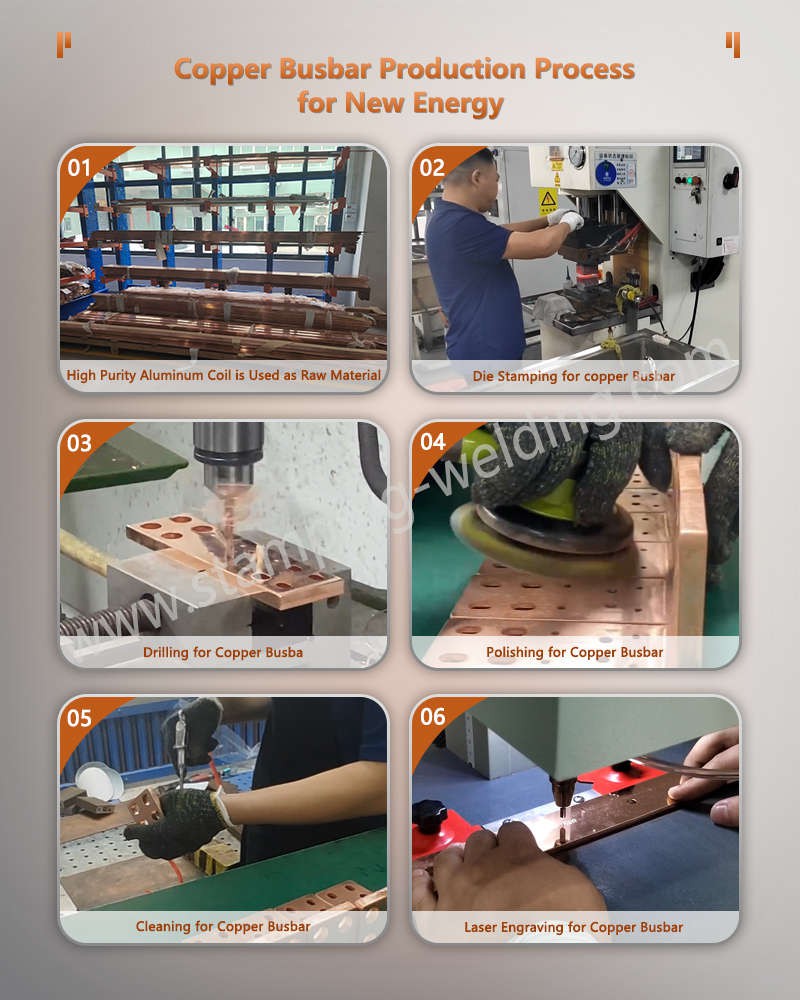

Products process
Our Laminated Inverter Busbars not only have high-end production equipment, but also very advanced production technology. The following are some of the production steps of our products：
Raw material preparation: Select suitable conductive metal materials (such as copper and aluminum) and perform surface treatment as required to ensure conductivity and corrosion resistance.
Laminated production: Metal sheets are stacked according to the predetermined thickness, width and number of layers, and the metal sheets are tightly combined through precise pressure processing to ensure conductivity and stability.
Precision cutting: Cut the laminated busbar to the required length according to design requirements to ensure compatibility with electrical connection components.
Surface treatment: Tin plating, nickel plating and other surface treatments are performed to enhance conductivity and prevent oxidation and corrosion.
Inspection and testing: Each production batch of Laminated Copper BusBar is strictly tested for electrical performance, mechanical strength and environmental adaptability to ensure that product quality meets standards.
Products certificate
Our Laminated Copper Bars are made of high-quality raw materials, high-end production equipment and advanced production technology. Our high-quality products have obtained relevant qualification certificate：
1.ISO 9001: ISO 9001 is an internationally recognized standard for quality management systems, focusing on consistent product quality and customer satisfaction. Organizations certified with ISO 9001 demonstrate their commitment to continuous improvement and meeting regulatory requirements.
2.IATF 16949: IATF 16949 is a quality management standard specifically for the automotive industry, ensuring that suppliers meet strict criteria for product quality and reliability. Certification indicates an organization's ability to consistently provide products that meet customer and regulatory expectations in the automotive sector.
3.RoHS: RoHS (Restriction of Hazardous Substances) is a certification that ensures Laminated Busbar Connectors do not contain harmful levels of specific hazardous materials, such as lead, mercury, or cadmium. It is mandatory in the European Union for electronic and electrical products to be RoHS compliant, promoting environmental sustainability.
4.REACH: REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) is a European Union regulation aimed at protecting human health and the environment from the risks posed by chemicals. Certification ensures that companies properly manage and communicate the use of chemicals in their products, including their safe handling and disposal.
