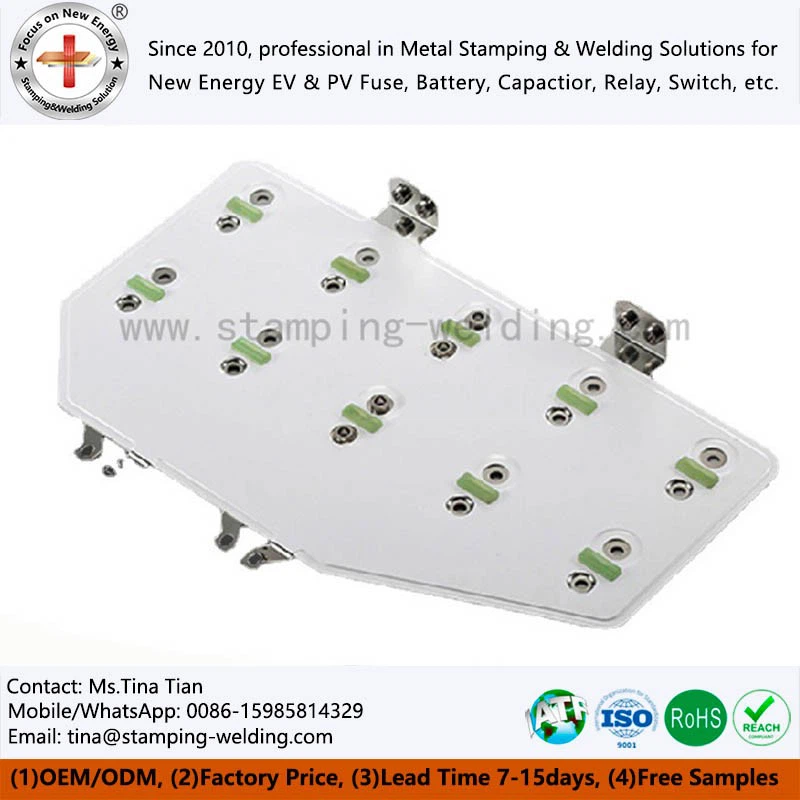

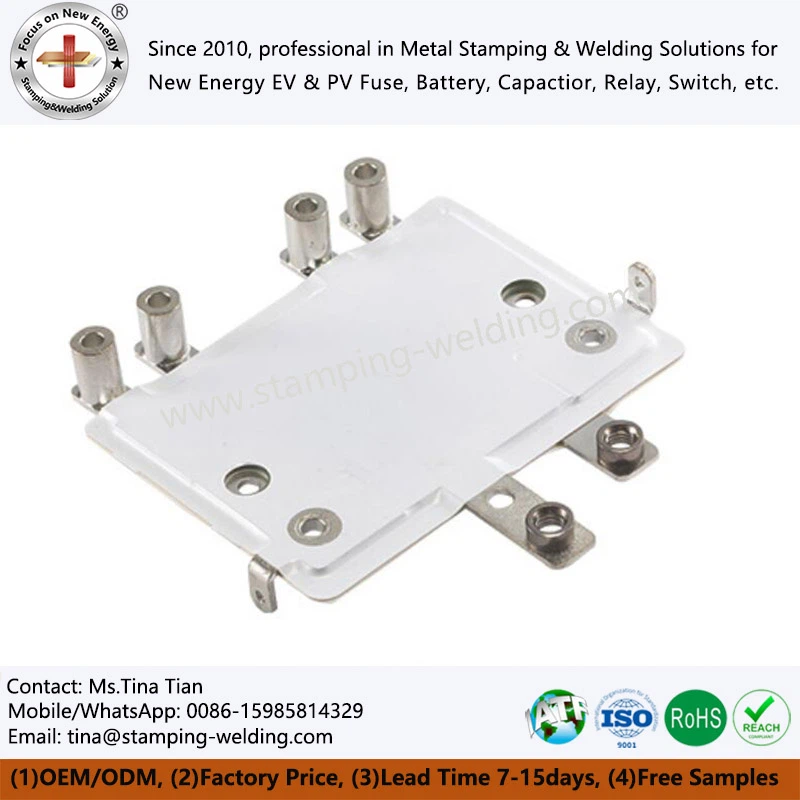

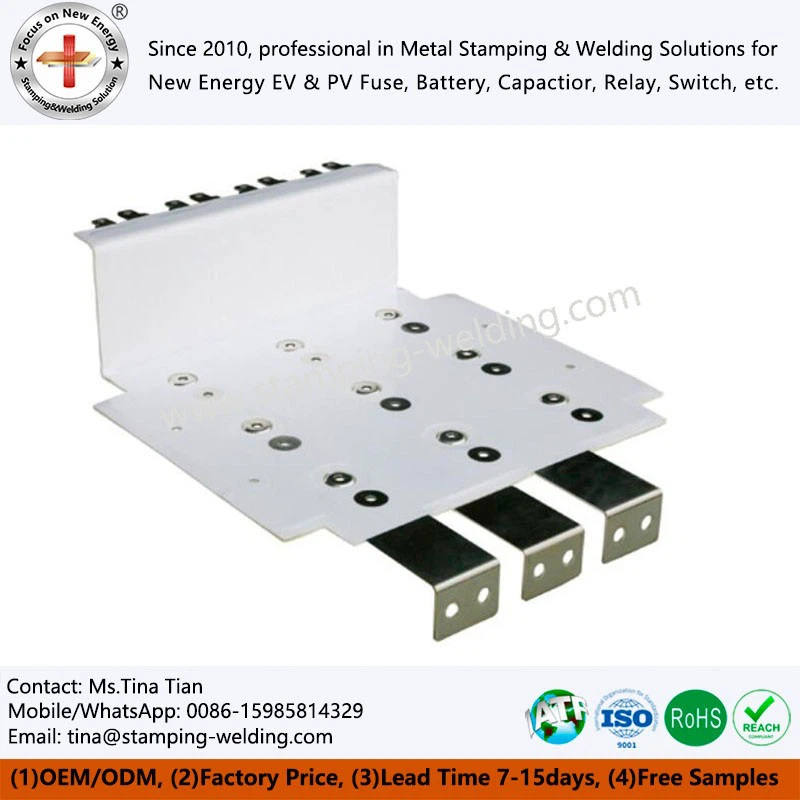

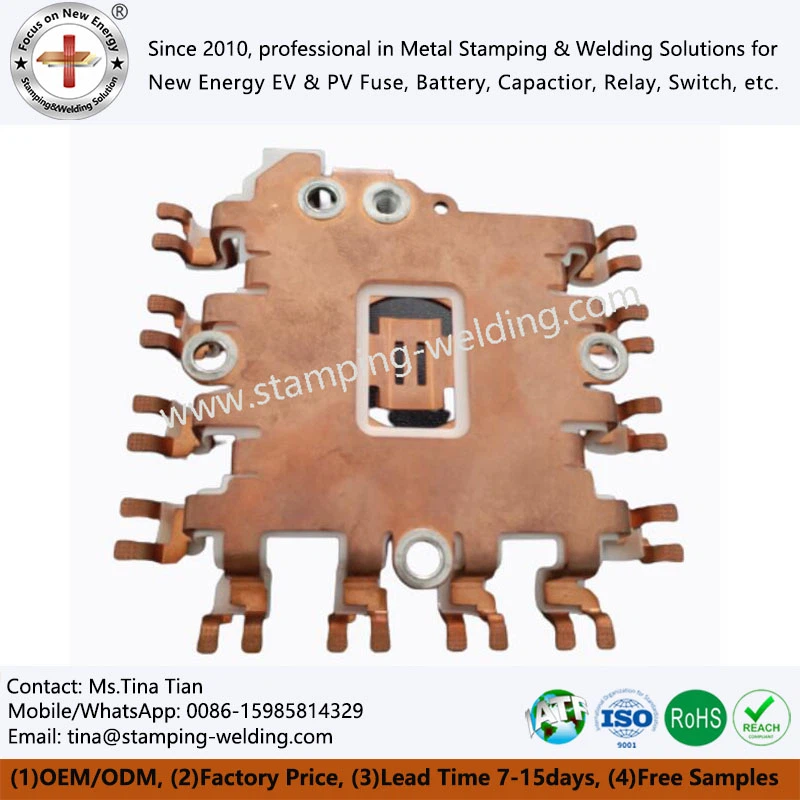

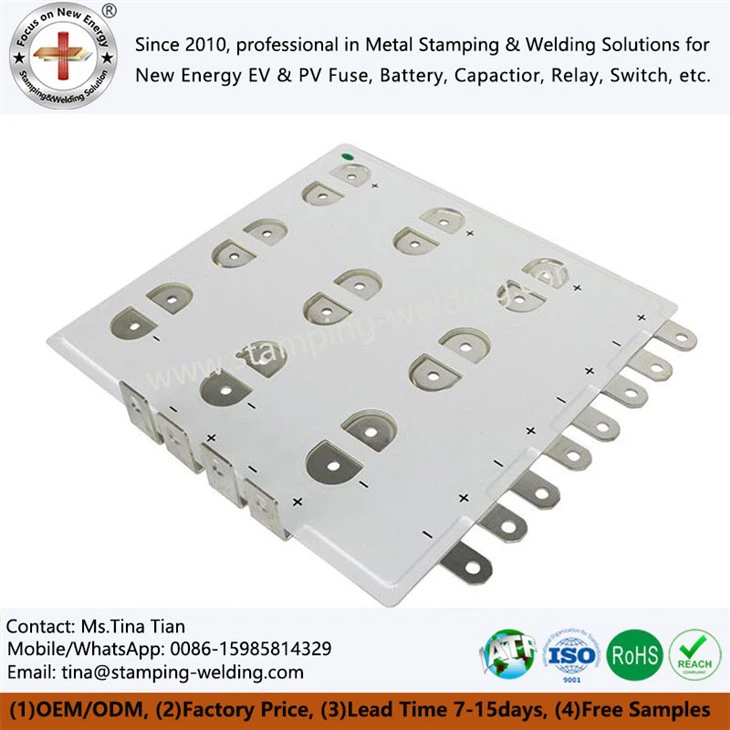

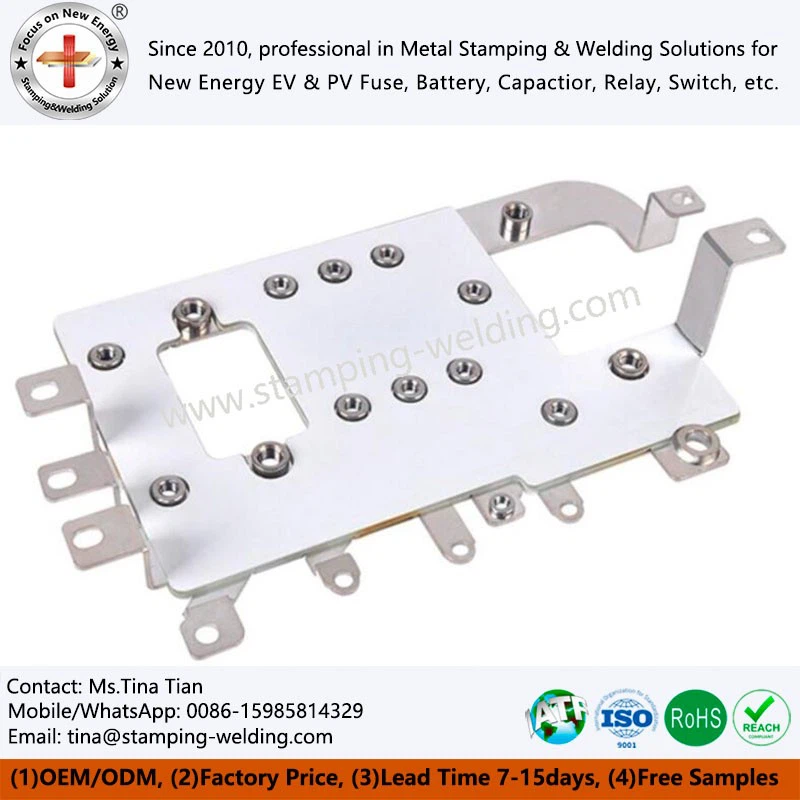

Laminated Busbar With Low Inductance
The low inductant Laminated busbar is an advanced power transmission component designed to meet the
needs of efficient, compact and reliable power distribution. The unique stacked structure design of the
laminated busbar achieves low inductance, high current carrying capacity and excellent heat dissipation
performance by combining multiple layers of upgraded materials.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Profile
Laminated busbar with low inductance is a conductive busbar with a multi-layer composite structure and is a key power transmission component in modern power systems and electronic equipment. It is formed by alternating layers of conductive layers (usually copper or aluminum) and insulating layers. This unique structure gives it significant advantages in electrical performance, space utilization and reliability.
Product Advantages
Product Advantages
Low inductance characteristics
Due to the multi-layer structure and special layout design of the laminated busbar, the current is more evenly distributed in different conductive layers, thereby effectively reducing the inductance value.
High current carrying capacity
With high-quality conductor materials and reasonable heat dissipation design, the laminated busbar can withstand large current loads. According to different specifications and heat dissipation conditions, when equipped with a forced heat dissipation device, the carrying capacity can be further increased to meet the large current transmission requirements of high-power equipment.
Efficient heat dissipation
The multi-layer structure inside the low inductant laminated busbar forms a natural heat dissipation channel. The heat generated when an electric current passes through it can be quickly conducted between the layers and dissipated into the surrounding environment through a large surface area.
High strength and stability
Through a special pressing process, the layers of the laminated busbar are closely combined to form an overall structure with high mechanical strength. It can withstand certain mechanical stress, such as vibration, impact, etc., and is not prone to deformation or damage during the operation of the equipment, ensuring the stability and reliability of power transmission.
Product quality and certification
Quality control system
A strict quality control system has been established, and every link from raw material procurement to production and processing is strictly tested and monitored to ensure that the quality and performance of materials meet international standards. During the production process, advanced production equipment and precise manufacturing processes, such as high-precision lamination equipment and laser cutting technology, are used to ensure that the dimensional accuracy, electrical performance and mechanical performance of the laminated busbars reach the best level.
International certification
Low inductance laminated busbar products have passed a number of international certifications, such as ISO 9001 quality management system certification, UL certification, CE certification, etc. These certifications indicate that our products comply with international standards in terms of quality, safety, and environmental protection, and can be widely used around the world.
Product Production Process
| Copper Selection |
High-purity laminated busbar with low inductance is chosen for its excellent electrical conductivity and malleability. |
| Shaping | The product is shaped into bars or custom forms depending on the application. This can be done through extrusion, rolling, or stamping. |
| Cleaning | The busbars are thoroughly cleaned to remove any impurities, ensuring that the nickel plating adheres properly. |
| Nickel Plating | The cleaned laminated busbar are electroplated with a layer of nickel. This involves immersing theproduct in a nickel salt solution and applying an electric current to deposit a uniform nickel layer onto the surface. |
| Quality Control | After plating, the bus bars undergo rigorous quality checks to ensure the thickness and uniformity of the nickel layer, as well as testing for electrical and corrosion-resistant properties. |
| Packaging | Finally, the finished bus bars are carefully packaged to protect them during transportation and storage. |
Packaging and Transportation
| Protective Packaging | Laminated busbars are packaged in multi-layer protective packaging to ensure product safety during transportation. First, the busbar surface will be covered with an anti-static protective film to prevent static electricity from causing damage to the product. The busbars are then placed within custom foam grooves, which provide good cushioning and shock protection. Finally, put the foam with busbars into a strong carton or wooden box. The product name, model, specification, quantity, and signs such as handle with caution, moisture-proof, and rain-proof are marked on the outside of the carton or wooden box. |
| Customized Solutions | For larger orders or special sizes, custom packaging solutions are available to ensure secure and safe delivery. |
| Global Shipping | During the transportation process, we will choose the appropriate transportation method according to the customer's requirements, such as air transportation, sea transportation or land transportation. No matter which transportation method is chosen, we will ensure that the products are not subject to severe vibration, collision, moisture and rain during transportation. For long-distance transportation or severe transportation conditions, we will take additional protective measures, such as increasing the number of reinforcement layers in the packaging and placing desiccant in the packaging box. |
FAQ
Q: Are your laminated busbars compatible with different types of electric vehicles?
A: Yes, our laminated busbars designs are versatile and can be customized to fit a variety of electric vehicle platforms, including passenger cars, commercial vehicles and electric buses.
Q: Can you customize laminated busbars to meet specific requirements?
A: Of course! We understand that each electric vehicle application has unique needs, and we offer customization options to fit specific voltage, current, and space constraints.
Q: What safety features do your laminated busbars have?
A: Our laminated busbars are designed with safety in mind, incorporating features such as insulating coatings and protective barriers to prevent electrical shorts and ensure reliable operation.
We know that different customers have unique needs for laminated busbars in different application scenarios. Therefore, we offer comprehensive customized design services. Our team of professional engineers can customize the electrical parameters provided by customers (such as rated current, voltage, inductance requirements, etc.), mechanical size restrictions (such as installation space, shape requirements, etc.) and special application environments (such as high temperature, high humidity, strong electromagnetic interference, etc.), tailor-made the most suitable laminated busbar solution for customers.
Our laminated busbars are crafted using precision technology and expertise to meet the stringent requirements of electric vehicle applications. We look forward to the opportunity to serve you and contribute to the success of your electric vehicle project. If you have any further questions or would like to discuss your requirements in more detail, please feel free to contact us.
The laminated busbar has a unique structural design that achieves low inductance, high current carrying capacity and excellent heat dissipation performance by stacking and combining multiple layers of conductor materials. This compact design not only saves space, but also performs well in high-frequency circuits and high-current application scenarios. It is widely used in many fields such as power electronic equipment, new energy vehicles, and industrial automation. Our laminated busbars use high-quality materials and precision manufacturing processes to ensure that the products meet international standards and provide stable and efficient power transmission guarantee for global customers.
