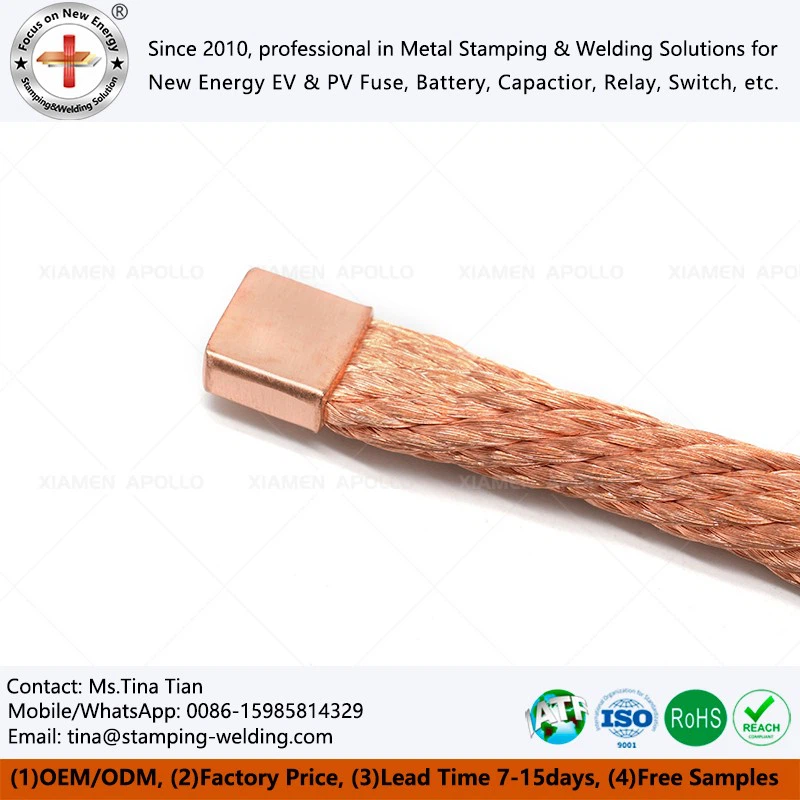

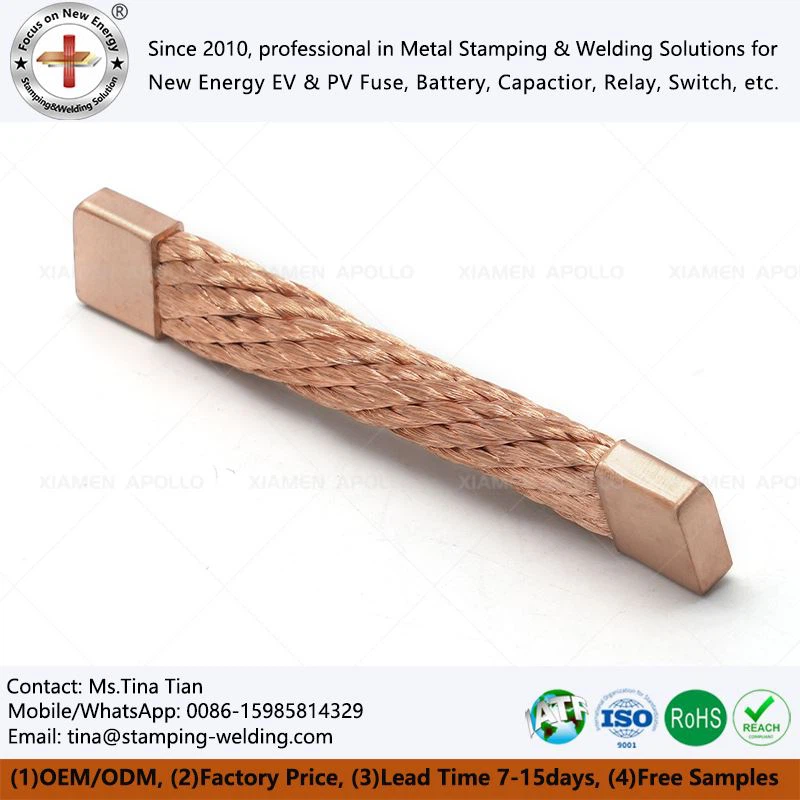

Flexible Copper Braided Connector Bus Bar
As high-power electrical systems continue to evolve towards higher density, miniaturization, and higher reliability, traditional rigid busbars can no longer meet the connection requirements of complex installation environments and dynamic operating conditions. Flexible Copper Braided Connector Bus Bars, with their excellent flexibility, vibration resistance, and stable conductivity, have become an irreplaceable key connection component in the fields of new energy, power equipment, and industrial automation. This product is formed by braiding multiple strands of high-purity copper wire and combining them with high-precision crimping or welding processes to achieve both electrical connection and mechanical compensation functions, making it an ideal solution for addressing equipment displacement, thermal expansion, and vibration stress.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Products Description
Flexible Copper Braided Connector Bus Bars are strip or tubular conductors woven from countless micron-sized high-purity copper wires, interlaced at specific overlap ratios and angles using a fully automated braiding machine. Essentially, they utilize a large number of fine monofilaments to decompose macroscopic mechanical stress into microscopic monofilament deformation, thereby achieving free bending and torsion in three-dimensional space.
Core Physical Characteristics:
Extreme Flexibility: Capable of completing bends of 180° or even more complex radius without metal fatigue.
High Surface Area Ratio: The unique braided structure provides a larger surface area than solid copper busbars of the same cross-section, significantly optimizing the skin effect under high-frequency currents.
Structural Stability: The dense interlacing pattern ensures that the overall cross-sectional area remains constant even under severe vibration.
Materials Science Advantages: Microscopic Quality Control at the Single-Wire Level
Micro-wire Annealing Process
We select micro-fine copper wires with a diameter of only 0.05mm-0.15mm and employ continuous bright annealing technology. Precise control of annealing temperature and atmosphere eliminates work hardening during drawing, resulting in extremely low hardness and extremely high elongation of the copper wire.
Oxygen-Free Copper Substrate
We insist on using oxygen-free copper (OFC) as the raw material, with a copper content greater than 99.95%. This extremely high purity gives the material an extremely low temperature coefficient of resistance. Even under prolonged high current flow leading to temperature rise, the conductivity remains stable, avoiding the risk of insulation aging caused by heat generated by impurities.
Fatigue-resistant alloy options
For extremely high-frequency vibration environments (such as locomotive traction and shipboard equipment), we offer copper alloy wire solutions. Through micro-alloying, the yield strength and tensile strength of the copper wire are enhanced, preventing breakage in millions of repeated bending tests, significantly exceeding the fatigue limit of standard copper.
Key Functions and Application Advantages
High Current Transmission Balancing
Ensures balanced current distribution among multiple parallel Flexible Busbars and Copper Jumpers.
Installation Error Correction
In engineering sites, Flexible Copper Braid Connectors installations often exhibit centimeter-level displacement deviations. The flexibility of flexible connections allows for easy compensation of civil engineering or machining errors, significantly shortening the construction period.
Electromagnetic Interference Shielding (Circular Braid)
Special circular braided mesh can be used as a shielding layer for signal cables, providing both conductivity and interference immunity.
Detailed Showcase: The Ultimate Embodiment of Industrial Aesthetics
Terminal Surface Finish
Whether tin-plated or silver-plated, the terminal surface undergoes a refined finishing process, resulting in a uniform, bright color and free of oxidation spots. This superior surface treatment is not only aesthetically pleasing but, more importantly, reduces contact resistance and extends insertion and removal life.
Anti-Stripping End Sealing Design
Transparent heat-shrink tubing or special adhesive is used to seal the ends of the braided structure at non-crimped ends. This detailed design prevents copper wire stripping during stripping or installation, maintaining conductor uniformity and demonstrating consideration for construction workers.
Weather Resistance of the Insulating Sheath
The standard insulating sleeve is made of highly flame-retardant and high-temperature resistant materials, tightly wrapping the braided structure to provide additional mechanical protection and an insulating barrier. The sheath is clearly printed with model specifications for easy warehouse management and on-site identification.
Smooth Hand Feel
The high-quality braided flexible connector has a soft, rope-like feel and exhibits no springback when bent. This intuitive difference in tactile feel is the most direct proof of the superior raw materials and exquisite annealing process.
contact us
In complex electrical systems, the reliability of connectors directly impacts overall operational safety. We not only offer standardized Copper Braided Flex Connectors but also provide stable and sustainable conductive connection solutions for your projects through systematic optimization of material selection, structural design, and manufacturing processes.
For matching specific project parameters or obtaining customized solutions, please submit your technical requirements. We will provide more reliable connection design support based on your engineering application.
