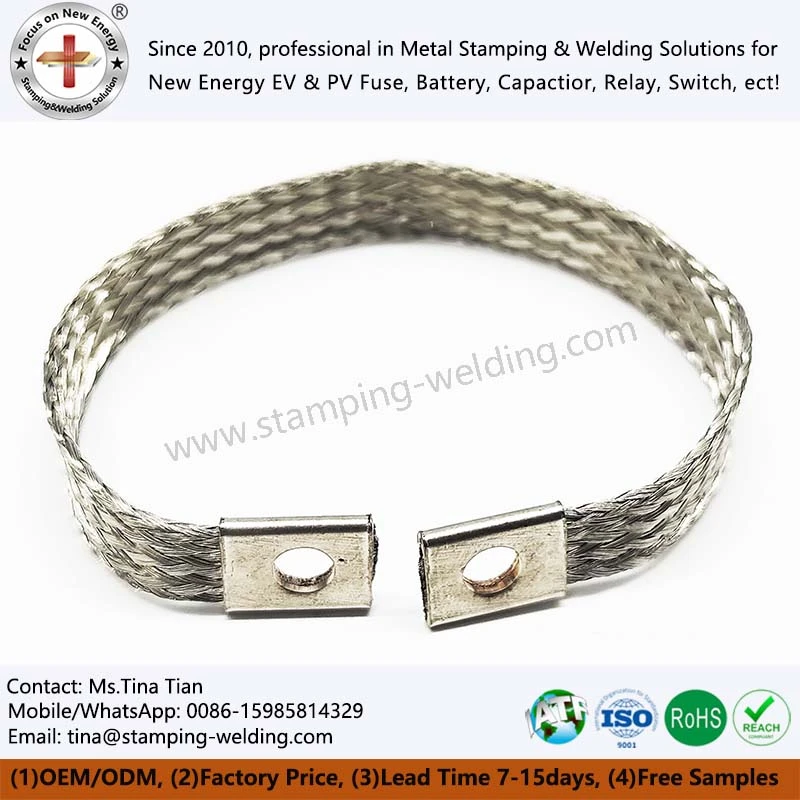

Grounding Braids Wire Tin Plated
Grounding Braids Wire Tin Plated is mainly used for protective grounding, equipotential bonding, and anti-interference path construction in new energy and power electronic systems. In high-power, high-frequency switching and complex electromagnetic environments, the grounding conductor not only serves to discharge fault current, but also directly affects the system's EMI suppression capability, connection reliability, and long-term operational stability.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Grounding Braids Wire Tin Plated are core flexible grounding conductive components specifically designed for the new energy and power electronics industries. They address the core needs of grounding protection, electromagnetic shielding, and current diversion, and are compatible with various equipment grounding systems. Made from high-purity fine copper wire, the product is braided and tin-plated, combining flexibility, high conductivity, and corrosion resistance. Its core performance directly determines the safety and efficiency of the grounding system, making it a crucial component for engineering procurement that balances performance, cost, and compliance. It adheres to relevant quality and environmental standards, meeting the core requirements of engineering procurement and system engineers.
Material properties
Oxygen-free copper core
The core of the product uses ≥99.95% high-purity oxygen-free copper wire, which undergoes precision purification and annealing treatment, reducing conductivity loss by more than 8%, effectively suppressing the skin effect, and adapting to high current transmission; tensile strength ≥200MPa and elongation ≥25%, it can withstand repeated bending and stretching, eliminating the risk of wire breakage and laying the foundation for product flexibility and reliability.
Functional tin plating layer
The tin plating layer on the product surface uses high-purity environmentally friendly tin material, with adhesion more than 30% higher than conventional plating layers. It can tightly wrap the copper wire to form a protective layer, isolating corrosive media, delaying oxidation, optimizing contact resistance, ensuring long-term stable conductivity under harsh working conditions, and extending service life.
Composite supporting materials
The supporting materials of the Flat Copper Braided Wire are engineering-grade special products, the end treatment solder and terminal ratio are accurate, and the joint is firm after welding/pressing (contact resistance ≤5μΩ); if insulation is required, the supporting temperature-resistant, flame-retardant and environmentally friendly materials are used, which fit tightly and do not affect the product's flexibility, meeting multiple procurement requirements.
Detailed display
The Braided Wire Copper Bus Bar features a tightly and evenly woven weave, free of broken strands or loose strands, with a clear texture and smooth surface; the tin plating is uniform and glossy, free of exposed copper, pinholes, or other defects; the end crimping/welding is firm and smooth, with terminals fitting tightly to the product without gaps; models with an insulating layer have a smooth, undamaged insulating surface, fitting tightly without affecting the product's flexibility.
Each Copper Braided Wire comes with a traceable, dedicated testing report; key items are tested using precision equipment with an error of ≤±2%, ensuring accurate results; raw materials come with testing reports, and third-party testing is available; each batch of products undergoes salt spray and high/low temperature resistance tests, with data retained and archived to ensure product adaptability to complex operating conditions.
competitive advantage
We have been deeply involved in the field of Grounding Braids Wire Tin Plated for many years. Through continuous R&D and technological accumulation, we have obtained numerous industry-recognized technical patents, covering core areas such as precision braiding, efficient tin plating, flexible structure design, and end treatment. These patented technologies are deeply integrated into the entire product R&D and production process, effectively ensuring product performance and process precision, optimizing production processes, and improving manufacturing consistency. This addresses the core pain points of engineering procurement regarding high-quality, high-reliability, and controllable batch production, while also demonstrating our technical strength and industry influence in related fields, providing solid patent support for product engineering selection.
Contact Us
If you have any questions regarding the procurement, selection, customization, or sample application of Grounding Braids Wire Tin Plated, please feel free to contact us. Our professional team provides rapid response, technical advice, cost reduction solutions, and sample support. Leveraging the entire industry chain and high-quality service, we facilitate project implementation and strictly control supply risks.
