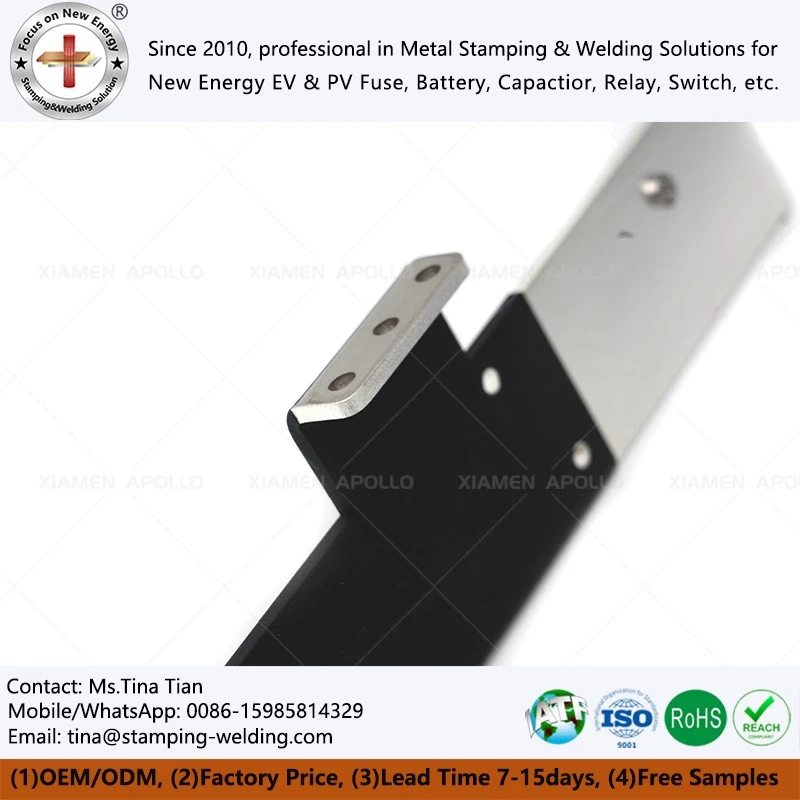

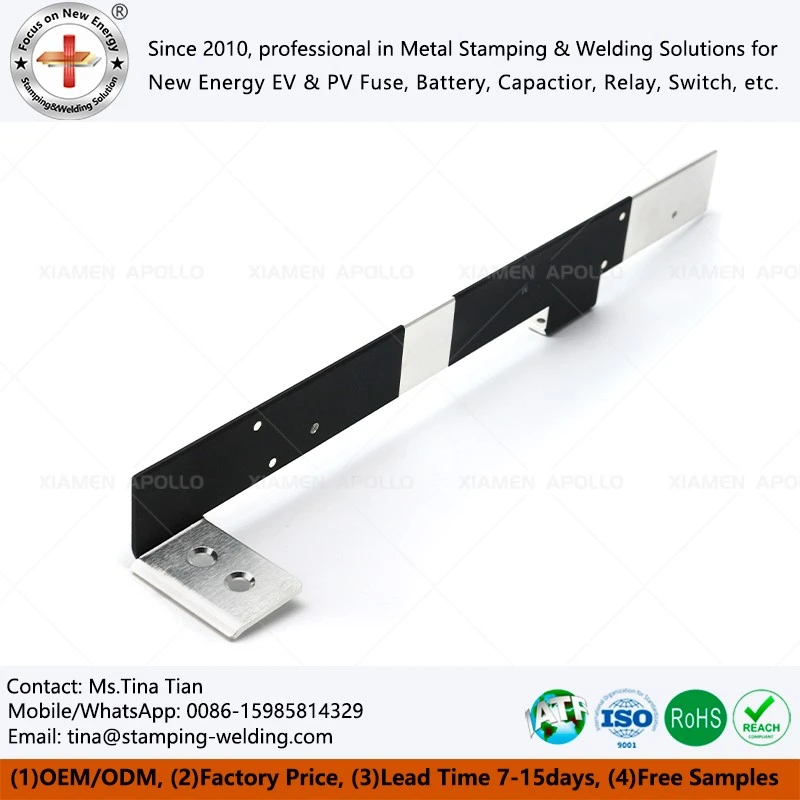

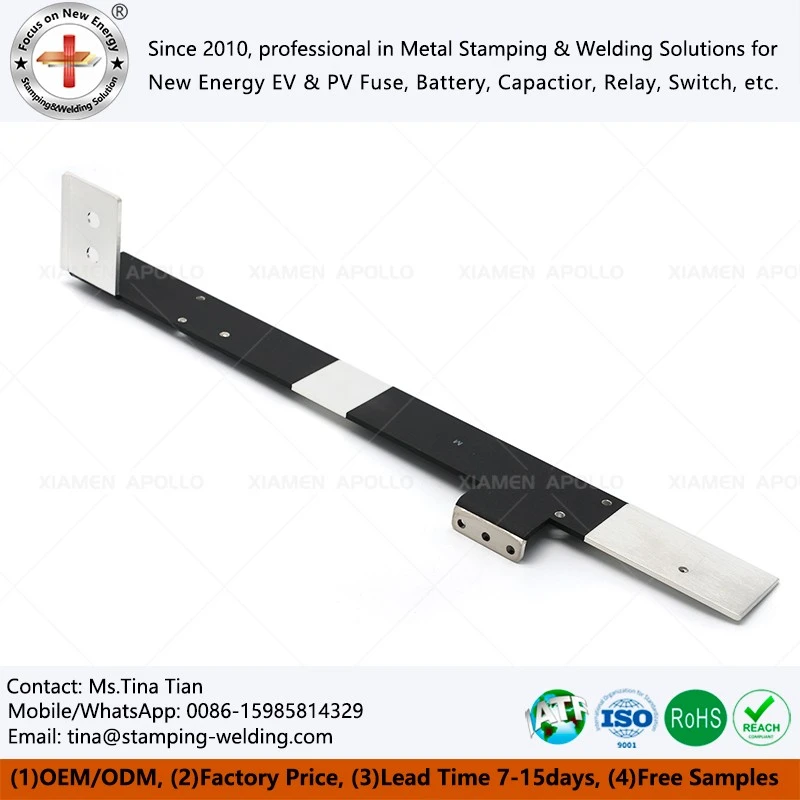

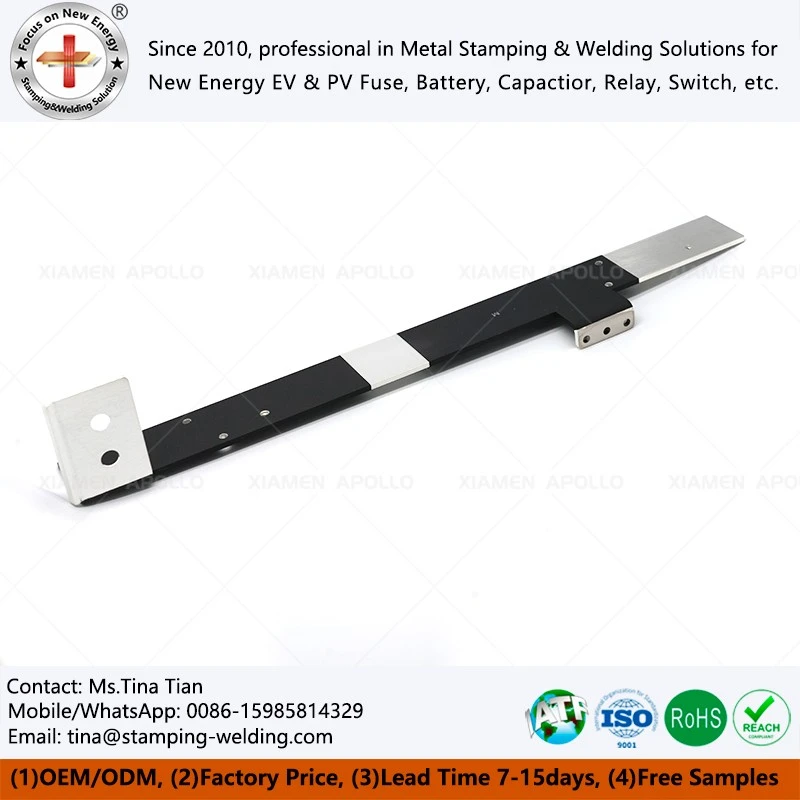

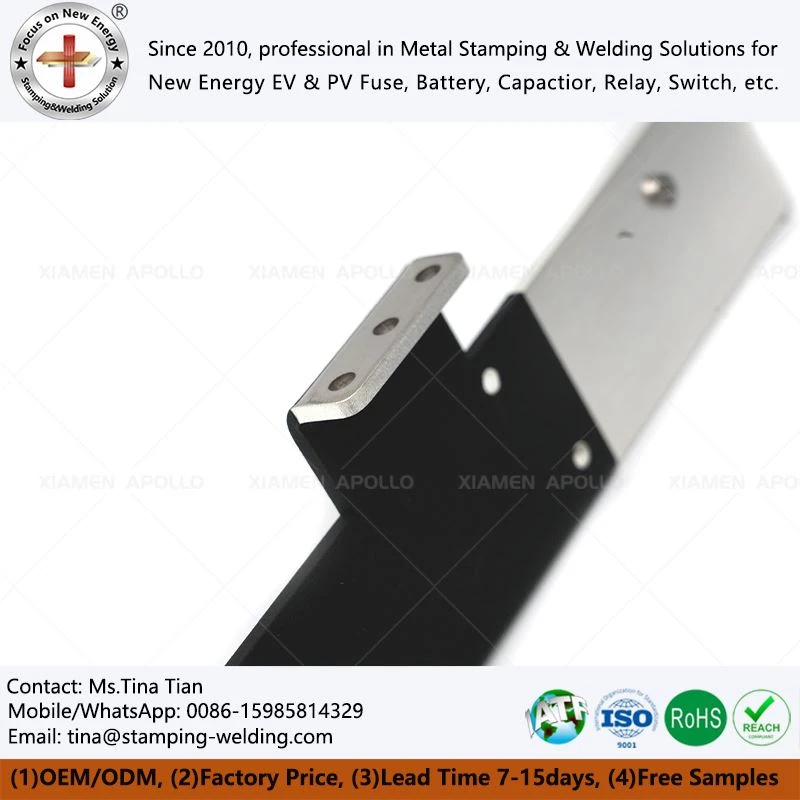

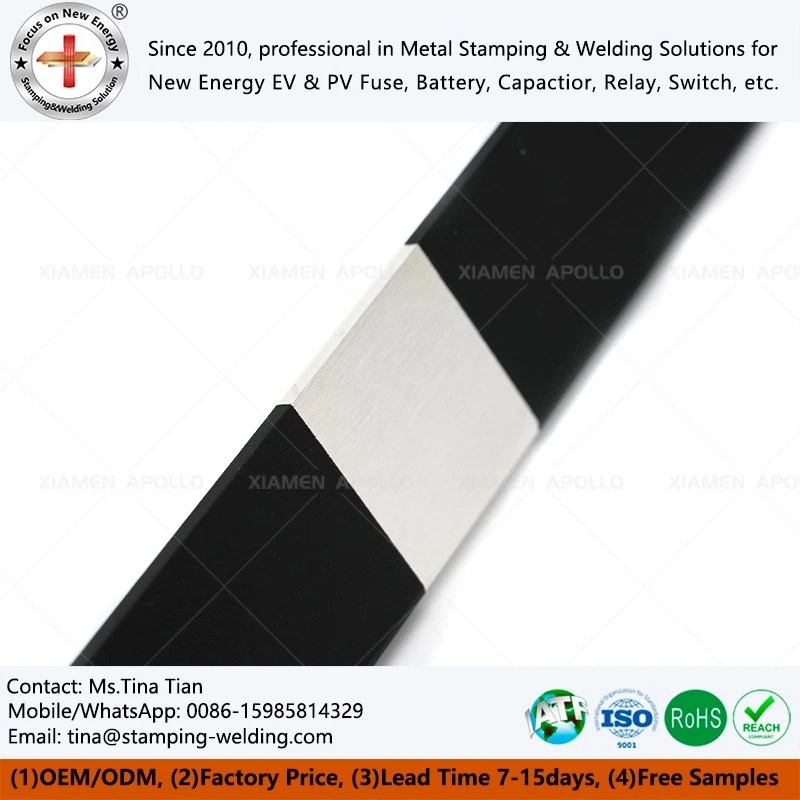

Electrical Copper Bar Epoxy Resin Powder Coating
An Electrical Copper Bar Epoxy Resin Powder Coating is an electrical connection component consisting of a highly conductive copper busbar encapsulated in an insulating epoxy resin powder coating. These components are primarily used for fixed, high-current connections within uninterruptible power supply (UPS) systems, server power systems, power distribution equipment, power conversion units, and industrial electrical enclosures. Compared to bare copper busbars, the epoxy resin powder coating provides a continuous insulating layer over the copper conductor; this preserves the high electrical conductivity of the copper while mitigating the risk of accidental contact between conductors—which could otherwise be caused by cramped spaces, installation inaccuracies, or the presence of foreign objects.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Epoxy powder coating is an advanced surface treatment process that utilizes a thermal curing reaction to form a continuous, seamless, and highly dense polymeric protective film on the surface of a conductor.

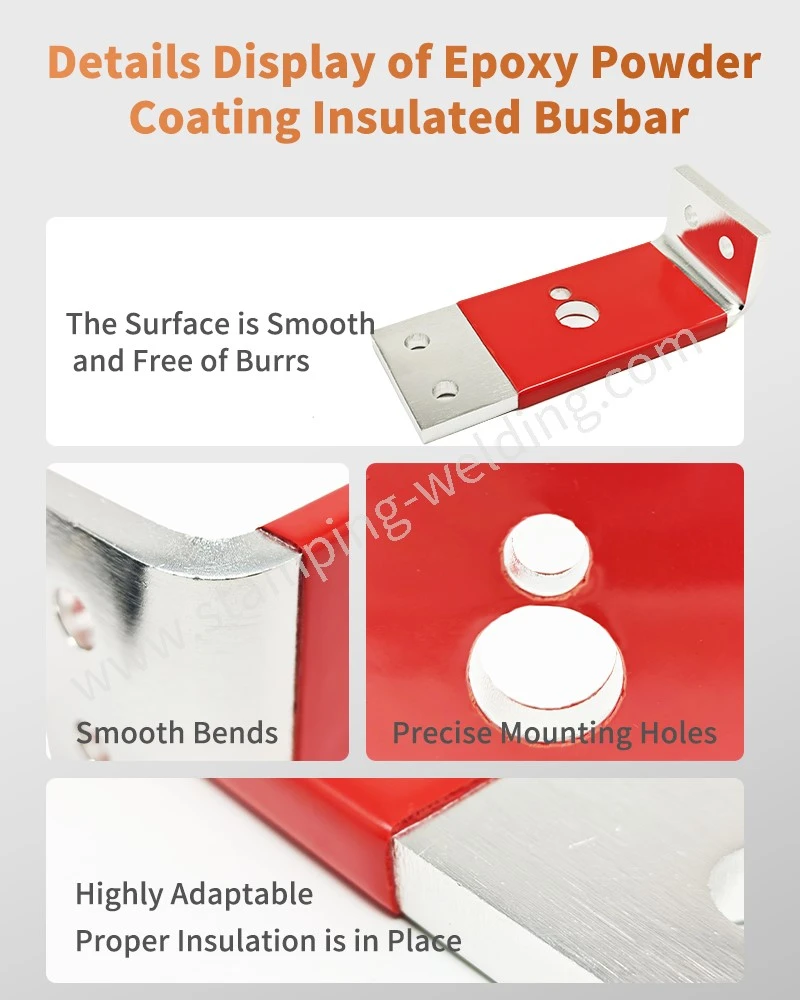

360° Seamless, Full-Coverage Protection: Unlike traditional sleeving, which often suffers from stress concentrations and thin spots at sharp corners, powder coating flows perfectly to conform tightly to the complex geometries of copper busbars, ensuring complete, gap-free insulation across the entire cross-section.
Highly Dense, Pinhole-Free Structure: Once cured, the coating exhibits an exceptionally high degree of molecular cross-linking, effectively blocking moisture, salt spray, and corrosive gases to ensure long-term electrical stability, even in harsh industrial environments.
Superior Adhesion and Mechanical Impact Resistance: The coating establishes a robust bond with the copper substrate-anchored through both chemical and physical means-preventing delamination or peeling, even when subjected to frequent mechanical vibration or thermal expansion and contraction cycles.

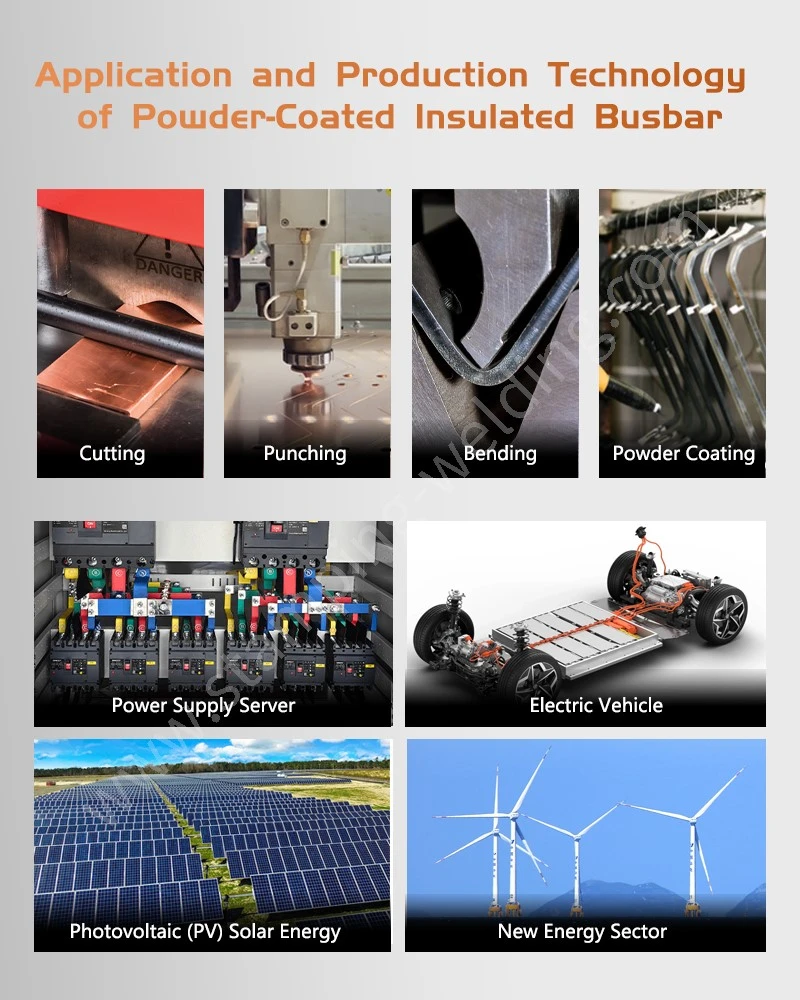

Application Advantages
UPS (Uninterruptible Power Supply)
Within power module cabinets, busbars are densely arranged; the coating's high adhesion and moisture resistance significantly reduce the risk of surface discharge caused by condensation and dust accumulation.
01
Server Power Supplies and PDUs
In compact 1U/2U spaces, coated busbars enable three-dimensional routing-replacing complex wire harnesses-while their smooth surfaces prevent the accumulation of dust and moisture.
02
Low-Voltage Switchgear and Distribution Cabinets
The coating allows for reduced phase-to-phase spacing, directly facilitating the miniaturization of the cabinet enclosure.
03
Energy Storage PCS, High-Voltage Battery Junction Boxes, EV Charging Piles, and Traction Converters
The coating provides protection against salt spray, sulfides, and vibration, ensuring the insulation reliability of busbars throughout their entire service life.
04
Evolution Toward 800V High-Voltage DC
As busbar voltage levels rise, surface creepage and partial discharge become primary constraints; in this context, the high CTI (Comparative Tracking Index) rating and void-free structure of the coating prove particularly valuable.
05

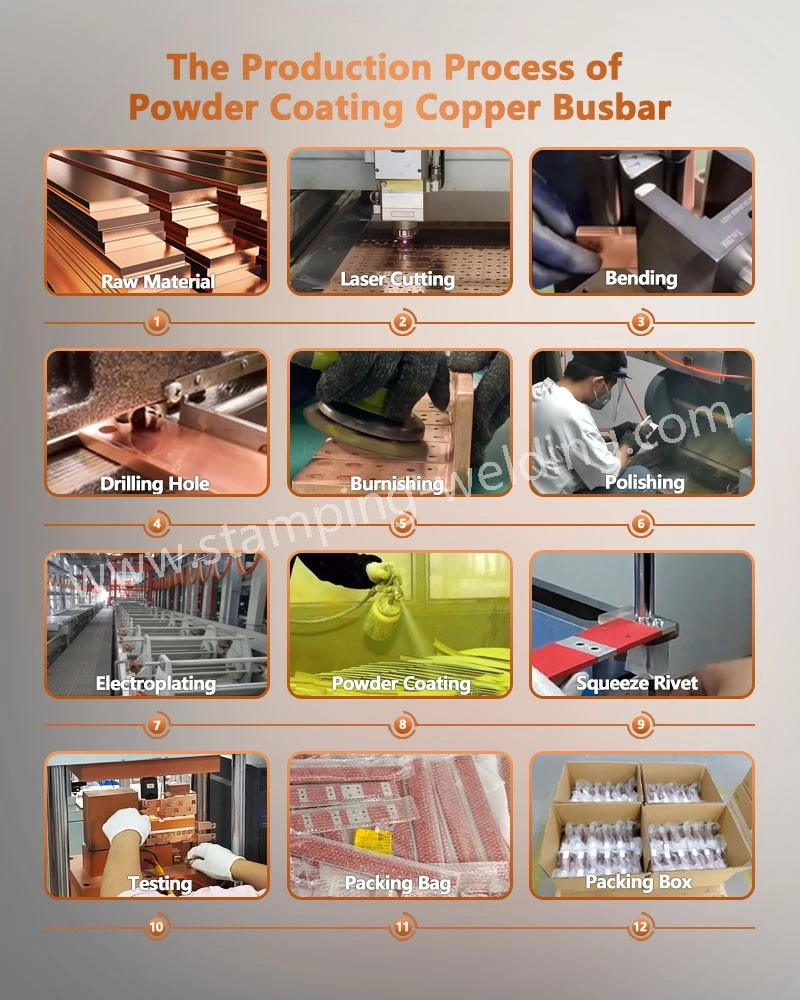

Manufacturing Advantage: Pre-treatment Is the Key to Success
In the industry, most coating failures do not stem from the application process itself, but rather from inadequate pre-treatment. Our coating production line prioritizes resources for substrate pre-treatment:
Multi-stage cleaning and degreasing
Removes rolling oils, drawing lubricants, and residues such as fingerprints or sweat from the surface of copper busbars, ensuring no contaminants remain trapped beneath the coating.
Surface activation and passivation
Specialized treatment of the copper substrate enhances the interfacial bond between the coating and the base material, while inhibiting the migration of copper ions-a common cause of coating discoloration and loss of adhesion.
Controlled-temperature curing
We apply tailored heating profiles based on the specific batch and wall thickness of the busbars, ensuring thorough cross-linking of the coating and preventing issues like "surface-dry but uncured-interior."
Dual-inspection mechanism
Every piece undergoes post-curing visual and film-thickness checks. For critical orders, we offer additional testing-such as pinhole detection and dielectric withstand (voltage) testing-and can provide full traceability records for coating quality.
Frequently Asked Questions
1. How does an epoxy powder coating differ from standard insulating varnish or heat-shrink tubing?
-
The powder coating forms a continuous, thermosetting protective layer with high adhesion. It provides superior edge coverage and greater resistance to mechanical and environmental stress, making it ideal for the long-term operation of power distribution busbars-unlike temporary or localized insulation methods.
2. Can the coating thickness be adjusted based on voltage levels?
-
Yes. We determine the appropriate coating thickness and coverage area based on system voltage, creepage distance requirements, and the customer's spatial constraints, ensuring both electrical safety and compatibility with assembly.
3. What risks does the coating address in UPS and server power supply environments?
-
It primarily mitigates risks such as surface oxidation caused by humidity, partial discharge, contamination from dust or corrosive gases, and minor mechanical damage during installation or transport-thereby enhancing long-term insulation reliability.
4. Can the finished products be customized with specific colors or markings?
-
Yes. We offer various color options and can apply specific markings to facilitate on-site identification, maintenance, and management.
5. How can I initiate a project assessment and technical consultation?
-
Please provide details regarding your busbar specifications, system voltage, operating environment, and any special requirements. Our engineering team will then propose a suitable coating solution and coordinate the next steps.
