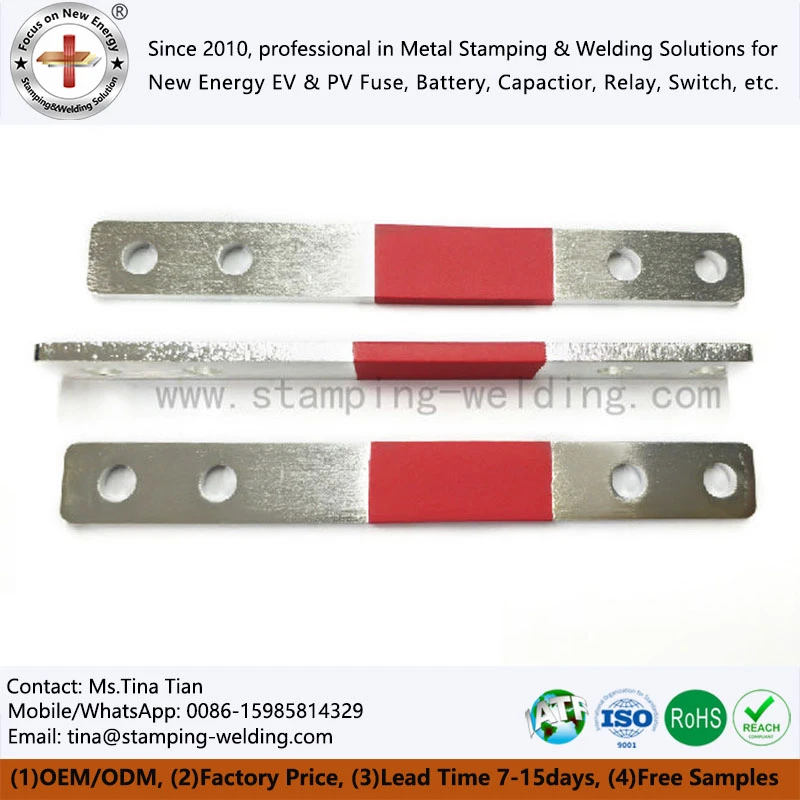

Insulated Coating Tinned Solid Copper Busbar Connector
In modern industrial power distribution, new energy systems, and high-end electrical equipment, traditional exposed busbars can no longer meet the comprehensive requirements for safety, environmental adaptability, and long-term maintenance-free operation. To address this, we introduce the Insulated Coating Tinned Solid Copper Busbar Connector – an engineering-grade power connection component that integrates a highly conductive copper substrate, an anti-oxidation tin plating layer, and a high-performance insulating sheath. It not only solves the conductivity problem but also redefines the standards for medium- and low-voltage high-current connections from the perspectives of system safety, installation efficiency, and total lifecycle cost.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Insulated Coating Tinned Solid Copper Busbar Connector are high-end conductive connectors for industrial power systems. Using high-purity T2 oxygen-free copper as the base material, a dense and uniform nickel layer is formed through precision electroplating or chemical plating processes, combining the excellent electrical and thermal conductivity of copper with the protective advantages of the nickel layer. This significantly improves corrosion resistance, wear resistance, and contact reliability, fundamentally solving the pain points of traditional copper busbars such as easy oxidation, short lifespan, and limited application scenarios. They are widely used in scenarios with stringent requirements for electrical performance and stability. They can be used alone or combined with insulating and flexible components to form composite solutions, providing safe, efficient, and durable power transmission support for high-end power distribution.
Production process
Precision manufacturing lays a solid foundation for quality.
Substrate Pretreatment Process
T2 oxygen-free copper substrate undergoes degreasing, pickling, and passivation treatments to thoroughly remove surface oil, oxide layers, and impurities, ensuring a clean and smooth surface. This lays the foundation for plating adhesion and prevents impurities from affecting plating adhesion for Copper Busbars at Coating.
Precision Plating Process
Automated electroplating equipment is used to precisely control the concentration, temperature, and current parameters of the plating solution, achieving uniform nickel layer deposition. The plating thickness can be adjusted as needed, ensuring no missed plating or pinhole defects and guaranteeing uniform and consistent protective performance.
Post-treatment and Shaping Process
After plating, the substrate undergoes cleaning, drying, and curing to enhance nickel layer adhesion. CNC cutting and bending processes are then used to precisely control dimensions and shape, ensuring no cracks at bends and no plating damage, maintaining the integrity of Epoxy Coating Powder Busbar performance.
Comprehensive Testing Process
Testing covers plating adhesion, conductivity, corrosion resistance, and dimensional accuracy. Rigorous inspections include salt spray testing, bending testing, and resistance testing. Test reports are provided for each batch, enabling quality traceability for Epoxy Powder Insulated Bending Copper Busbar.
Design Advantages
We meticulously study every detail of the project, guided by the actual needs of our users.
Integrated color and phase
The insulation layer is colored on its own, not surface-printed, ensuring it will never peel off for Epoxy BusBar Coating.
01
Precise control of exposed end areas
Only the connection area is exposed, while the rest is fully covered, balancing conductivity and safety for Tinned Copper Busbar.
02
Customizable irregular cross-sections
Supports L-shaped, U-shaped, stepped, etc., to fit the internal structure of the equipment for Busbar Coating.
03
Flexible length
50mm–2000mm, cut as needed, with an error of ±1mm for Busbar Epoxi Powder Coating.
04
Integrated labeling window
A transparent viewing window is provided for easy scanning of QR codes or viewing of labels.
05

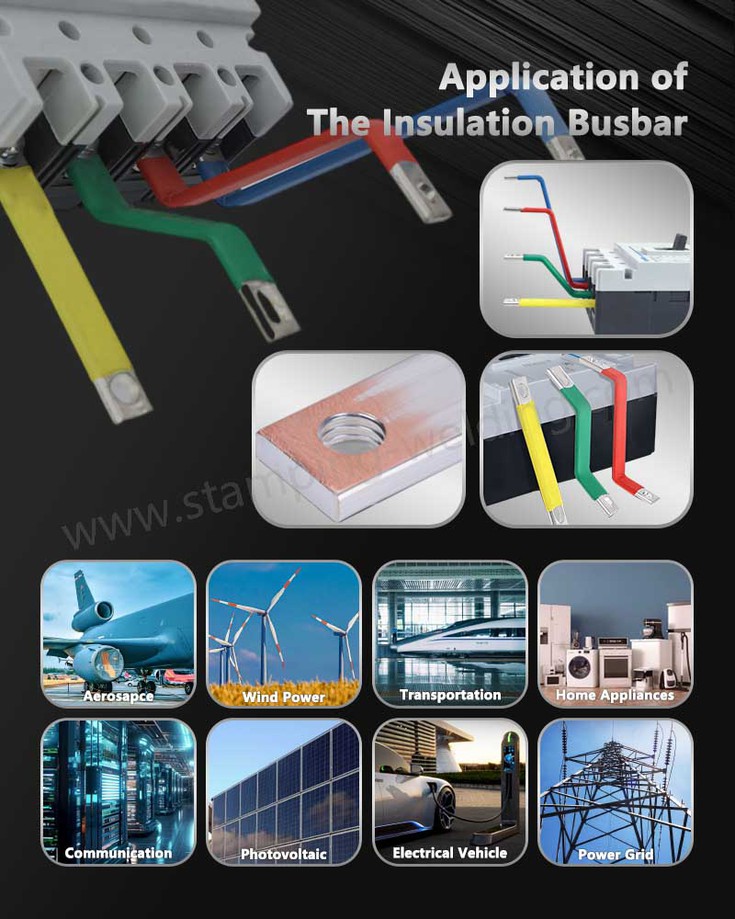

Application advantages
Multi-scenario adaptation, accelerating the implementation of global projects.
New Energy Storage Systems
This Powder Coating Insulation Busbar effectively solves the safety isolation problem in high-density cabling at the battery cluster connection and PCS AC output terminals.
Electric Vehicle Charging Facilities
The main circuit of the DC fast charging cabinet uses this product, easily meeting IP54 and above protection requirements, while facilitating frequent maintenance.
Data Center Power Distribution Cabinets
Facing high availability demands, this Nickel-Plated Insulated BusBar eliminates the risk of short circuits caused by dust accumulation, ensuring continuous power supply.
Marine Engineering
In harsh environments with high salt spray and high humidity, this Insulated Coating Tinned Solid Copper Busbar Connector exhibits excellent corrosion resistance, complying with classification society standards.
Export-oriented Complete Equipment
To meet the mandatory Busbar Insulation Paint requirements of EU CE and North American UL for live components, this product has become a key component for overall equipment compliance.
Simplified Certification Process
Epoxy Spray Copper Battery BusBar have built-in insulation protection, helping the entire equipment pass CE, UL, and other international safety certifications more quickly, shortening the time to market.
Why Choose Us
We have been deeply involved in the nickel-plated copper busbar industry for many years, establishing our core quality with high-purity raw materials and precision plating processes. Our Insulated Coating Tinned Solid Copper Busbar Connector have passed multiple international certifications and can adapt to various harsh operating conditions, reducing post-operation maintenance and failure losses for our customers. We possess strong customization capabilities, able to optimize specifications, plating thickness, and supporting solutions as needed, seamlessly adapting to flexible connectors and intelligent power distribution requirements. Simultaneously, we leverage large-scale production capacity to achieve efficient delivery, coupled with professional technical support and a cross-border after-sales system, serving numerous well-known companies and benchmark projects worldwide. With reliable product quality, flexible service models, and profound technical expertise, we have become the preferred partner for high-end power distribution projects globally, creating long-term value for our customers.
