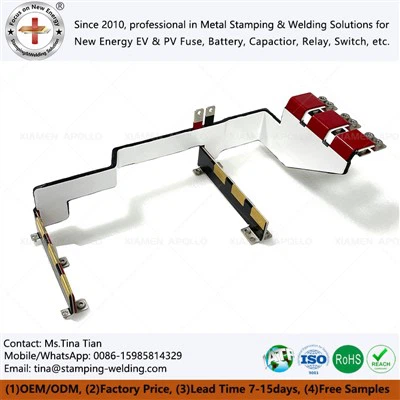

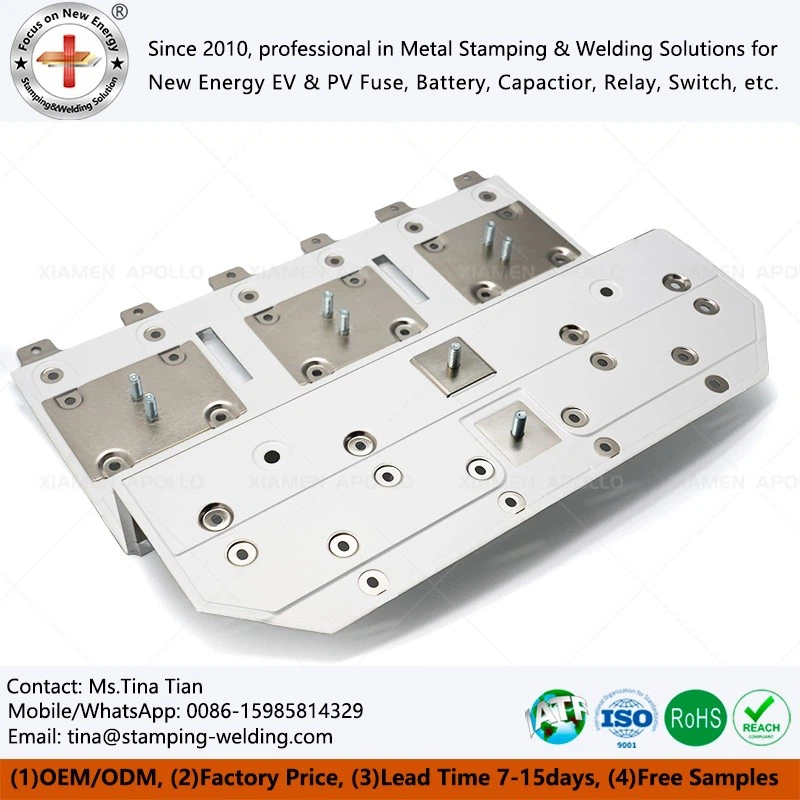

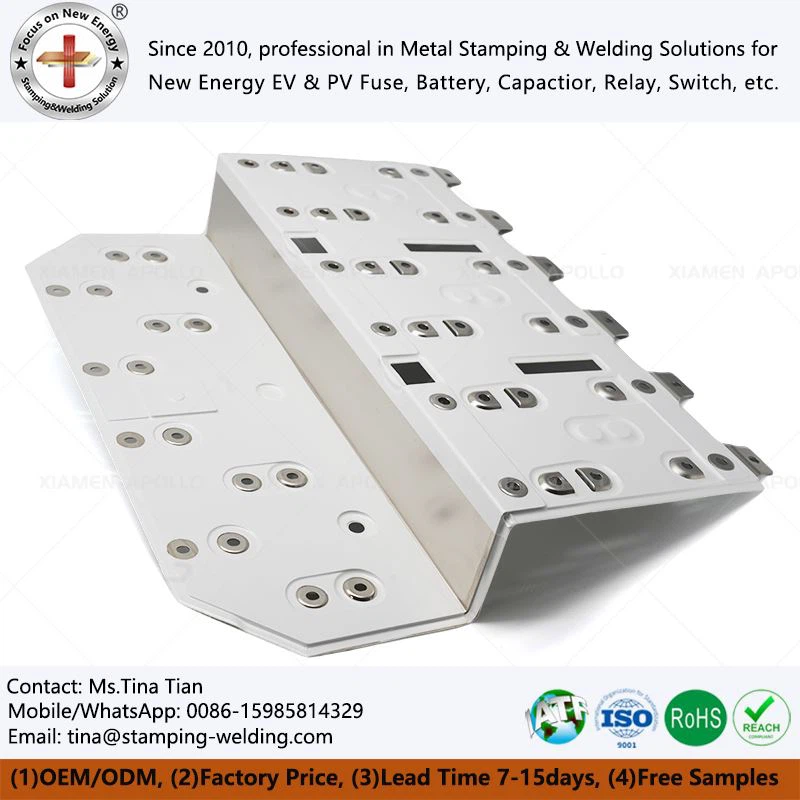

DC support capacitor laminated bus bar
In the process of upgrading the global high-voltage power system to high-density, high reliability, and miniaturization, the DC support capacitor laminated bus bar serves as the core connection carrier between DC support capacitors and power equipment, undertaking the key mission of efficient power transmission, voltage stability support, and insulation safety protection.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Unlike general laminated busbars, DC support capacitor laminated bus bars are tailor-made for DC support capacitor scenarios, with "precise adaptation of aluminum substrates, precise matching of multiple processes, and stable compatibility across all scenarios" as the core. They accurately solve industry pain points such as transmission loss, insulation failure, and installation limitations under high voltage conditions, providing compliant, efficient, and implementable customized solutions for global engineering purchasers, system integrators, and equipment manufacturers.
Application Scenarios
New energy electric vehicle matching
DC support capacitor laminated bus bar is specially designed for electric vehicle film capacitors and battery pack DC support capacitors, connecting car chargers and motor controllers to solve vibration, high voltage insulation and loss pain points, adapting to the compact layout of battery packs, and ensuring stable operation of 800V high voltage platforms.
01
Power system optimization and matching
Bus bar solutions for electrical power distribution are applied to power system integration projects, connecting DC support capacitors with transformers, circuit breakers and other equipment to achieve low loss transmission, simplify layout, facilitate maintenance, and ensure the stability of DC support loops.
02
Supporting electric vehicle charging system
Laminated bus bar for industrial adaptation charging piles, DC support capacitors for battery swapping stations, connecting charging modules and power units to improve charging efficiency, reduce losses, and adapt to various charging scenarios, with its high-conductivity aluminum substrate (copper customizable) and reliable insulation performance to ensure stable.
03
Solar power generation matching
Laminated bus bars for computers are used for connecting DC support capacitors in inverters and combiner boxes, adapting to complex outdoor working conditions, facilitating maintenance, and improving the reliability and efficiency of photovoltaic systems, which are equipped with high-purity aluminum substrates (copper material can be customized).
04

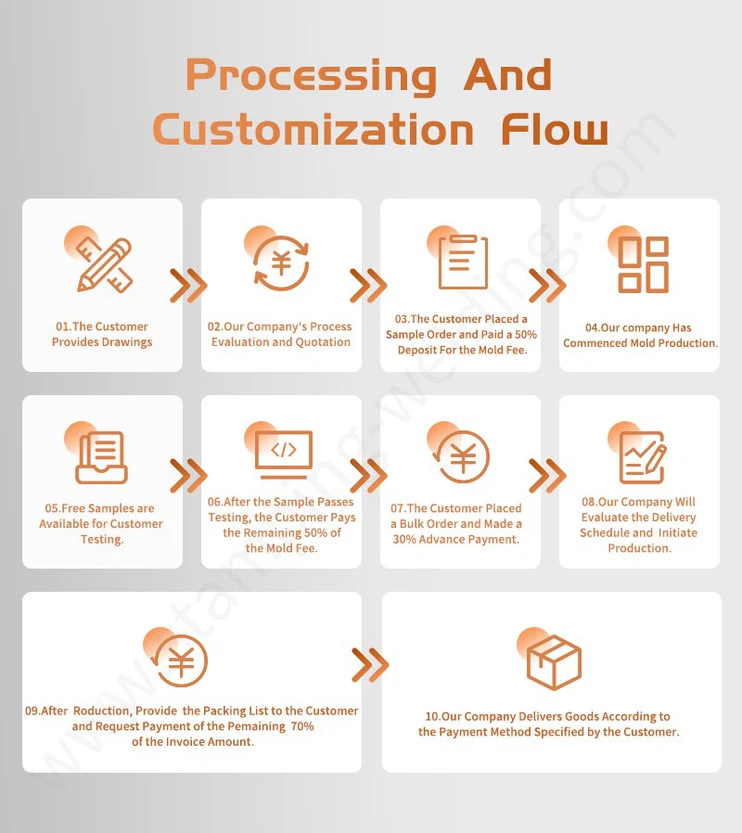

Support customized services
Substrate customization
Busbar for electric locomotive commonly uses 1060 aluminum substrate, and can also customize copper materials according to customer engineering needs and performance requirements. Copper materials comply with global standards such as GB: T2Y2, DIN: E-Cu58 (code: 2.0065), and aluminum and copper substrates can be selected according to corresponding national/regional standards, and can be integrated into local engineering systems without additional adaptation.
Customization of size and structure
Based on the model and installation space of the DC support capacitor, customize the length, width, thickness, bending angle, punching position, etc. of the Laminated bus bar for telecom to adapt to irregular and compact installation scenarios, ensuring perfect fit with the equipment.
Customization of insulation methods
PET insulation paper, PVC impregnation and other insulation methods can be customized according to the engineering protection level and environmental conditions. At the same time, Busbar for power electronics' insulation layer color, thickness, flame retardant/fire-resistant rating can be customized to meet different protection needs.
Our Partners
Our DC support capacitor laminated bus bar partners span multiple industries, including automotive, electrical, and electronics, covering various regions worldwide, among which are renowned manufacturing enterprises. With stable product quality, flexible customized services, and efficient delivery guarantees, our products have gained widespread market recognition, earned unanimous praise from global partners, and accumulated a good reputation in the industry.
contact us
Xiamen Apollo Stamping Welding Technology Co., Ltd is a professional service provider for new energy metal processing solutions. We can help you accurately match your needs and maintain the bottom line of device safety. Welcome to consult us.
