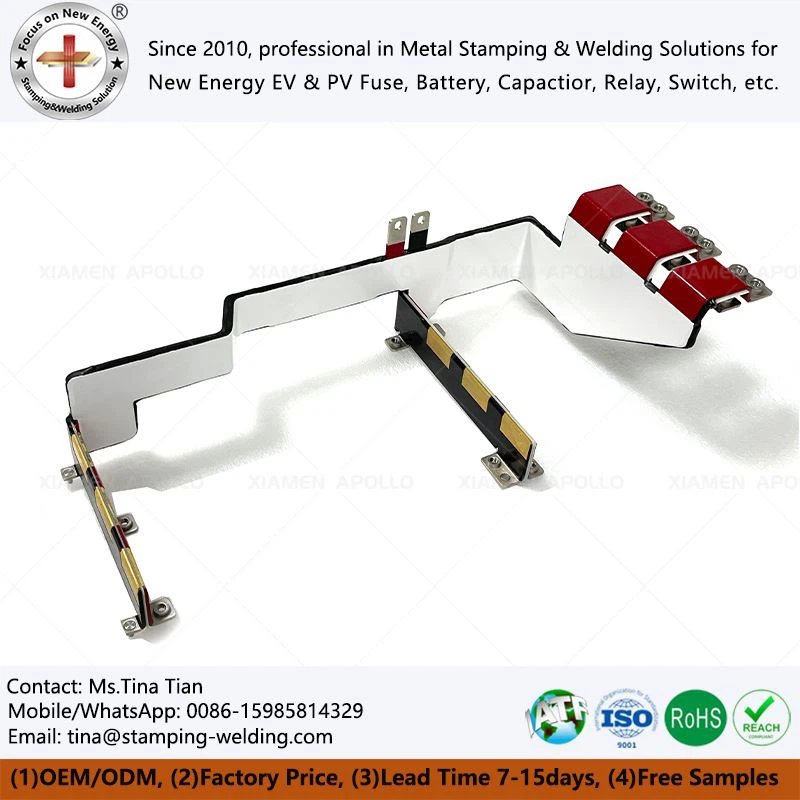

Laminated Busbars For DC Power Distribution Systems
The Laminated Busbars for DC Power Distribution Systems is a modular power distribution connection component made by hot-pressing multiple layers of T2 oxygen-free copper conductors with high-performance insulation materials. This product is specifically designed for DC power distribution scenarios with high power density and high energy efficiency requirements, and is widely used in data center server cabinets, new energy storage systems, photovoltaic inverters, and power electronic equipment.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Our Laminated Busbars for DC Power Distribution Systems are based on a multi-layer composite structure design. By pressing high-conductivity T2 copper conductors with high-performance insulating materials under high temperature and pressure, a compact, rigid, and electrically superior integrated module is formed. This not only solves the temperature rise problem in high-current transmission, but also significantly reduces stray inductance in the circuit through optimization of the physical structure, ensuring the safe operation of power devices such as IGBTs/SiC.
Main functions
High-voltage, high-current DC transmission
Handles DC power distribution for power batteries, energy storage systems, and high-power equipment, meeting the demands of high-current, high-power distribution.
Ultra-low stray inductance
Counteracts magnetic field interference, suppresses voltage spikes, protects power devices, and improves system stability and energy efficiency for BusBar for SVG Static Synchronous Compensator.
Compact integrated cabling
Integrates multiple conductive loops, saving internal equipment space and optimizing cabinet layout density for Integrated Laminated Busbar Cell Contact System.
Insulation protection and polarity differentiation
Flame-retardant insulation encapsulation and clear polarity markings enhance BusBar for APF Active Power Filter high-voltage power distribution safety and prevent short-circuit electric shock.
Tolerance compensation and shock absorption
Flexible structure adapts to installation errors, buffers mechanical vibration, and reduces BusBar for Transformer stress damage.
Reduced maintenance failures
Integrated structure with no loose wiring eliminates wear, loosening, and oxidation failures, extending maintenance cycles for BusBar for Switch.
Application advantages
Core New Energy Scenarios
Used in high-voltage DC power distribution for power battery packs, energy storage power stations, and industrial and commercial energy storage cabinets. It replaces rigid copper busbars, achieves multi-layer current distribution, effectively compensates for module installation tolerances and thermal expansion and contraction deformation, and provides insulation protection that meets high-voltage safety standards. This reduces power distribution faults and improves the operational stability of energy storage systems.

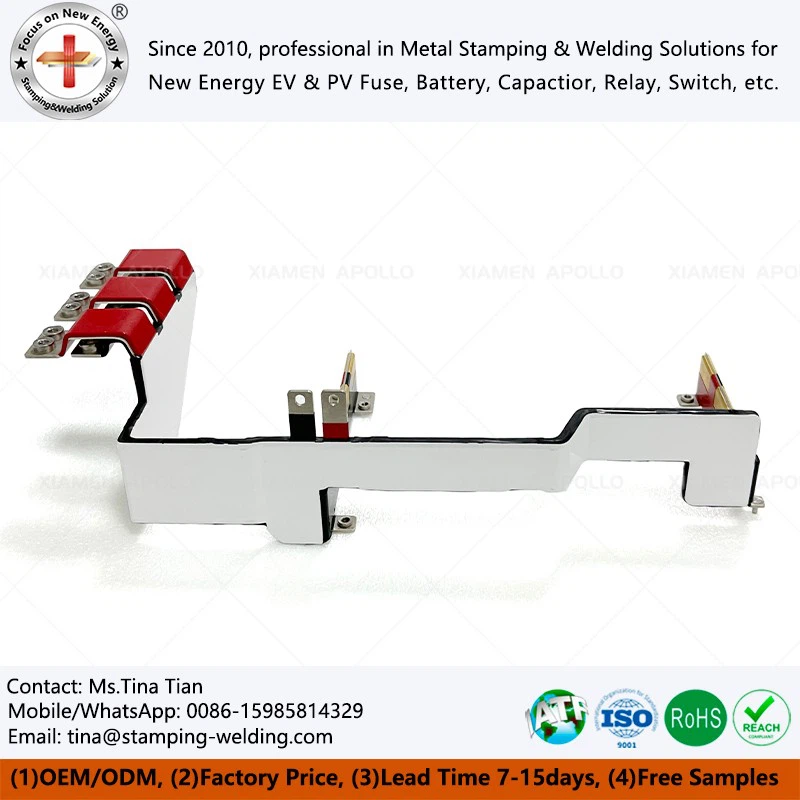

Power Electronic Equipment

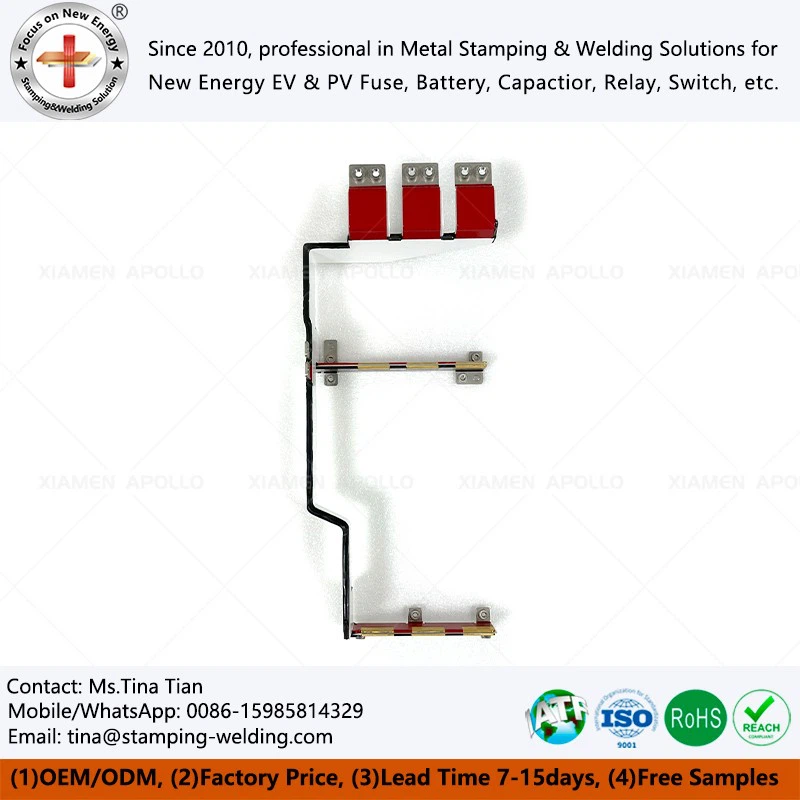

Laminated Busbar for Rail Traffic applied to the main circuits of photovoltaic inverters, wind power converters, UPS power supplies, and industrial frequency converters. Its compact, bent structure adapts to complex internal spaces, and its low-inductance design reduces switching losses, improves power conversion efficiency, optimizes electromagnetic compatibility performance, and facilitates equipment compliance certification.
IDC Data Centers and Specialty Industries
Designed specifically for high-density, high-power data centers, it is suitable for high-power scenarios with single-rack power consumption exceeding 30kW. It reduces PUE values and improves power supply efficiency and reliability. It is also suitable for equipment such as rail transit traction electrical systems, electric vehicle fast charging piles, and high-power welding machines, balancing high-current transmission, shock resistance, and high-voltage safety protection to meet the long-term operating requirements of demanding industrial conditions.
competitive advantage
The company has deep expertise in the electrical connection industry, adhering to the concept of independent research and development and innovation. It possesses numerous authoritative industry patents, and its technology covers core areas such as multilayer busbar structures, low-inductance molding, insulation encapsulation, precision welding, and heat dissipation optimization, forming a unique technological barrier. Based on patented technology, its Laminated Busbars for DC Power Distribution Systems far exceed industry standards in terms of inductance control, insulation performance, current carrying capacity, heat dissipation, and molding precision, effectively solving pain points such as high losses, insulation failure, and batch inconsistencies in conventional products. With its patent reserves and experienced R&D team, we can provide standard products and customized solutions to help customers reduce costs and increase efficiency, while ensuring consistency in mass production and supply stability. We provide solid technical and compliance support for customers' engineering selection and bulk procurement, creating a core differentiated advantage.
Contact Us
For further confirmation of technical parameters, sample testing requests, or bulk purchase negotiations regarding Laminated Busbars for DC Power Distribution Systems, please contact our engineering team. We will provide suitable laminated structure design and selection suggestions based on your specific application scenario.
