Custom Laminated Busbar
Product Name:Custom Laminated Busbar
Model Number:ASWT-B016
Product Size:According to customer requirements
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

Custom Laminated Busbar have the following advantages:
1. Low inductance: After design improvement, the inductance value is <20nh;
2. Small space: Since the laminated busbar is surrounded by insulation and sealing, there is no need to consider the avoidance problem with other components, which can reduce the overall space of the cabinet;
3. Strong application: suitable for different voltage levels from low voltage to high voltage, such as 380V, 660V, 1140V, 3300V;
4. Low temperature rise: Since the laminated busbar mostly adopts the thin plate structure, the surface heat dissipation is good;
5. Low cost: Laminated busbars are easy to install with IGBTs and capacitors, reducing assembly costs.
6. Flame retardant and environmentally friendly: All materials comply with ROHS standards, and insulating materials comply with UL94 flame retardant standards.

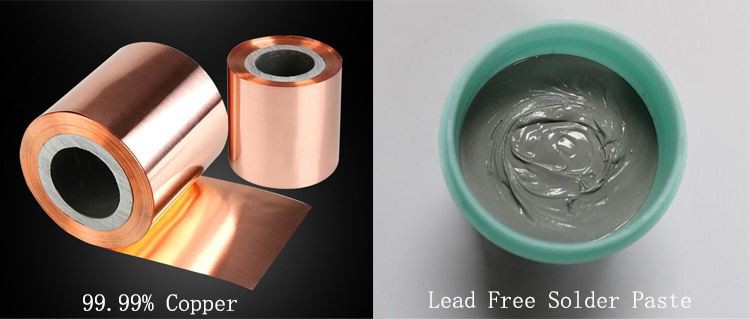

BUSBAR MATERIAL
|
Conductive Material |
Trademark (US) |
Purity(Cu) |
Electric Conductivity |
Tensile Strength(Mpa) |
|
Copper |
C11000 |
≥99.95% |
98.3%IACS |
245-345 |
Coating Material
|
Coating Material |
Gold |
Silver |
Nickel |
Tin |
|
Electric conductivity(20) |
45.2*106 |
63.01*106 |
14*106 |
11.4*106 |

Insulation Materials
|
NOMEX |
Polyvinyl Fluoride |
Polyester Film |
Polyimide |
|
Excellent fire resistance and heat resistance; |
Excellent electrical performance and steady chemical property; |
Good electrical performance and chemical corrosion resistance; |
Favorable heat resistance, |
