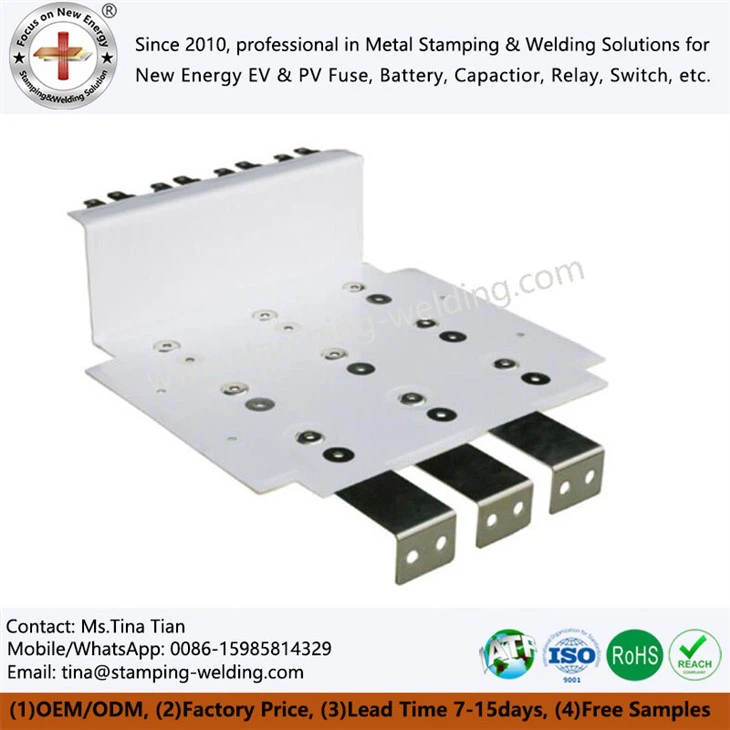

Laminated Copper Busbar For Energy Storage
Product Name:Laminated Copper Busbar for Energy Storage
Model Number:ASWT-B110
Product Size:According to customer requirements
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Laminated Copper Busbar For Energy Storage is are electrical connector constructed from multiple layers of high-purity copper and insulating materials. They are widely used in energy storage systems (ESS), data center UPS, electric vehicle charging infrastructure, and renewable energy power conversion systems.
The laminated structure provides lower resistance and improved thermal management when transmitting high currents, meeting the modern energy storage industry's requirements for high efficiency, compactness, and safety.
Product Specifications and Technical Parameters
| Parameter | Typical Specifications |
| Conductor Material | High-purity copper layer (low oxygen content, conductivity ≥ 99.9%) |
| Insulation Material | Polyester film (PET), polyimide (PI), nylon, or UL 94V-0 rated material |
| Current Carrying Capacity | 50A – 2000A (customizable by layer number and thickness) |
| Lamination Structure | 2 – 20 layers (customizable) |
| Operating Temperature | -40°C to +125°C |
| Electrical Performance | Low resistivity, excellent electrical insulation |
| Dimensions | Customizable according to drawings, including complex and unusual designs |
Product Advantages
High Current Carrying Capacity
Multi-layer copper lamination ensures uniform current distribution, reduces voltage loss, and meets the high-power output requirements of energy storage systems.
01
Excellent Thermal Management
The laminated structure improves heat dissipation efficiency, reduces hot spots, and ensures long-term stable operation.
02
Reliability and Durability
The insulation material has a high flame-retardant rating, and the copper is corrosion- and oxidation-resistant, making it suitable for long-term outdoor use or high-temperature environments.
03
Compactness and Space Savings
Compared to traditional busbars, Laminated BusBar for Mersens are smaller and offer more flexible layouts, improving equipment integration.
04
Customization and Mass Production
Custom sizes, shapes, and layers can be customized according to customer drawings. We support mass production with short lead times, making it suitable for bulk purchases by end-users.
05
Application Scenarios
Energy Storage Stations (ESS)
Laminated BusBar Applicable to photovoltaic, wind, and grid-level energy storage systems.
01
UPS (Uninterruptible Power Supply)
Laminated Copper Bar Used in data centers, hospitals, and telecom base stations.
02
Electric Vehicle Charging Facilities
DC fast charging stations and battery management systems.
03
Power Conversion Systems
New energy inverters and DC distribution cabinets.
04
