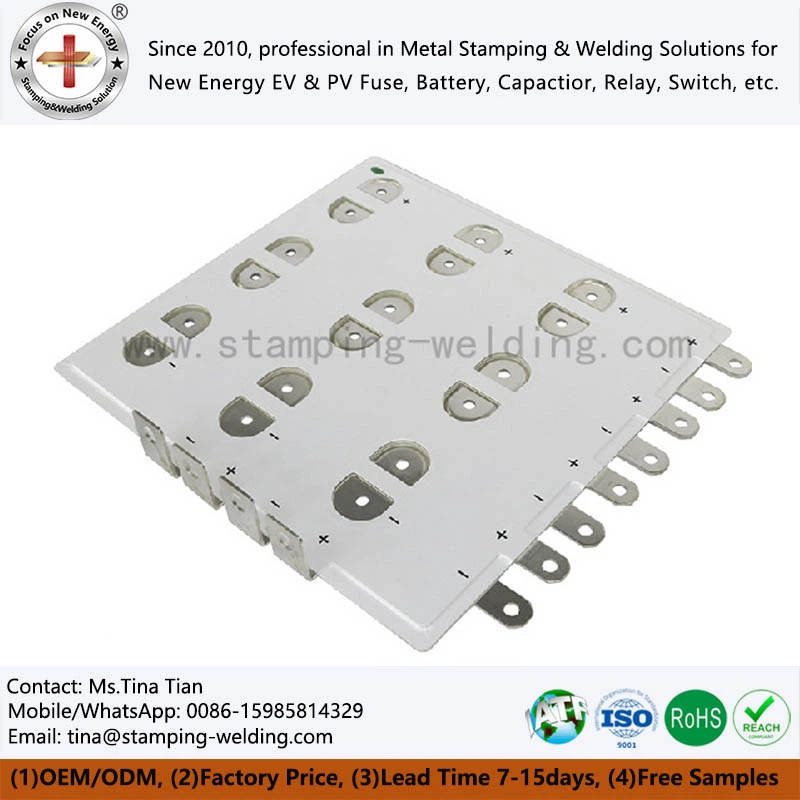

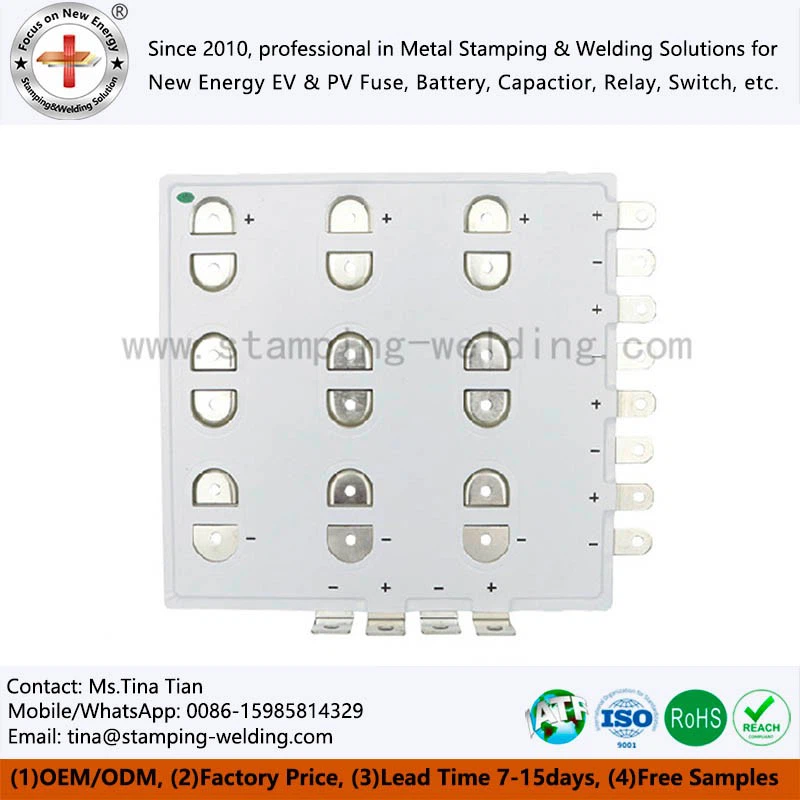

Laminated Bus Bar For Hign Frequency Inverter
The Laminated bus bar for high frequency inverter combines four characteristics: ultra-low stray inductance, high current carrying capacity, compact structure, and high insulation safety. It can effectively suppress high-frequency switch voltage spikes, protect power devices, optimize equipment space, and achieve efficient heat dissipation. It is the core basic component for improving efficiency, reliability, and power density in high-frequency power systems.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
The Laminated bus bar for hign frequency inverter is a low inductance, high integration connection component designed specifically for high-frequency power conversion scenarios. It uses high-purity copper as the conductive substrate and is formed by symmetrically stacking multiple layers of conductors and insulation materials through hot pressing. Its core is suitable for applications such as high-frequency power modules, vehicle mounted inverters, and industrial frequency conversion equipment.
Product advantages
Customized design with strong adaptability
The exterior structure, installation dimensions, and electrical performance parameters of the Laminated bus bar for hign frequency inverter can be flexibly adjusted according to the actual working conditions and equipment layout requirements of customers, perfectly matching the differentiated installation.
01
Efficient and low resistance conductive transmission
The Laminated bus bar for industrial uses a high-purity copper/1060 aluminum alloy substrate, combined with precision manufacturing technology, to achieve excellent conductivity and ultra-low resistance, and minimize power transmission losses.
02
Comprehensive insulation protection
We provide various insulation solutions such as PET insulation paper and epoxy powder coating, all of which meet the UL94-V-0 flame retardant standard, and build reliable electrical isolation barriers to effectively avoid the risks of leakage, short circuit, and electromagnetic interference.
03
High density and compact layout
Busbar for power electronics adopts a multi-layer stacked integrated structure, greatly reducing installation space, simplifying internal wiring, and facilitating automated assembly and post maintenance, significantly improving equipment space utilization.
04
Core selection parameters
Electrical performance parameters of Laminated flexible busbar
Resistance value: ≤ 0.00001 Ω
Load voltage: 3500VDC to 5000VDC
Load current: 100A to 2000A
Working temperature: -45 ℃ to+150 ℃
Flame retardant rating: Complies with UL94-V-0 standard and can be customized according to customer requirements.
Structure and environmental parameters of Laminated bus bar for telecom
Conductor substrate: T2Y2 copper/1060 aluminum/customized material
Surface treatment: silver plating/tin plating/nickel plating
Coating thickness: 3 μ m to 12 μ m (customizable)
Insulation method: PET insulation paper, PVC impregnation, epoxy powder coating, PE heat shrink tubing, PA66 plastic shell
Cleaning process: Ultrasonic cleaning treatment.
Quality and delivery parameters of Laminated bus bar for hign frequency inverter
Product certification: ISO9001, IATF16949, RoHS, REACH
Monthly production capacity: 50000000 pieces/month
Free samples: 1-10 pieces
Sample delivery time: 10-20 days
Batch delivery time: 7-10 days
Packaging method: Pearl cotton/vacuum formed box inside, cardboard box/pallet outside.
