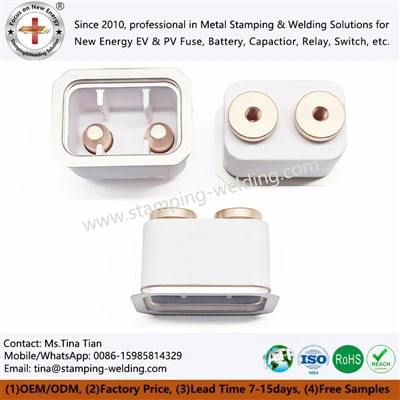

Metallized Alumina Ceramics For Electrical Components
In the fields of power electronics, vacuum physics, and aerospace communications, the perfect combination of the insulating and withstand voltage properties of ceramics with the solderability of metals is crucial to determining the system's sealing performance and lifespan. Our Metallized Alumina Ceramics for Electrical Components utilize advanced moly-manganese or active brazing processes to grow a thin metal film with extremely strong adhesion on the ceramic surface, providing reliable interface support for subsequent brazing.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Metallized Alumina Ceramics for Electrical Components belong to the category of precision functional ceramic materials, exhibiting highly complex physical properties:
Excellent insulation of the ceramic matrix: The substrate is made of 95%-99.6% high-purity alumina ceramic, possessing extremely high volume resistivity and dielectric strength, capable of withstanding high-voltage impacts of thousands of volts without breakdown.
Conductivity of the metallization layer: The surface metallization layer exhibits specific sheet resistance after sintering, and after nickel plating, it possesses excellent brazing wettability, enabling high-strength connections with metals such as copper and Kovar alloys.
Dense microstructure: Under a microscope, a distinct "interdiffusion layer" is formed between the metallization layer and the ceramic matrix. This is the result of the interdiffusion of metal ions and ceramic grains at high temperatures; this physical bonding is far stronger than ordinary physical adhesion.
Herroneous characteristics: As the shell or insulating base for vacuum electronic devices, the product possesses extremely high herroneous performance (typically with a leakage rate below 10^-9 Pa·m³/s), effectively isolating the external environment and protecting sensitive internal components.
Metallization Technology Features | The Core of Connection Reliability
Metallization is the core technology of this type of product. Its purpose is not simply surface coating, but to construct a ceramic-metal transition interface capable of long-term service.
Our metallized ceramic components possess the following technical characteristics:
The metal layer forms a metallurgical-grade bond with the ceramic substrate, rather than a physical adhesion.
The metallized area has uniform thickness and clear boundaries, facilitating subsequent soldering and encapsulation.
It supports various post-processing methods, such as nickel plating and silver plating.
The metal layer remains stable during high-temperature soldering and thermal cycling, and is not easily oxidized or migrated.
Application Advantages: Covering Top-Tier Industrial Scenarios
Vacuum Interruptors
Critical ceramic metallization insulating shells in power systems.
01
Semiconductor Lasers
High-heat dissipation, high-insulation substrates and packages.
02
Medical Equipment
High-voltage vacuum sealing components inside X-ray tubes and CT scanners.
03
High-Power Thyristors/Diodes
Providing stable high-current transmission carriers and thermal management paths.
04
Aerospace Connectors
Multi-core, highly reliable, hermetic connections for extreme environments.
05
Detailed Demonstration: Quality Revealed in the Small Details
Solder Wetting Properties
Solder should spread rapidly and form smooth, continuous weld joints when soldering on the metallized nickel layer. This indicates extremely low porosity and excellent solderability of the nickel plating.
Sealing Interface Metallography
Observing the cross-section of the metallized layer and the Metallization Ceramic, the two are interlocked without obvious cracks or delamination. This microscopic bonding is solid evidence of sealing strength.
Surface Finish
The non-metallized areas of the Metallized Ceramic have high gloss and low Ra value; the metallized areas are flat and dense, without slurry accumulation or overflow contaminating non-circuit areas.
Nickel Plating Uniformity
The nickel layer has a uniform color with no significant color difference, and the thickness remains consistent within the micron range, ensuring consistent thermal fatigue life after soldering.
contact us
If you are looking for a long-term, stable Alumina Metallized Ceramics solution for highly reliable electronic components, our engineering team can provide more manufacturable technical support based on actual application conditions. Please feel free to contact us to further discuss your project requirements.
