Ceramic Body For Fuse Bolted Series

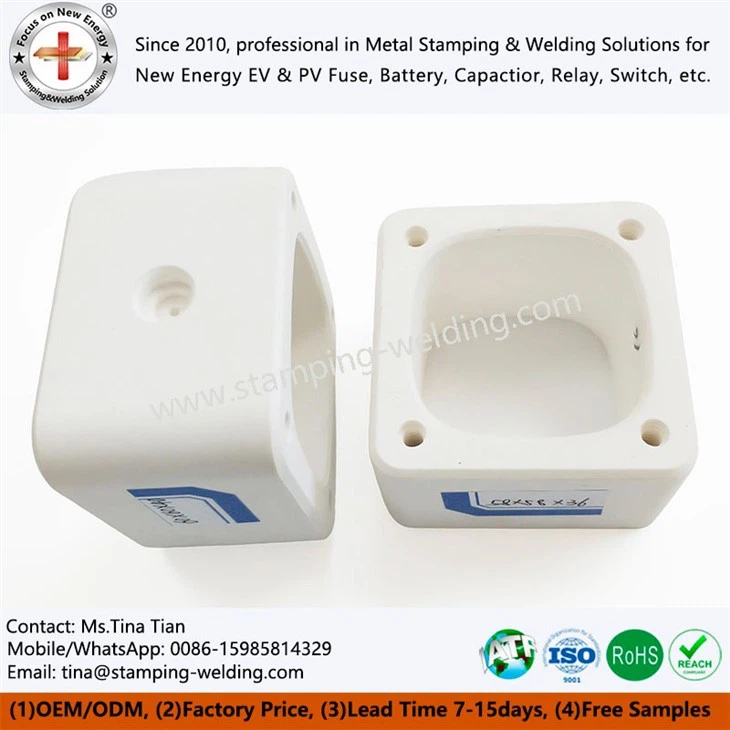

The Ceramic Body for Fuse Bolted Series typically takes the form of a compact, solid, or hollow block, with common shapes like cylinders and rectangular blocks. It features a smooth surface and a hard texture. Precisely designed grooves or perforations are incorporated into the ceramic body to house the fuse's fuse element (the critical metal wire) and the metal end caps that connect the circuit. These metal end caps are tightly bonded to the ceramic body through specialized processes such as welding and sintering, ensuring smooth current flow during circuit operation and rapid current interruption if the fuse blows.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
With the booming new energy industry, ensuring the safety and stability of circuit systems has become a crucial issue for every system integrator, battery manufacturer, and equipment manufacturer. As a core circuit protection component, the performance of the fuse is directly related to the safe operation of the entire new energy system. The Ceramic Body for Fuse Bolted Series at the heart of the fuse is the indispensable "physical foundation" and "performance guarantee" of this protection mechanism.
Our new energy fuse ceramic bodies are designed for demanding operating conditions such as high voltage, high temperature, and high vibration. They are widely used in applications such as electric vehicles, high-voltage energy storage systems, photovoltaic inverters, and new energy wind power systems. We are committed to providing customers with ceramic structural components with reliable performance, precise specifications, and strong batch consistency, bringing greater stability and safety to your fuse products.
Five core selling points directly address engineering procurement pain points
| Ultimate insulation performance |
Ultra-high insulation resistance: The Ceramic for DC Automotive Fuses's insulation resistance typically exceeds 1000MΩ, effectively preventing leakage and arc breakdown. Stable electrical isolation: Even in high-voltage operating environments, it reliably isolates current between conductors, enhancing overall device safety. Suitable for high-frequency pulse or high-power circuits, such as EV high-voltage systems, ensuring no current crosstalk during energy transmission. |
| Excellent high-voltage withstand capability |
Wide voltage coverage: The product offers voltage withstand capabilities ranging from 500V to 5000V, suitable for applications ranging from portable energy storage power supplies to electric vehicle main drive high-voltage systems. High safety margin: The 95% Alumina Ceramic structure remains intact and crack-free, even under sudden voltage surges or system surges. Passed multiple high-voltage breakdown tests: Ensures compliance with international electrical safety certification standards such as ISO and UL. |
| High Temperature Resistance & Thermal Stability |
Strong Thermal Shock Resistance: Withstands the rapid temperature rise during transient high-temperature melting without cracking or deformation in the Ceramic Bodies for Energy Storage Fuse body. Low-Temperature Stable Operation: Maintains its physical structure and insulation properties even in sub-zero environments. Suitable for a variety of complex outdoor environments, such as deserts, glaciers, and mountain wind farms. |
| High Mechanical Strength |
Compressive strength exceeding 300 MPa: Effectively withstands external shocks during assembly, transportation, and equipment operation. Vibration and Fatigue Resistance: Maintains structural stability even in high-speed electric vehicle driving or the frequent starting and stopping of energy storage devices. No Pulverization After Long-Term Use: The high material density prevents microcracks from causing structural failure. |
| Excellent Chemical Stability |
Excellent Corrosion Resistance: Resists acids, alkalis, and salt spray, and performs well in marine climates and high-humidity factory environments. The Ceramic Tube for EV BS Series body is non-absorbent and non-conductive, ensuring long-term stable operation without performance degradation due to environmental changes. Adapted to the high cleanliness requirements of new energy systems: no volatile matter, no metal migration, and no contamination of fuses and electrodes. |
Manufacturing Advantages: Continuous Improvement Creates High-Quality Products
Premium Material Selection
We utilize high-performance EV Fuse Ceramic Body materials, such as alumina and beryllium oxide. Alumina ceramic offers excellent insulation properties, high mechanical strength, and excellent chemical stability; beryllium oxide ceramic has excellent thermal conductivity, quickly dissipating the heat generated when the fuse blows. We rigorously screen raw materials to ensure that every batch meets high standards.
Advanced Production Technology
The metal end caps are bonded to the ceramic body using specialized processes such as welding and sintering, ensuring a tight and secure bond that provides stable operation during both circuit operation and fuse blowout. Precision machining equipment is used throughout the production process to ensure the dimensional accuracy of the Ceramic Body for EV Fuse and the precise design of grooves and perforations.
Strict Quality Control
We have established a comprehensive quality control system, ensuring stringent controls at every stage, from raw material procurement to production and processing, and finally to finished product testing. We utilize advanced testing equipment and methods to thoroughly test key parameters such as insulation resistance, withstand voltage, and temperature range to ensure Ceramic Casing for Fuse Link quality meets standards.
Application Prospects: Riding the Wave of New Energy, Unlimited Potential
1. Electric Vehicles
With the rapid development of the electric vehicle industry, the demand for high-voltage circuit protection is growing. This Energy Storage Fuse Ceramic Body, with its high-voltage resistance, vibration resistance, and wide temperature tolerance, has broad application prospects in high-voltage battery systems and motor controllers in electric vehicles, providing strong support for their safe operation.
2. Solar Power Generation
Solar power generation equipment operates outdoors for extended periods, facing numerous challenges, including high temperatures and humidity. The heat-resistant, moisture-resistant, and insulating properties of this Ceramic Tube for High-Voltage Fuses enable stable operation in components such as solar panel controllers and inverters, contributing to the development of the solar power generation industry.
3. Wind Power Generation
Wind turbines operate in harsh environments characterized by high vibration and wide temperature fluctuations. This Ceramic Body for Fuse Bolted Series's high mechanical strength and wide temperature resistance make it suitable for the operating environment of wind turbine equipment, providing reliable support for circuit protection in wind power systems.
4. Portable Energy Storage Power Supplies
The compact Ceramic Tube for EV DC Fuse is suitable for portable energy storage power supplies, meeting the requirements for compact size and reliable performance. As the portable energy storage power supply market continues to expand, the application demand for products will continue to increase.
