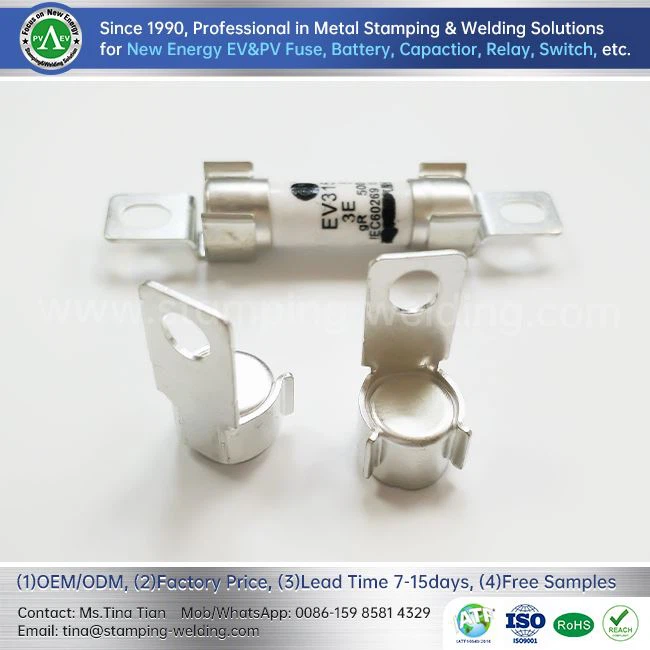

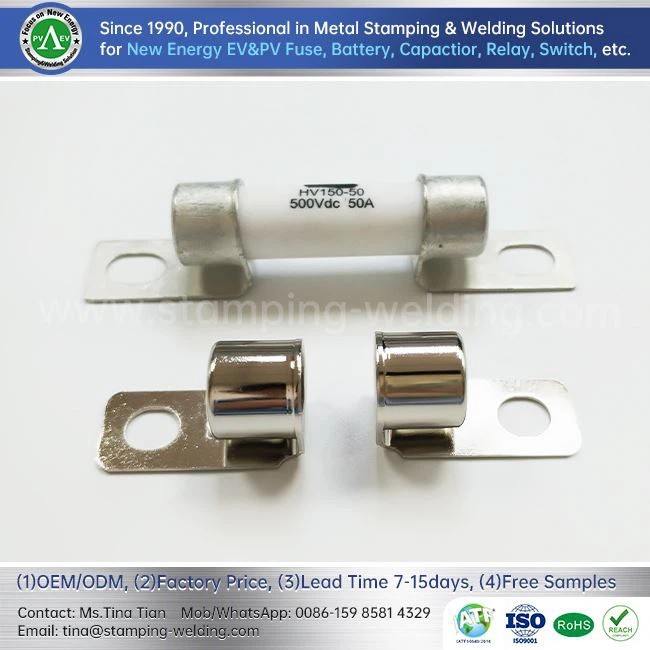

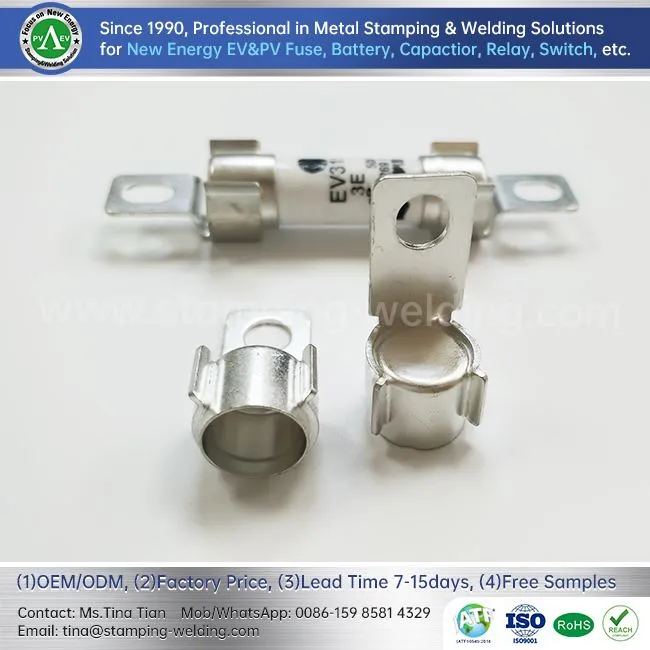

High-voltage Fuse For Electric Vehicle

The High Voltage Fuse for Electric Vehicles is a critical safety component that plays a pivotal role in protecting the high-voltage electrical system of modern electric vehicles. Engineered to handle the elevated currents present in EVs, this fuse is specifically designed to interrupt the circuit swiftly and efficiently in the event of an overcurrent or fault condition. Its high-performance materials and precise construction ensure reliable operation, preventing damage to the vehicle's electrical components and reducing the risk of electrical hazards. With its compact form factor and seamless integration into the EV's power distribution system, the High Voltage Fuse provides peace of mind to both manufacturers and drivers, ensuring the safe and efficient operation of electric vehicles and contributing to the advancement of sustainable transportation solutions worldwide.

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

PRODUCT INTRODUCTION

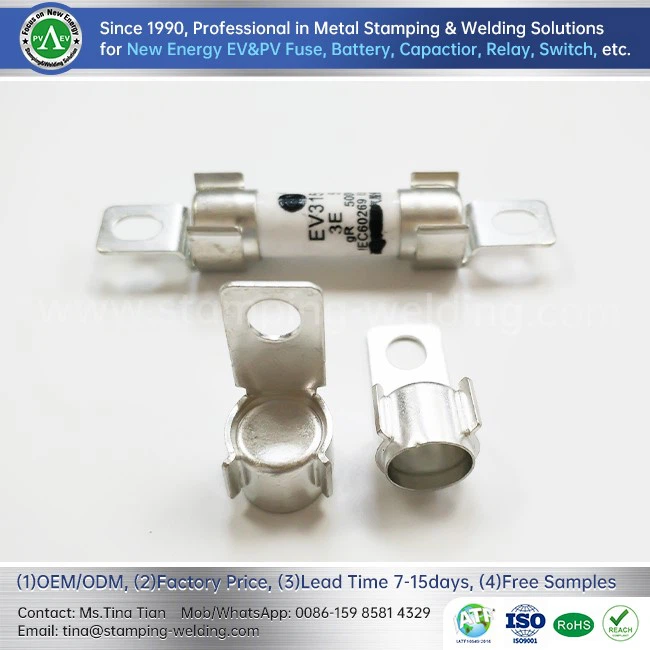

High Voltage Fuse

PRODUCT APPLICATIONS

Overcurrent Protection: The primary application of the High Voltage Fuse is to protect the high-voltage electrical components and systems from overcurrent situations. In the event of a sudden surge in electrical current, the fuse reacts rapidly and interrupts the circuit, preventing excessive current flow that could cause damage to sensitive electronic components or result in safety hazards.
Battery Protection: EV batteries operate at high voltages, making them susceptible to potential electrical faults. The High Voltage Fuse safeguards the battery pack and associated systems, ensuring that any faults or malfunctions are promptly isolated, reducing the risk of damage or fire.
Inverter and Motor Protection: The inverter and electric motor in an EV are crucial components responsible for converting DC power from the battery to AC power for propulsion. The High Voltage Fuse protects these components from any electrical faults or short circuits, preserving their longevity and optimizing the vehicle's performance.
Safety during Maintenance: During maintenance or repair work on the high-voltage electrical system, the High Voltage Fuse plays a crucial role in enhancing the safety of technicians and mechanics. By breaking the circuit, it prevents accidental electrical shocks or discharges, making maintenance procedures safer.
Battery Disconnect: In emergency situations, such as a serious accident, the High Voltage Fuse may function as a safety disconnect. It allows first responders and emergency personnel to safely disconnect the high-voltage battery, minimizing the risk of electric shock during rescue operations.
System Diagnostics: The product can act as a diagnostic tool for identifying faults in the electrical system. In the event of a fuse failure, it can indicate potential issues, aiding in the quick identification and resolution of electrical problems.
Circuit Redundancy: Some electric vehicles employ redundant high-voltage circuits for enhanced safety and reliability. High Voltage Fuses are used to isolate faulty circuits, ensuring that the vehicle can continue operating safely on the remaining functioning circuits.
Customization for Different EV Models: High Voltage Fuses are designed to meet the specific electrical requirements of different electric vehicle models. Manufacturers carefully select and calibrate the fuse's characteristics to ensure optimal protection for the unique electrical architecture of each EV.

Application for fuse

PRODUCTION TECHNOLOGY

The production technology of High Voltage Fuse for Electric Vehicle involves a combination of advanced manufacturing processes, including stamping, welding, and other specialized techniques.

Material Preparation: The production process begins with the preparation of high-quality materials, such as conductive metals like silver or copper for the fuse element and insulating materials like ceramic or polymer. These materials are carefully selected for their electrical conductivity, thermal properties, and resistance to environmental factors.
Stamping and Forming: Stamping is a key step in shaping the conductive metal into the desired fuse element design. Precision stamping machinery is used to cut and shape the metal into the appropriate size and configuration, ensuring consistency and accuracy in the fuse element's dimensions.
Welding and Joining: In some designs, multiple parts of the fuse, such as the fuse element and terminals, need to be joined together. Welding techniques, such as resistance welding or laser welding, are employed to ensure strong and reliable connections between the various components of the fuse.
Insulating Layer Application: If the fuse requires multiple insulating layers, these layers are carefully applied to separate the conductive elements and ensure proper insulation. Techniques like coating, bonding, or layering are used to create the necessary insulation barriers.
Casing Manufacturing: The outer casing of the fuse is produced using molding or machining processes. The casing provides mechanical protection and environmental sealing for the internal components. Flame-resistant materials are used to ensure the safety of the fuse during thermal events.
Assembly and Calibration: The fuse element, insulating layers, terminals, and other internal components are assembled inside the casing. Skilled technicians or automated machinery carry out this precise assembly process. The fuses are then calibrated to ensure they operate at the specified current ratings and response times.
Testing and Quality Control: Each manufactured fuse undergoes rigorous testing and quality control procedures. Various electrical tests, such as voltage withstand tests, current rating verification, and response time measurements, are performed to ensure the fuses meet strict safety and performance standards.
Customization for EV Models: Depending on the specific electrical requirements of different electric vehicle models, the production process may involve customization of fuse characteristics, such as current ratings and response times, to suit the EV's unique electrical system.
Packaging and Distribution: After passing quality control tests, the High Voltage Fuses are carefully packaged and prepared for distribution to electric vehicle manufacturers and suppliers, where they will be integrated into the EV's high-voltage electrical system.

Process for fuse end cap

PACKAGING AND SHIPPING：

At our esteemed company, we employ a comprehensive and meticulous approach to packaging and transporting our products, ensuring the utmost safety and integrity of our products. Each fuse is carefully encased in customized packaging solutions designed to secure and protect them during transit. We utilize high-quality cushioning materials to safeguard the fuses from impacts or shocks, assuring they remain firmly in place throughout the journey. Our environmentally resistant packaging materials are chosen to withstand varying conditions, safeguarding the fuses from temperature fluctuations and humidity. Additionally, we implement clear labeling and identification on each package, enabling easy product recognition and proper handling. To ensure a smooth and reliable transit process, we collaborate with trusted transportation partners, well-versed in handling delicate electronic components. We prioritize temperature-controlled transport for fuses with specific requirements, guaranteeing optimal conditions during shipment. Throughout the journey, our advanced tracking and monitoring systems offer real-time visibility, empowering us to address any unforeseen events promptly. Our team adheres to strict handling safety protocols, imparting clear instructions to carriers to ensure the utmost care during loading, unloading, and transportation. For global shipments, we diligently comply with international shipping regulations and customs requirements, facilitating seamless cross-border transportation. Our commitment to excellence and dedication to quality assurance make us a dependable partner, delivering products in impeccable condition to enhance the performance and safety of electric mobility worldwide.

packing for fuse terminals
