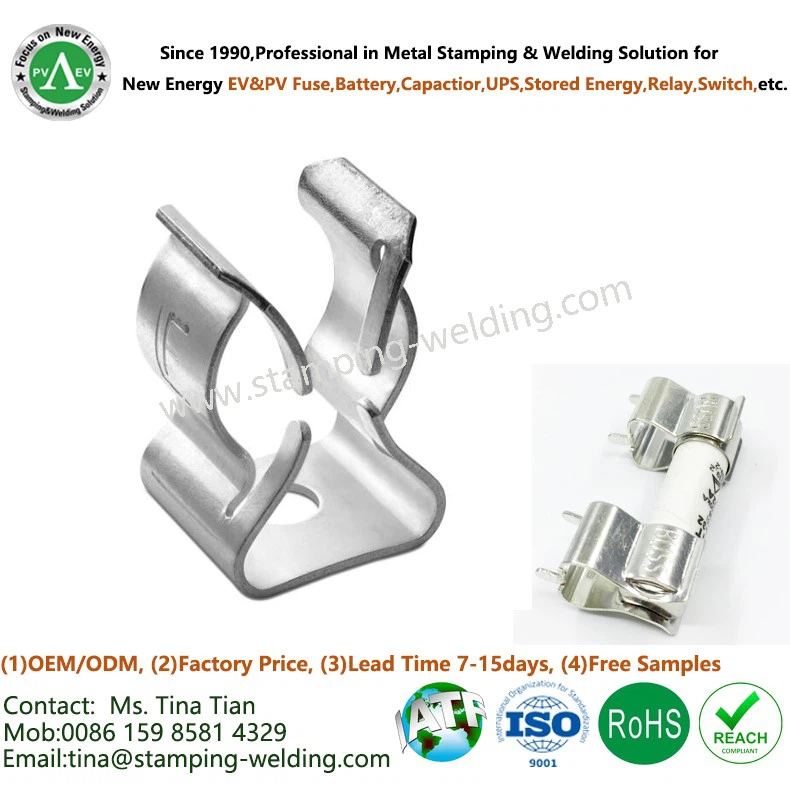

Spring Steel Clip Fuse Holder

1-Products Name: Spring Steel Clip Fuse Holder
2-Model No: ASWT-F22050609
3-Base Material:
(1) Bronze CuSn6 (CW452K H180)
Good ductility, fatigue resistance, corrosion resistance and elasticity.
Tensile strength (σb/MPa): ≥290
Elongation (δ10/%): ≥40

(2) Spring Steel 65Mn (ISO 8458/3-2002, FDC)
Higher elastic limit (with higher yield point and yield strength ratio), high fatigue limit, and certain impact toughness.
Ensile strength σb (MPa): ≥980(100)
Yield strength σs (MPa): ≥784(80)
Elongation δ10 (%): ≥8
Reduction of area ψ (%): ≥30
Hardness: hot rolling, ≤302HB; cold drawing + heat treatment, ≤321HB

(3)T2Y2 Copper 99.99% (USA ASTM C11000)
High electrical and thermal conductivity, good corrosion resistance and easy processing.
Tensile strength is 295MPa
Yield strength is 120MPa
Elongation is ≥ 40%
Hardness is HV80-120

4-Surface Treatments: Electroplated nickel base ≥1.3μm, then tin plated ≥5μm,all depend on customer's require

5-Free Samples: 1-10pcs is allowed
6-Lead Time: Orders 7-10days,Samples 20-25days;
7-Packing: Plastic inside and carton/pallet outside
8-Certifications: ISO9001, IATF16949, RoHS, REACH, etc.
9-Production Capacity: 50,000,000 pcs/month
10-MOQ: 1,000pcs/item

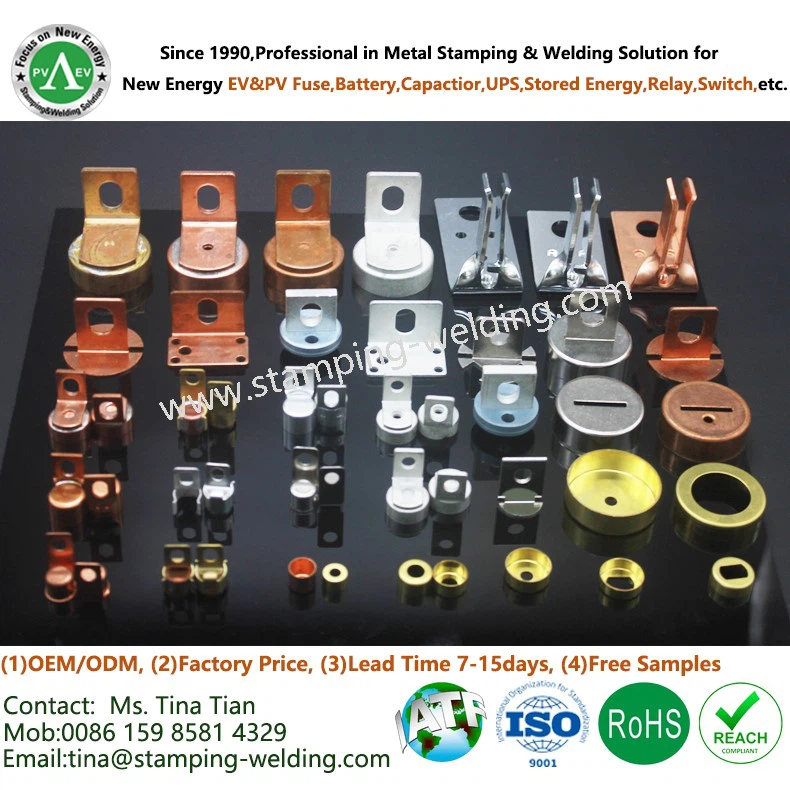

11-Applications: EV/PV/NH Fuse link, etc

A spring steel clip fuse holder is a device used to hold a fuse securely in place in an electrical circuit. The holder typically consists of a spring steel clip that is designed to exert pressure on the fuse, holding it securely in place while also providing a reliable electrical connection.

Spring steel clip fuse holders are available in a range of sizes and configurations to accommodate different fuse types and mounting requirements. They may be designed for through-hole mounting on a PCB or for panel mounting.

The spring steel clip is typically made from a high-strength alloy that is capable of withstanding the forces required to hold the fuse securely in place. The clip may be coated with a layer of insulation or other material to protect against electrical shock or damage to the fuse.

When selecting a spring steel clip fuse holder, it is important to consider factors such as the voltage and current ratings of the system, the size and type of the fuse to be used, and the mounting method and location. It is also important to ensure that the holder is compatible with other components of the system and meets any applicable safety and regulatory requirements.
