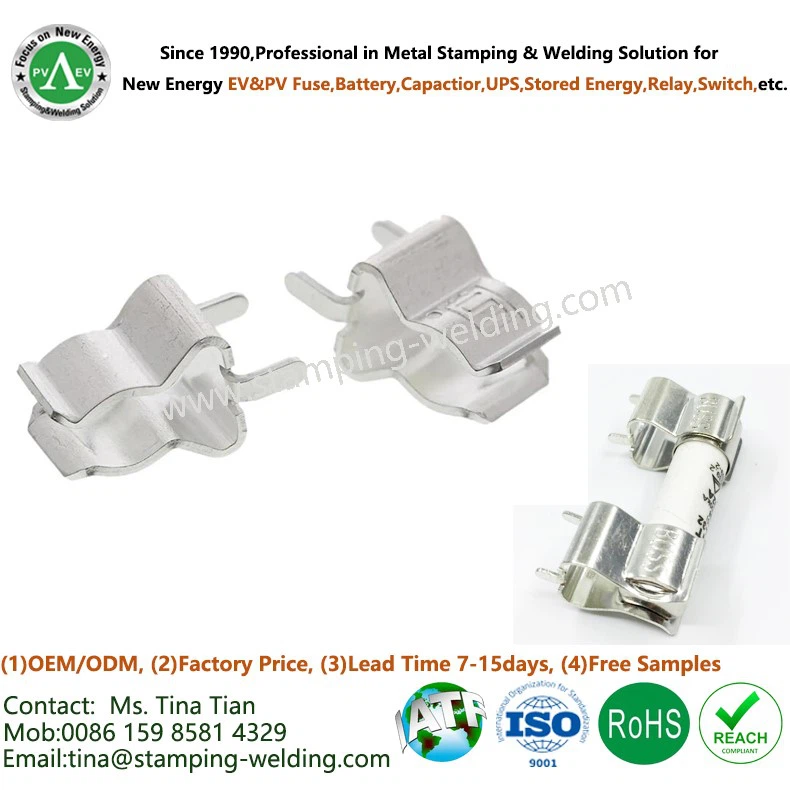

Solder Type Fuse Clip

1-Products Name: Solder Type Fuse Clip
2-Model No: ASWT-F22050608
3-Base Material:
(1) Bronze CuSn6 (CW452K H180)
Good ductility, fatigue resistance, corrosion resistance and elasticity.
Tensile strength (σb/MPa): ≥290
Elongation (δ10/%): ≥40

(2) Spring Steel 65Mn (ISO 8458/3-2002, FDC)
Higher elastic limit (with higher yield point and yield strength ratio), high fatigue limit, and certain impact toughness.
Ensile strength σb (MPa): ≥980(100)
Yield strength σs (MPa): ≥784(80)
Elongation δ10 (%): ≥8
Reduction of area ψ (%): ≥30
Hardness: hot rolling, ≤302HB; cold drawing + heat treatment, ≤321HB

(3)T2Y2 Copper 99.99% (USA ASTM C11000)
High electrical and thermal conductivity, good corrosion resistance and easy processing.
Tensile strength is 295MPa
Yield strength is 120MPa
Elongation is ≥ 40%
Hardness is HV80-120

4-Surface Treatments: Electroplated nickel base ≥1.3μm, then tin plated ≥5μm,all depend on customer's require

5-Free Samples: 1-10pcs is allowed
6-Lead Time: Orders 7-10days,Samples 20-25days;
7-Packing: Plastic inside and carton/pallet outside
8-Certifications: ISO9001, IATF16949, RoHS, REACH, etc.
9-Production Capacity: 50,000,000 pcs/month
10-MOQ: 1,000pcs/item
11-Applications: EV/PV/NH Fuse link, etc

A solder type fuse clip is a device used to secure and mount a fuse in an electrical circuit by soldering the clip onto a printed circuit board (PCB) or other substrate. The clip provides a reliable electrical connection to the fuse and facilitates easy installation and removal of the fuse.

The solder type fuse clip typically consists of a metal or plastic base with two spring-loaded arms that extend upward to hold the fuse. The arms are designed to exert pressure on the sides of the fuse to hold it securely, while also providing a reliable electrical connection. The base of the clip is designed to be soldered onto a PCB or other substrate, providing a permanent mounting solution.

Solder type fuse clips are available in a range of sizes and configurations to accommodate different fuse types and mounting requirements. They may also include features such as indicator lights or disconnect switches for added convenience and safety.

When selecting a solder type fuse clip, it is important to consider factors such as the voltage and current ratings of the system, the size and type of the fuse to be used, and the mounting method and location. It is also important to ensure that the clip is compatible with other components of the system and meets any applicable safety and regulatory requirements. Additionally, it is important to ensure proper soldering techniques are used during installation to ensure a reliable and secure connection.
