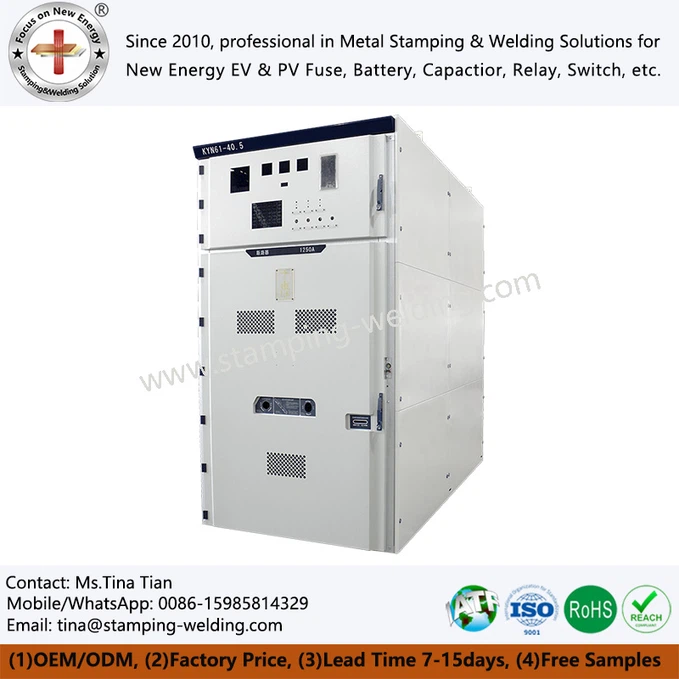

Basic knowledge and industry application analysis of high distribution cabinets

As the core hub in the power system, home distribution cabinets bear the important functions of power distribution, control and protection. For those who are new to the power industry, an in-depth understanding of its basic structure, classification standards and strict safety operating procedures is the cornerstone for mastering technology in this field. This article will elaborate on these three dimensions, aiming to provide practitioners with a professional and practical introductory guide to help establish a comprehensive understanding of Electric distribution cabinets.

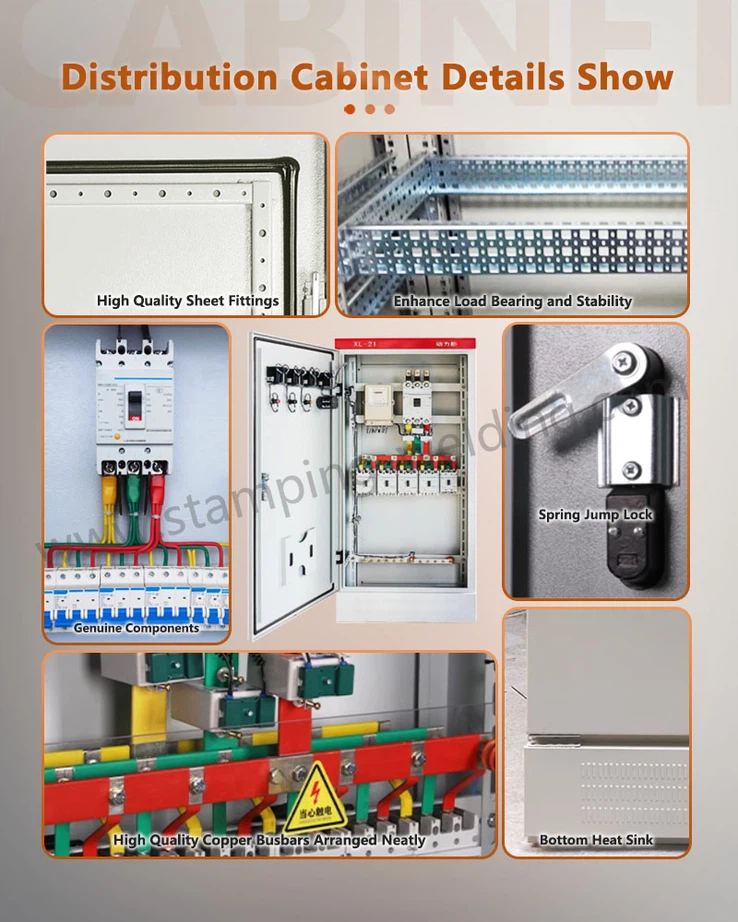

The physical carrier of the server cabinet power distribution is a metal cabinet, and its protection level must meet IP code standards. The interior adopts a compartmentalized design to achieve functional partitioning. As the backbone of power transmission, the busbar system usually uses copper or aluminum conductors and is fixed and electrically isolated through insulators.

As a protection center, the circuit breaker integrates manual and electric operating mechanisms and has the ability to quickly break fault current. The isolation switch assumes the circuit isolation function under no-load conditions and establishes a visible disconnect point for maintenance operations. The transformer component includes a current transformer and a voltage transformer to convert high voltage and large current into standard measurement signals for the street distribution cabinet.

The lightning protection system is equipped with zinc oxide arresters to suppress the insulation impact of lightning overvoltage on the DC Distribution Cabinet. The grounding switch establishes a reliable grounding path under maintenance status, and cooperates with the control loop and status indicating device to form a complete operation and monitoring system.

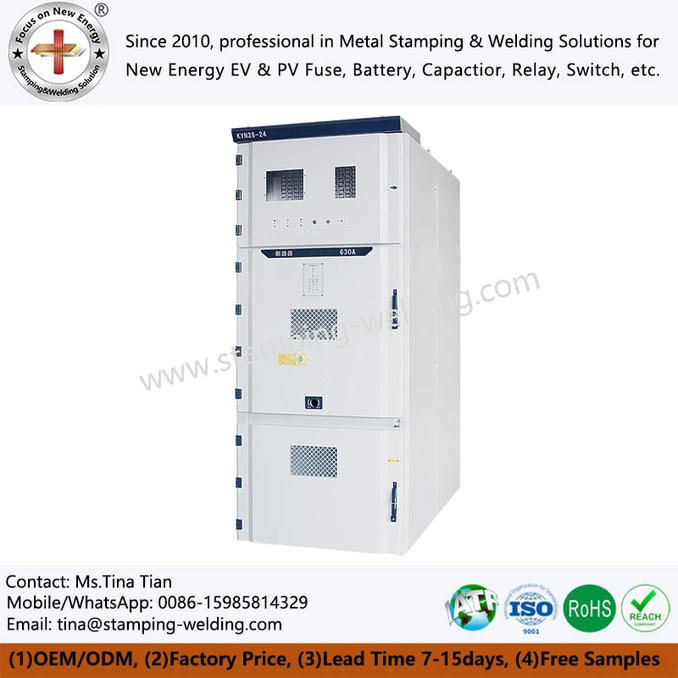

According to the structural form, the Distribution electrical cabinet is suitable for scenarios with limited space, while the handcart-type (removable) design supports the convenient extraction and maintenance of core components. According to functional positioning, the incoming line cabinet is responsible for power introduction, the outgoing line cabinet implements load distribution, the metering cabinet, PT cabinet, and CT cabinet, respectively, correspond to energy measurement and signal acquisition needs, and the capacitor cabinet is used for reactive power compensation.

The choice of insulation medium directly affects equipment performance. The air insulation solution has a simple structure and is suitable for conventional environments; the SF6 gas insulation solution has become the preferred configuration for compact substations due to the distribution electric cabinet's excellent arc extinguishing characteristics and insulation strength.



























































The operation ticket system must be implemented for operation and maintenance operations, and equipment status verification and live testing must be completed before operation. Personal protective equipment includes insulating gloves, insulating boots and arc protection masks, which form the first barrier for direct contact protection. During the maintenance phase, the grounding switch must be closed after verifying that there is no power. The mechanical interlocking device can effectively prevent misoperations, such as in electric distribution cabinets.

Periodic maintenance needs to cover contact temperature rise monitoring, insulation resistance testing and mechanism lubrication maintenance. All operators must hold special operation qualifications and pass annual safety technology refresher training.
