Basic knowledge popularization of Power supply cabinet

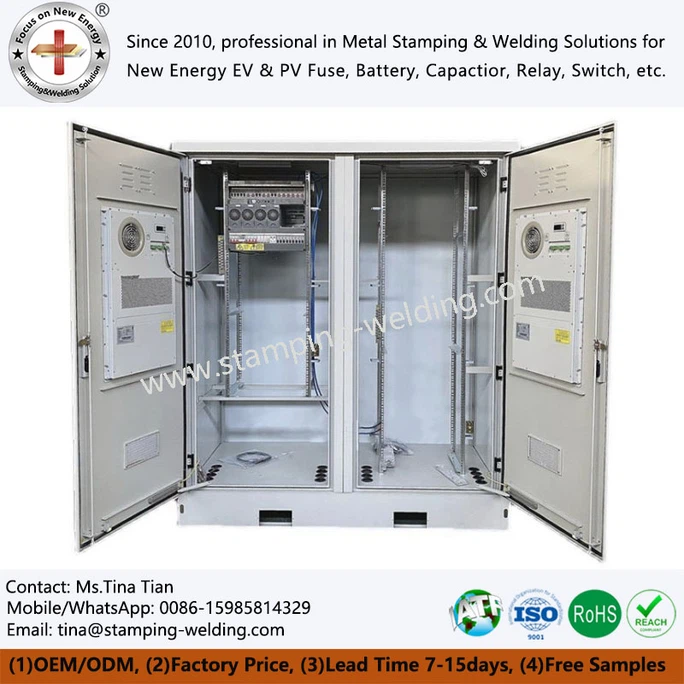

Metal electrical cabinet is the core electrical equipment in the field of power transmission and control, mainly composed of two core parts: control system and power transmission system. It undertakes the key responsibilities of centralized power supply, reasonable distribution of electrical energy, and full protection of electrical circuits.

Solar battery cabinet can stably transmit external input electrical energy to various electrical equipment, while also taking into account circuit operation status monitoring, fault protection, and daily operation and maintenance support. It is the basic equipment to ensure stable power supply and safe operation of electrical systems in various scenarios, and its core role runs through the entire process of power transmission, circuit control, and equipment protection.

The Power supply cabinet is equipped with various standardized electrical components, each with clear division of labor and coordinated operation. The core basic components include various control switches, fuses, circuit breakers, relays, etc., which are responsible for basic functions such as circuit on-off control, overload and short circuit protection, and current signal regulation. It is the core carrier for realizing normal power supply and safety protection of the power cabinet.

At the same time, rated voltage and rated current are the two key parameters for measuring the performance and adaptability of Lithium ion battery cabinets. Common rated voltages include multiple specifications such as 220V, 380V, 440V, etc. Rated current represents the maximum power supply current that the equipment can carry. During the design and selection stage, it is necessary to strictly match the actual power and current requirements of the electrical equipment, reserve reasonable margins to ensure long-term stable operation.

The design process of Electrical storage cabinet must strictly follow electrical safety standards and practical application requirements, with a focus on controlling multiple core details to ensure comprehensive operational safety.

Firstly, it is necessary to improve the design of grounding protection and leakage protection to ensure reliable grounding of Cabinet electrical outlets, and to eliminate personal safety hazards and equipment damage risks caused by leakage; Secondly, it is important to focus on planning the cooling system and effectively dissipate and dissipate the heat generated by long-term operation of the equipment to avoid excessive internal temperature affecting circuit stability.

In addition, it is necessary to take into account electromagnetic compatibility design to prevent electromagnetic interference during equipment operation, ensure the normal operation of surrounding electrical equipment and the overall circuit system, and strictly follow industry installation specifications and standard procedures in the installation process to achieve standardized and regulated installation.

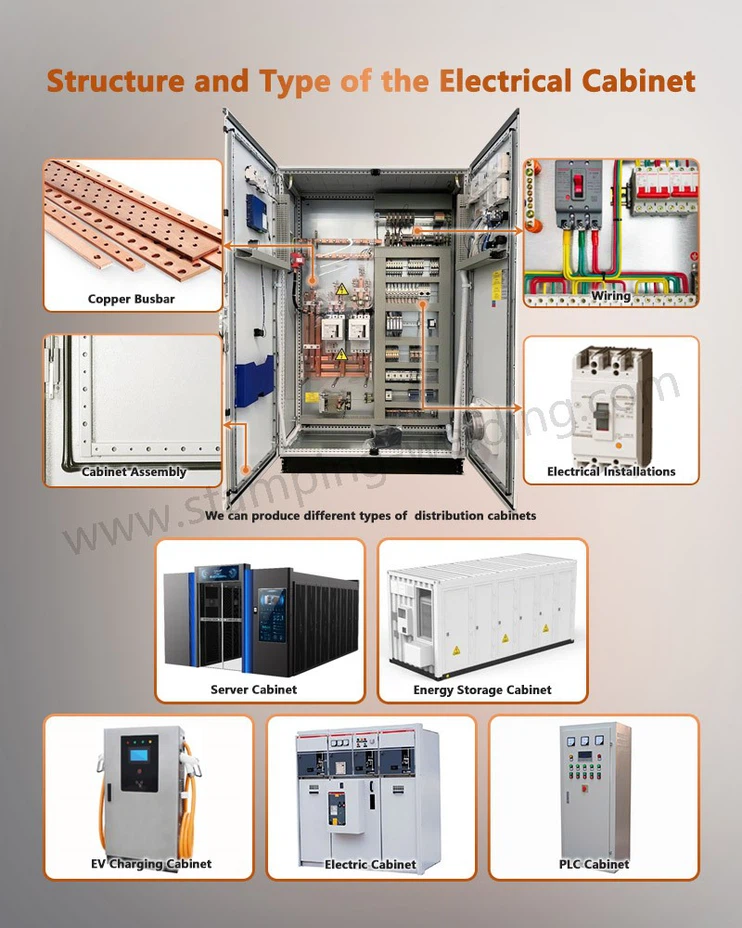

Outdoor electrical cabinets are divided according to installation and structural forms, including plug-in, fixed, wall mounted and other mainstream types. Different types are suitable for different application scenarios and site conditions, and can be flexibly selected according to actual usage needs. They also support targeted customized design.

With stable power supply and protection performance, Electrical meter cabinet has a wide range of application scenarios, covering modern industrial production workshops, large data center rooms, various substations, residential distribution rooms, and other fields. Whether it is industrial production, infrastructure power supply, or civil distribution scenarios, it can rely on stable performance to ensure the normal operation and safe operation of various electrical equipment.

If you have any questions about Power supply cabinet selection, customized design, or practical application, or need to obtain exclusive adaptation solutions based on your own project scenario, please feel free to consult and communicate at any time.
