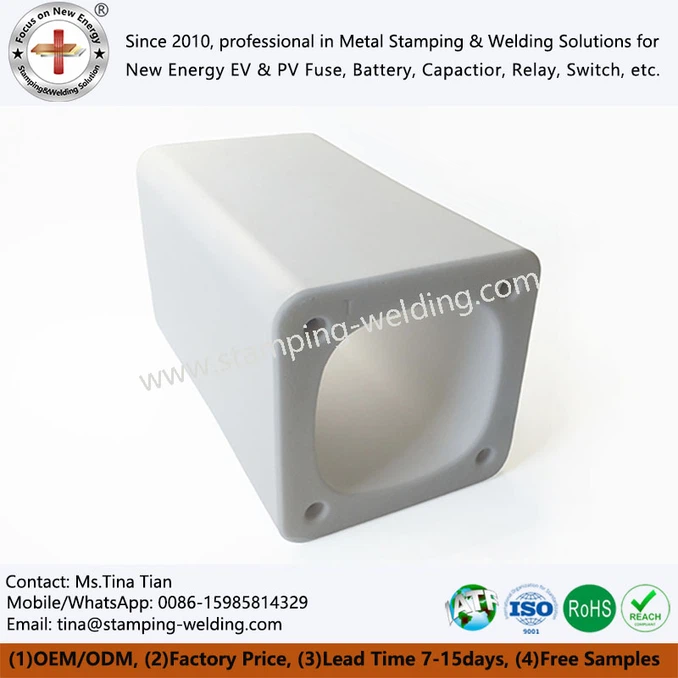

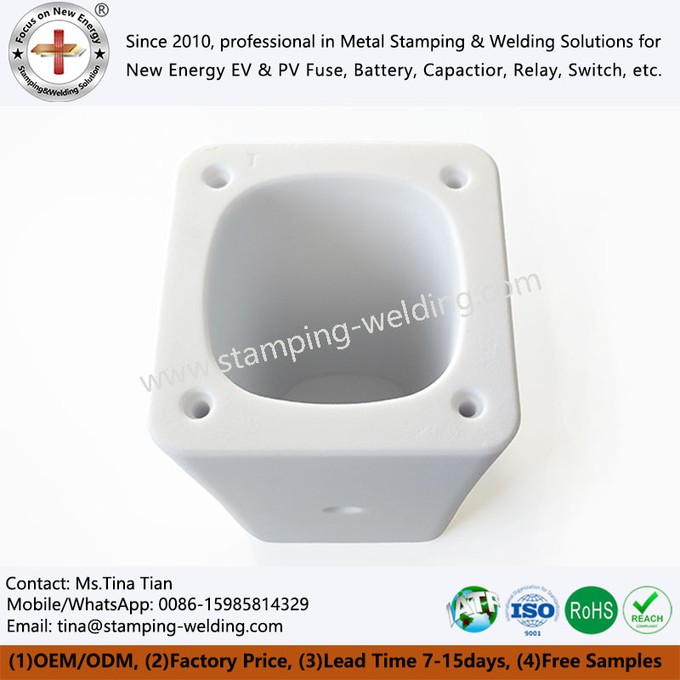

Overview of EV Fuse Ceramic Body

EV Fuse Ceramic Body is a circuit protection component specially designed for high-power, high-voltage new energy scenarios such as new energy vehicles, photovoltaic power generation, and energy storage systems. Its core function is to quickly cut off the fault current when an overcurrent or short circuit occurs in the system to prevent equipment damage and safety accidents. This device uses the electrothermal accumulation effect to cause the melt to be locally heated and fuse when the current rises abnormally, achieving reliable breaking. With its characteristics of fast response, high stability, strong environmental adaptability and easy maintenance, it has become an indispensable passive protection component for new energy electrical systems.



























































New energy fuses are circuit protection devices. Based on standard voltage and current conditions, when the loop current continues to be abnormal, it will melt within a set time through melt heat accumulation and effectively extinguish the arc, thereby safely breaking the fault current. Its operating mechanism is based on the Joule heating effect: when current flows through the melt, heat is generated due to resistance. When overload or short circuit causes heat accumulation to exceed the critical point, the melt melts at the weak point of the design to achieve circuit isolation and protect subsequent electrical systems from damage.

According to the protection characteristics, it can be divided into full range protection (Class G) and partial range protection (Class A); according to the installation and application standards, common types include European standard, American standard, British standard and other appearance specifications; according to the usage scenario, it can be divided into DC fuses and AC fuses. In addition, according to different voltage levels and breaking capacity requirements, its design and material selection will be adjusted accordingly to match diverse applications such as photovoltaics, energy storage, and electric transportation.



























































New energy fuses have multiple advantages: fast response speed, overcurrent protection can be achieved within milliseconds; reliable operation, proven in harsh environments, and long life; the structure is usually easy to detect and replace, and easy to maintain; high degree of serialization, can be adapted to different current and voltage levels, and meets the safety protection needs in various scenarios. Its materials and processes have also been specially strengthened for the high temperature and high vibration in the new energy field.

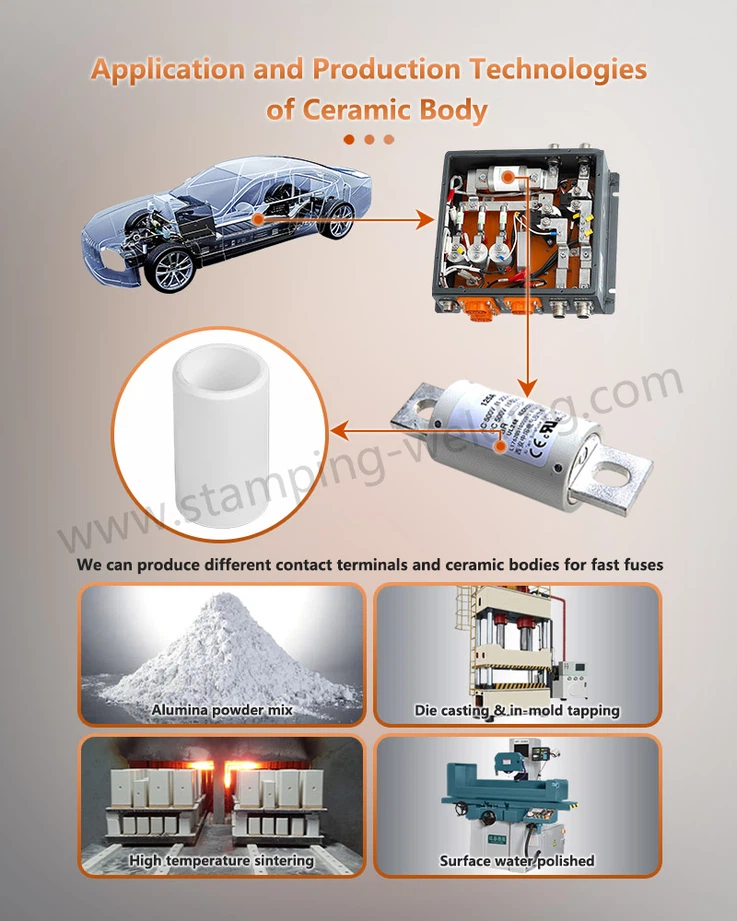

It is widely used in battery packs, motor controllers and high-voltage distribution systems of new energy vehicles; string and bus protection of photovoltaic power stations; circuit protection of energy storage battery modules and DC charging piles; and new energy-related fields such as wind power and rail transit. In the system, it is often connected in series with the main circuit or key branch circuit to prevent thermal runaway or equipment damage caused by overload, short circuit or reverse current faults.

















































































We focus on the R&D and manufacturing of EV Fuse Ceramic Body, and provide ceramic fuse solutions suitable for various high voltage, DC and special working conditions.
