Overview of LiFePO4 battery cell structural components
Apr 08, 2026

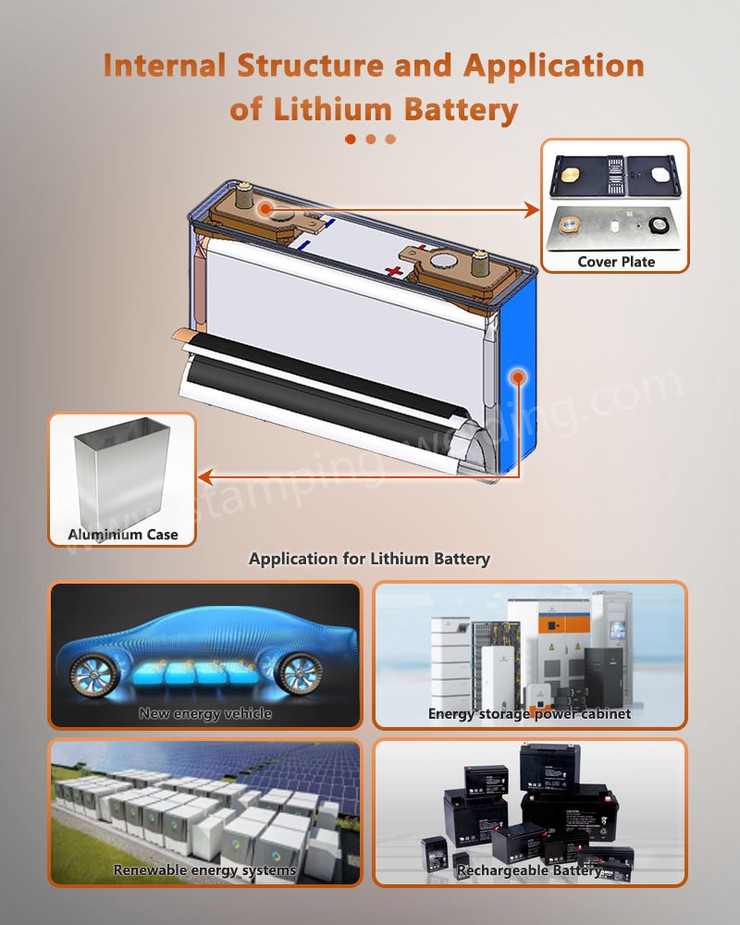

The square shell battery cell structure plays a crucial role in lithium iron phosphate batteries, mainly responsible for transmitting energy, carrying electrolyte, safety protection, fixing and supporting batteries, and exterior decoration, directly affecting the sealing, safety, and energy efficiency performance of LiFePO4 battery cell. The structural components of a square shell battery unit are usually composed of an outer shell and a cover plate, which are the basic components for the stable operation of power battery units. Among them, the manufacturing of the shell is relatively simple, mainly using continuous stretching technology, with high structural strength and strong ability to withstand mechanical loads; The process complexity of the cover plate is relatively high, and it undertakes functions such as sealing, conductivity, pressure relief, and fuse protection. It is a key component to ensure the safe operation of the Power battery cell.
Types and functional roles of core structural components
The shell is an important component of LiFePO4 battery cells, serving as a full lifecycle barrier between the inside and outside of the battery, with four core functions: fixation, protection, sealing, and heat dissipation. It can effectively resist external impacts, prevent electrolyte leakage, and quickly dissipate the heat generated by battery operation. The production process includes raw material slitting, precision continuous stretching, cutting, cleaning, drying, and full process inspection. Among them, precision continuous stretching is the core process, and the technical difficulty lies in ensuring uniform wall thickness and preventing cracking. The technical barrier is mainly reflected in high-precision molds and professional stretching equipment.
The cover plate is the most complete and complex component in square lithium batteries, with functions such as insulation sealing, conductivity, explosion-proof pressure relief, overload protection, etc. It is mainly composed of steel cover, sealing ring, explosion-proof components, etc. Explosion proof aluminum plate as the core pressure relief component, which can automatically rupture at critical pressure; Sealing rings achieve insulation and sealing effects, and various metal components are precisely assembled through processes such as stamping, friction welding, and laser welding. The finished product needs to undergo multiple strict tests such as explosion-proof pressure, helium sealing, and internal resistance.
In addition, battery module connectors are key conductive components in Lithium batteries square shell cell applications, mainly used for electrical connections between power battery modules. Some structures compensate for the expansion displacement of battery cells through flexible areas to reduce the influence of interface stress.
Analysis of Typical Structural Design Cases
In recent years, there have been multiple innovative cases in the structural design of Lithium superpack batteries. The new explosion-proof valve design arranges the explosion-proof valve on the opposite side of the positive and negative electrodes, which can optimize the internal space utilization of the lithium battery pack and improve the volumetric energy density; At the same time, in the case of thermal runaway, the direction of explosion pressure relief can be far away from the driving or activity area, significantly improving overall safety. The integrated design integrates the liquid cooling plate, busbar, and sampling harness, which can quickly control the working temperature of the battery pack, improve the performance and cycle life of lithium batteries, reduce the number of components, simplify the assembly process, and improve production efficiency while reducing system costs.
The structure of the full pole ear module combined with an elastic card achieves efficient conductivity between the pole ear and the cover plate, reducing the assembly difficulty of Solar energy storage systems lithium batteries pack and improving overcurrent capability. Its larger conductive cross-sectional area makes it particularly suitable for high-speed charging and discharging electric field scenarios. The fixed structure design achieves precise positioning and reliable clamping of lithium battery cells through a dedicated fixed structure, effectively preventing cell shaking and improving the structural stability of battery modules and energy storage systems.
Overview of the development trend of square shell structural components
The structural components of the Lithium ion battery for solar energy system are the core support for the performance and safety of lithium iron phosphate batteries, and its technological development is constantly upgrading around high integration, high safety, high efficiency, and low cost.
With the continuous growth of demand for new energy vehicles and energy storage markets, structural components will further develop towards integration, lightweight, and high reliability. Innovative designs such as new explosion-proof designs, integrated thermal management solutions, and simplified assembly processes will continue to promote the overall performance improvement of Lithium ion battery cells, providing the industry with safer, more efficient, and economical structural solutions.
