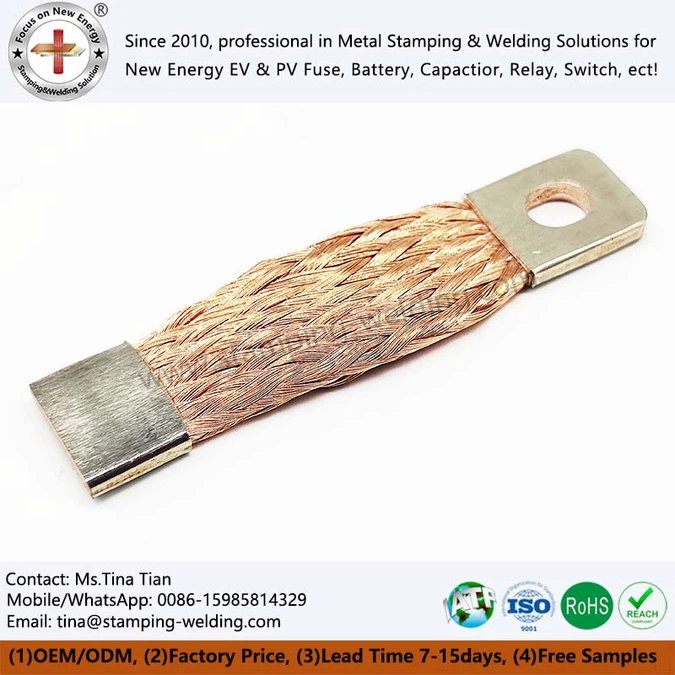

Soft Bare Copper Wires: structure, characteristics and industry application analysis

Copper braided wire is a soft conductor made of multiple strands of fine copper wire or copper foil through a precise braiding process. It usually has a flat or cylindrical structure. This unique manufacturing process gives the material excellent conductive properties and excellent flexibility, making it an indispensable basic component in the field of electrical connections. As a high-performance Copper Braided Wire, it can not only carry large current transmission, but also maintain stability during complex mechanical movements. It is widely used in various high-demand industrial and electronic scenarios.



























































The most notable feature of copper braided wire is its superior fatigue resistance and bending resistance. Thanks to its special braided structure, the wire is not easily broken in environments with frequent vibration, twisting or movement, making it ideal for mechanical joint connections or dynamic wiring inside mobile equipment. At the same time, the use of pure copper (such as commonly used T2 copper) ensures extremely low resistivity. This Copper Stranded Wire can efficiently transmit large currents, effectively reducing energy consumption and heating risks.

In terms of environmental adaptability, Twisted Copper Wire performs well. Their operating temperature range usually covers -55°C to +200°C, and they can adapt to extreme environments such as automobiles and aerospace. In order to further improve performance, the industry often chooses different types of braided wires according to needs. For example, bare copper wire is lower in cost but prone to oxidation; while tinned or nickel-plated Tinned Copper Braid Wire Grounding Jumper has stronger anti-oxidation and corrosion resistance and is especially suitable for humid, marine, or chemical environments, and the tin-plated layer makes the welding process more convenient.













































































Electric Power and Industry: Used for transformer grounding, circuit breaker soft connections, robot joint wires and crane sliding contact wires to ensure the stable operation of heavy equipment. New energy field: Lithium-ion Batteries Connectors play a vital role in the series connection of power battery modules and the internal wires of the charging gun, ensuring the efficiency and safety of energy transmission. Transportation: From car battery ground wires to high-speed rail track grounding, braided wires can provide reliable conductive paths. Electronic and electrical: Used for circuit board grounding straps, shield connections, and anti-static wrist straps to protect precision components from static electricity and electromagnetic interference.

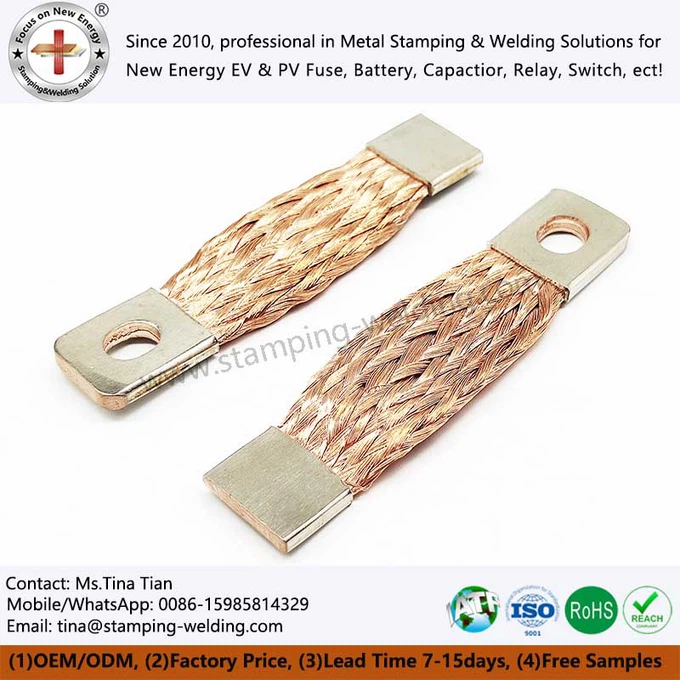

When selecting, engineers need to focus on cross-sectional area, coating material and weaving density. The cross-sectional area directly determines the current load capacity. Common specifications include 60mm², 100mm², etc., which need to be calculated and selected based on the actual current demand. For Flexible Busbars, the braiding density will also affect the shielding effectiveness and wear resistance. High-density braiding is usually used in situations with extremely high shielding requirements. In addition, environmental factors are also the key to selection. Tin-plated or nickel-plated products should be preferred in humid environments, while silicone insulation may be needed in high-temperature environments.

With the advancement of technology, multi-layer braided wires and insulated products have also appeared on the market. Flexible Insulated Copper Busbars improve safety by adding layers of insulation, while the multi-layer braided construction further enhances shielding capabilities for equipment such as coaxial lines. Whether it is Flat Copper Braided Wire or cylindrical wire, a correct understanding of its physical characteristics and electrical parameters is a prerequisite for ensuring safe and efficient electrical system design.



























































About our company, we focus on the R&D and manufacturing of high-precision Soft Bare Copper Wires. Our products cover bare copper, tin-plated and nickel-plated series braided wires, and we can provide customized services for flat or insulated flexible copper busbars according to customer drawings. If you need to obtain samples or technical parameter sheets, please contact us.
