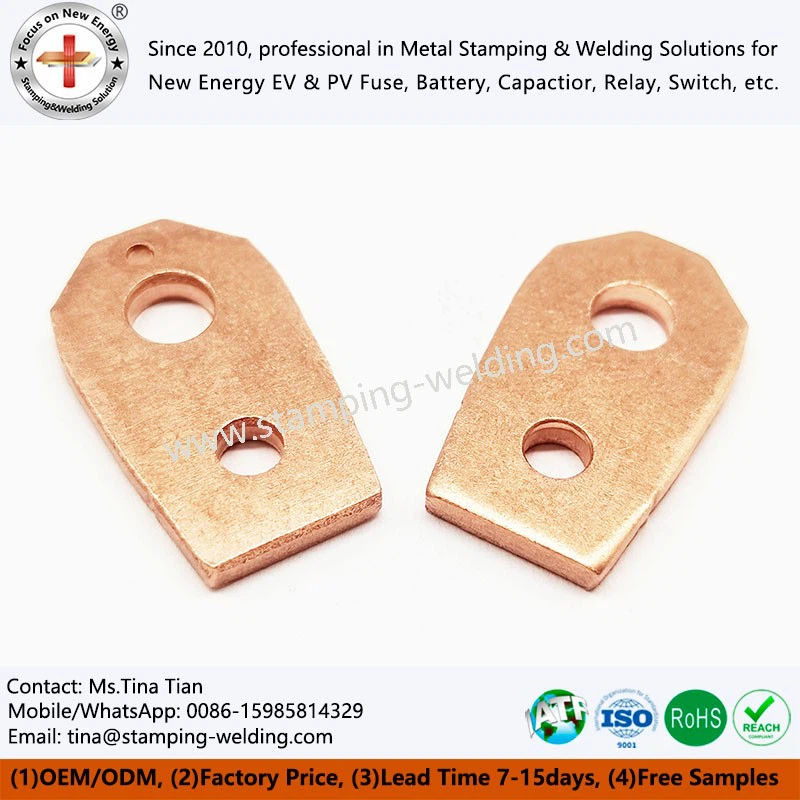

Customized Metal Stamping Copper
Customized Metal Stamping Copper are metal parts made by cold-working copper sheets (such as copper, brass, and bronze) into specific high-precision shapes using precision molds and high-pressure stamping equipment. This process, through techniques such as cutting, bending, and punching, rapidly manufactures complex and highly consistent copper components, which are widely used in electronics, automotive, and home appliance industries.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
In the fields of new energy and power electronics, the performance of electrical connection systems directly impacts the efficiency and reliability of overall equipment. Our Customized Metal Stamping Copper are manufactured using high-purity copper (with a conductivity exceeding 97% IACS) and other specific copper alloys through advanced stamping processes, ensuring compliance with stringent electrical performance requirements. The materials are chosen based on their superior electrical and thermal conductivity, making them suitable for a wide range of applications, from high-precision electronic chip pins to large electrical equipment connectors.
Product Features
Customized Adaptation
Stamping Parts can be customized across all dimensions-materials, dimensions, and performance-to suit different engineering scenarios in the new energy and power electronics fields. This allows for flexible matching of diverse needs such as precision assembly, high-frequency conductivity, and high load-bearing capacity, balancing compliance and practicality. The products precisely adapt to end-equipment design standards, reducing engineering selection and implementation risks.
Full-Process Empowerment
Leveraging a multi-process collaborative production system, products integrate core processes such as precision stamping, customized electroplating, and laser cutting. This achieves ±0.01mm precision control, ensuring product dimensional and performance stability. Furthermore, full-process quality testing enhances corrosion resistance and aging resistance, meeting the engineering requirements for long-term service of electrical equipment.
Balancing Mass Production and Customization
Products can flexibly adapt to both small-batch customization and large-scale mass production needs. Small-batch orders utilize CNC technology to reduce mold investment and shorten delivery cycles, while large-scale production relies on a standardized system to ensure batch consistency. This balances procurement costs and delivery efficiency, adapting to diverse engineering procurement scenarios.
Technical parameters
Dimensional Accuracy
Copper Stamping dimensional accuracy is customizable and adjustable, with standard accuracy ranging from ±0.05 to ±0.1mm, and high-precision models reaching ±0.01mm. This conforms to the assembly tolerances of precision electrical components, avoiding compatibility issues between the product and end-devices, and meeting precise selection requirements.
01
Thickness Range
Copper Metal Stamping thicknesses range from ultra-thin 0.1mm copper foil to 10mm thick structural components, suitable for flexible circuit boards, large electrical connectors, and other diverse applications. It balances structural strength and lightweight design, matching different engineering space and load-bearing requirements.
02
Brinell Hardness
Custom Copper Stamping utilize copper alloy materials to achieve graded hardness matching: copper 35-45HB, brass 60-160HB, and bronze 100-250HB. Selection is based on specific needs, adapting to different operating conditions such as low-load conductivity and high friction/high pressure.
03
Conductivity
The conductivity of the Copper Sheet Stamping varies depending on the copper alloy material. Copper ≥97% IACS is suitable for high-frequency conduction; brass 20%-60% IACS offers better cost-effectiveness; and bronze 10%-20% IACS is suitable for structural load-bearing applications, meeting diverse electrical requirements.
04
Tensile Strength
The tensile strength of the Stamping Copper Sheet is graded for suitability: copper 200-300MPa, brass 300-600MPa, and bronze 400-800MPa, suitable for both light-load conduction and high-load structural applications, ensuring structural stability during product use.
05
(Note: Specific parameters can be designed and customized according to customer product requirements)
Precautions for use
Precise Selection
Customize and select suitable copper alloy materials and specifications based on engineering conditions and Metal Stamping Parts parameters to ensure product performance meets design requirements and avoids product damage or end-user malfunctions caused by improper selection.
01
Corrosion Protection
For special operating conditions, perform electroplating, passivation, and other protective treatments on the Stamping Processing Copper Connecting. Avoid contact with corrosive substances during storage and use to enhance corrosion resistance and extend product service life.
02
Standardized Use
Use the Elctrical Contact Copper Metal Stamping Terminal according to its design load-bearing capacity, avoid overloading, prevent product deformation and breakage, and ensure safe operation of the project and the product.
03
Regular Maintenance
Regularly inspect and maintain the product, identify and address issues such as wear and corrosion promptly, and ensure proper cleaning and lubrication. In electrostatic-sensitive environments, take protective measures to avoid electrostatic damage and ensure stable product operation.
04
Packaging and Transportation
Combining the precision characteristics of Customized Metal Stamping Copper with the needs of bulk engineering transportation, a tiered customized packaging approach is adopted: ordinary small items are sealed in plastic bags, separated in cardboard boxes, reinforced in cartons, and then placed on pallets with moisture-proof treatment. Larger and special items are additionally cushioned with pearl cotton for protection, comprehensively avoiding issues such as product wear and tear and moisture damage during transportation. Leveraging a global localized service network, this approach efficiently adapts to long-distance and cross-border transportation scenarios, balancing product transportation safety and delivery timeliness, providing reliable assurance for the successful implementation of bulk engineering procurement.
Contact Us
If you have engineering procurement and technical selection needs for Customized Metal Stamping Copper, please feel free to contact us. With 30 years of industry experience and advantages across the entire industry chain, we can provide you with customized solutions, sample testing, and professional solutions to help your projects be implemented efficiently.
