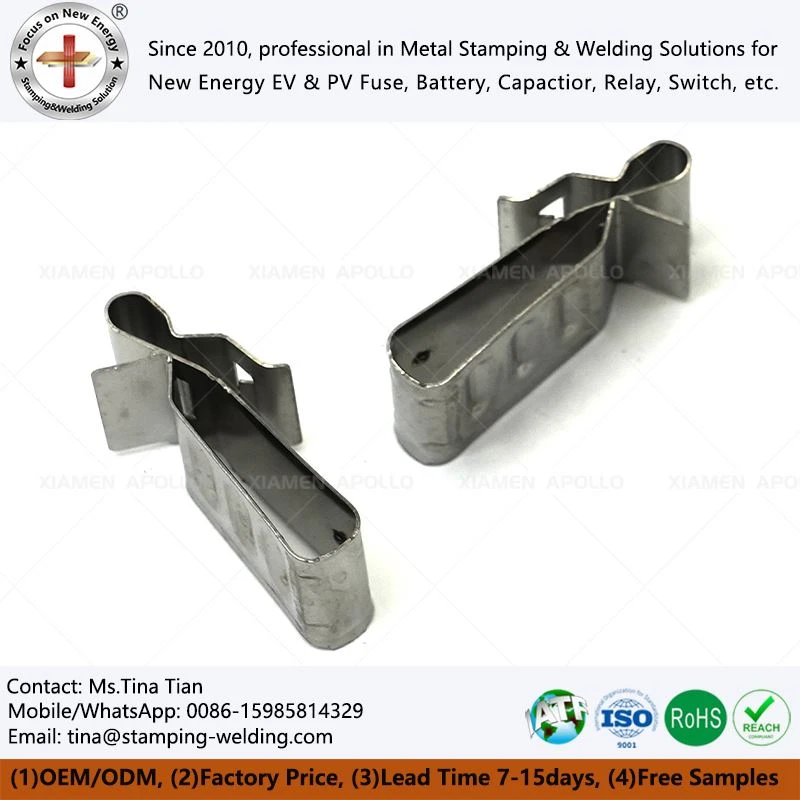

Stainless Steel Solar PV Cable Clips
In solar photovoltaic (PV) systems, cables not only facilitate power transmission but also serve as critical components influencing system safety, stability, and long-term operational efficiency. With the continuous expansion of large-scale PV power plants, rooftop PV systems, and new energy infrastructure, there is an increasing demand for cable management solutions that offer superior weather resistance, mechanical strength, and installation reliability. Stainless Steel Solar PV Cable Clips are high-strength cable securing components designed specifically for outdoor PV environments; manufactured from corrosion-resistant stainless steel using precision stamping, they ensure the stable fastening of PV cables to module frames, mounting structures, and installation rails.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Stainless steel solar PV cable clips are standardized fasteners designed for cable routing on the DC side of photovoltaic arrays. They are primarily used to secure PV cables, combiner cables, and communication harnesses to module frames, mounting rails, or building surfaces, ensuring organized routing, reliable fixation, and systematic protection.
The product's core features are defined by four key attributes: first, an all-metal construction using 304 or 316 stainless steel, which fundamentally eliminates issues related to the aging and embrittlement of plastic components; second, an elastic snap-fit structure that relies on the material's inherent elasticity for clamping, requiring no additional fasteners; third, a cable-friendly design featuring passivated contact surfaces to preserve the integrity of the cable insulation; and fourth, a standardized, compatible design that accommodates mainstream module frame thicknesses and common PV cable specifications, allowing for direct application with mounting systems from most major brands.
Material Advantages: A Metal Barrier Offering Lifelong Anti-Aging and Fire-Retardant Properties
| SUS304/316 Austenitic Stainless Steel Substrate | Manufactured from high-quality 304 or 316 stainless steel. Grade 316 stainless steel, enriched with molybdenum, exhibits exceptional resistance to pitting and crevice corrosion-critical for performance in coastal areas with high salt-spray exposure or chemical plants with highly corrosive gas environments. |
| Class A Fire Rating and Extreme Temperature Resistance | Unlike nylon, stainless steel cable clips are naturally non-combustible and fully comply with stringent global building fire safety codes (such as the NEC). Whether exposed to extreme cold (-40°C) or localized high temperatures, the material's mechanical strength and elastic modulus remain stable; it does not suffer from the cold-induced brittleness or heat-induced softening failures common to plastics. |
| Surface Treatment Eliminating Galvanic Corrosion Risks | Since PV module frames are typically made of aluminum alloy, the use of galvanized carbon steel components would easily trigger galvanic corrosion. We utilize weather-resistant stainless steel-a material compatible with the aluminum framework-and apply passivation treatments where necessary. |
Detail Showcase: Visible Engineering Quality
Clip Tension Consistency
The opening and closing force of the Stainless PV Wire Clip is tested via random sampling for every batch to ensure uniform, secure clamping after installation; the tension is calibrated to prevent cable slippage due to insufficient force while avoiding damage to the cable insulation caused by excessive force.
01
Edge Smoothness
All edges contacting the cable undergo stamping or chamfering processes, resulting in a smooth finish free of burrs. Under high-magnification inspection, the edges show a rounded profile, fundamentally eliminating the risk of scratching the insulation layer.
02
Barb Integrity
The rear barbs are precisely formed with optimal shape and angles. Upon installation, they embed effectively into the frame surface, providing reliable retention against pull-out forces.
03
Size Markings
Applicable cable specifications (e.g., 2×4.0mm², 4×4.0mm²) and compatible frame thickness ranges are clearly marked on the product body or packaging, facilitating quick on-site identification and selection.
04
Material Traceability
Each Stainless Steel Solar PV Cable Clips batch comes with material certification, ensuring the authenticity and traceability of the SUS304/SUS316 materials used.
05
Application Advantages
Residential Rooftops (Pitched Roofs): Suitable for roofs with colored steel or glazed tiles where mounting rail space is limited. The Solar Wire Cable Clip Sus304 is compact and low-profile; unlike plastic, the stainless steel material does not soften or drip when roof temperatures reach 70°C in summer. One-handed operation makes installation easier for roofing workers.
Ground-Mounted Solar Farms: Ideal for large-scale projects (thousands of acres) requiring hundreds of thousands of clips. Cable Clamp Wire Clip for Solar Panels eliminates the need for replacements; their total lifecycle cost over 25 years is lower than that of nylon cable ties, which typically require replacement every three years. Additionally, the elastic jaws provide superior resistance to wind-induced vibration-a critical feature given the higher wind loads experienced by ground-mounted systems.
Tracker Systems: As the racking rotates daily from east to west, cables undergo twisting stress. The elastic jaws allow for slight cable rotation between clamping points, preventing torsional stress from concentrating at any single location.
BIPV and Curtain Wall PV: High aesthetic standards require visual uniformity; stainless steel clips can feature a matte brushed finish, offering excellent concealment without compromising the building's architectural facade.
contact us
Stainless Steel Cable Clips are essential components for cable management in photovoltaic systems. Engineered with high-strength stainless steel, precision manufacturing, and optimized structural designs, they ensure secure fastening, long-term weather resistance, and efficient installation.
For renewable energy projects prioritizing long-term reliability, high-quality cable clips effectively enhance system safety, reduce maintenance costs, and ensure the stable, continuous operation of PV equipment in challenging environments.
If you are seeking reliable cable fastening solutions for large-scale PV projects or renewable energy systems, we can provide tailored solar cable clip solutions-leveraging our proven metal manufacturing capabilities, engineering customization expertise, and stable supply chain.
