Copper Bases For Knife Type NH Fuse Links: The Core Conductive Hub Of Industrial Power Distribution Systems

In modern industrial power distribution systems, heavy machinery, and power distribution cabinets, NH fuse links for mounting on DIN/EN rails or with screw fixing play a crucial safety role. As a key component for circuit protection, the Copper Bases for Knife Type NH Fuse Links not only interrupts current in case of overload or short circuit, but its conductivity and structural stability directly determine the safety of the entire power distribution system. This article will delve into this core component, particularly the technical characteristics of its copper base and the significant advantages brought by the nickel plating process.

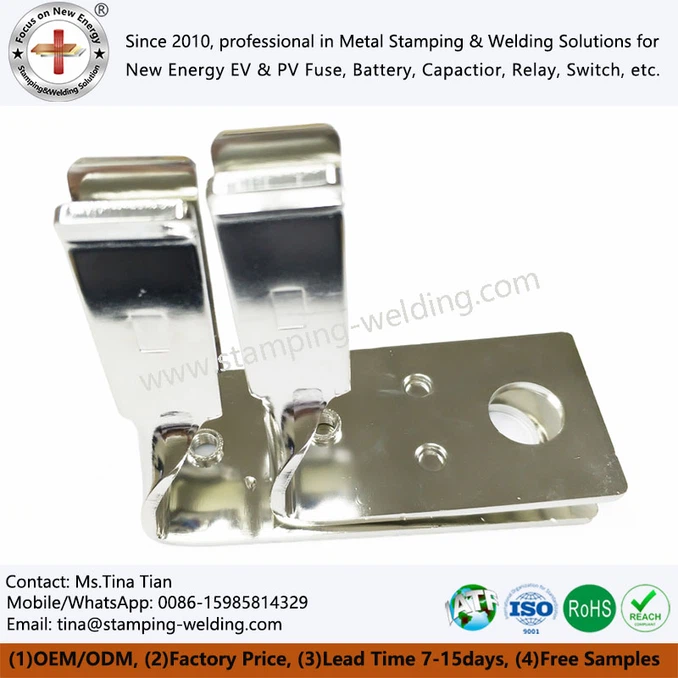

Knife-type fuse connectors, commonly known as "copper bases," refer to the conductive contact parts at both ends of the fuse used to connect to external circuits, withstand high currents, and secure the fuse element. Physically, they are located at both ends of the knife-type fuse body (covering specifications such as NH0, NH1, NH2, and NH3), appearing as sturdy metal "blades." This design is not accidental; it's to precisely match the metal clips inside the NH Fuse Bases, achieving a tight physical fixation and electrical connection.

Internally, the copper bases for Knife-type NH Fuse Links connect to the internal fusible element-typically made of high-purity copper or pure silver sheets/wires-and are sealed within a high-strength ceramic fusible tube. This integrated design ensures the continuity and stability of the current path.

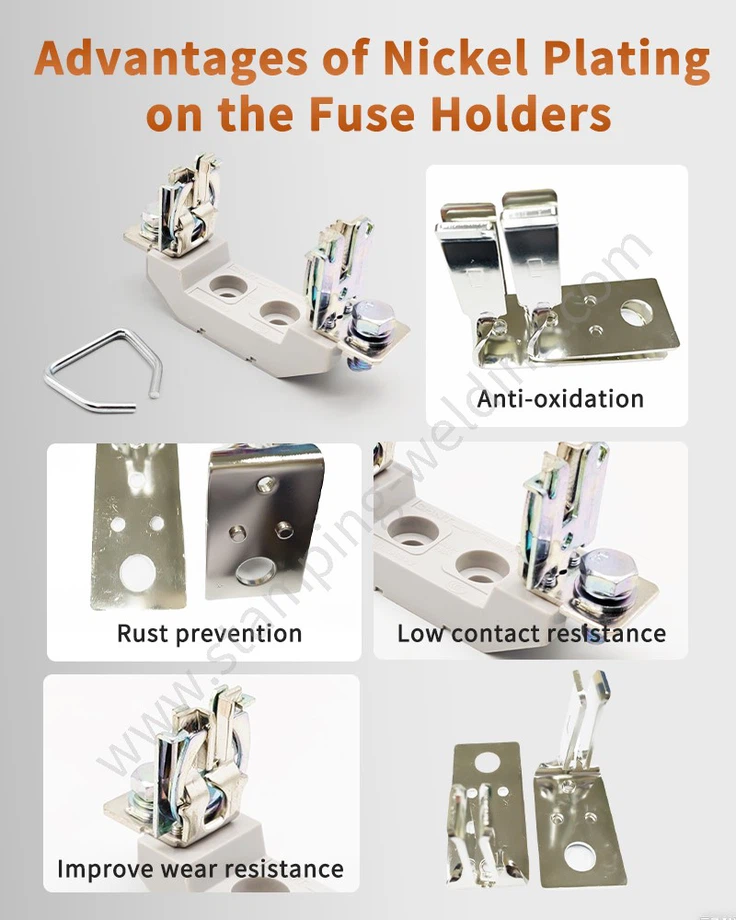

Although bare copper has excellent conductivity, it is prone to oxidation in complex industrial environments. The resulting oxide layer increases contact resistance, leading to overheating and even safety hazards. Therefore, modern high-quality NH Series Fuse Base Knife Contacts are generally nickel-plated. Nickel plating provides this component with several technological advantages:

1. Excellent Corrosion Resistance: The nickel plating forms a dense physical barrier, effectively preventing the copper substrate from contacting oxygen, moisture, and salt in the environment. In humid or corrosive industrial environments, the nickel plating significantly reduces the corrosion rate and prevents the formation of verdigris, thus extending the product's service life.
2. Superior Abrasion Resistance: During the installation and removal of fuses, the knife-shaped contacts experience mechanical friction with the base clamp. The high hardness of the nickel plating effectively resists wear during insertion and removal, maintaining the integrity of the contact surface and ensuring long-term electrical connection reliability.
3. Stable Contact Resistance: The nickel plating maintains a low resistance at the contact interface, preventing increased contact resistance due to surface oxidation or contamination, thereby avoiding malfunctions caused by localized overheating.

The functions of the Copper Holder for NH Type Industrial Fuse-links are mainly reflected in the following three aspects:

1. Conductivity and Current Carrying: As the bottleneck for current transmission, it must possess extremely low impedance to ensure that temperature rise is kept within safe limits at rated current.
2. Quick Connection: The knife-type design allows for easy insertion and removal of fuse holders/bases, facilitating maintenance and replacement, especially in emergencies requiring rapid power restoration.
3. Heat Dissipation: The metallic conductor structure rapidly conducts heat generated by the internal fusible element to the outside, aiding in heat dissipation and preventing heat buildup.

These components are widely used in DC Solar Fuse Knife Contact systems, transformer protection, motor protection, and industrial power distribution networks where various Fuse Bases for Knife Type are located. Whether it's a Fuse Clip, Fuse Socket Clip, or Fuse Carrier Clip, their core purpose is to ensure circuit reliability under high voltage/high current conditions.

In summary, the Copper Bases for Knife Type NH Fuse Links is not merely a simple metal accessory, but an industrial component integrating high-conductivity materials science and precision surface treatment technology. By employing high-purity copper and combining it with advanced nickel plating, the Copper Knife Contact for Rail Mount Fuse Holder successfully solves the balance between conductivity and corrosion resistance. In various applications, such as PCB Mount Fuse Clips or large Spring Clip Fuse Holders, this nickel-plated connector demonstrates extremely high reliability, providing a solid guarantee for the safe operation of modern industrial power systems. Both auxiliary structures like the Fuse Mounting Clip and the NH Fuse Circlip serve this core objective: to provide impeccable circuit protection under extreme conditions.

Theoretical superiority ultimately needs to be translated into reliability in practical engineering through excellent product design. We understand the subtle differences in various application scenarios and are committed to providing proven and robust solutions. For more information on Copper Bases for Knife Type NH Fuse Links or to obtain technical support, please contact us.
