EV Fast Fuse: The Ultra-Fast Safety Guardian Of New Energy Power Systems

In the surging wave of the rapid development of the new energy industry, the popularization of electric vehicles (EV) and energy storage systems has put forward higher requirements for electrical safety protection. As a crucial protective component in the power system, the EV Fast fuse, with its characteristic of cutting off fault currents in an extremely short time, has become the core barrier for safeguarding the safe operation of new energy equipment, and is of great significance for ensuring the stable development of the new energy industry.

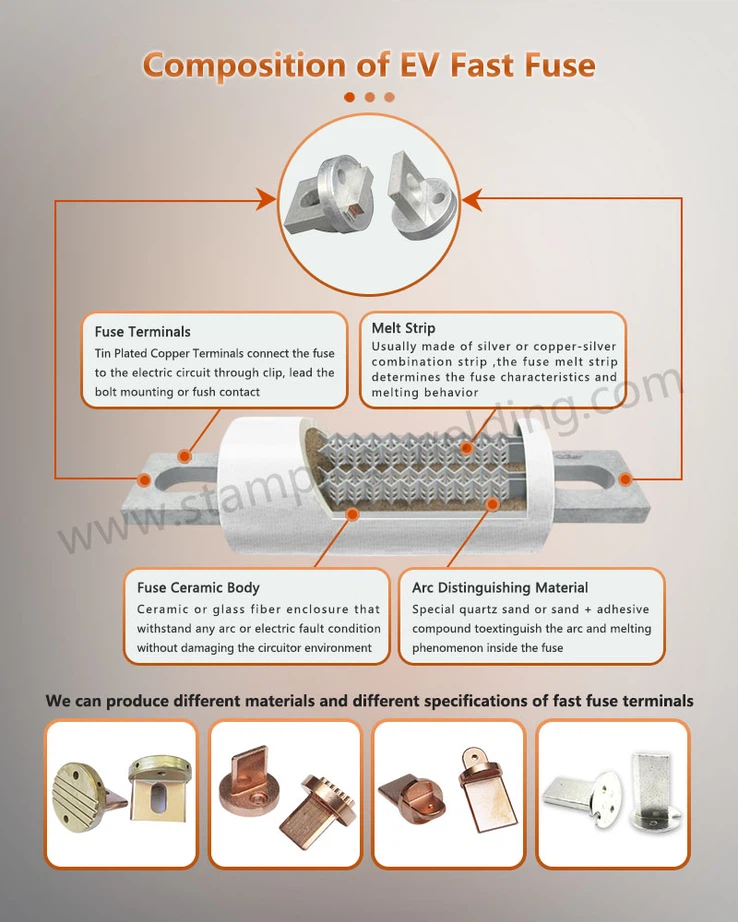

The outstanding performance of the EV Fast fuse largely depends on its special material selection and design. The fuse element materials usually adopt high-purity silver, copper, or silver alloys, which possess excellent electrical conductivity and low melting point characteristics. When overcurrent or short-circuit current occurs, they can melt in milliseconds and quickly cut off the circuit, effectively avoiding damage to equipment caused by abnormal current. For example, the silver alloy fuse element generates less metal vapor during the melting process, which can reduce arc energy and minimize damage to other components.



The shell materials of the fuse are equally crucial, mostly made of high-strength, high-temperature-resistant ceramics or special engineering plastics with excellent insulation properties. Ceramic shells, with their characteristics of high hardness and low thermal conductivity, can effectively isolate the internal high temperature and arcs, preventing heat from conducting to the outside. Special engineering plastic shells, on the other hand, combine the advantages of light weight and high mechanical strength, ensuring insulation performance while adapting to complex installation environments. Some high-end Fast Acting Fuses also fill special arc extinguishing materials, such as quartz sand, which can rapidly cool the arc, accelerate arc extinction, and enhance the breaking capacity and service life of the fuse.







The production of Fast-acting Fuse requires multiple rigorous and precise processes. First is the pre-treatment of raw materials, where the fuse element materials are cut and formed with high precision to ensure that dimensional errors are controlled within an extremely  small range. The shell part is formed into the required shape and structure through injection molding or ceramic firing processes.



Then comes the assembly process, where the fuse element is accurately installed into the shell and reliable electrical connections are made to ensure that the contact resistance meets the standards. Subsequently, the arc extinguishing material is filled, and the fuse is sealed to prevent external moisture, dust, and other impurities from affecting its performance.



During the production process, each process is accompanied by strict quality inspections. For example, the fuse element is tested for electrical conductivity and fusing characteristics, simulating different current overload situations to verify whether its fusing time meets the standards. The assembled fuses are subjected to withstand voltage tests and temperature rise tests to ensure their safety under normal operation and fault conditions. Only Fast Acting Fuse that pass the strict inspection of the entire process will be packaged and delivered.

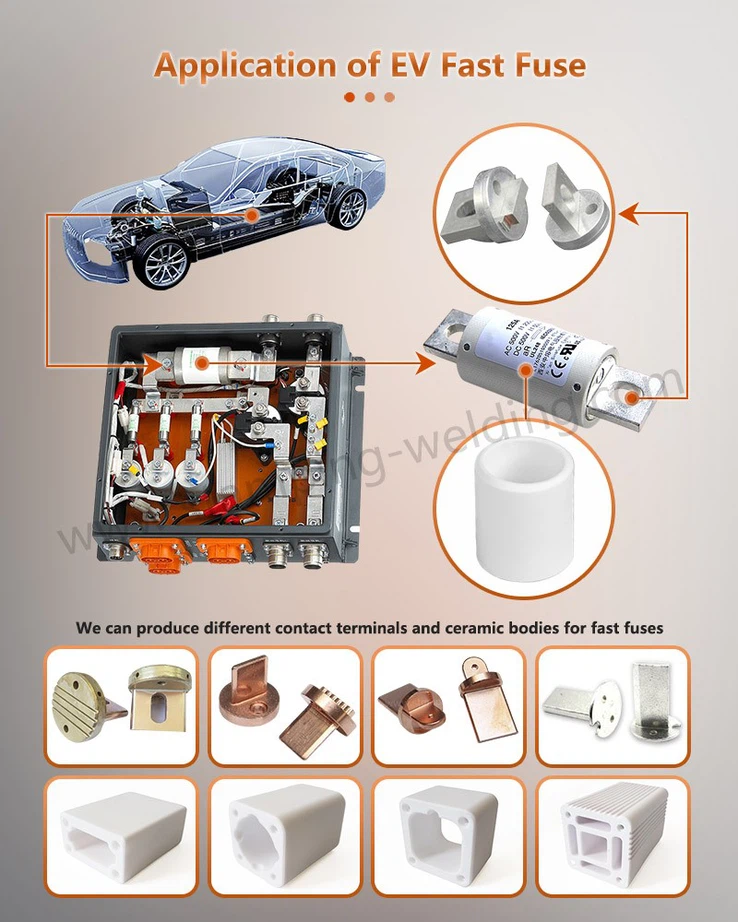

EV battery fuses have extensive and crucial applications in the new energy field. In electric vehicles (EV), it is an important safety guarantee between the battery pack (EV Pack) and the drive system. When faults such as short circuits and overcurrents occur in the battery pack, the High Speed Fuse can instantly cut off the circuit, protecting core components such as battery modules and motors and avoiding serious accidents such as fires caused by faults.



In energy storage systems, whether in large-scale grid-side energy storage power stations or household energy storage devices, Fast Acting Fuse play the important role of Power battery overload protection fuse. When abnormal currents occur during the charging and discharging process of energy storage batteries, the fast fuses can act quickly to prevent dangerous situations such as battery overheating and explosion, ensuring the stable operation of the energy storage system. In addition, in equipment such as charging piles and photovoltaic inverters, fast fuses such as Fast Acting Fuse and High Speed Fuse are equally indispensable, escorting the safe operation of the entire new energy power ecosystem.







As a copper busbar factory in China's new energy industry, we have significant advantages in the production and manufacturing of EV Fast fuses. In terms of research and development, we have a professional technical team that continuously delves into new materials and processes. For example, by improving the alloy composition of the fuse element, we further shorten the fusing time and enhance the breaking capacity; by optimizing the shell structure design, we enhance the heat dissipation performance and mechanical protection level of the product.



In terms of quality control, we have established a complete quality management system. From the strict screening of raw material suppliers, to real-time monitoring during the production process, to the full inspection system for finished products, we ensure that every High Speed Fuse leaving the factory meets international leading standards. Our products have passed a number of authoritative certifications, such as UL and CE.



In terms of product diversity, we offer a rich range of specifications and models, covering Fast-acting Fuse with different rated currents and voltage levels. At the same time, we can also customize and develop exclusive Fast-acting Fuse products according to customer needs to meet the diverse application scenarios of the new energy industry. In addition, we also provide customers with comprehensive technical support and after-sales services, including product selection guidance, fault analysis, and solution provision, to assist customers in the smooth implementation of their projects.







With the continuous innovation of new energy technologies, the EV Fast fuse industry will also face new development opportunities and challenges. In the future, as the power of electric vehicles continues to increase and the scale of energy storage systems continues to expand, higher requirements will be placed on the breaking capacity, response speed, and reliability of Fast-acting Fuse. Products will develop towards higher voltage and larger current ratings, and at the same time, breakthroughs will be made in miniaturization and lightweight to adapt to the trend of equipment integration.



Intelligence will also become an important development direction of the industry. By integrating sensors into fast fuses, real-time monitoring and data transmission of parameters such as fusing status and current changes can be achieved, making it convenient for operation and maintenance personnel to timely grasp the equipment operation status and prevent faults in advance. We will continue to increase R&D investment, keep up with the industry development trend, and continuously introduce high-performance and intelligent High Speed Fuse products to provide a solid guarantee for the vigorous development of the new energy industry.
