The Role And Importance Of PLC Cabinets in Industrial Automation
Jun 05, 2025

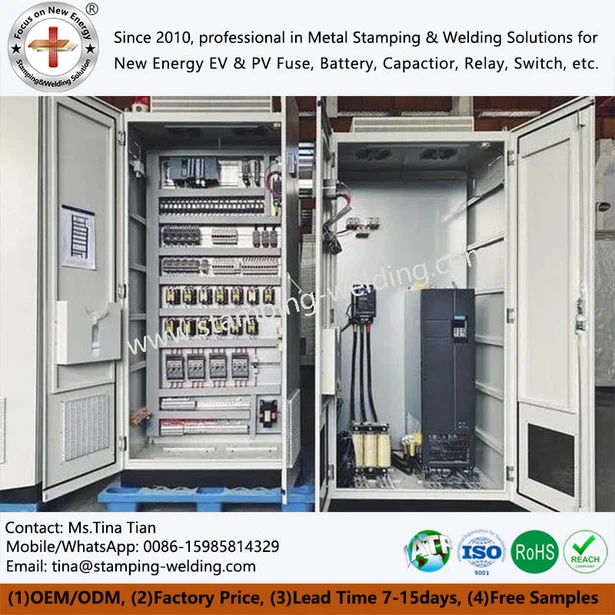

What is a PLC Cabinet?
A PLC cabinet(Programmable Logic Controller), also known as a control cabinet or electrical enclosure, is a specialized housing unit designed to protect and organize various electrical components, including PLCs, power supplies, relays, and other control devices. It serves as the central hub for industrial automation systems, ensuring that all components are securely housed, easily accessible, and protected from environmental factors such as dust, moisture, and physical damage.
Key Components of a PLC Cabinet
| PLC Unit | The heart of the cabinet, the PLC is a ruggedized computer designed to control machines and processes. It processes inputs from sensors and outputs control signals to actuators based on programmed logic. |
| Power Supply | Provides stable electrical power to the PLC and other components. It converts the incoming voltage (e.g., 220V AC or 24V DC) into the required voltage levels for the control system. |
| Relays and Contactors | These devices are used to switch high-power circuits based on low-power signals from the PLC. They allow the PLC to control heavy machinery and equipment. |
| Terminal Blocks | Used to connect wires and cables, terminal blocks provide a secure and organized way to manage electrical connections within the cabinet. |
| HMI (Human-Machine Interface) | An optional component, the HMI allows operators to interact with the PLC system, monitor status, and adjust settings in real-time. |
| Circuit Breakers and Fuses | These protective devices safeguard the electrical system from overcurrent and short-circuit conditions, preventing damage to the components. |
| Communication Modules | Enable the PLC to communicate with other devices or systems, such as SCADA (Supervisory Control and Data Acquisition) systems, via various communication protocols (e.g., Ethernet, Modbus). |
Functions of a PLC Cabinet
Protection
The PLC control cabinet shields sensitive electronic components from harsh industrial environments, including dust, oil, water, and physical impacts.
01
Organization
It provides a structured layout for electrical components and wiring, making it easier to install, maintain, and troubleshoot the system.
02
Safety
By housing electrical components in a secure enclosure, the cabinet reduces the risk of electrical accidents and ensures compliance with safety regulations.
03
Control and Monitoring
The PLC and associated components within the cabinet enable precise control and monitoring of industrial processes, improving efficiency and reliability.
04
Design Considerations for PLC Cabinets
1, IP Rating:
The enclosure should have an appropriate Ingress Protection (IP) rating to match the environmental conditions. For example, an IP65 rating indicates protection against dust and water jets.
2, Cooling and Ventilation:
Proper cooling is essential to prevent overheating. This can be achieved through ventilation openings, fans, or air conditioning units, depending on the cabinet's location and heat load.
3,Cable Management:
Efficient cable routing and management reduce clutter and simplify maintenance. Cable glands and conduits ensure secure and organized cable entry and exit.
4, Mounting Options: ,Components should be mounted securely using DIN rails or panel mounts to prevent vibration damage and ensure easy access.
5, Safety Features:
Emergency stop buttons, interlocks, and warning labels should be incorporated to enhance operator safety.
Installation and Maintenance
1, Location:
The Industrial PLC cabinet should be installed in a location that is easily accessible for maintenance but also protected from environmental hazards. It should be mounted on a stable surface and properly grounded.
2, Wiring:
All electrical connections should be made according to the manufacturer's specifications and local electrical codes. Proper labeling of wires and components is crucial for troubleshooting.
3, Testing:
After installation, the system should be thoroughly tested to ensure all components are functioning correctly and the PLC logic is properly programmed.
4, Regular Maintenance:
Periodic inspection and maintenance are essential to ensure the longevity of the system. This includes checking for loose connections, cleaning dust, verifying cooling systems, and updating software and firmware as needed.
Conclusion
A PLC cabinet is a vital component in industrial automation systems, providing protection, organization, and control for various electrical components. Proper design, installation, and maintenance of the cabinet ensure the reliability and safety of the entire automation system. By understanding the key components and functions of a PLC control cabinet, engineers and technicians can effectively manage and optimize industrial processes.
