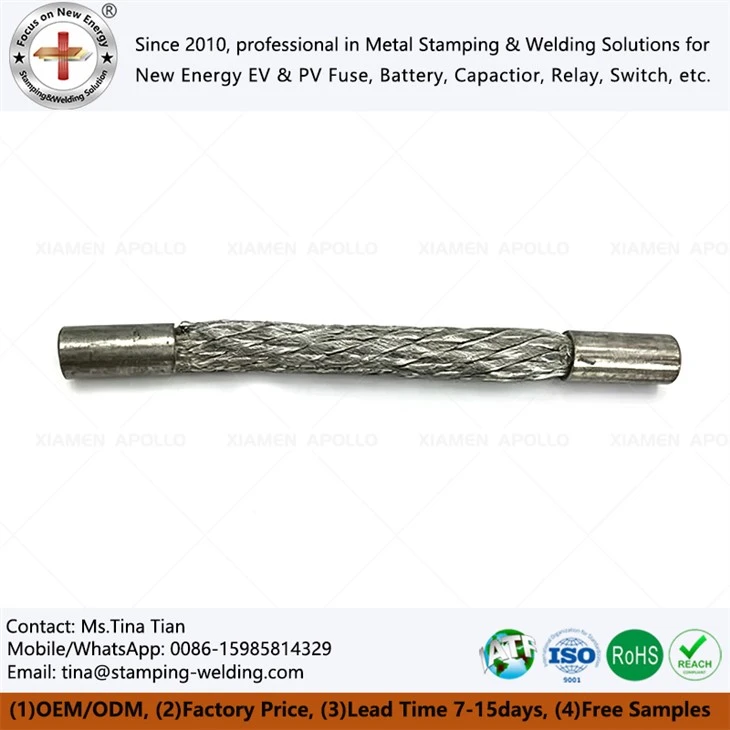

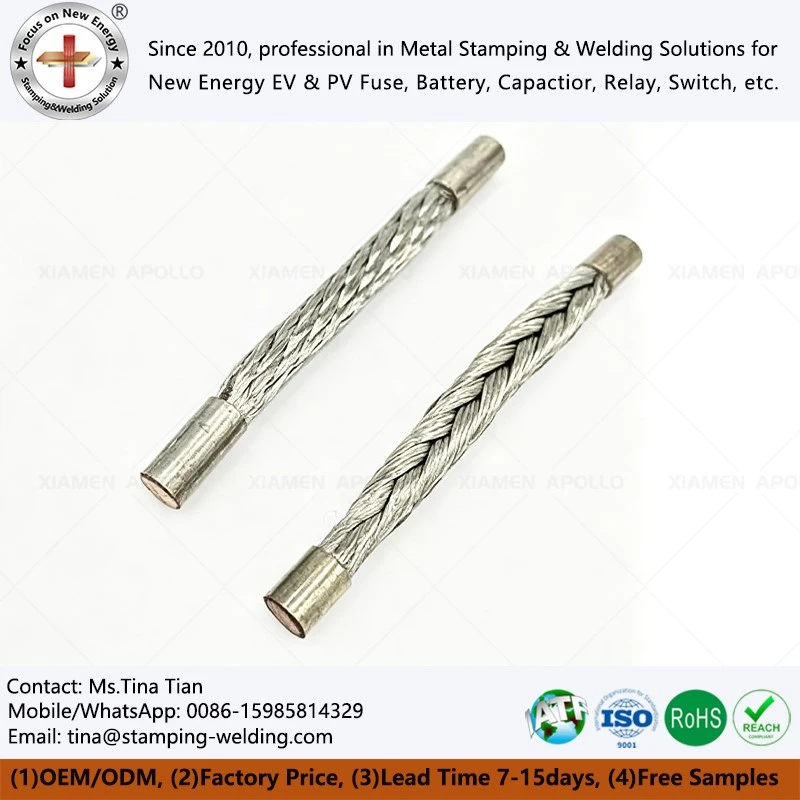

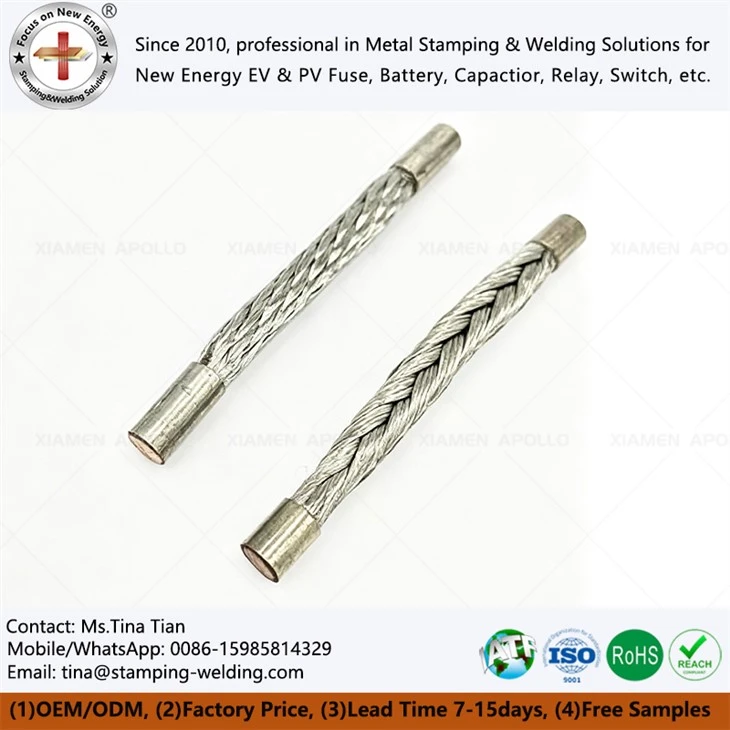

Flexible Laminated Aluminum Busbar
Designed specifically for new energy vehicles and energy storage systems, this flexible laminated aluminum busbar is manufactured using high-purity electrical-grade aluminum foil and a molecular diffusion welding process, offering both ultra-low contact resistance and significant weight-reduction benefits. Its unique "rigid-flex" structure effectively absorbs vibration, mechanical shock, and thermal expansion stress, drastically reducing the risk of damage to battery terminals. Featuring precision insulation encapsulation and anti-oxidation treatment on the terminals, the product delivers exceptional fatigue resistance and structural reliability under complex high-voltage operating conditions, making it an ideal customized interconnect solution for EV battery packs and ESS busbar systems.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
What is a flexible laminated aluminum busbar?

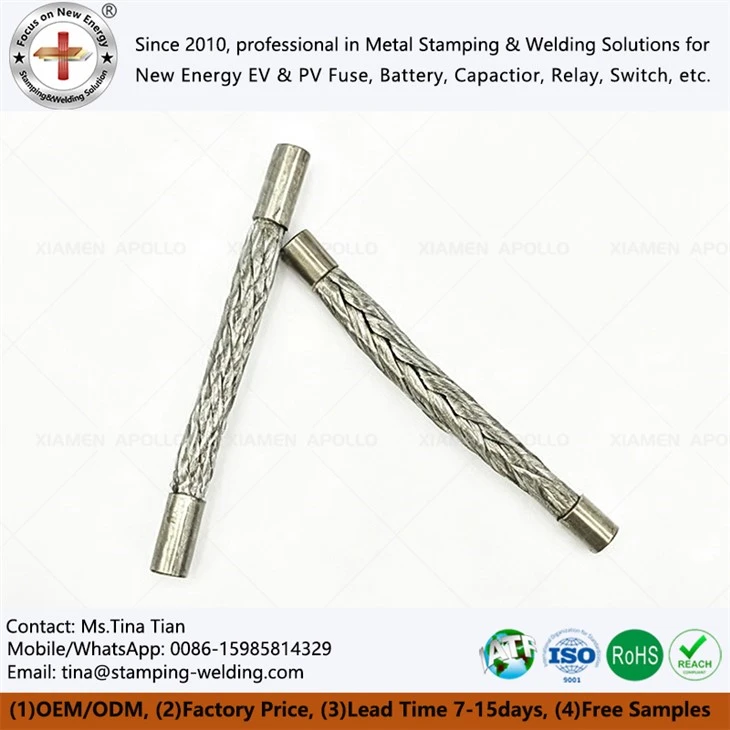

Flexible laminated aluminum busbars-also known as laminated aluminum foil flexible connectors or composite aluminum busbars-are advanced, flexible, high-current conductive components designed for modern, high-power-density electrical systems. These products are constructed by stacking multiple layers of high-purity electrical-grade aluminum foil (purity ≥ 99.5%). Using high-precision molecular diffusion welding or ultrasonic welding technology, the ends are fused into rigid terminals, while the central section retains a flexible, multi-layer structure. They are widely used in electric vehicle (EV) battery packs, electric drive inverters, and large-scale energy storage systems (ESS).

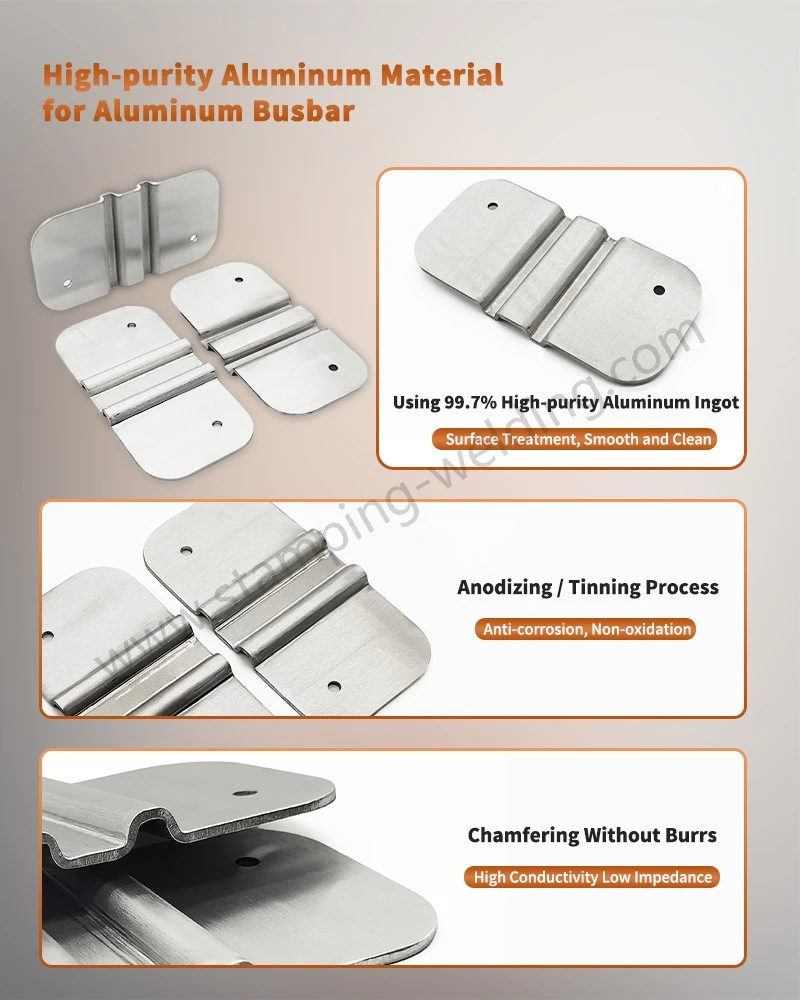

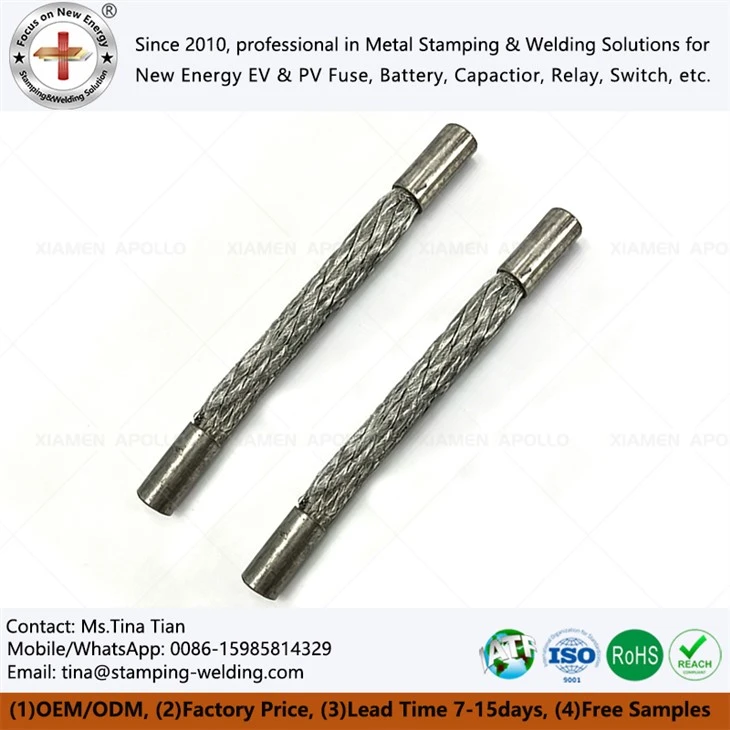

Material Advantages of Laminated Flexible Busbars
High Electrical Conductivity
The laminated busbar utilizes high-purity aluminum foil with conductivity exceeding 61.5% IACS, reducing ohmic resistance and heat generation during high-current transmission.
High Thermal Conductivity
In a composite laminated busbar, pure aluminum has a thermal conductivity of approximately 230 W/(m·K), enabling the rapid conduction and dissipation of Joule heat generated during high-current flow away from the welded joints.
Good Corrosion Resistance
Engineered for longevity, the three-layer laminated busbar utilizes aluminum that spontaneously forms a natural protective oxide layer upon exposure to air, effectively resisting corrosion from moisture, weak acids, and industrial exhaust gases.
Excellent Ductility and Toughness
High-purity aluminum foil exhibits exceptional elongation and toughness; when stacked in multiple layers, it can withstand repeated bending without hardening or fracturing.

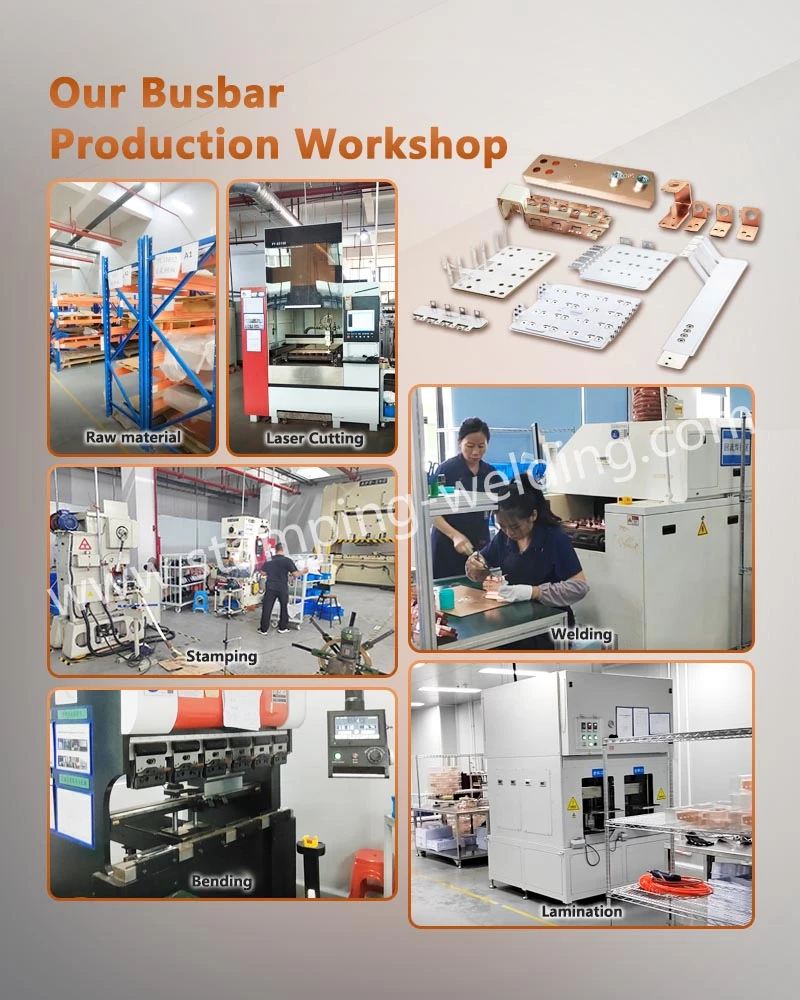

Manufacturing Advantages for Industrial Laminated Busbars
Precision Foil Stacking and Automated Cutting
For our laminated power bars, high-precision CNC punching and cutting equipment is used to cut electrical-grade aluminum foil to exact dimensions, preventing burrs from puncturing the insulation layer or triggering micro-arcing between layers.
01
High-Energy Molecular Diffusion Welding
High temperature and pressure induce atomic diffusion at the contact interfaces of the stacked aluminum foils, resulting in zero transition resistance and a bond that withstands high temperatures without delamination.
02
Ultrasonic Metal Welding
Ultrasonic friction welding is employed for ultra-thin foils or specialized terminal configurations, maximizing the retention of the aluminum's mechanical toughness and electrical conductivity.
03
Surface Plating and Anti-Oxidation Treatment
To overcome aluminum's high-resistivity oxide layer and ensure stable contact resistance, our laminated shunt and busbar assemblies offer custom surface treatments, including nickel, tin, and silver plating.
04
Application Scenarios for Laminated Busbar Connectors
Electric Vehicles (EV/HEV)
Laminated aluminum busbar assemblies can be used for internal flexible connections involving traction battery packs, BDUs (Battery Distribution Units), PDUs (High-Voltage Power Distribution Units), and motor controller inverter terminals.
Electrochemical Energy Storage Systems (ESS)
Containerized energy storage units, industrial and commercial energy storage battery strings, and BMS busbar systems; designed to meet requirements for a maintenance-free service life of 15–20 years.
Rail Transit and Industrial Power Supplies
The multi-layer aluminum busbar is engineered for high-power applications, including variable frequency drives (VFDs), wind power converters, high-frequency welding equipment, and large-scale rectifier transformers.

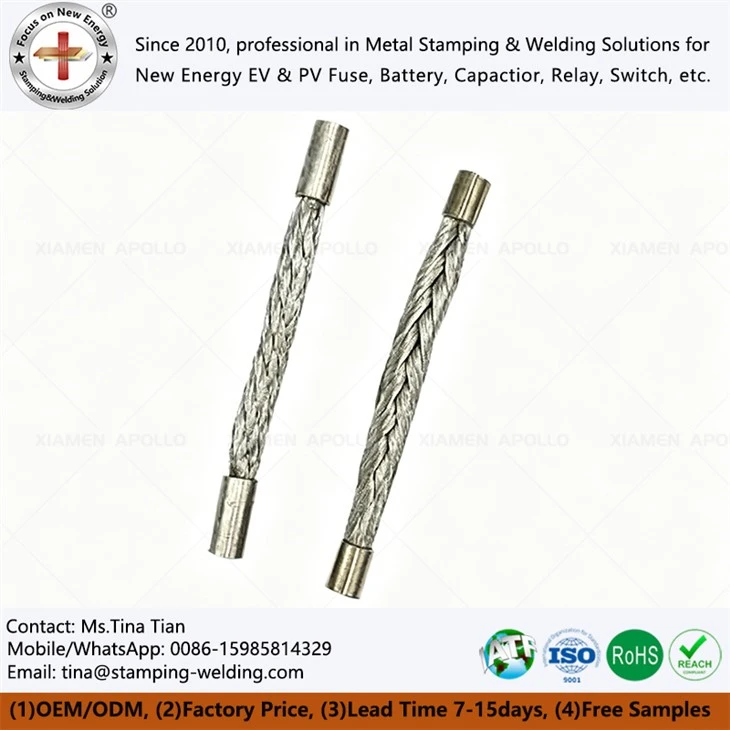

Frequently Asked Questions About Insulated Laminated Aluminum Busbar
How should one choose between laminated busbar design and copper busbars for engineering applications?
The choice hinges primarily on weight sensitivity and space constraints. Aluminum busbars have only 30% of the density of copper; while an aluminum busbar requires a cross-sectional area approximately 20–30% larger to achieve the same current-carrying capacity, its overall weight is reduced by over 50%, and the material cost is more advantageous. For EVs and large-scale ESS (Energy Storage Systems), laminated aluminum busbars offer the best solution for lightweighting and cost-effectiveness; however, if installation space is extremely limited, copper-aluminum composite or pure copper solutions should be considered.
Will internal arcing or short circuits occur if there is no insulation between the aluminum foil layers?
No. Since the multiple layers of aluminum foil are welded together at both ends to form a single equipotential unit, there is no potential difference between the layers; consequently, internal arcing does not occur. The microscopic sliding allowed between layers serves solely to provide mechanical flexibility. The critical insulation requirement is to maintain electrical isolation between the outermost layer of the busbar and the external metal housing or adjacent phase conductors.
Will the terminals of your laminated low inductive busbar experience "cold flow" or loosening during long-term use?
Traditional aluminum plates do indeed carry a risk of cold flow (creep) when fastened with bolts. However, our laminated aluminum busbar terminals are manufactured using high-energy diffusion welding; this results in near-zero internal porosity and a structural density comparable to forged aluminum components. When used with our recommended Belleville washers and appropriate plating (such as nickel or tin), the fastening force remains stable without degradation throughout the product's lifecycle.
Can you provide DFM (Design for Manufacturability) optimization recommendations based on our CAD drawings and spatial constraints?
That is precisely our core strength. Our engineering team can engage early in the project (Early Supplier Involvement) to perform current density simulations, thermal distribution analyses, and bend radius verifications on your 3D models, helping you optimize installation space and reduce mass production costs.
Contact Us
Whether you need initial DFM feasibility reviews, custom prototyping, or high-volume automated production, our engineering team is ready to collaborate with you at every stage. Contact our technical experts today to share your CAD models, request custom sample evaluations, or discover how our precision-welded laminated aluminum foil busbar solutions can streamline your next-generation battery development.
