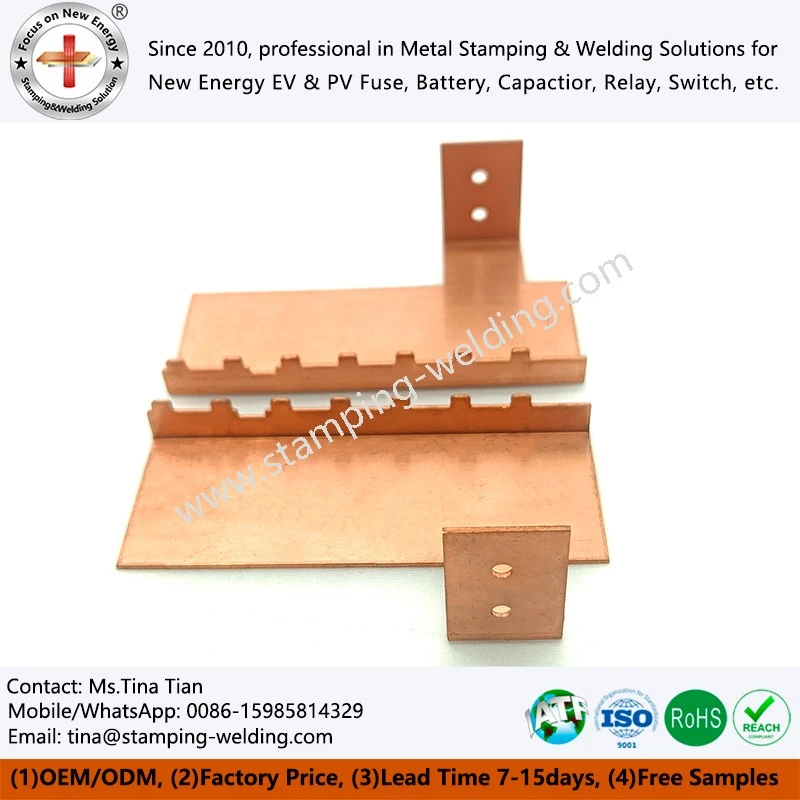

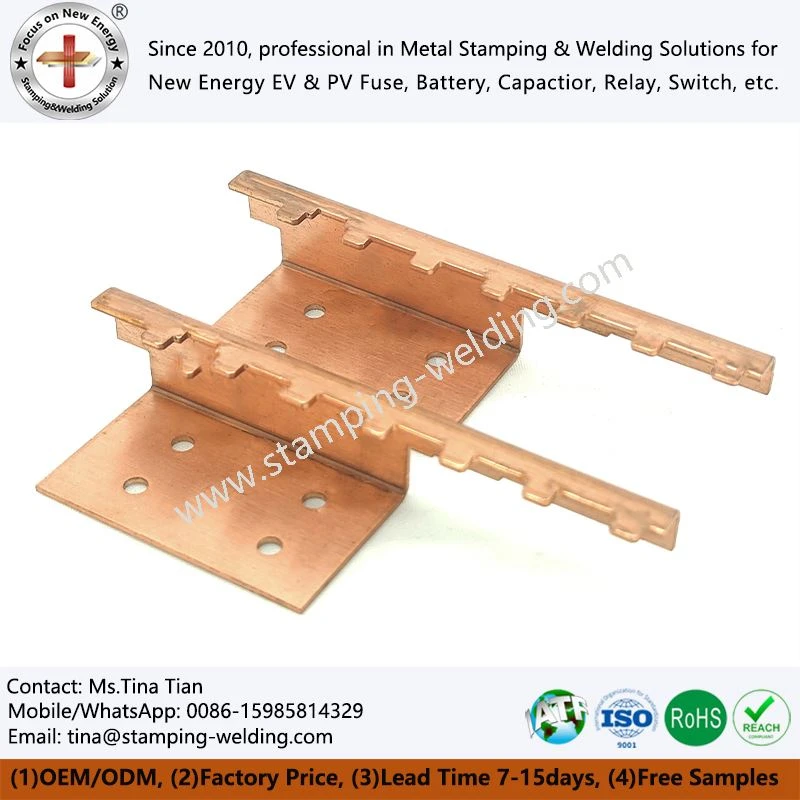

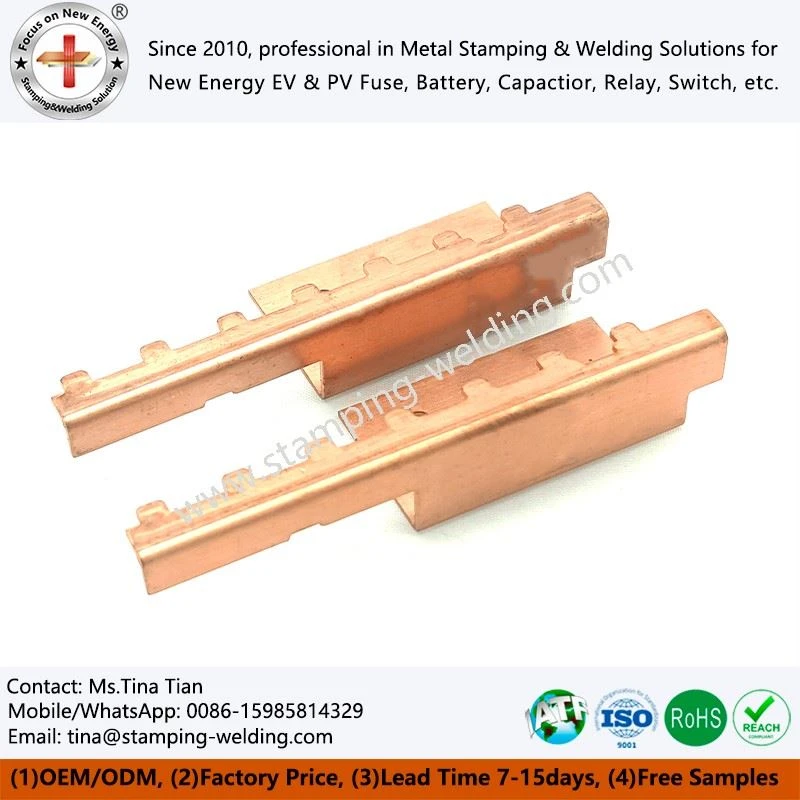

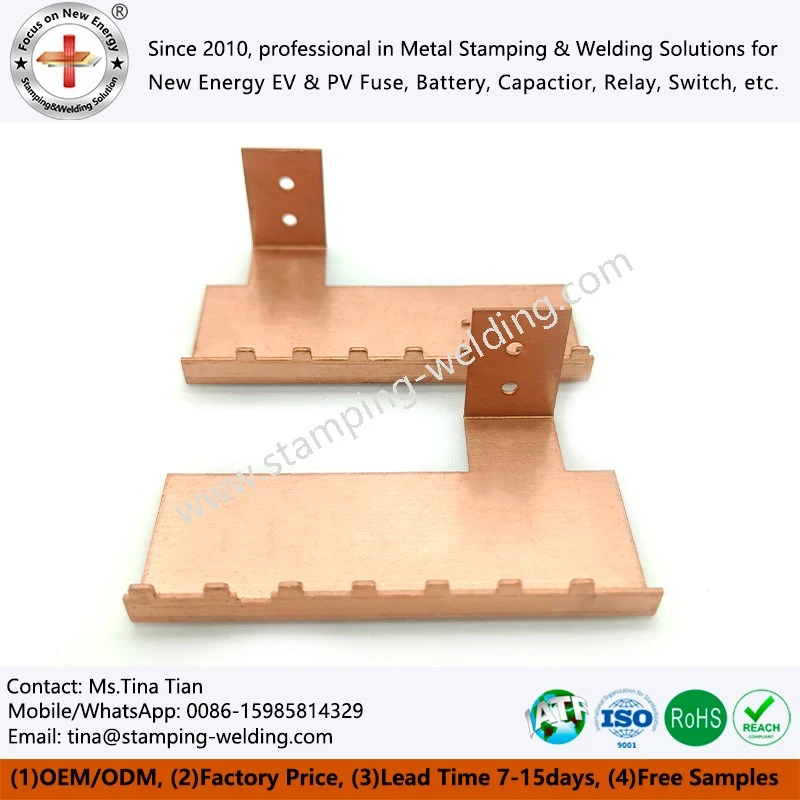

Busbar For Power Capacitor
In the electronic control systems, high-voltage inverters, and power conversion modules of new energy vehicles (EVs/HEVs), the busbar for power capacitors serves as a critical component for energy buffering and ripple suppression, demanding exceptional transient current response and heat dissipation performance. We provide customized, turnkey solutions—spanning engineering selection, electromagnetic simulation, and thermal topology optimization through to fully automated mass production—tailored to applications such as vehicle main drive inverters, DC-DC converters, and high-voltage fast-charging stations.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
What is a busbar for power capacitors?
The busbar for power capacitors is an integrated component featuring a low-inductance electromagnetic conduction topology and physical structure, specifically designed for high-power-density systems such as main drive inverters, on-board chargers (OBCs), and high-voltage DC-DC converters in new energy vehicles (EVs/HEVs). Its primary function is to carry high-frequency ripple currents-often reaching hundreds of amperes-while minimizing system parasitic inductance to the nanohenry (nH) range; this suppresses voltage spikes generated during high-frequency switching, thereby ensuring efficient energy transmission and electrical safety within the high-voltage DC system.

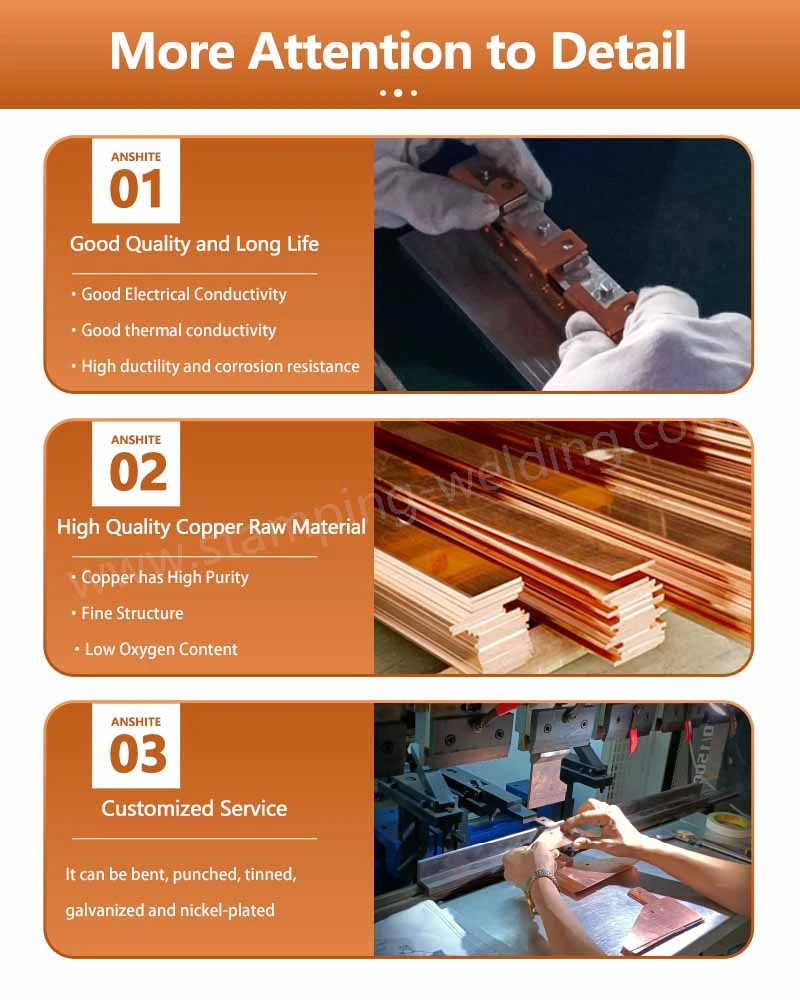

Material Advantages of EV Capacitor Busbars
| Material Category | Material & Specifications | Key Physical Properties | Selection Advantages |
| Primary Conductive Layer | C1100 / T2 Oxygen-free Copper (Purity ≥ 99.90%) | Conductivity ≥ 98% IACS; hardness adjustable via annealing. | Ensures minimal DC resistance and offers excellent ductility, facilitating precision bending. |
| High-frequency conductive layer | High-purity oxygen-free copper C1020 (OFC) | Very low oxygen content; high resistance to hydrogen embrittlement | Suitable for electrode plate connection terminals requiring high-frequency ultrasonic welding and laser welding. |
| Insulating dielectric films | DuPont™ Nomex® / Kapton® (PI) / PET / PETG | Dielectric breakdown strength > 100 kV/mm; UL94-V0 flame retardancy rating | High dielectric strength and shear stress resistance; temperature rating ranges from -40°C to +150°C. |
| Adhesive System | Proprietary thermosetting modified epoxy/acrylic resin | High thermal conductivity; peel strength > 1.5 N/mm | Resistant to solvent attack; free from bubbling or delamination under severe thermal cycling. |
| Surface Plating | Electroless nickel / Lead-free bright tin / Silver plating | Uniform plating thickness; withstands salt spray testing > 96 hours | Prevents copper surface oxidation, reduces contact resistance, and ensures long-term reliability of soldered and bolted connections. |

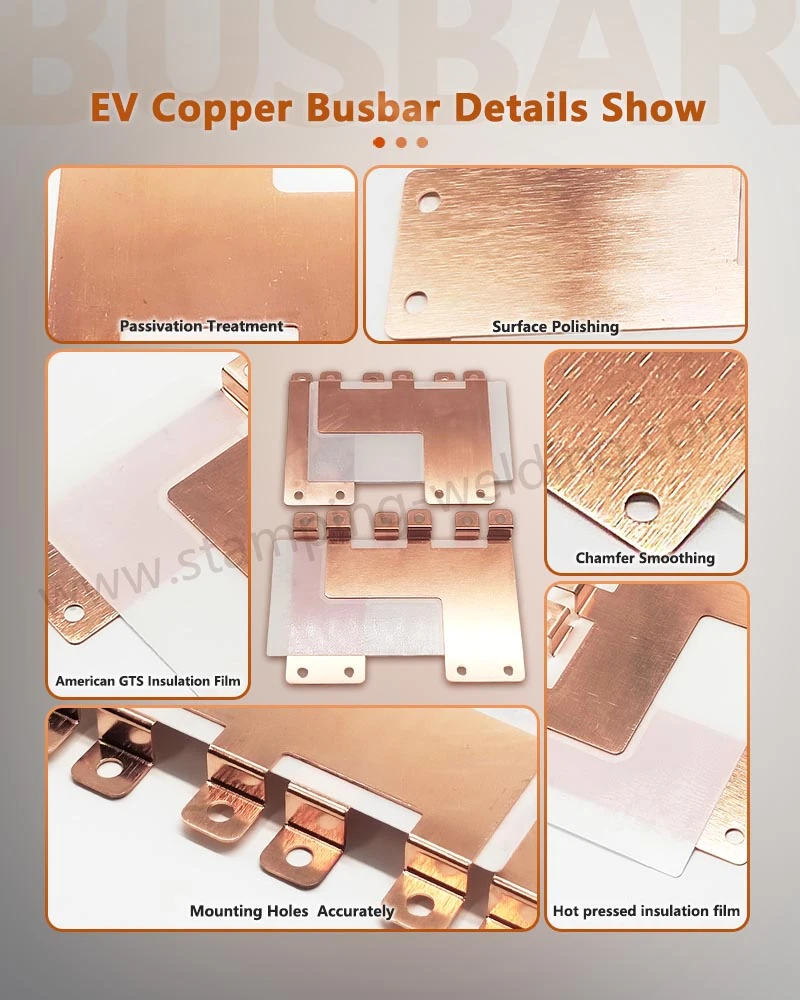

Manufacturing Process of Busbar Insulation
Incoming Inspection of Oxygen-Free Copper/Pure Copper Sheets
Precision CNC Laser Cutting / Stamping
Deburring and Micron-Level Surface Polishing
Chemical Degreasing and Multi-Layer Anti-Corrosion Plating
Automated Lamination & Insulation Film Wrapping (Class 10,000 Cleanroom)
Vacuum Hot Press Molding / Selective Epoxy Coating
Fully Automated 100% High-Voltage and Partial Discharge Testing
CMM Inspection of Geometric Dimensions and Tolerances

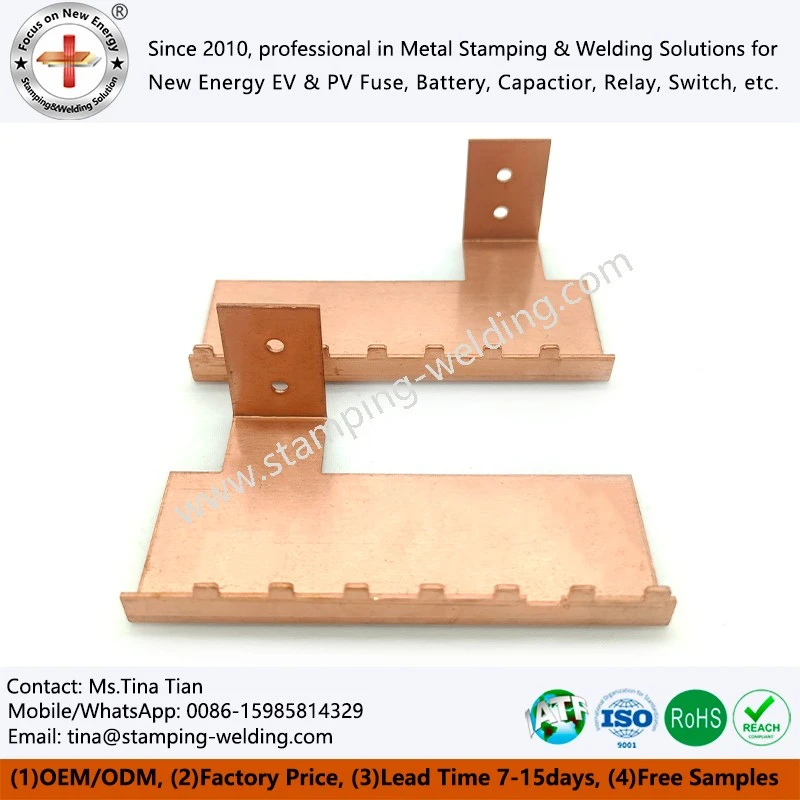

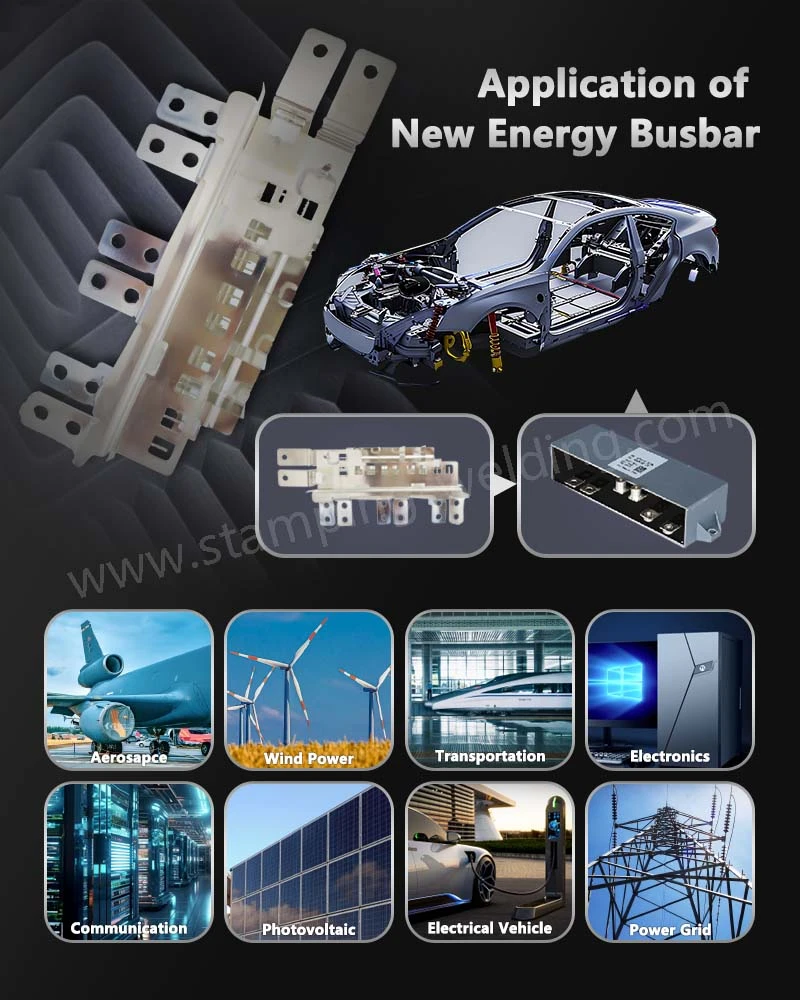

Application Scenarios for New Energy Vehicle Film Capacitor Busbars
New Energy Vehicle Main Traction Inverter
The busbar insulation serves as a high-frequency, high-current bridge between DC-Link capacitors and SiC/IGBT modules.
01
On-Board Charger and High-Voltage DC-DC Converter
Handling transient energy distribution under high-frequency, high-voltage conditions with our precision busbar connector.
02
Supercapacitor Energy Storage Systems
Utilizing an advanced EV capacitor connector bar for efficient high-current transient discharge busing and precise module balancing connections.
03
High-Voltage DC Fast Charging Stations
Designed for high-power rectifier modules, this DC capacitor busbar delivers high-density busing for internal filter capacitor banks.
04
Rail Transit and Wind/Solar/Storage Inverters
Main circuit connections for high-reliability capacitor banks in high-capacity power electronic converters.
05
Frequently Asked Questions About Capacitor Laminating Busbar
How are heat generation and AC impedance issues addressed for busbars operating at high frequencies and high currents?
Effective conductive area is expanded using structures with high width-to-thickness ratios and multi-layer parallel topologies to minimize the skin effect and AC resistance; efficient temperature control is achieved through integrated thermal dissipation channel designs.
How do the bus bar automotive ensure vibration resistance and structural stability in the harsh, bumpy environments typical of automotive applications?
High-strength copper materials are used in conjunction with damping-capable laminated insulation layers; additionally, stress-buffering designs are incorporated at the terminals to effectively absorb mechanical stress and prevent cracking.
How is welding quality ensured at the connection terminals linking the busbar to capacitors and SiC/IGBT modules?
Engineered as an advanced EV film capacitor busbar, it utilizes selective coating and micron-level positioning technologies to maintain precise weld interfaces, complemented by seamless, salt-spray-resistant plating for high-frequency ultrasonic and laser welds.
How does your automotive ground bus bar guarantee freedom from partial discharge (PD) and high-voltage insulation reliability during mass production?
Vacuum hot-pressing is used to eliminate microscopic voids within the insulation. Automated testing stations are integrated throughout the production line, ensuring 100% factory compliance with withstand voltage and partial discharge tests (conducted at 1.2 times the operating voltage, with PD levels $< 10\text{ pC}$).
Contact Us
For new energy vehicle film capacitor busbar projects requiring ultra-low inductance and high thermal conductivity, our engineering R&D team offers comprehensive DFM (Design for Manufacturability) reviews and electromagnetic simulation optimization tailored to your power topology, helping your system achieve higher power density and reliability.
