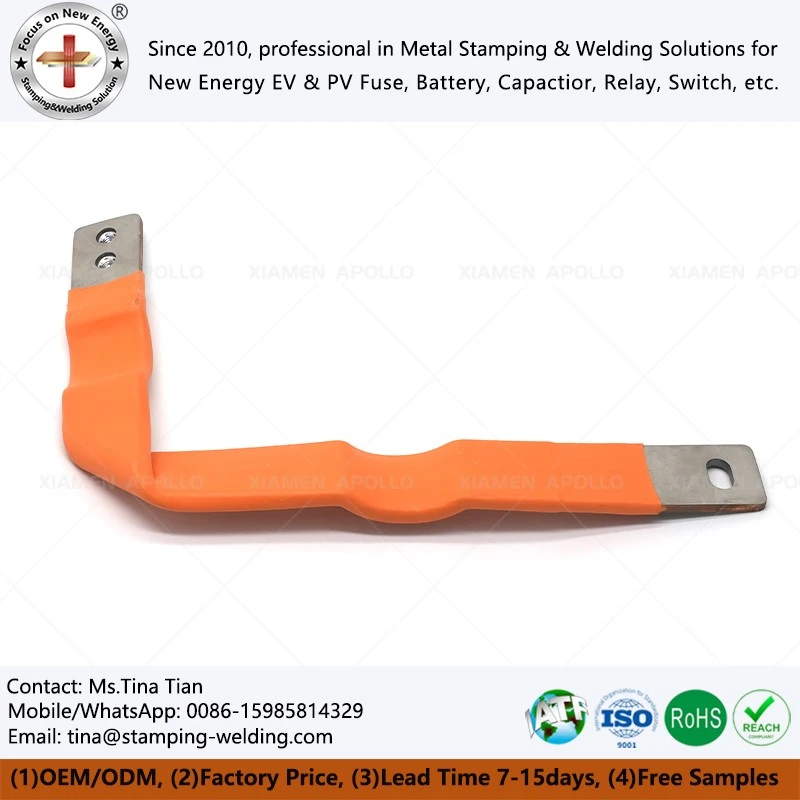

Copper Busbar With Orange Heat Shrink Tube
Copper Busbar with Orange Heat Shrink Tube is designed for electrical connection systems requiring insulated protection, compact structure and stable current transmission. Manufactured with high-conductivity copper materials and PVC heat shrink insulation sleeves, the busbar provides electrical isolation while maintaining efficient power transfer. The product supports customized shapes, hole positions and connection designs, making it suitable for EV battery packs, energy storage systems, power distribution equipment and other high-current electrical applications. Its integrated insulation structure helps improve assembly efficiency and protect the conductor from environmental exposure during operation.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

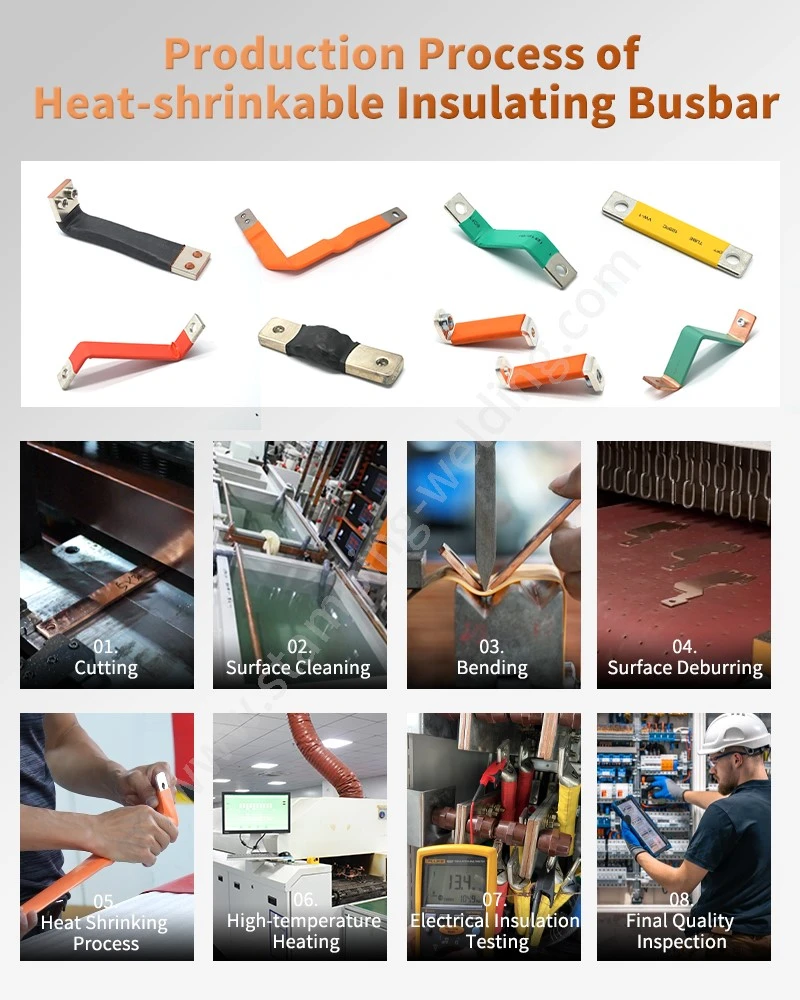

In high-voltage electrical systems, insulation protection and connection stability directly affect operational safety and service life. The Copper Busbar with Orange Heat Shrink Tube combines high conductivity copper conductors with PVC heat shrink insulation sleeves to provide electrical isolation and mechanical protection.The product uses T2 copper or C1100 copper materials, processed through cutting, bending, surface treatment and heat shrink encapsulation. The integrated structure helps reduce installation space while maintaining stable current transmission performance.
Technical Specifications & Material Standards
| Parameter | Specification |
|---|---|
| Copper Material | T2 Copper / C1100 Copper |
| Electrical Conductivity | ≥97% IACS |
| Insulation Method | PVC Heat Shrink Sleeve |
| Insulation Voltage | Customized according to application |
| Operating Temperature | -40℃ to 125℃ (Material dependent) |
| Surface Treatment | Tin Plating / Anti-oxidation Treatment |
| Busbar Thickness Tolerance | ±0.05mm or customized |
Electrical Performance & Mechanical Reliability
Low Resistance Electrical Connection
Made from pure copper or T2 copper material, the busbar provides low electrical resistance and stable current transmission for EV and power distribution systems.
Heat Shrink Insulation Protection
The PVC heat shrink sleeve forms a tight insulating layer around the copper busbar, improving electrical isolation and reducing short-circuit risks.
Mechanical Strength Control
Precision cutting, bending and edge chamfering processes ensure Solid Insulation Tubing Busbar accurate dimensions and stable installation performance during assembly.
Vibration & Environmental Resistance
The integrated insulation structure helps protect the copper conductor from moisture, dust and mechanical impact in demanding applications for Pure Copper Busbar PVC Insulated.
OEM Customization Capability
Custom Busbar Geometry Design
Copper busbar dimensions, bending angles and terminal structures can be developed according to customer drawings or electrical layouts. Complex routing designs can be optimized for installation space.
01
Heat Shrink Insulation Customization
Different sleeve colors, thicknesses and insulation coverage areas can be specified according to voltage levels and assembly requirements for Copper Busbar with Orange Heat Shrink Tube.
02
Material and Surface Treatment Options
Options include pure copper, tin plated copper and anti-oxidation surface treatments to meet different electrical and environmental conditions for Heat Shrink Tubing BusBar.
03
Prototype Development and Production Transfer
Engineering teams support sample Heat Shrink Sleeves BusBar production, design verification and transition to volume manufacturing for automotive and industrial projects.
04
OEM Supply Capability
Manufacturing supports custom orders from initial design review to batch delivery, providing stable Heat Shrink Tube Copper Insulated Busbar production control for international customers.
05
Frequently Asked Questions
Q: What advantages does a Heat Shrink Tube Copper Busbar Connection provide in EV applications?
A: Heat shrink insulated copper busbars combine high conductivity copper with compact insulation protection. The sleeve prevents accidental contact, reduces installation complexity and supports high-voltage EV battery and PDU connections.
Q: How does PVC heat shrink insulation protect copper busbars from oxidation?
A: PVC heat shrink sleeves create a protective barrier around the copper conductor, reducing exposure to moisture, dust and contaminants. Additional tin plating can further improve surface oxidation resistance.
Q: Can customized Heat Shrinkable Busbar Insulating Tape replace heat shrink tubes?
A: Heat shrink tape may suit temporary protection, while heat shrink tubes provide more consistent insulation coverage and mechanical protection for production-level copper busbar assemblies.
Q: What inspection methods are used for insulated heat shrink copper connector busbars?
A: Inspection includes copper dimension measurement, insulation coverage verification, appearance checking and electrical continuity testing to ensure assembly compatibility and stable connection performance.
Q: Can OEM customers request customized heat shrink copper busbars?
A: Yes. Customers can provide drawings, current requirements or installation specifications. Busbar dimensions, bending structure, plating treatment and insulation sleeve design can be developed according to project needs.
Contact Us
Send your copper busbar drawings, electrical parameters or assembly requirements for engineering evaluation. Our team supports custom Copper Busbar with Orange Heat Shrink Tube development, prototype verification and factory-direct production solutions.
