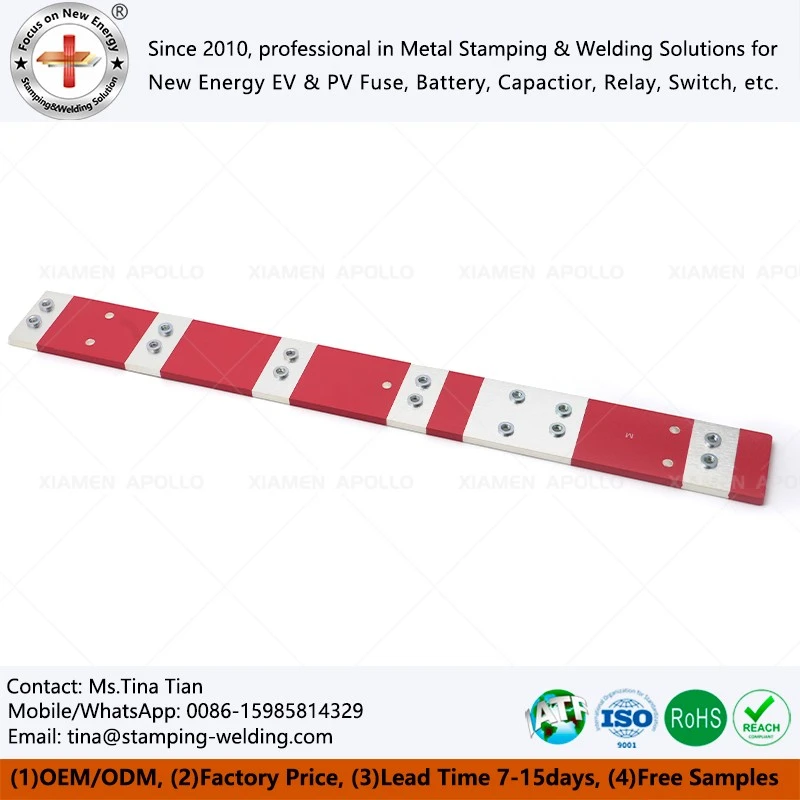

Copper Busbar With Epoxy Powder Coating
Copper Busbar With Epoxy Powder Coating are designed for high-current electrical connections and insulation protection in electric vehicles (EVs), energy storage systems, power distribution networks, and industrial electrical systems. Combining high-conductivity copper processing with epoxy powder insulation technology, these products aim to enhance electrical safety, space utilization, and long-term operational stability. They are manufactured through processes including precision copper forming, surface pretreatment, epoxy powder coating, and electrical performance testing. Leveraging our OEM capabilities, we provide tailored structural designs, insulation solutions, and production strategies to meet specific application environments and engineering requirements.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
In 800V EV battery packs and ESS cabinets with tight creepage constraints, this Copper Busbar with Epoxy Powder Coating delivers a pinhole-free dielectric barrier over complex 3D geometries. Precision-fabricated from C11000 copper (≥100% IACS), it features selective tin/silver contact plating (<5 µΩ resistance) and automated electrostatic spraying for uniform 0.3–0.8mm insulation.
Manufacturing Process
Copper Busbar Fabrication and Forming
T2 or C1100 copper is processed through cutting, stamping, CNC machining and precision bending. The Busbar with Powder Coating shape and terminal positions are controlled according to electrical design requirements.
Surface Preparation and Pretreatment
Copper surfaces are cleaned, degreased and activated to remove oxidation and contaminants, improving epoxy coating adhesion and preventing insulation defects for Busbar Epoxy Coating.
Epoxy Powder Coating and Curing
The Powder Coating EV Busbars is heated and coated by electrostatic epoxy powder spraying. High-temperature curing forms a uniform insulation layer with controlled thickness and dielectric strength.
Inspection and Testing
Finished Epoxy Powder Coated Busbar Insulation are tested for coating thickness, appearance, pinholes, dimensions and dielectric voltage performance to ensure insulation reliability in EV, ESS and power systems.
Application Scenarios & Industry Integration
Electric Vehicle High Voltage Systems
Busbar Coating is widely used in EV battery packs, PDU systems and high-voltage junction boxes. The epoxy insulation layer helps maintain electrical isolation between conductive parts while supporting compact layouts for 400V and 800V vehicle platforms.
Energy Storage ESS and PCS Cabinets
In commercial and industrial energy storage systems, epoxy coated busbars are applied for DC-link connections, battery cabinet power distribution and PCS internal connections. The insulation coating improves protection against dust, humidity and accidental contact in high-current environments.
Solar Inverters and Power Distribution Equipment
For solar inverter systems, switchgear and power distribution units, Powder Coating Busbar provide stable current transmission with reduced risk of short circuits. The customized coating area allows connection points to remain exposed while protecting other conductive sections.
Industrial Electrical and High Voltage Equipment
Busbar Coating Powders are suitable for industrial control cabinets, high-power electrical equipment and customized power systems. Their flexible structural design supports complex installation requirements, while the insulation layer improves safety and long-term electrical stability.
Quality Control & Testing Standards
Dimensional Inspection and Process Control: Each Insulating Coatings Busbar undergoes dimensional verification to ensure accurate installation and electrical connection performance. Key dimensions such as bending angles, hole positions and terminal areas are inspected using precision measuring equipment to maintain consistency for mass production.
Coating Thickness and Surface Inspection: The epoxy insulation layer is inspected for coating thickness uniformity, surface defects, pinholes and exposed copper areas. Proper control of the spraying and curing process helps ensure stable insulation performance and prevents coating peeling or damage during assembly for Busbar Insulation Paint.
Electrical Insulation Performance Testing: Finished busbars are tested through dielectric voltage testing and insulation verification to confirm the epoxy coating meets high-voltage application requirements. These tests help validate protection against electrical breakdown and short-circuit risks in EV, ESS and power distribution systems.
Quality Management and Traceability Control: Production follows ISO 9001 and IATF 16949 quality management requirements with controlled processes from material incoming inspection to final shipment. Manufacturing records, testing data and batch traceability support consistent Epoxy Powder Coating Insulated Copper Busbar quality for automotive and industrial customers.
OEM Customization Capability
Custom Busbar Structure Design Support: We provide OEM engineering support for customized Powder Coated Bus Bars designs, including conductor size, bending structure, terminal position and installation interface optimization. The design can be adjusted according to electrical layout, current requirements and space limitations in EV, ESS and power distribution systems.
Flexible Material and Insulation Configuration: Different copper materials, surface treatments and epoxy insulation solutions can be selected based on application requirements. Customers can define coating thickness, insulation coverage area, voltage rating and connection zones to achieve suitable electrical and mechanical performance.
Customized Testing and Quality Documentation: OEM projects can be supported with dimensional inspection reports, coating thickness records, dielectric voltage test results and production quality documentation. These controls help ensure customized Copper Bar with Epoxy Powder Coating meets customer technical specifications and supply chain requirements for Copper BusBar Powder Coating.
Prototype Development and Mass Production Conversion: We support the complete development process from prototype samples to volume Epoxy BusBar Coating production. Through DFM review, tooling optimization and process verification, customized busbar designs can be efficiently transferred into stable mass manufacturing.
Frequently Asked Questions
Q: What coating process is used for Copper Busbar with Epoxy Powder Coating?
A: Copper Busbar with Powder Coating uses electrostatic epoxy powder spraying followed by high-temperature curing. The process creates a bonded insulation layer with controlled thickness and tested dielectric strength.
Q: How does epoxy coating thickness affect high voltage busbar performance?
A: Epoxy coating thickness determines insulation distance and mechanical protection. Engineers select thickness based on voltage rating, clearance requirements, heat dissipation and installation environment.
Q: Can epoxy powder coated busbars be customized for complex structures?
A: Yes. Epoxy Powder Coating Custom Copper Busbar designs support multi-bend structures, special terminals and customized insulation areas through masking and precision forming processes.
Q: How is coating damage detected before delivery?
A: Manufacturers use visual inspection, thickness measurement, adhesion testing and dielectric voltage testing to identify scratches, pinholes or insulation defects before shipment.
Q: What industries use epoxy coated copper busbars?
A: Epoxy coated copper busbars are widely used in EV battery systems, ESS cabinets, power distribution equipment, renewable energy systems and industrial electrical applications.
Contact Us
Send your Copper Busbar with Epoxy Powder Coating drawings, voltage requirements and current specifications for engineering evaluation. Our team can review insulation design, manufacturing feasibility and provide an OEM production proposal for your project.
