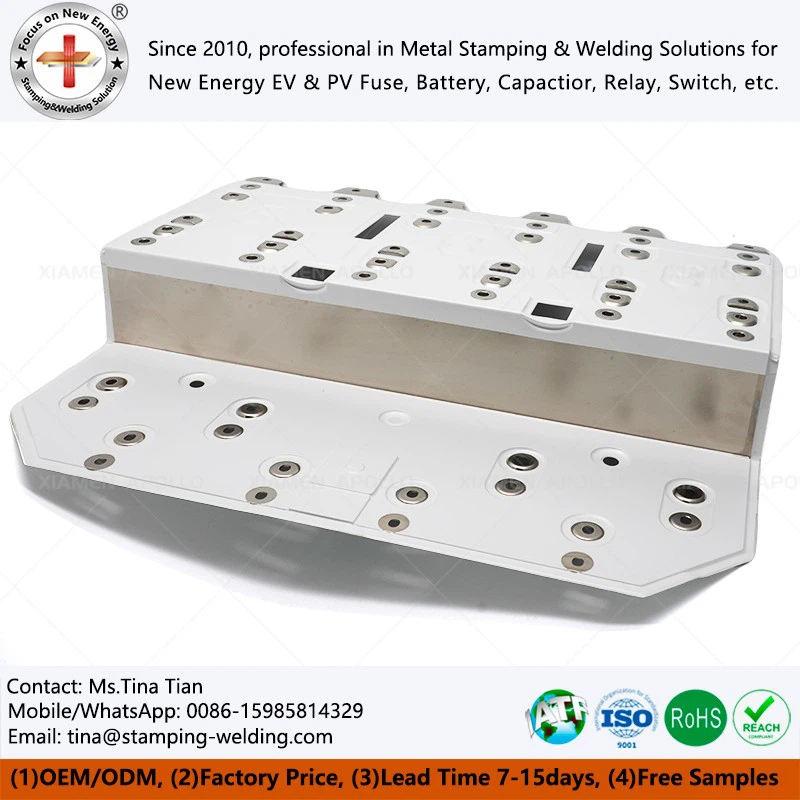

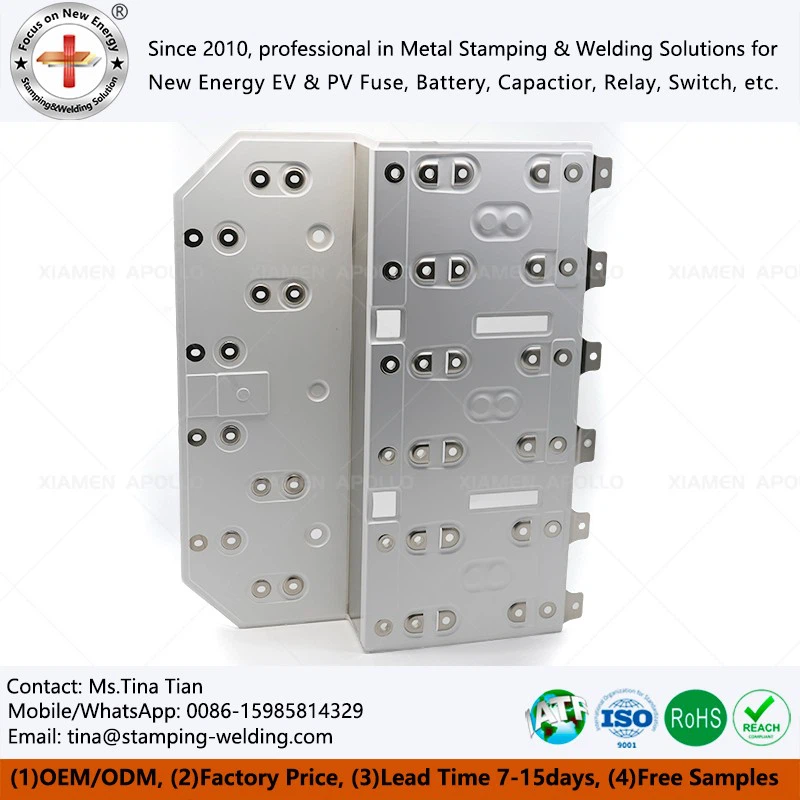

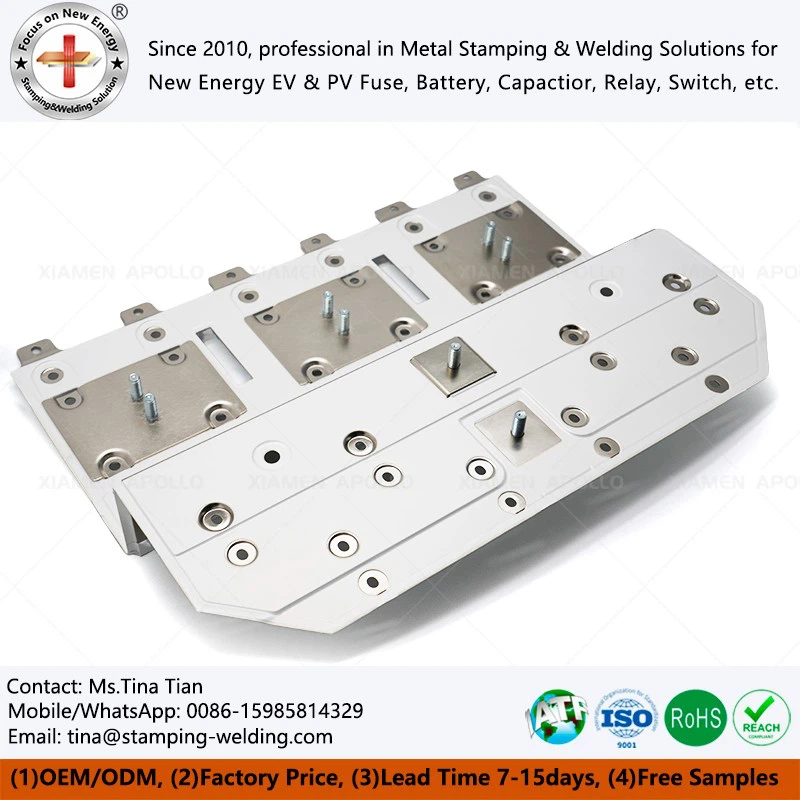

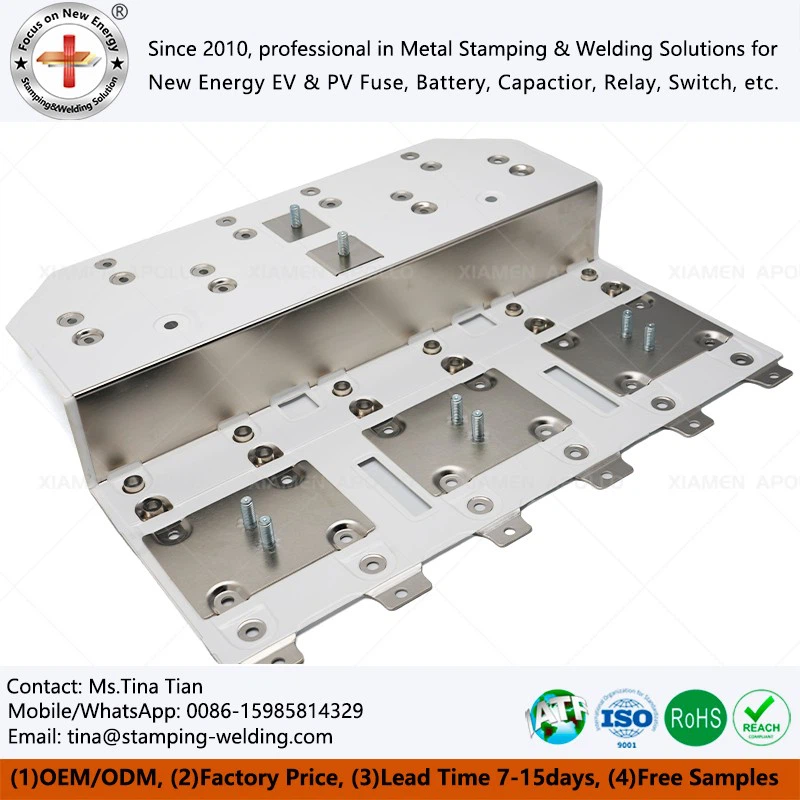

Laminated BusBars For Power Capacitor DC Link
Laminated BusBars for Power Capacitor DC Link are highly integrated conductive components designed specifically for DC link capacitors and power modules. This product utilizes an alternating lamination process of multi-layer conductive copper busbars and high-performance insulating films to transform traditional discrete wiring into a rigid connection structure with low inductance and high reliability. Its core engineering value lies in solving the challenges of parasitic inductance suppression, electromagnetic compatibility (EMC) optimization, and thermal management in high-frequency switching scenarios, directly determining the conversion efficiency and long-term stability of inverters, frequency converters, and energy storage systems.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
This Laminated BusBars for Power Capacitor DC Link is a high-power interconnect core component specifically designed for DC link circuits of power capacitors. It primarily targets scenarios such as new energy power generation, energy storage converters, industrial frequency converters, new energy vehicle charging piles, and medium- and low-voltage power electronic equipment, precisely matching the selection, procurement, and mass deployment needs of engineering procurement and system engineers in the power electronics field. Unlike traditional discrete cables and single-layer copper busbar splicing interconnect solutions, this product adopts integrated laminated composite, multi-layer conductive insulation isolation, and precision molding processing technology, fundamentally solving the pain points of traditional DC link connections such as high parasitic inductance, high heat loss, poor structural consistency, difficult on-site assembly, and high long-term failure rate.
Technical features
Ultra-low parasitic inductance optimization
Based on electromagnetic field simulation, the structure is finalized, employing a parallel and symmetrical stacked structure of positive and negative conductive layers. Precise control of layer spacing and conductor cross-sectional area ensures that the parasitic inductance of the DC link is stably controlled within 20nH, and can be reduced to below 10nH for high-frequency models. This effectively suppresses IGBT/SiC switching spikes and circuit oscillations, protecting the power capacitor core from overvoltage and harmonic impacts, and adapting to the operating requirements of DC links across the entire frequency band for Transportation Locomotive Power BusBar.
Wide range parameter customization
Compatible with various power capacitors with rated voltages of DC 500V-3500V and rated currents of 100A-5000A. Copper specifications, cross-sectional area, and surface plating can be selected as needed. The insulation withstand voltage is ≥AC 3000V/1min, and creepage distance and clearance fully meet standards, eliminating the risk of insulation failure from a parameter perspective.
Impedance matching design
The overall DC resistance of the product is ≤0.1mΩ, the terminal contact resistance is stable and controllable, the circuit loss and local heat generation are greatly reduced, the internal resistance characteristics are highly matched with the power capacitor, effectively improving the power transmission efficiency of the DC link and avoiding system overheating and efficiency decline caused Traffic Tram Electric BusBar by impedance imbalance.
Core Functions
High-Power Integrated Interconnection
Utilizing a multi-layer conductive and insulating integrated laminated structure, this product enables high-power, low-loss, and stable interconnection of power capacitor DC links, completely replacing traditional discrete copper busbars and cable connections, thus avoiding assembly errors and additional performance losses from the outset.
01
Ultra-Low Inductance and Oscillation Resistance
Based on a symmetrical positive and negative electrode stacking layout design, the parasitic inductance of the DC link is stably controlled within 20nH, with a customized high-frequency version as low as 10nH. This effectively suppresses IGBT/SiC switching spikes and circuit oscillations, providing comprehensive protection for the capacitor core and power devices for Web Server BusBar.
02
Low Resistance and High-Efficiency Heat Dissipation
Using high-purity T2 copper as the conductive substrate, coupled with compact wiring to optimize heat dissipation paths, the overall DC resistance is ≤0.1mΩ, significantly reducing current-carrying heat loss. The BusBar for Electric Locomotive precisely matches the capacitor's internal resistance, comprehensively improving link transmission efficiency.
03
Compact, Customizable, and Easy to Assemble
The integrated laminated design reduces Industrial Frequency Converter BusBar volume by 40%-60% compared to traditional solutions. It supports customized openings and bending shapes, with assembly errors strictly controlled to ≤0.1mm. No on-site secondary processing is required, effectively simplifying cabinet space and streamlining the assembly process.
04
Long-Lasting Stability and Durability
Utilizing high-temperature resistant insulation media combined with edge passivation sealing technology, and supplemented by high-standard insulation and mechanical protection, it is suitable for harsh operating conditions such as high and low temperatures and humid environments. The Mainframe BusBar is matched with power capacitors with a 15-year design life, extending the overall system lifespan.
05
Technical Team
The company's core technical backbone comes from Xiamen Hongfa Group, a state-owned listed company (the world's number one in the relay and switch industry). With more than 30 years of experience in the electrical industry, they can not only provide qualified Laminated BusBars for Power Capacitor DC Link, but also provide customers with cost reduction and efficiency improvement solutions for DC link systems of power capacitors based on cutting-edge industry technologies. They can also assist in optimizing product design, improving system performance, and sharing the latest industry technology trends to achieve dual guarantees of technology and supply.
Contact us
For customized selection, sample application, technical solution coordination, and bulk procurement needs of Laminated BusBars for Power Capacitor DC Link, please contact our technical and business teams at any time to obtain a customized engineering adaptation solution and accurate quotation.
